HUMMER Reveals 2009 H3T

2009 HUMMER H3TCHICAGO – HUMMER is bringing its unmistakable style and unmatched capability to the truck market with the 2009 H3T. It is based on the architecture of the popular H3, but features a five-passenger crew cab and a separate five-foot-long (1.5 meters) bed.

The H3T is bigger than a midsize truck and smaller than a full-size truck, creating its own niche in the market. It also is infused with the attributes expected of a HUMMER, including exceptional off-road capability and a premium interior that is as functional as it is comfortable.

With its unique size and HUMMER traits, the H3T is ideal for the customer who works hard and plays harder,” said Martin Walsh, HUMMER general manager. "It offers the combination of truck versatility and HUMMER off-road prowess that delivers customers to the trail in style.

In addition to its segment-defying size, the H3T also stands apart from other trucks with its signature HUMMER off-road capability. It is the only midsize truck to come standard with full-time four-wheel drive, 32-inch tires and functional skid shields. It also is the only midsize truck to offer front and rear locking differentials, as well as 33-inch tires – and the V-8-powered H3T Alpha can tow up to 5,900 pounds (2,676 kg).

2009 HUMMER H3T
2009 HUMMER H3T

The H3T is offered in four trim levels, including five-cylinder models and the popular, V-8-powered H3T Alpha edition. Production is scheduled to begin in the third quarter of 2008 at GM’s Shreveport, La., assembly plant, with vehicles arriving at HUMMER dealerships shortly thereafter. HUMMER will sell the H3T in North America, Europe and the Middle East.

2009 HUMMER H3TDesign

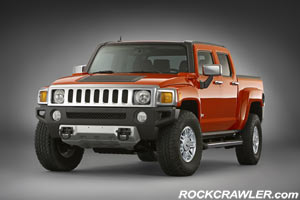

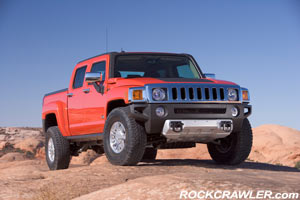

Like all HUMMER models, the H3T has a purposeful design, consistent and iconic styling cues, including a wide, aggressive stance; a low roofline and high beltline; and large, off-road tires. The wide, seven-slot grille and round headlamps mounted in square housings are signature HUMMER design elements.

Form following function is at the core of HUMMER’s design philosophy and the H3T’s capability reflects that mantra,” said Carl Zipfel, HUMMER director of design and former motocross professional. “It has a distinctive look that could be mistaken for nothing except a HUMMER – and it also has the functionality to get the driver to and from the trail in style.

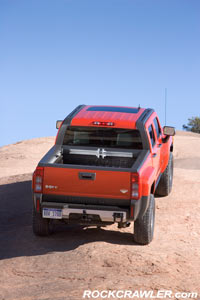

The crew cab body shares H3 styling and components from the B-pillar forward, while the rear section of the cab and the separate bed are unique to the H3T. The five-foot bed is similar in design and function to GM’s recently redesigned full-size trucks, including an easily removable tailgate and provisions for a bed-rail accessory system. A full-size spare tire is mounted beneath the bed.

2009 HUMMER H3T
2009 HUMMER H3T

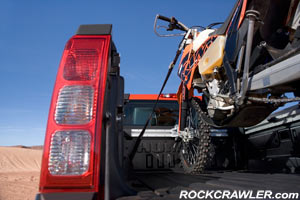

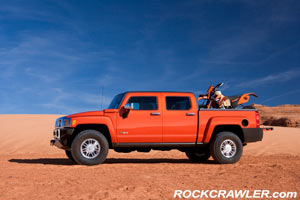

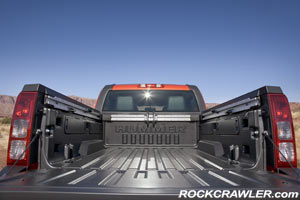

The bed is sized to carry a wide range of popular outdoor necessities, from hauling motocross bikes to Baja, a quad to camp or backcountry gear to the trailhead. One of the industry’s largest portfolios of accessories complements the H3T’s bed, offering different cargo management options to complement all of those lifestyle interests.

2009 HUMMER H3TAccessories

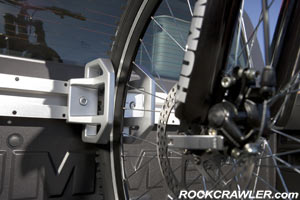

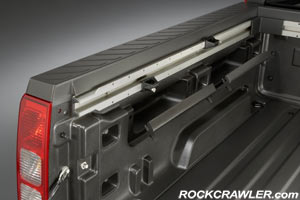

One of the industry’s broadest portfolios of vehicle accessories has been developed for the H3T. Centered on active lifestyles, items such as removable and lockable bed-mounted storage boxes; an adjustable bike chock that can be used to help secure mountain bikes or motorcycles; and a bed extender make full use of the standard bed-rail cargo management system. A range of additional accessories that improves off-road capabilities, provides passenger entertainment and enhances exterior styling is also available. There are more than 75 HUMMER Genuine Accessories offered.

In addition to the factory-developed accessory portfolio, HUMMER has partnered with top automotive aftermarket companies to develop more than 50 Officially Licensed HUMMER Accessories – a first for the brand. A variety of exterior enhancements, such as a Slant Back Bed Cover, hard tonneau covers and a winch are offered, along with cargo management solutions such as the BedSlide and bed divider, offering countless possibilities to personalize the H3T.

2009 HUMMER H3T
2009 HUMMER H3T



2009 HUMMER H3TInterior

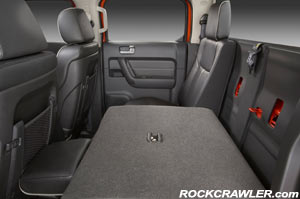

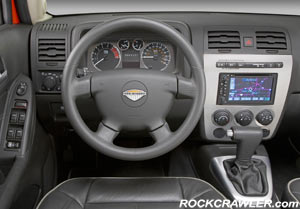

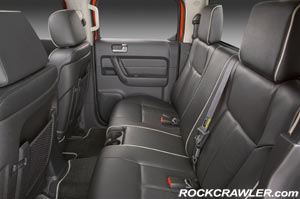

The H3T’s crew cab cabin offers seating for five adults, with a 60/40-split rear bench seat that folds flat for increased cargo-carrying options. The cabin’s layout is essentially identical to the acclaimed H3 SUV, with premium materials and attention to detail that give the vehicle a functional yet refined aesthetic.

Standard amenities also include air conditioning, power locks, power windows and remote keyless entry. An AM/FM radio with CD is standard and a premium Monsoon audio system is available. XM Satellite Radio also is standard and includes three months of trial service.

HUMMER’s Rear Vision system and a navigation system are available. The Rear Vision system uses a camera mounted on the rear bumper, directly above the trailer hitch mount, to provide a view of objects directly behind the vehicle. Also, the safety and security of OnStar is standard, with Turn-By-Turn Navigation and hands-free Bluetooth connectivity available.

2009 HUMMER H3T
2009 HUMMER H3T

Powertrain
Standard in the H3T is the Vortec 3.7L I-5 with dual overhead cams and variable valve timing. This inline five-cylinder engine offers an excellent combination of power and efficiency, delivering 242 horsepower (180 kW) at 5600 rpm* and 242 lb.-ft. of torque (328 Nm) at 4600 rpm. It is backed by a five-speed manual transmission or an available four-speed, electronically controlled automatic.

The H3T Alpha’s 5.3L engine is a powerful and efficient member of GM’s legendary small-block V-8 family. It is rated at 300 horsepower (224 kW)* and 320 lb.-ft. of torque (434 Nm).* An aluminum cylinder block is used with the H3 Alpha’s engine. It helps reduce overall mass and maintains a more desirable front-to-rear weight balance.

A Hydra-Matic 4L60 electronically controlled four-speed automatic transmission is paired with the 5.3L engine. Flat towing is enabled on all H3 and H3T models.

2009 HUMMER H3TChassis
The H3T’s frame and suspension system are based on a stretched version of the H3 SUV’s chassis and suspension – the same race-proven design found on Baja 1000-winning stock-class race trucks. The wheelbase measures 134.2 inches (3,409 mm) – 22 inches (86 mm) longer than the H3 SUV.

A ladder-type frame is the truck’s foundation and it has a modular, three-piece design that incorporates fully boxed components for outstanding strength and stiffness. An independent SLA torsion bar front suspension and multileaf Hotchkiss-type rear suspension are used. There are two suspension packages available:

  • Z85 Heavy-Duty Handling and Trailering – This standard suspension delivers an excellent balance of on-highway comfort and off-road capability. It includes 32-inch all-terrain tires mounted on 16-inch, smoke-color steel wheels, specially tuned heavy-duty shocks and either a 4.56-ratio (3.7L) or 4.10-ratio (5.3L) rear axle.
  • Off-Road Adventure – Designed for more aggressive off-road performance, this optional suspension package includes taller, 33-inch tires, specifically tuned shocks, locking front and rear differentials, 4.03:1 low-range gearing in the transfer case and industry-leading crawl ratios of either 68.9 with the manual transmission or 56.2 with the automatic.

To support the torque output of the 5.3L V-8, the H3T Alpha’s front differential case is made of cast iron; other models feature an aluminum case. V-8-powered vehicles also receive higher torsion bar rates to support the increased mass and specific shock valving. The chassis and suspensions were validated in real-world testing on off-road trails in Moab, Utah; the Rubicon Trail in California, and other challenging off-road venues.

2009 HUMMER H3TOff-road capability
The H3T lives up to HUMMER’s legendary off-road reputation, with best-in-class extreme off-road capability. Highlights include:

  • Ability to climb a 60-percent grade and traverse a 40-percent side slope
  • Exceptional 10.2-inch (285 mm) ground clearance (with 33-inch tires)
  • 38.7-degree approach angle and 30.1-degree departure angle (with 33-inch tires)
  • Segment-first available front- and rear-locking differentials
  • Standard HUMMER Hill Hold Assist for improved hill ascension

“For most lifestyles, there’s almost nothing the H3T can’t handle,” said Walsh. “It’s a truck with HUMMER’s immutable capability.”

Complementing the features that enable the H3T’s impressive off-road prowess is a host of first-class protective elements, including four standard skid shields: a front shield, an oil-pan shield/front-axle shield, a transfer case shield and a fuel tank shield.

Safety
Continuing HUMMER’s tradition of delivering a broad range of safety systems, the H3T offers the following standard features:

  • Dual frontal air bags with GM’s passenger sensing system
  • Head curtain side-impact air bags
  • StabiliTrak electronic vehicle stability control system
  • Four-wheel ABS with traction control
  • Tire pressure monitoring system
  • LATCH rear child seat anchors
  • OnStar with one-year Safe & Sound service

The H3T was also designed for vehicle-to-vehicle compatibility in the event of a crash and its rigid body structure provides good passenger protection.

2009 HUMMER H3T
2009 HUMMER H3T


2009 HUMMER H3T PRELIMINARY SPECIFICATIONS

Overview

Model:

HUMMER H3T

Body style / driveline:

Crew Cab (5 passengers), front-engine rear-wheel drive and four-wheel drive pickup

EPA vehicle class:

compact pickup

Construction:

welded steel frame, electro galvanized steel

Manufacturing location:

Shreveport, La.

Key competitors:

Toyota Tacoma, Nissan Frontier, Dodge Dakota

Engine

Type:

3.7L I-5

5.3L V-8

Displacement (cu in / cc):

223 / 3653

325 / 5328

Bore & stroke (in / mm):

3.76 x 4.0 / 95.5 x 102

3.78 x 3.62 / 96 x 92

Block material:

lost foam cast aluminum

cast aluminum

Cylinder head material:

lost foam cast aluminum

cast aluminum

Valvetrain:

dual overhead camshafts, continuously variable exhaust valve timing, 4 valves-per-cylinder, with dual balance shafts

OHV, 2 valves per cylinder

Ignition system:

distributorless electronic spark, coil-on-plug, platinum-tipped spark plugs

coil near plug, composite intake manifold, platinum-tipped spark plugs, low-resistance spark plug wires

Fuel delivery:

sequential fuel injection

sequential fuel injection

Compression ratio:

10.0:1

9.9:1

Horsepower (hp / kW @ rpm):

242 / 180 @ 5600*

300 / 224 @ 5200*

Torque (lb.-ft. / Nm @ rpm):

242 / 328 @ 4600*

320 / 434 @ 4000*

Recommended fuel:

regular unleaded

regular unleaded

Maximum engine speed (rpm):

6300

6000

Emissions controls:

dual “split converter” design; LEV II

close-coupled catalytic converter, Quick Sync 58X ignition, returnless fuel rail, fast-response O² sensor

Fuel economy (mpg city / hwy):

TBD

TBD

Transmissions



MA5

Hydra-Matic 4L60

Type:

5-speed manual

4-speed electronically controlled automatic

Gear ratios (:1):





First:

3.75

3.06

Second:

2.20

1.63

Third:

1.37

1.00

Fourth:

1.00

0.70

Fifth:

0.73

-----

Reverse:

3.67

2.29

Stall ratio:

NA

1.90

Final drive axle ratio:

4.56

4.56 (3.7L), 4.10 (5.3L)

Low range lock gear reduction:

2.64 std, 4.03 opt

2.64 std, 4.03 opt

Crawl ratio (range):

33:1 std, 68.9:1 opt

33:1 std, 50:1 opt



Chassis / Suspension

Front:

independent SLA torsion bar, 46-mm monotube gas-charged shocks, 36-mm tubular stabilizer bar

Rear:

“Hotchkiss”-design multileaf, semi-elliptic dual-stage leaf spring, 46mm mono-tube gas-charged shocks, 25mm rear solid diameter stabilizer bar

Steering type:

power-assisted rack-and-pinion, with tri-bushing mount design

Steering ratio:

16:1

Steering wheel turns, lock-to-lock:

3.125

Turning circle, curb-to-curb (ft / m):

43.8 / 13.3

Brakes

Type:

electro-hydraulic power 4-wheel disc, 4-wheel anti-lock, four-piston opposed (fixed) front caliper/single piston sliding rear caliper with Dynamic Rear Proportioning

Rotor diameter x thickness (in / mm):

front: 12.4 x 1.1 / 315 x 28
rear: 12.28 x 0.47 / 312 x 12

Total swept area (sq in / sq cm):

front: 69.4 / 448
rear: 51 / 328

Wheels/Tires

Wheel size & type:

16-inch x 7.5-inch steel std.; 16-inch x 7.5-inch aluminum opt.

Tires:

std: P265/75R16; opt: LT285/75R16 on-/off-road Bridgestone radials (with ZM6 Adventure package)

Spare tire:

full-size spare



Dimensions

Wheelbase (in / mm):

134.2 / 3409

Overall length:

210.3 / 5343

Overall width (in / mm):

85.1 / 2161

Overall height (in / mm):

72.2 / 1835

Track (in / mm):

front: 65.5 / 1665
rear: 66.1 / 1678

Minimum ground clearance front (in / mm):

w/ 32-inch tires: 9.5 / 242
w/ 33-inch tires: 10.2 / 285

Step-in height (in / mm):



  Front:

w/ 32-inch tires: 23.4 / 594

  Rear:

w/ 32-inch tires: 23.9 / 607

RTI

21.7

Approach angle (degrees):

w/ 32-inch tires: 37.1
w/ 33-inch tires: 38.7

Departure angle (degrees):

w/ 32-inch tires: 29
w/ 33-inch tires: 30.1

Breakover angle (degrees):

w/ 32-inch tires: 20.1
w/ 33-inch tires: 21.2

Grade capability (percent):

60

Side slope capability (percent):

40

Water fording capability (in / mm):

24 / 610 (at 5 mph)

Curb weight (lb / kg):

4850 / 2200


Interior


Seating capacity:

5

Headroom (in / mm):



  Front:

w/ sunroof: 39.9 / 1013
w/o sunroof: 40.7 / 1034

  Rear:

w/ sunroof: 37.3 / 947
w/o sunroof: 39.4 / 1002

Legroom (in / mm):



  Front:

41.9 / 1063

  Rear:

33.8 / 859

Shoulder room (in / mm):



  Front:

54.4 / 1381

  Rear:

54 / 1372

Hip room (in / mm):



  Front:

53.8 / 1366

  Rear:

52.6 / 1336

Cargo Box


Cargo volume (cu ft / L):

35.67 / 1010

Length at floor (in / mm):

59.3 / 1506

Width at floor (in / mm):

50.5 / 1281

Width between wheel housings (in / mm):

44.2 / 1123

Tailgate width (in / mm):

54.6 / 1387

Inside height (in / mm):

19 / 481

Capacities

GVWR, standard (lb / kg):

6001 / 2722 (3.7L)                                      6100 / 2767 (5.3L)

Payload, base (lb / kg):

1150 / 522 (3.7L)                                        1015 / 460 (5.3L)

Fuel tank (gal / L):

25.7 / 97.3

Engine oil (qt / L):

6 / 5.7

Maximum trailer weight (lb / kg):

4400 / 1996 (3.7L)                                       5900 / 2676 (5.3L)

Maximum tongue weight (lb / kg):

450 / 204

*Pending SAE certification.

Note: Information shown is current at time of publication.
