    Superlift 6” Lift Kit for 2009-2014 Ford F-150 4WD​



    Available with Superide, or Superide SS by Bilstein Rear Shocks

    [​IMG]Superlift’s 6″ lift kit for 2009-2014 Ford F150 4WD trucks achieves front lift by installing spacers on top of the factory front strut / coil spring assemblies, eliminating time consuming strut disassembly. The factory upper control arms are retained and remain in their original location, while the factory lower control arms and axle housing are lowered, in relation to the frame. New Superlift replacement steering knuckles made of cast ductile iron, and machined in-house by Superlift, span the increased distance between the control arms without increasing track width. A billet front driveshaft spacer ensures proper driveshaft engagement and length; brake hose extensions are also supplied.
    Superlift’s geometry, from steering timing and linkage angles, to driveshaft and CV axle operating angles, yields optimal component service life and exceptional drivability.


    Superlift’s lower control arm cross-members are a one-piece, full-width, high-clearance design made of .25″ steel plate, joined together by a wrap-around skid plate that protects the differential. The front suspension assembly is further reinforced by kicker braces.
    Superlift utilizes a block and U-bolt kit, which incorporates compression travel-stops, to lift the rear of the truck.
    [​IMG]
    Superlift’s 6″ lift kit for the 2009-14 F150s retain the factory front struts, and it can be ordered with rear Superlift Superide or Superide SS shocks by Bilstein.
    Like all Superlift Lift Kits, this kit is Made in the USA, and is backed by Superlift’s Industry Best Lifetime Warranty and 60-Day Consumer Satisfaction Guarantee.
    NOTE: Superlift proudly says that this lift system was the first independently tested vehicle to meet and exceed all specifications and requirements of National Highway Traffic Safety Administration (NHTSA) Federal Motor Vehicle Safety Standard 126 (FMVSS 126).

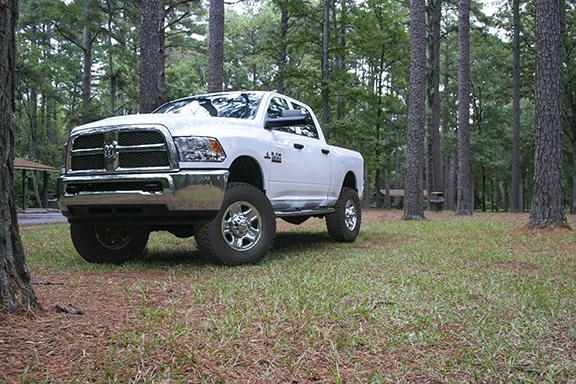

    Superlift’s 2.5” Level-It Kit for 2014 Ram 2500 & 3500​


    Superlift’s 2.5” Level-It kit for the Ram 2500 and 3500 features fabricated steel spacers that bolt to the coil spring towers. Additionally, relocation brackets for the factory shock absorbers’ bottom mounts ensure adequate shock extension travel. Unless the shocks are relocated, they will prematurely “top out” from being fully extended, creating a harsh ride and ultimately damaging the shocks.
    All primary kit components are manufactured in-house by Superlift, and feature a durable powder coated and zinc plate finish.
    Superlift Level-It Kits, like all Superlift Lift Kits, are Made in the USA, and carry Superlift’s Industry Best Lifetime Warranty and 60-Day Consumer Satisfaction Guarantee.

    The post Two New Lift Kits from Superlift Suspension appeared first on RockCrawler 4x4 and Offroad Magazine.
