Trail-Gear is now offering LED Light Bars and Covers

All 6 Inch CoversWant more protection for your TG LED Light Bars? Our LED Light Bar Covers will give you the extra protection you need as well as give your light bars a new stylish look.

Our LED Light Bar Covers come in three different options: Black, Clear, and Amber.

The opaque black covers keep you from blinding other drivers if you inadvertently turn your light bars on when driving on a public street or highway. These covers may be required by law in your state. Clear covers offer additional protection against debris and are great for racing. Amber covers improve visibility in dusty or foggy conditions.

Each cover is sold individually.

Note: 12” light bars require two 6” covers. 20” light bars required two 6” covers and one 8” cover.

Available Options:

 LED Light Bar Cover, 6”, Black, 302456, $10.50

 LED Light Bar Cover, 6”, Clear, 302457, $10.50

 LED Light Bar Cover, 6”, Amber, 302458, $10.50

 LED Light Bar Cover, 8”, Black, 302477, $10.50

 LED Light Bar Cover, 8”, Clear, 302478, $10.50

 LED Light Bar Cover, 8”, Amber, 302479, $10.50

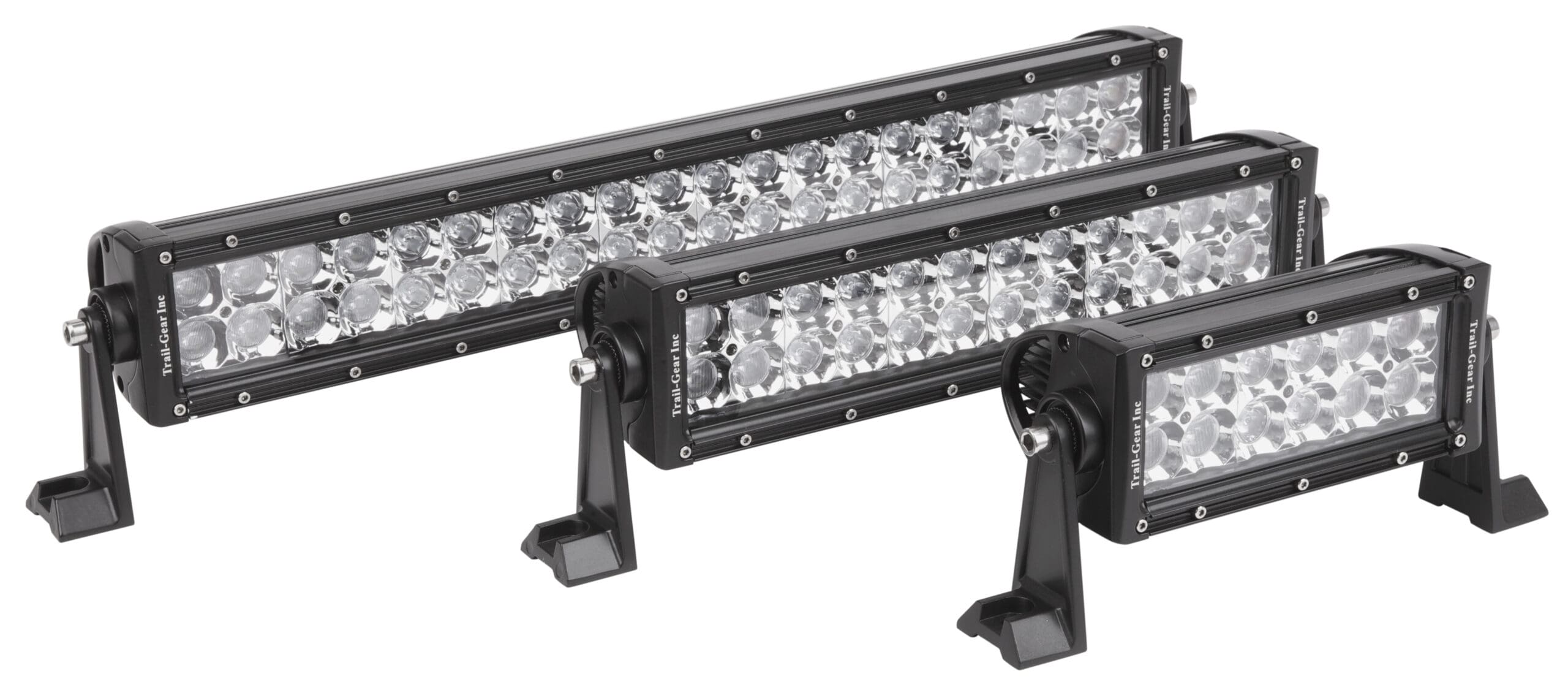

LED Cluster no quadsNeed an alternative LED light that has the power to light up the trail without breaking the bank? The new TG LED Light Bars are your answer. TG LED Light Bars are versatile and can be mounted on any vehicle ranging from trucks, cars, and UTVs. These lights are powerful enough to light up the darkest road or trail.

TG LED Light Bars have a combo flood and spot optics with 3W Cree LEDs with a color temp of 6500K (cool white). The lens on our TG LED Light Bars is made out of polycarbonate, shatter resistant material to prevent any damage to the optics. The housing of our light bars is made out of extruded, diecast aluminum for superior strength. The brackets on the light bars are made out of die cast, powder-coated black aluminum with rubber anti-vibration insulators. The brackets can mount to both tubes and flat surfaces. TG LED Light Bars include a 15” wiring pigtail (2x 18-gage wire with outer jacket). The input voltage on TG LED Light Bars is 10-30VDC.

TG LED Light Bars are IP67 Rated.

Available in three different sizes: 6″, 12″, and 20″

Below are the specs of our TG LED Light Bars:

Part Numbers   Description                    Wattage        Current       Draw                   Initial Lumens # of LEDs

302454           TG LED Light Bar 6”        36 Watts      3 Amps        2880 Lumens                       12

302455            TG LED Light Bar, 12”    72 Watts     6 Amps        5760 Lumens                        24

302476            TG LED Light Bar, 20”    120 Watts   10 Amps      9600 Lumens                       40

Note: Covers sold separately. Opaque black covers may be required by law in your area.

Available Options:

 TG LED Light Bar, 6”, 302454, $93.45

 TG LED Light Bar, 12”, 302455, $145.95

 TG LED Light Bar, 20”, 302476, $187.95
