Here's a new pro mod build for Victor burness

Dirty36

Active Member
Nov 29, 2016
38
Cedar City Utah

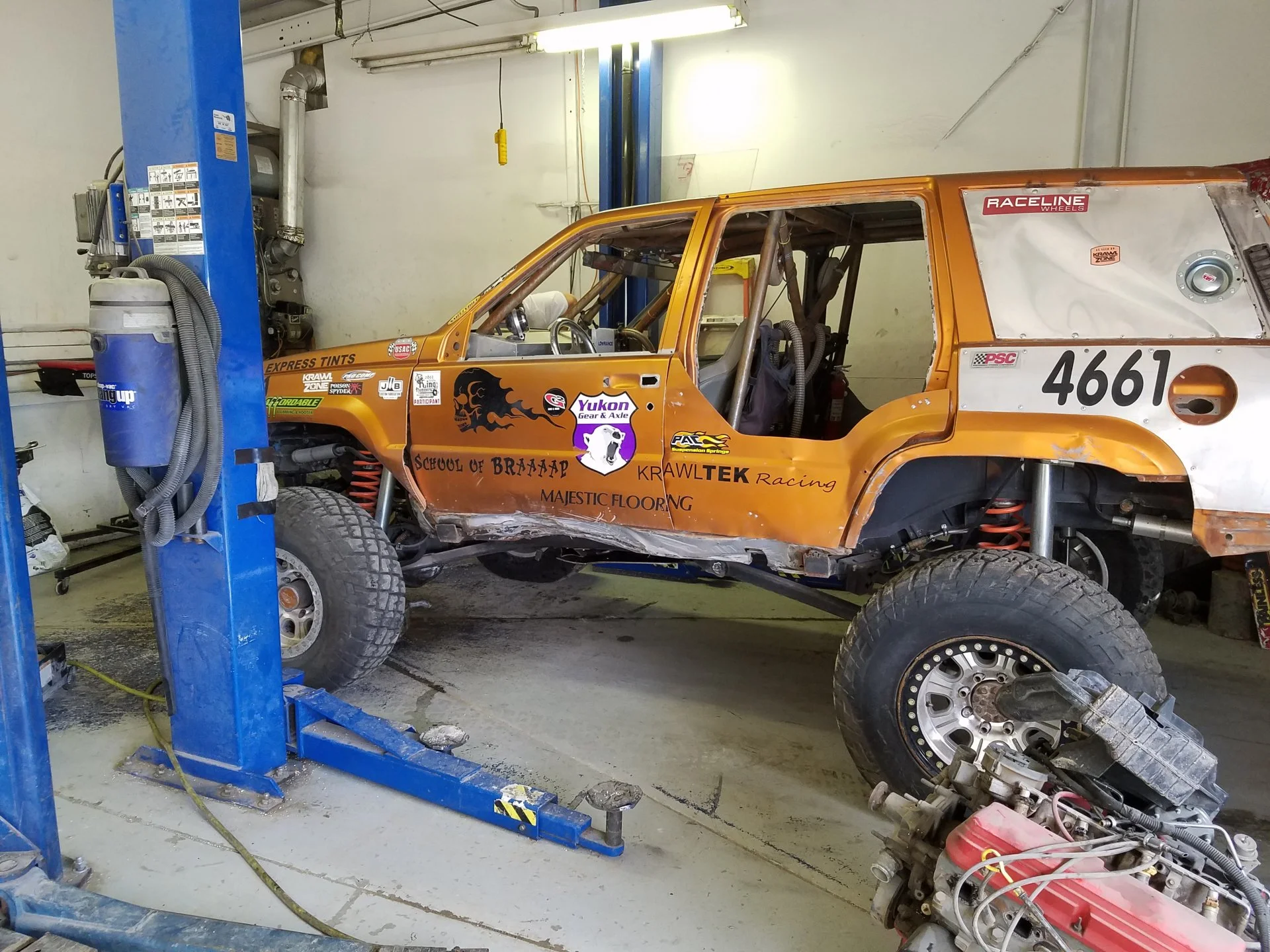

Alright so the idea with this build was to use the drivetrain and axles from vics 4600 koh jeep grand Cherokee. 4.0 inline 6 cyl, tf999 auto, and a 180 degree clocked Np 205 for driver drop.
Kingpin 60 up front, and 14 bolt in the rear.
We will be doing a swap to 4 link up front, swapping in full hydro, and adding 4 wheel cutting brakes.
Wheel base will be 108 due to the drivetrain being 72 inches long :(

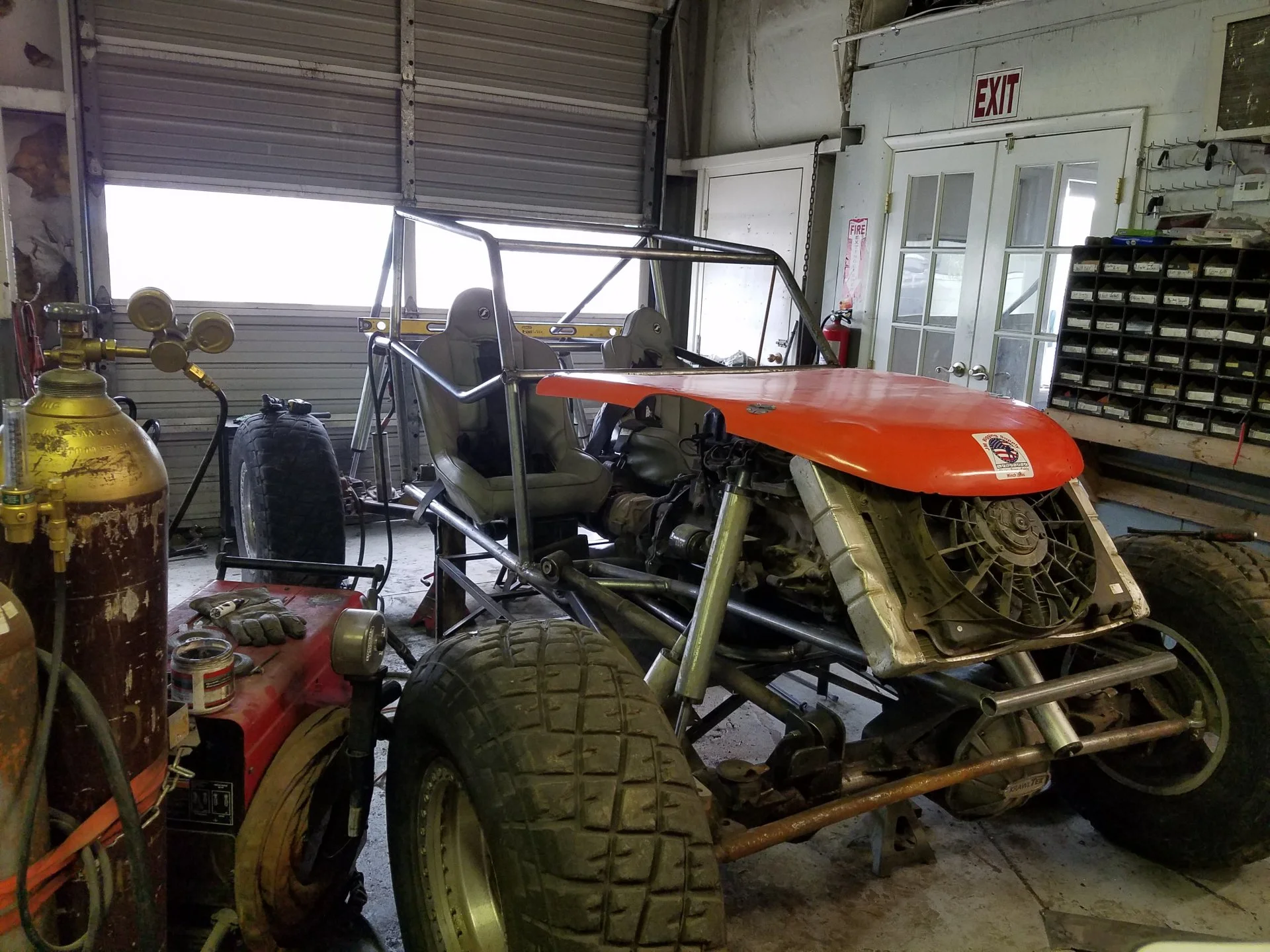

39 inch bfgs. And a vw hood!
Here's some pictures.....











Dirty36

Active Member
Nov 29, 2016
38
Cedar City Utah

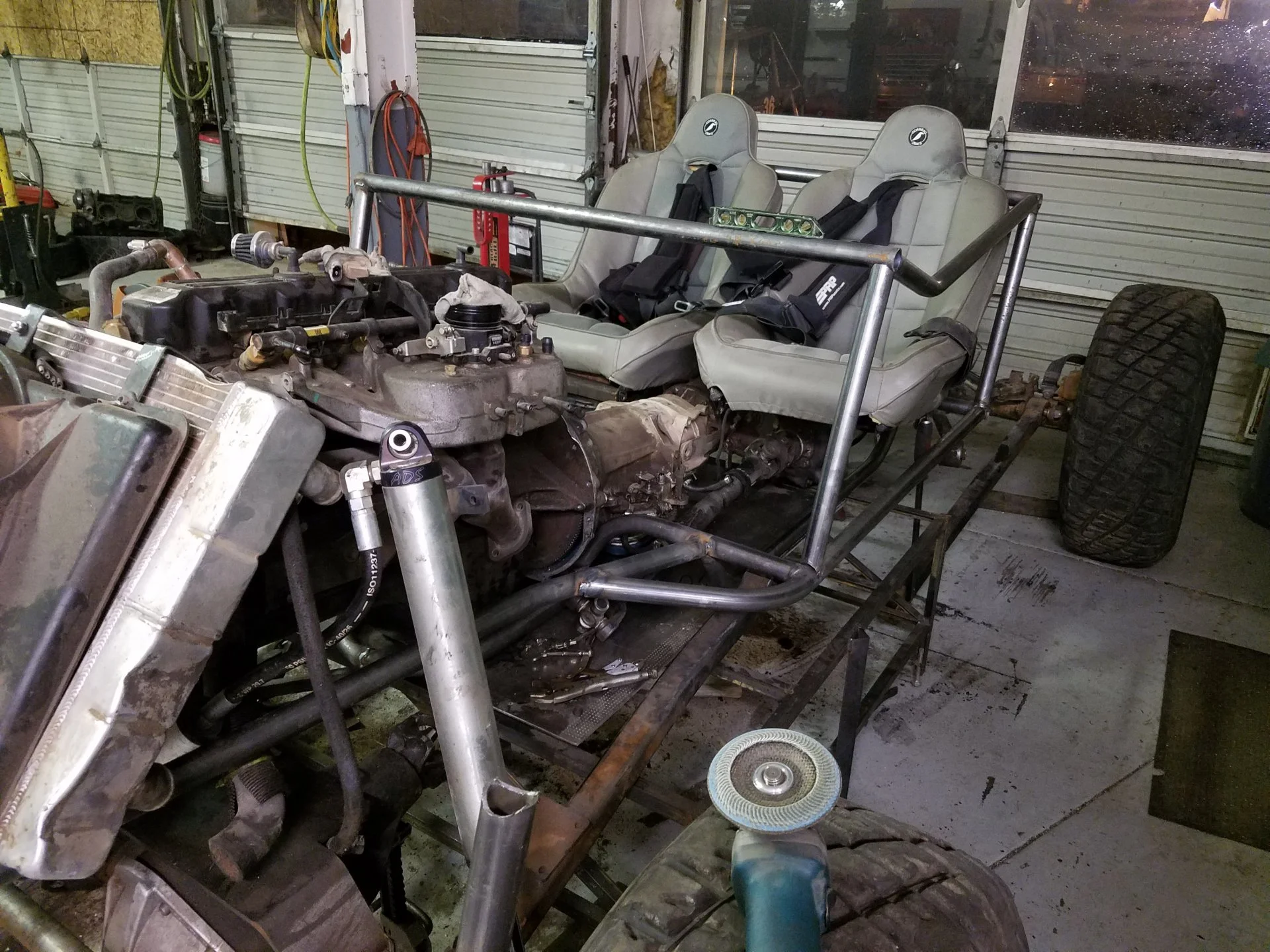

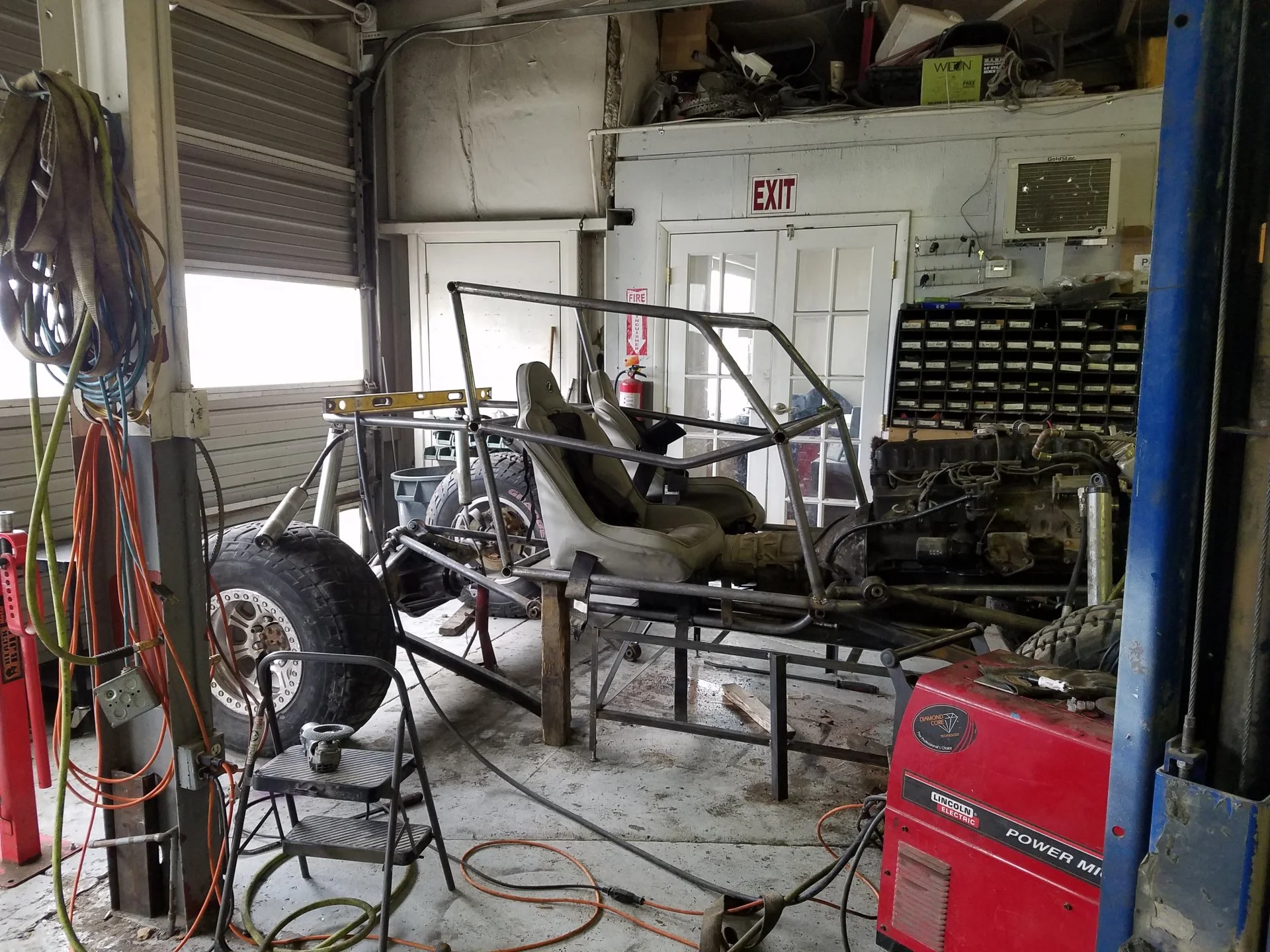

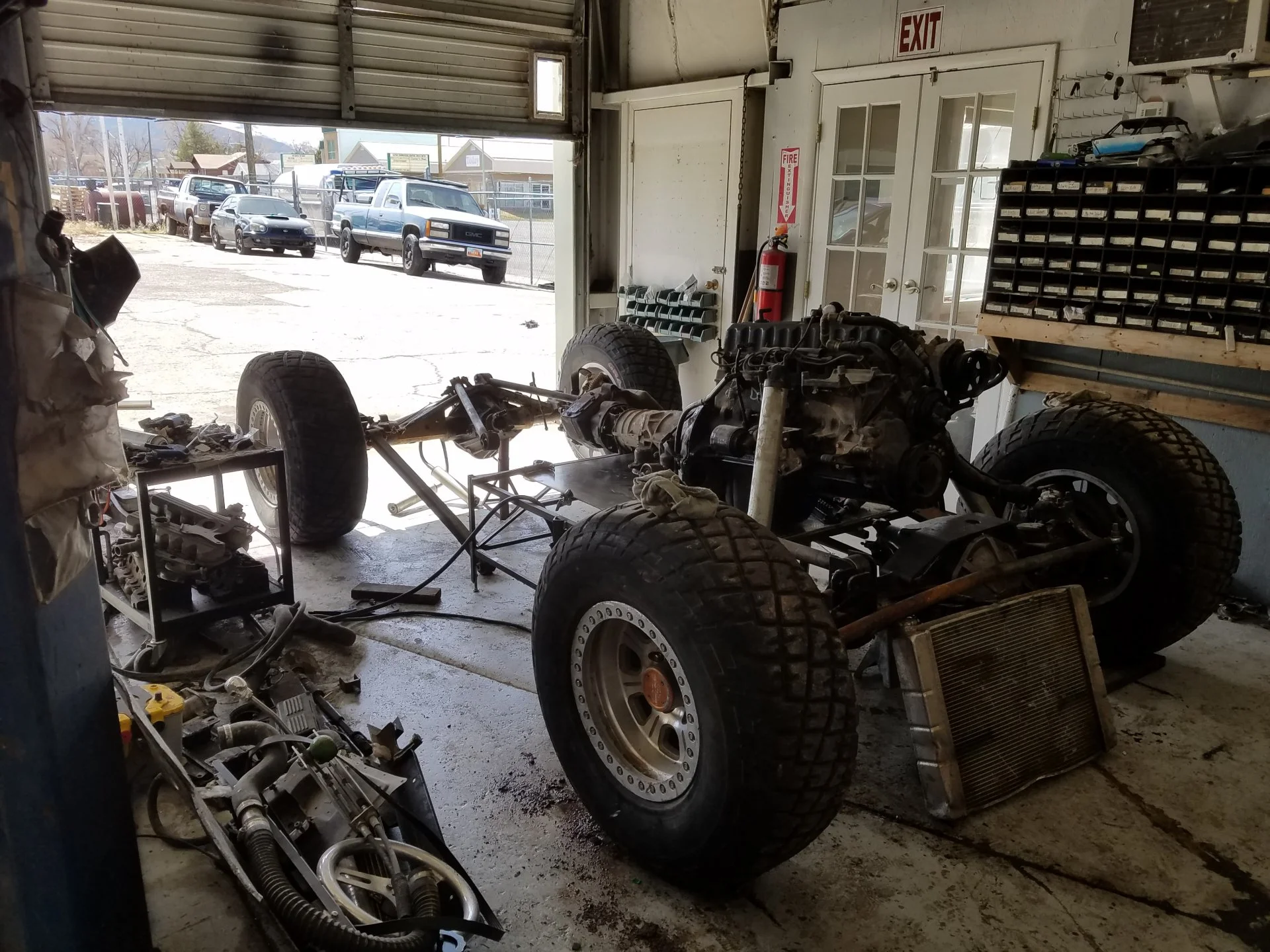

I had my employee gut the old jeep and help me put the drivetrain on my build table.
I started building at 3pm I called it a night at 1am
Today I worked on it from 10 am to 7 pm.

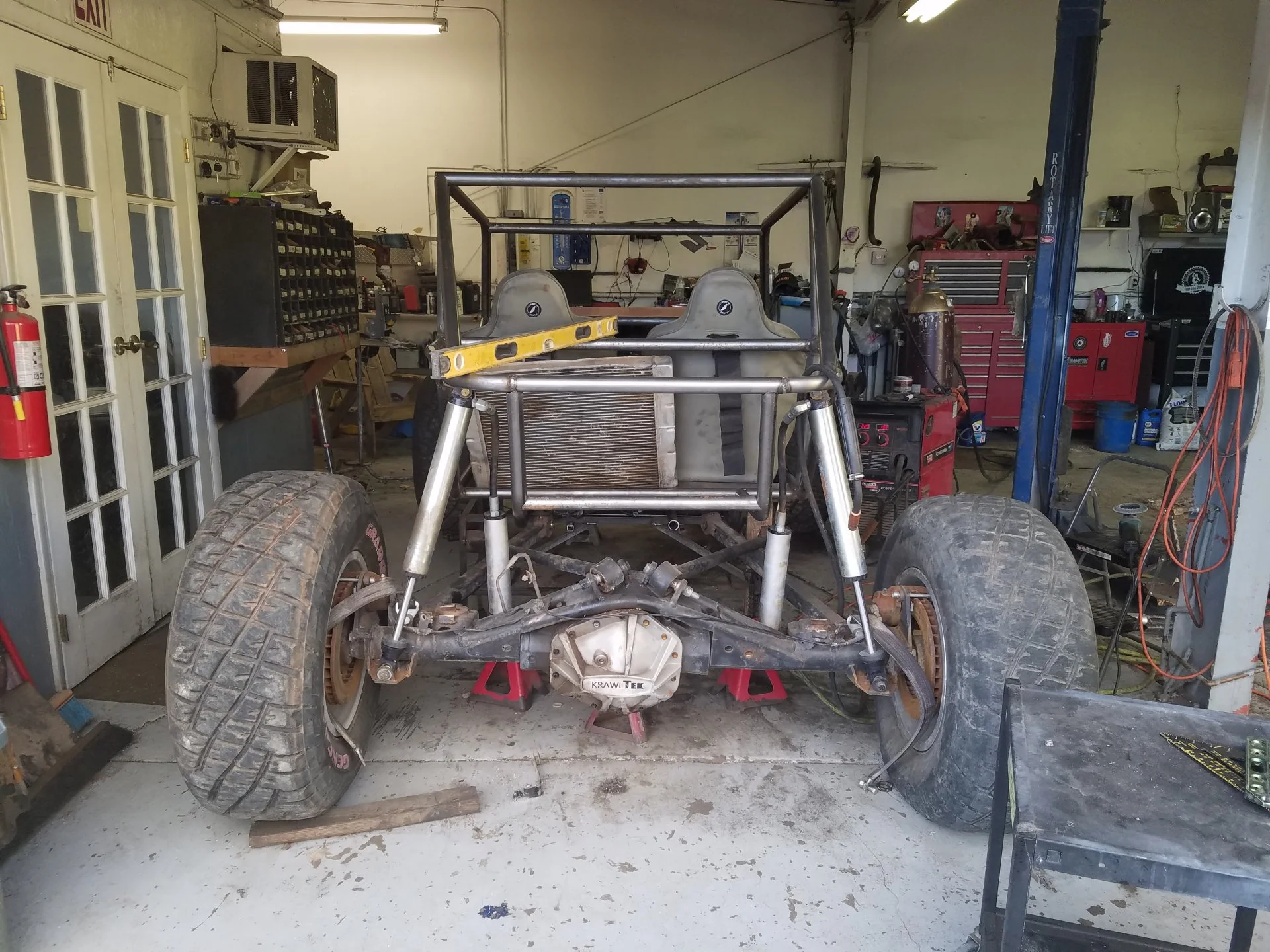

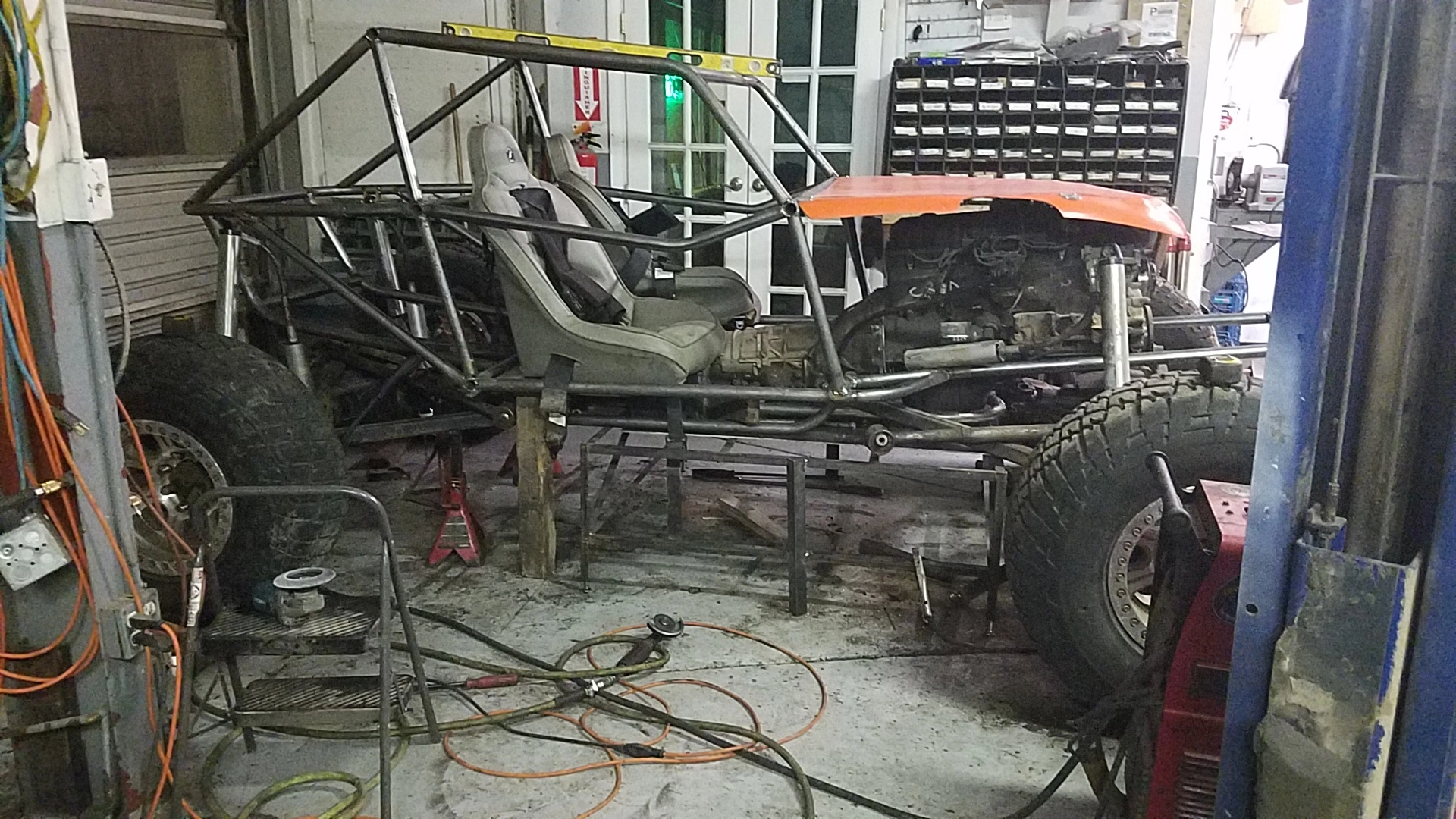

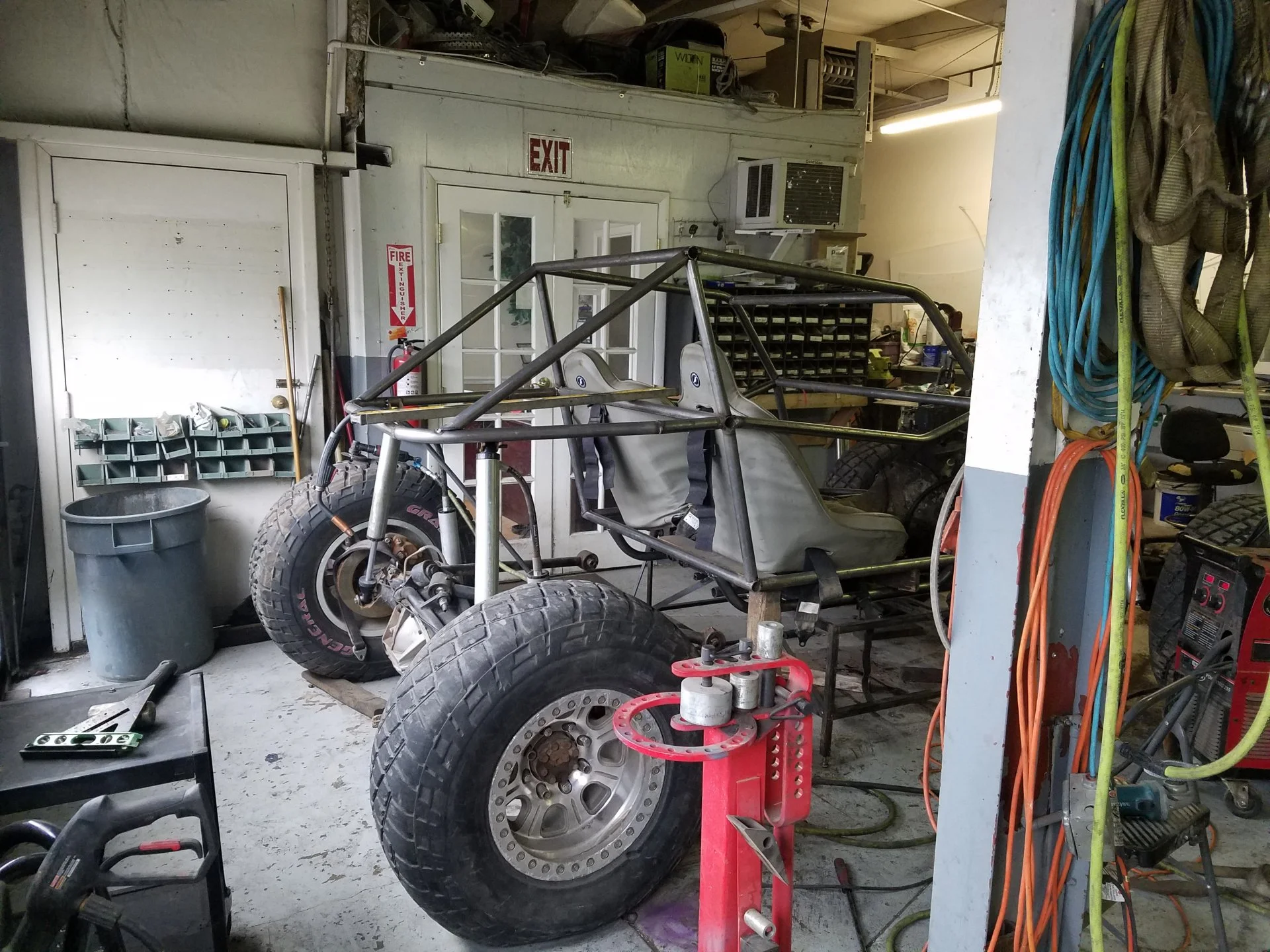

By tomorrow it will be a roller.
And we should have the new 39 inch bfgs ready to bolt on


woody

eternal noobie
Staff member
Oct 12, 2010
960
52
Toquerville UT
Comes together quickly once you get going :)

I assume part of the goal is reusing as much of the old rig parts as possible?
