24' Aluminum trailer

Discussion in 'Haulers and Trailers' started by woody, Dec 17, 2013.

  1. woody

    woody eternal noobie Staff Member Media Partner

    Messages:
    433
    Media:
    1,170
    Albums:
    18
    So, I blinged out this fall with a new 24' aluminum 10,000# car hauler...should be perfect for the FZJ80 and the Teryx4 (barely) and plenty of room for the FZJ80 and the RZR.

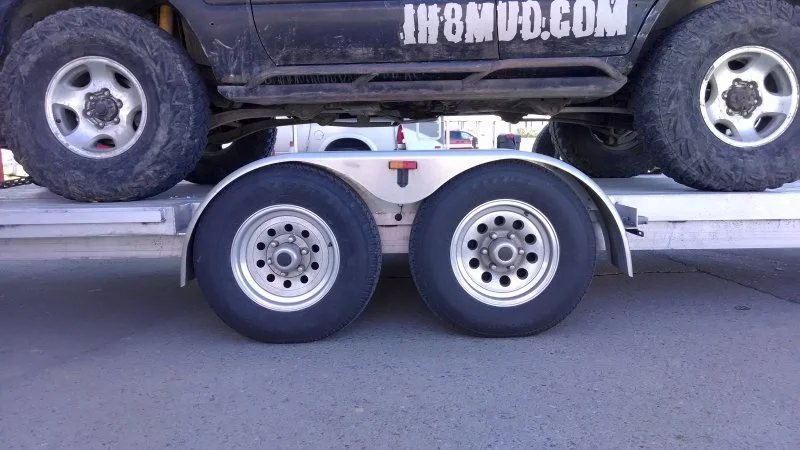

    Unfortunately, a combination of communication problems and design issues meant changes were due...simply put, the trailer balance is WAY off (I can lift the tongue when empty with one hand), the tires contact the fenders with only a 6000# load, and the the axles aren't even close to centered in the openings.

    2013-11-01 14.48.12.jpg

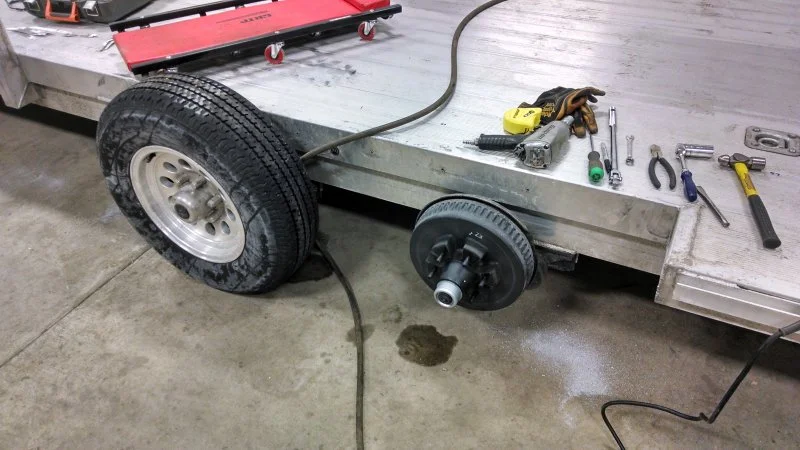

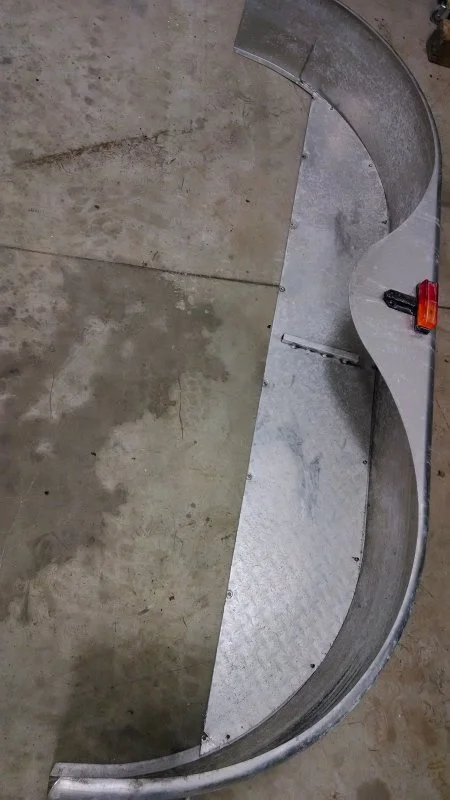

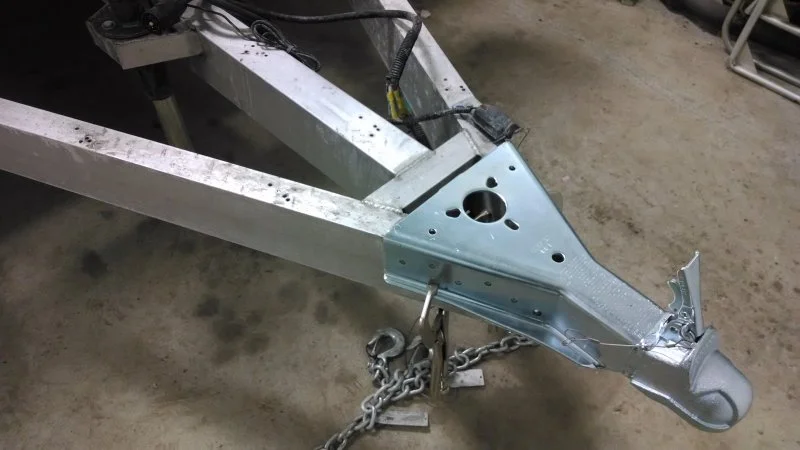

    Following a trip from WI to Vegas and back, it was time to dig in and start modifying...today's project was primarily sawzall work with a LONG blade...cutting off the fenders. Also pulled the existing steel coupler to install a more HD and longer version.

    2013-12-17 16.50.24.jpg 2013-12-17 16.50.36.jpg 2013-12-17 16.50.52.jpg

    The plan? Relocate the forward axle behind the current rear axle...should allow the wagon/rear load to be nearly centered over the axles and the forward weight to provide enough tongue weight for easy towing. Last thing tomorrow is cutting off the spare tire carrier and prepping the wiring to transport the trailer to a friends to have the new axle mounts tig'd on (I'll spool-gun the fenders)

    ah, the joy...

  2. Mace

    Mace Staff Member

    Messages:
    90
    Looking forward to the way this turns out. Curious, you do the math on how much more weight will be on the tougne after the axle is leap frogged?

  3. woody

    woody eternal noobie Staff Member Media Partner

    Messages:
    433
    Media:
    1,170
    Albums:
    18
    I haven't done the math, just used a tape measure to determine position.

    With the wagon close to centered over the trailer axles and the T4 on the front, it should balance out nicely.

  4. lgrt

    lgrt New Member

    Messages:
    19
    A trailer thread... from YOU. Really!!??? Oh the humanity of it all.

    38,000 miles has to take it's toll... at least you're not shipping the rig to events and flying in.

  5. woody

    woody eternal noobie Staff Member Media Partner

    Messages:
    433
    Media:
    1,170
    Albums:
    18

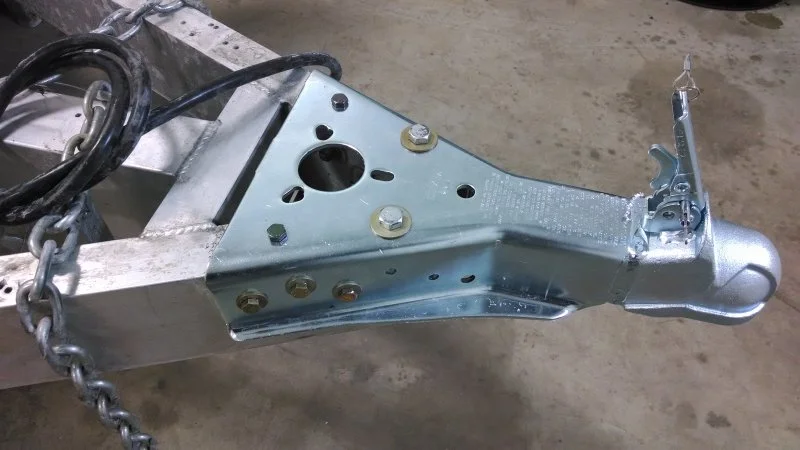

    More progress done...first, the new coupler is on...

    2013-12-19 13.27.23.jpg

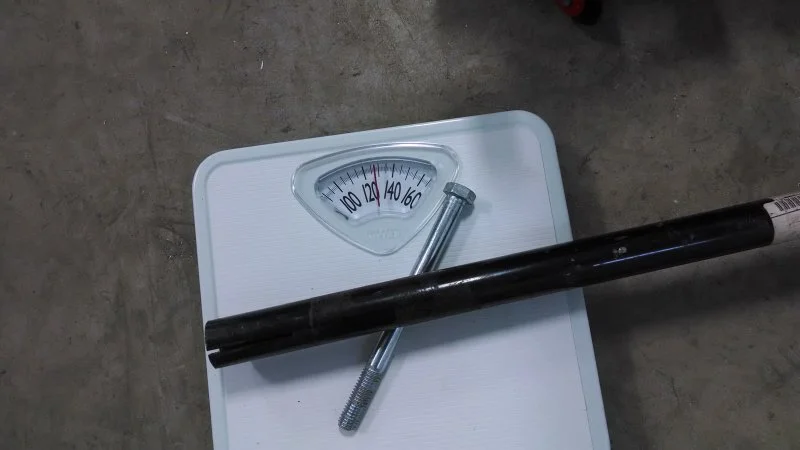

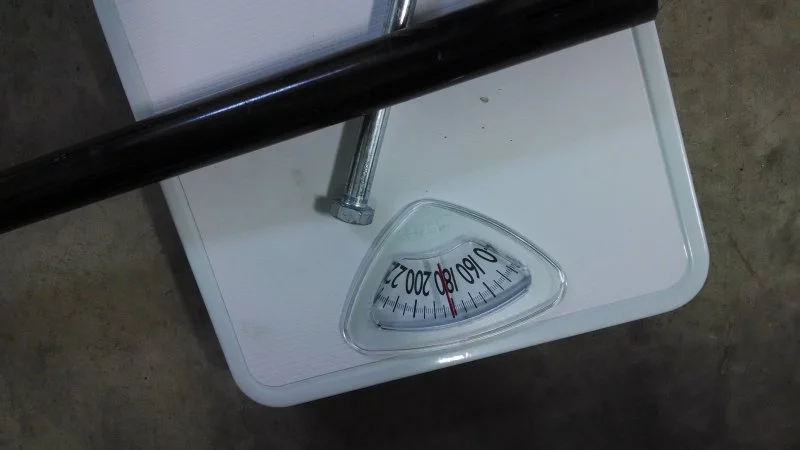

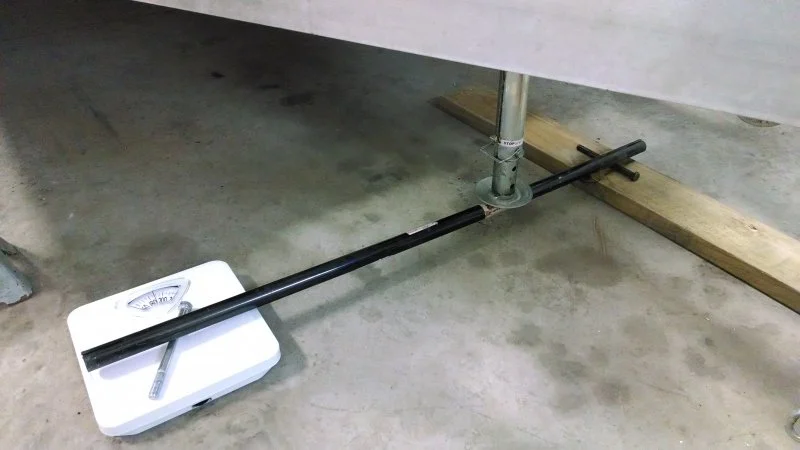

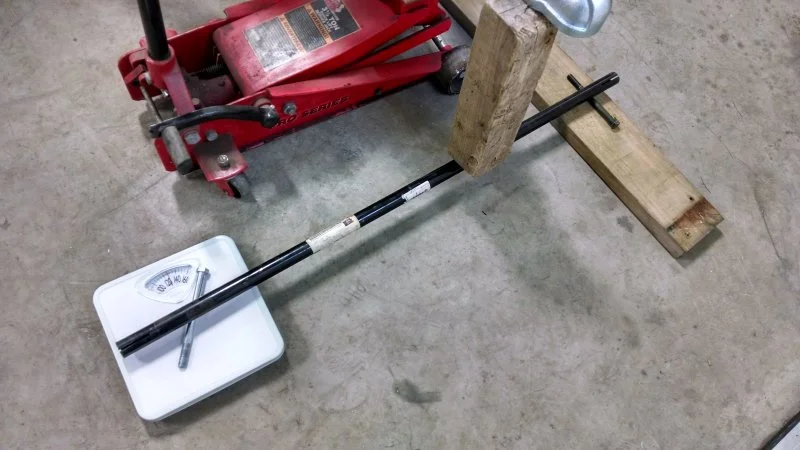

    Next, some tongue weight calculations...at the setback jack, 500# (180x3) or so...at the coupler, 380-400# (130x3)...perfect for a 1600# trailer
    2013-12-20 13.29.16.jpg

    2013-12-20 13.29.47.jpg
    2013-12-20 13.39.04.jpg

    2013-12-20 13.39.10.jpg

  6. woody

    woody eternal noobie Staff Member Media Partner

    Messages:
    433
    Media:
    1,170
    Albums:
    18

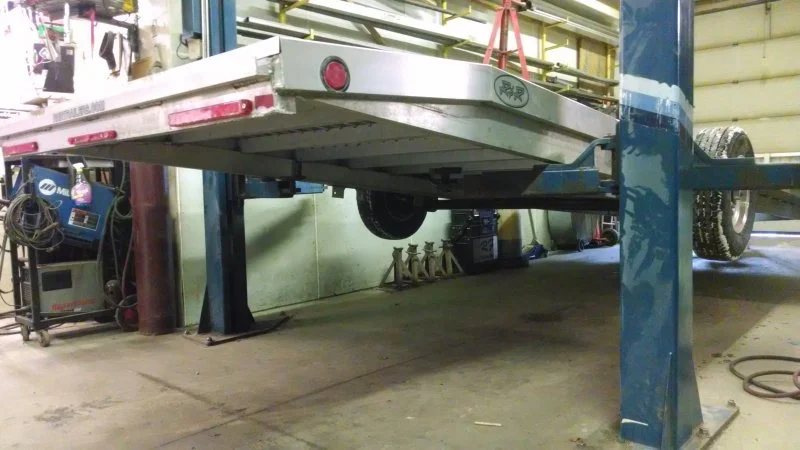

    Today, Jim from RidderFab tig'd on the new axle mounting brackets...

    2013-12-27 10.20.30.jpg
    2013-12-27 13.06.46.jpg
    2013-12-27 13.07.40.jpg

  7. woody

    woody eternal noobie Staff Member Media Partner

    Messages:
    433
    Media:
    1,170
    Albums:
    18

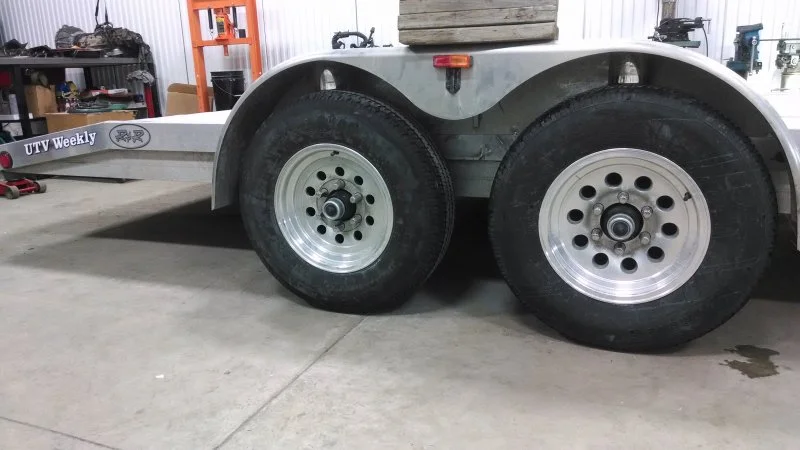

    And finally, back at my shop to install the axle and mock up fenders...

    2013-12-27 15.27.26.jpg

  8. rhinobuggie

    rhinobuggie New Member

    Messages:
    22
    Last edited: Dec 31, 2013
    woody likes this.
  9. woody

    woody eternal noobie Staff Member Media Partner

    Messages:
    433
    Media:
    1,170
    Albums:
    18
  10. howiebilt

    howiebilt New Member

    Messages:
    4
    I would like to see more pics of the finished trailer. I am curious to see what you did to fill in where the front axle used to be .
    Looks good :cool:

    Howie

  11. rhinobuggie

    rhinobuggie New Member

    Messages:
    22
    Mounted mine under the rear mounts for the fenders , some what guarded there

    woody likes this.

  12. woody

    woody eternal noobie Staff Member Media Partner

    Messages:
    433
    Media:
    1,170
    Albums:
    18
    Haven't set a final plan quite yet...but the spacing is PERFECT to mount two 5-gallon jerry cans on each side...I need to weld up mounts for the fenders this week, plus get the weight dist hitch mods done...time to practice with the alum spool gun :)

    Mace likes this.
  13. Mace

    Mace Staff Member

    Messages:
    90
    A spool gun is on the list of next tools. I've wanted to be able to weld aluminum for a while now!

  14. woody

    woody eternal noobie Staff Member Media Partner

    Messages:
    433
    Media:
    1,170
    Albums:
    18

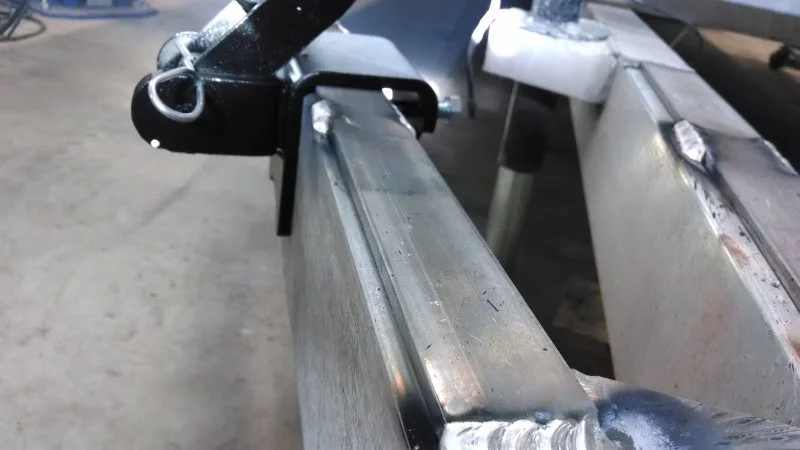

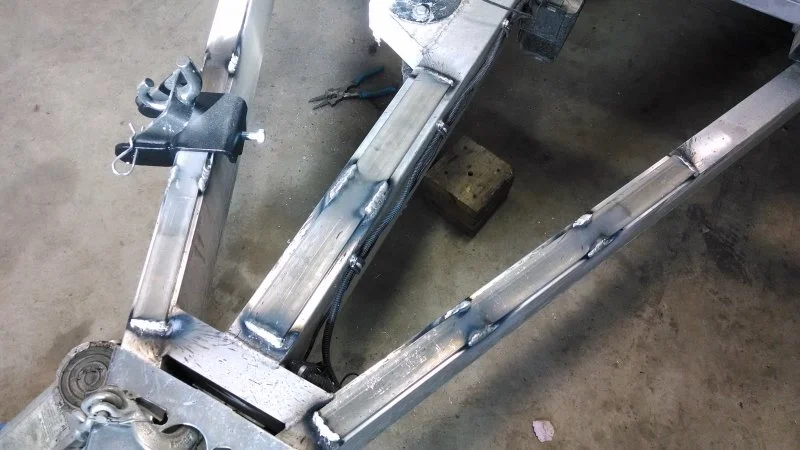

    The Curt Manufacturing weight distributing hitch brackets are rounded...and the aluminum rails are quite square...so some 1/4" thick alum plate was welded to the top of all three tongue rails (middle too, since I'm planning a alum diamondplate platform in the future)

    2014-01-07 11.19.33.jpg
    All things considered, I was pleased with my aluminum spool gun work...the Miller 185 was "just" enought power to burn it in nicely...

    2014-01-07 11.20.45.jpg

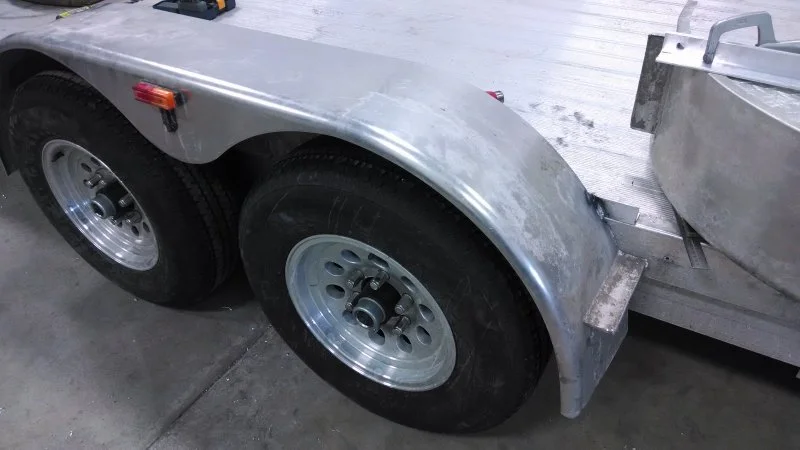

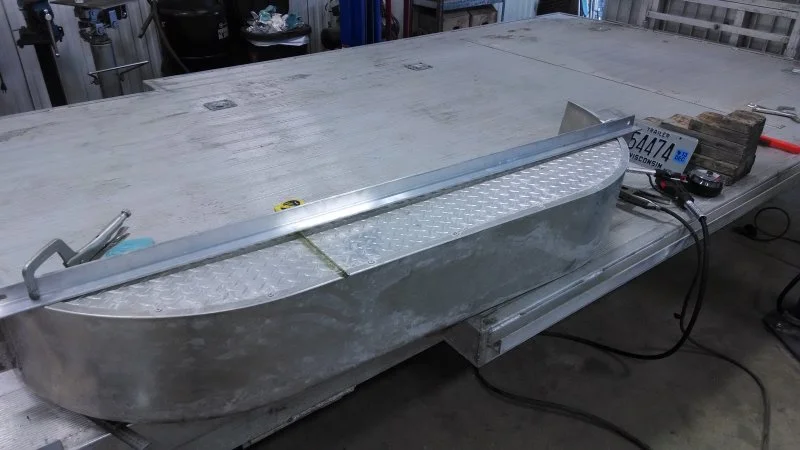

    Next up, removable fenders...the quick/dirty option was two 1-1/2" angles welded to the existing fenders, and two thru-drilled 1/2" holes with bolts/nylocks for holding them down...surprisingly sturdy, tho more bracing will happen down the road...

    2014-01-07 12.45.18.jpg


    2014-01-07 12.45.31.jpg

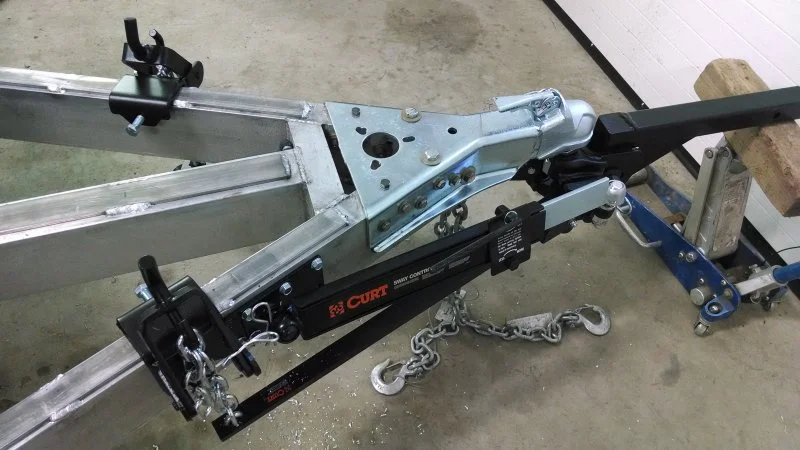

    And finally, the new 15,000# Curt dist hitch and sway control installed...still need to determine the exact height, but the 18" weight distribution shank combined with the longer coupler should extend everything sufficiently for camper clearance. (shank rated for 14,000#, factory hitch rated for 12,000#, trailer will only be 10,000# or less gross weight)

    2014-01-07 15.28.32.jpg

    Last up tomorrow is wiring the fender marker lights and brake wiring to the "new" rear axle...easy enuf :)

  15. Mace

    Mace Staff Member

    Messages:
    90
    Hurry up and load that bad boy up and let me know how you like it :)

  16. woody

    woody eternal noobie Staff Member Media Partner

    Messages:
    433
    Media:
    1,170
    Albums:
    18

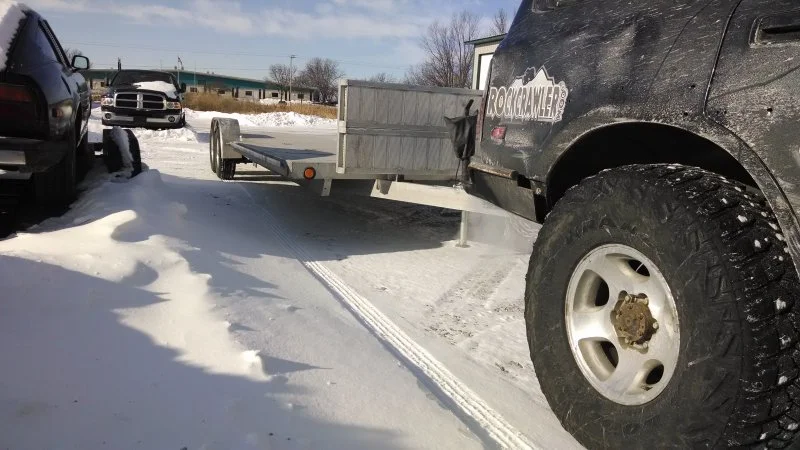

    So, just because, I pulled the trailer out of the shop using the wagon...tongue weight dropped the rear about 1"...perfect :) Will be nice for light/short hauls at events.

    2014-01-09 11.13.38.jpg

    First step is hook everything, and then try a FULL turn with the pickup/camper/trailer....MAGICALLY, everything clears (tho, just barely). Obviously, u-turns are not on my short-list with this setup, but it's nice to know mistakes on my part shouldn't be expensive.

    2014-01-09 13.26.25.jpg

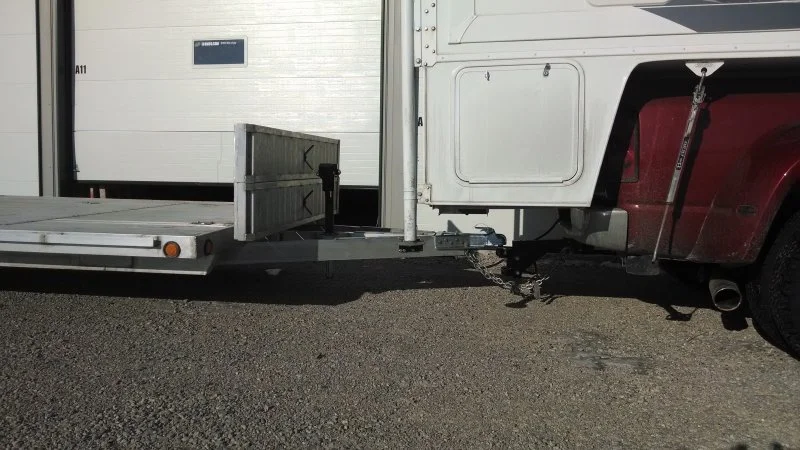

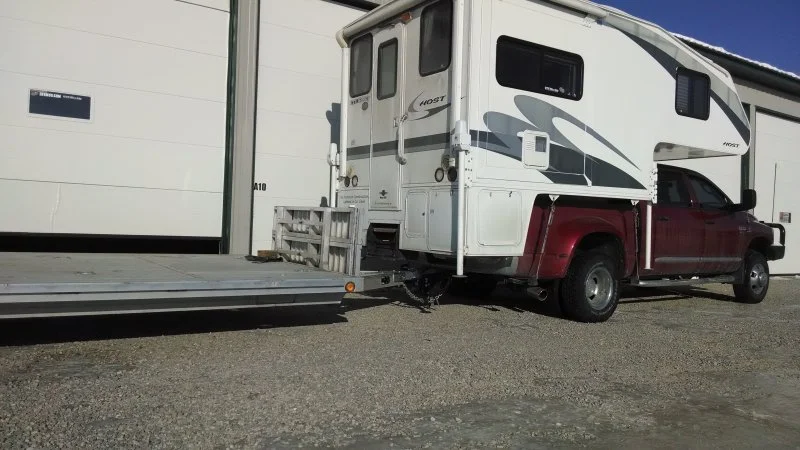

    Hooked and ready...trailer is level, everything lines up as it should. Curt weight dist setup is not yet hooked up, so this would be final ride.

    2014-01-09 13.28.32.jpg

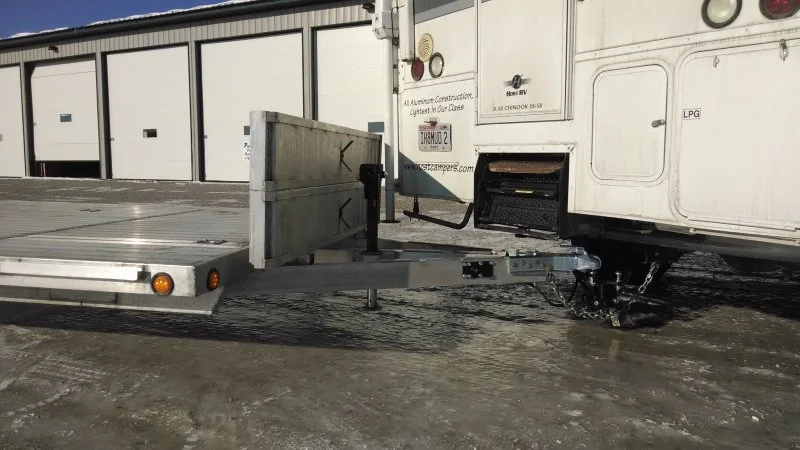

    The stock camper steps have GOT to go...simply, a pain in the butt...they are so tight when backing up to connect the trailer that the coupler latch has to be down, and then trailer height still needs to be messed with to align it up...plus, the only way to hook everything is laying on the ground (which given today is +2, that's not a great idea)...so, camper steps will be gone and I'll modify up my set of aluminum ones to be the right height and they'll be removable/storable easily enough.

    2014-01-09 13.28.45.jpg

    Trailer ideas are not quite done...I'm searching now for an aluminum tool box that will be positioned in the now vacant wheel well area on the drivers side...I've found one that is 8" deep and 18" high, but it's only 19" long...would like something in the 24" range if I can find one.

    The passenger side wheel well area will get some alum angle welded in, sized to fit two 5gallon fuel cans :) Should fit perfectly, and it will be nice to have some available fuel on board without a custom deck/tank.

  17. Mace

    Mace Staff Member

    Messages:
    90
  18. woody

    woody eternal noobie Staff Member Media Partner

    Messages:
    433
    Media:
    1,170
    Albums:
    18
    I found that one too...also has possibilities, and yes, the top loading would be far nicer.

  19. woody

    woody eternal noobie Staff Member Media Partner

    Messages:
    433
    Media:
    1,170
    Albums:
    18
    So I picked up a 24"l x 10"d deep tool box...turns out, I really need a 9" deep to keep it inside the trailer deck...10" works with the fenders, but would prefer it not stick out from the deck...believe I'll contact the company and see if they can make one that's 30"l x 9"d x 12"h

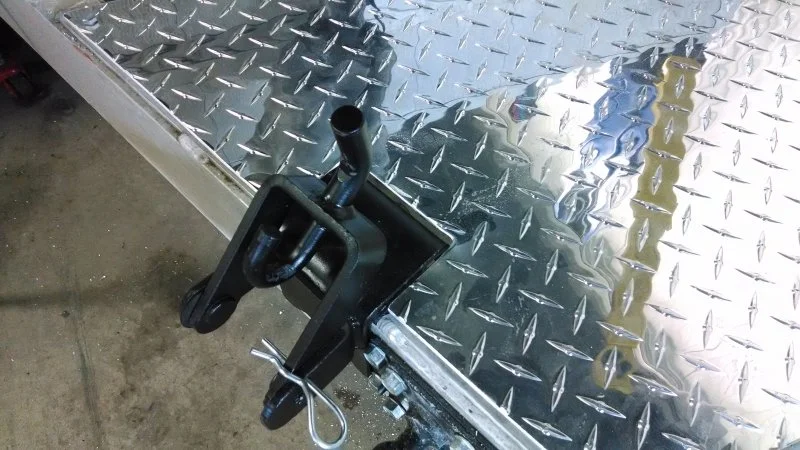

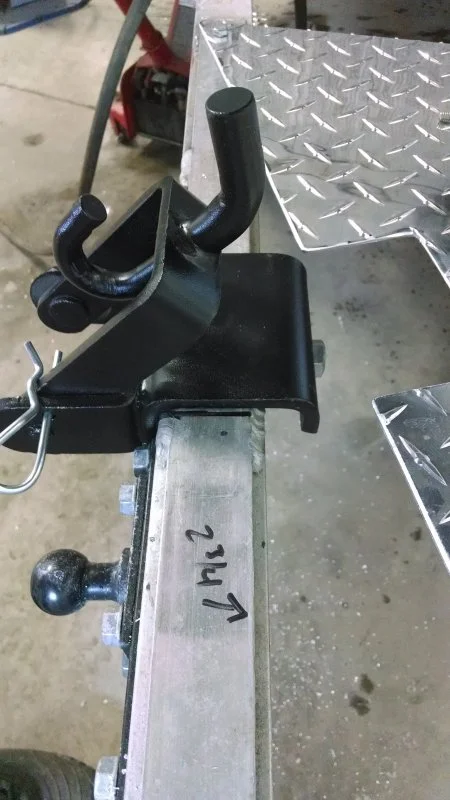

    Today's short project was mounting the brackets for the Curt Mfg weight dist hitch and a treadplate tongue deck.

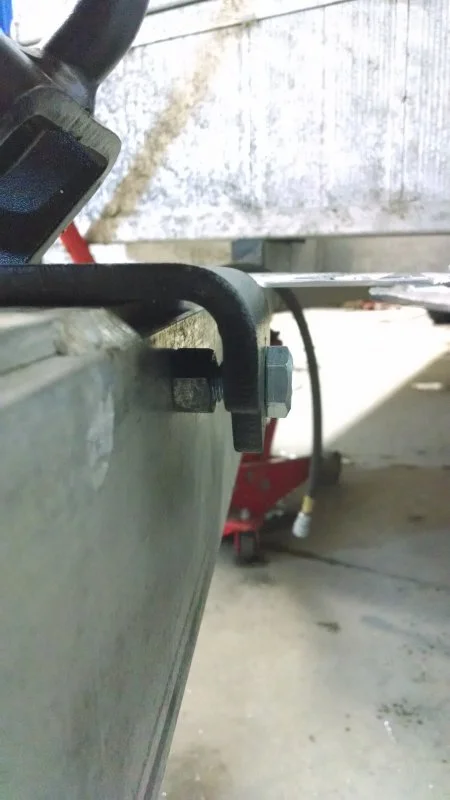

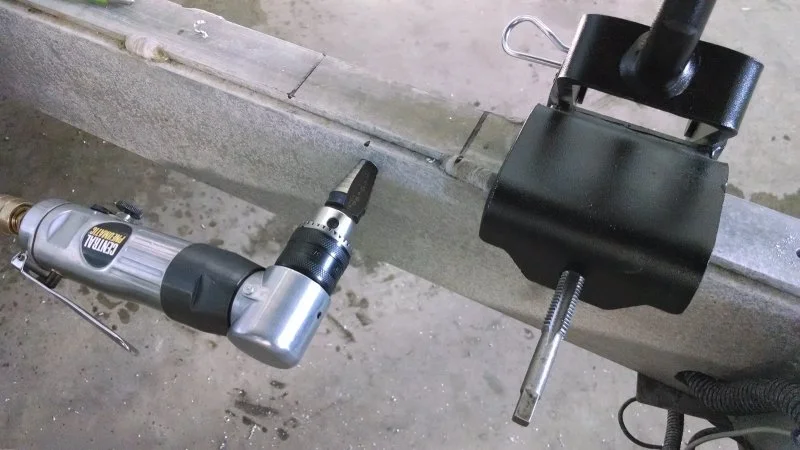

    I opted to drill/tap the trailer frame for the brackets, tap thru the bracket to ensure the bolt would thread from the bracket into the frame, and then use a jam nut to lock it down. The .100 aluminum treadplate was then cut/notched and has been drilled to use 1/4"-20 stainless screws to mount it.

    Outta work :)

    2014-01-25 13.36.49.jpg

    2014-01-25 13.37.16.jpg

    2014-01-25 13.37.22.jpg

    2014-01-25 13.52.17.jpg

  20. Mace

    Mace Staff Member

    Messages:
    90
    Blingin' Air tools ;)
