New here.

Discussion in 'New Member Intros!' started by b2crawler, Aug 18, 2012.

  1. b2crawler

    b2crawler New Member

    Messages:
    3
    New to the forum. Thought is try it out.

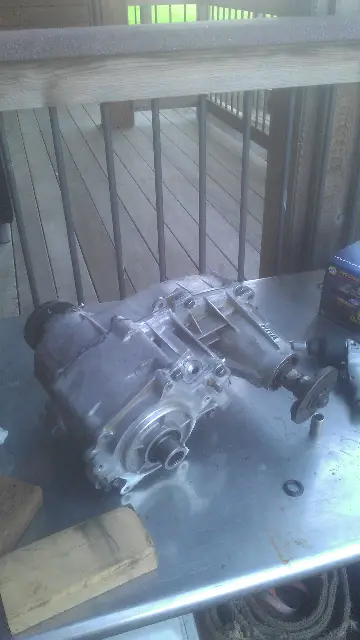

    My rigs ab 88 b2 2.9 5 speed. Sas'd use to have Dana 30 front 35 rear 488's Aussie front welded rear. 3rd gen Toyota rears up front stock out back. Home made slip yoke eliminator for front out put
    Now those axles are out and in the process of being replaced for full width 44 Hp front 538 spool cromo routers hi steer and 60 rear welded. Bunch of posers for now











    CodeyAnderson likes this.
  2. b2crawler

    b2crawler New Member

    Messages:
    3

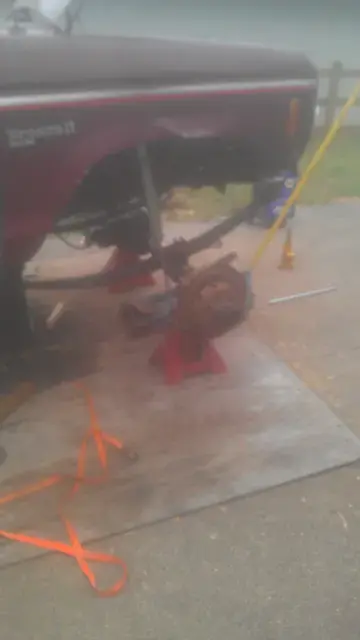

    44 is in shackle angle will get a little better when springs settle. Lots of gusseting to do yet.








  3. woody

    woody eternal noobie Staff Member Media Partner

    Messages:
    431
    Media:
    1,170
    Albums:
    18
    When I set my shackles angles, I didn't do the frame-side as I fabbed up....put a 1" thick piece of wood between the frame and the spring and let it compress/settle a bit. Gives a decent guess point to start.

    Had a buddy about 20 years back who wheeled the snot outta his B2...fun little truck :)

  4. b2crawler

    b2crawler New Member

    Messages:
    3
    Yeah it was a pain by myself but after a few times I got it right.
