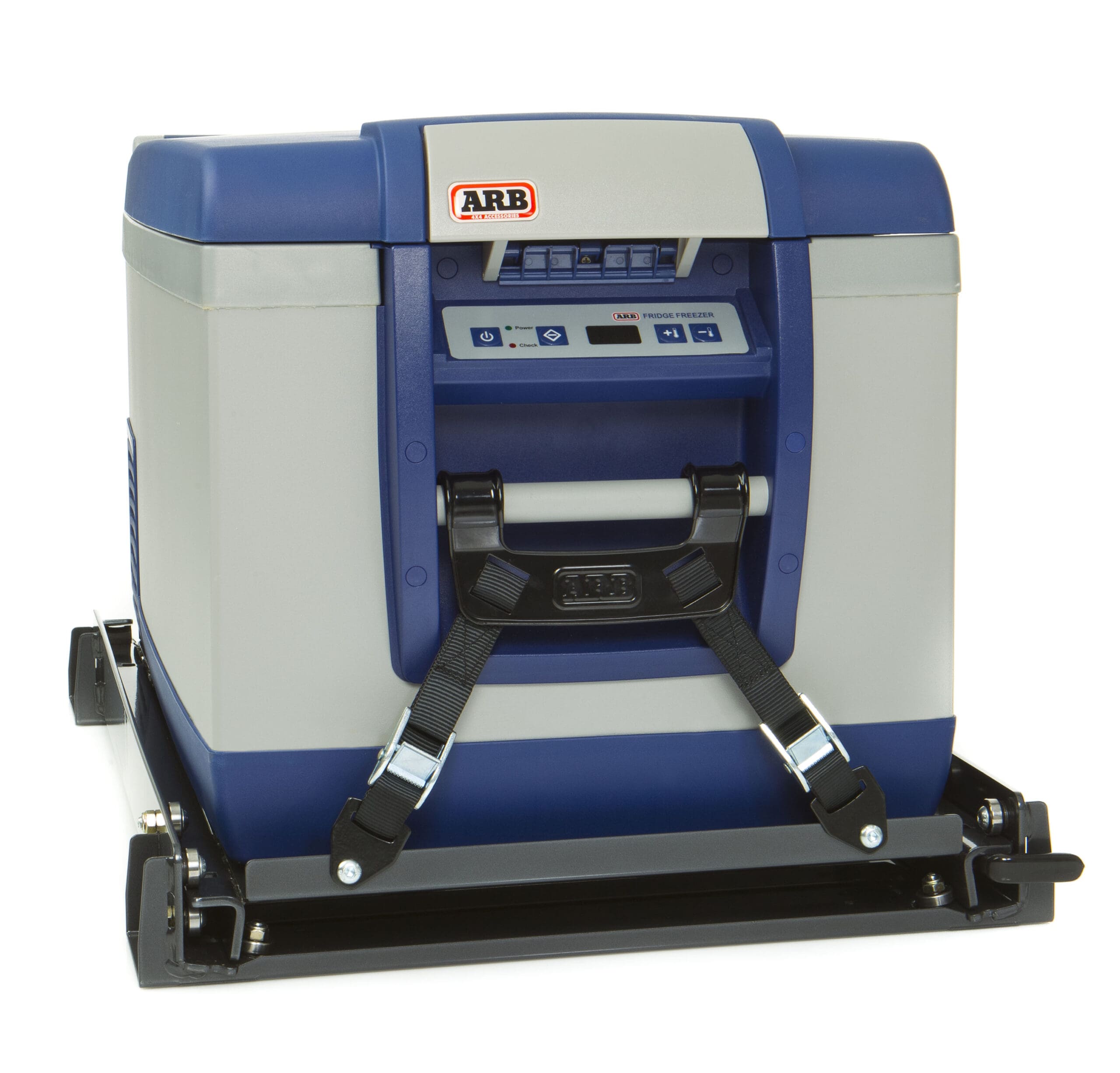

With the imminent release of the extended ARB fridge family, we are pleased to announce a new fridge slide to complement the larger footprint of the 63 and 82 Quart fridges. Rated to carry 265 lbs, this slide may also carry other tools of trade such as a compressor or toolbox.

Manufactured from heavy duty steel, precision laser cut and formed for strength and rigidity, this new fridge slide features a compact footprint to enable fitment into SUVs, Pickups or onto cargo drawer systems. The new and improved EZ latch mechanism includes a “comfort” plastic coating and enables the slide to be latched in either a fully open or fully closed position. To accommodate the larger fridge sizes, the slide extension has been maximized for access to the fridge contents.

The design of the fridge slide incorporates laser cut holes for:

  • affixing the slide to the vehicle (M8 bolts not supplied)
  • affixing the ARB fridge to the slide (M6 bolts from fridge feet)
  • attaching the ARB fridge tie down brackets (M8 bolts from tie down kit)
  • draining/cleaning the fridge

The strategically positioned drain hole matches the ARB fridge, enabling you to extend the slide away from the inside of your vehicle and drain the fridge. The bearing guides are adjustable and a new feature is the inclusion of adjustable (4-way) anti-vibration pads to prevent rattles. Packed in a full color box for showroom presentation the fridge slide is backed by a 2 year warranty.

Part No.                                          Description                                 Jobber

10900022         ARB Fridge/Freezer Slide to Suit 63 & 82QT Models       $380.19
10900010             Optional ARB Fridge/Freezer Tie Down System          $28.11
Tech Specs
  • Rated to carry a massive 265 lb load
  • Zinc coated metal substrate
  • Millennium grey Powder coated exterior
  • External dimensions LxWxH; 33.5″ x 21″ x 3.25″
  • Sliding tray dimensions LxWxH; 32.5″ x 17.75″ x .79″
  • Tray height = 1.82″ from base
  • Slide extension 25.75″
  • Net weight 35 lbs
Availability Date: mid January 2010
