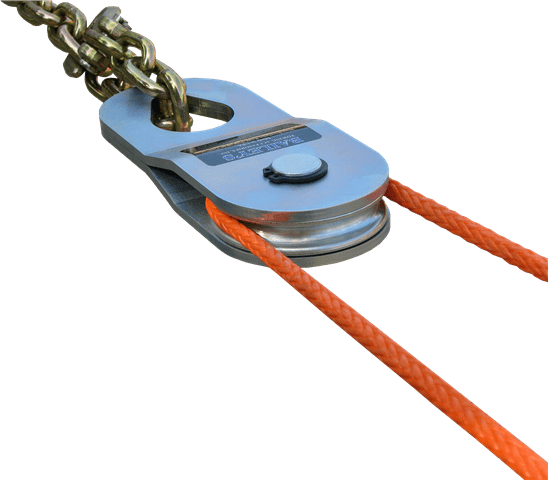

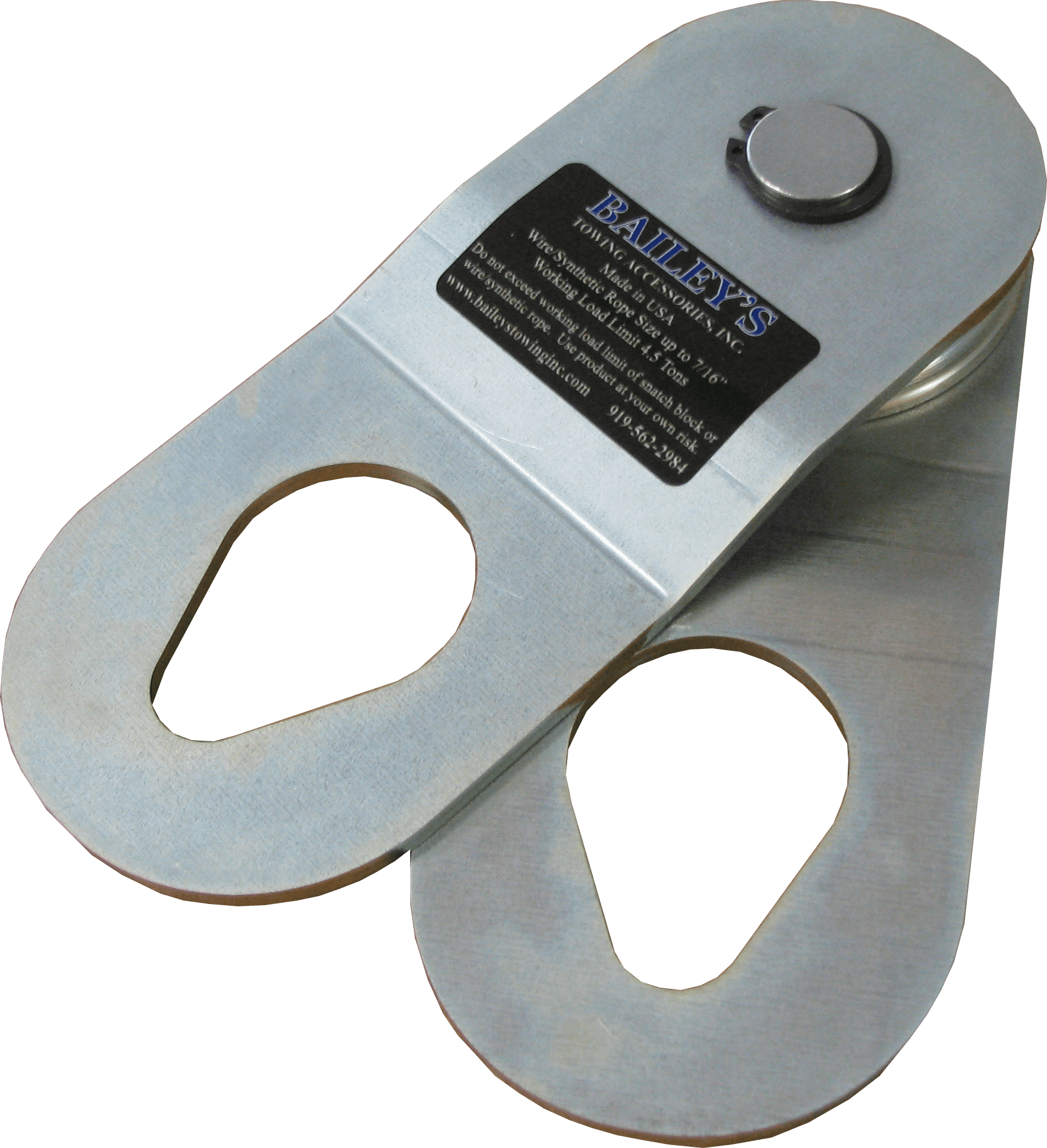

The Bailey’s Snatch Block is designed for off road enthusiasts who want a commercial grade snatch block that is affordable and made in the USA. The 4” steel sheave is machined to a smooth finish for use with synthetic winch lines and cable up to 7/16”. A self-lubricating bronze bushing is pressed into the sheave for maintenance free use. The design of the laser cut side plates allows you to rig the block in seconds and utilize the large opening for a variety of rigging options. All steel parts have corrosion resistant zinc plating.
- Working Load Limit 4.5 Tons, 9,000 lb. (4:1 Design Factor)
- Ultimate Breaking Strength: 41,000 lbs. (tested w/ 1” shackle)
- Wire/Synthetic Rope Size up to 7/16”
- Length: 10 ¼”
- Weight: 7.35 lbs.
