ICON Vehicle Dynamics 2015-UP Ford F-150 4WD 2.5″ Suspension Systems

by / 0 Comments / 1013 View / March 17, 2015

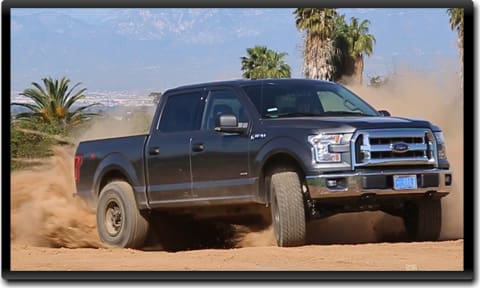

The “more powerful, capable & advanced” 2015 Ford F-150 is a great pickup truck with a long heritage of being one of the toughest vehicles on the road. With several changes making their way into production for 2015 including an all new aluminum body, ICON was anxious to get this truck into R&D to see what improvements could be made to the stock suspension.

unnamed 2

ICON engineers performed a complete analysis of the new truck in stock form with a primary goal of identifying any limiting factors and weak points in OE components. Once this process was complete focus shifted to CAD development, in-house dyno testing, and real world ride tuning in an effort to address these issues while increasing wheel travel and overall shock damping ability. With the redesigned aluminum body featured on the 2015 F-150, ICON engineers spent a significant amount of time developing a new shock valving that addressed the “slimmer” truck’s ride characteristics. This research and development process yielded a collection of products including coilovers, rear shocks, and tubular steel upper control arms that have been organized into several staged systems that offer unique levels of performance for the new Ford. These systems increase wheel travel by 12.5% over stock while drastically improving on and off-road ride quality.

unnamed 3

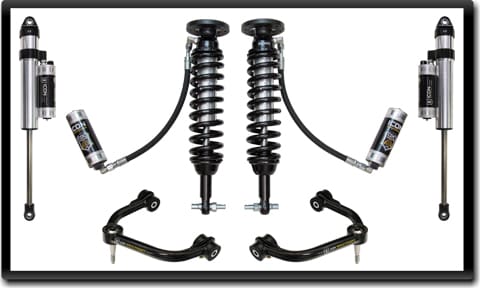

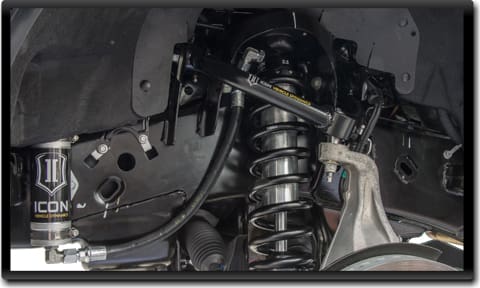

In standard ICON fashion a remarkable level of performance is established with the Stage 1 system, which includes vehicle-specific tuned 2.5 Series coilover shocks and ICON 2.0 Aluminum Series monotube rear shocks that are both 100% rebuildable and revalvable. As the stages increase, the ability of the vehicle to handle exceptionally well in harsh off-road conditions is also increased with the addition of remote reservoir coilovers, 2.5 Series rear shocks, uniball upper control arms, and CDCV (Compression Damping Control Valve) technology. ICON’s 2015 F-150 suspension systems offer up to 2.5” of lift height, allowing for the fitment of larger, more aggressive wheel and tire combinations. A 100% bolt-on design makes for a simplified and straightforward install while allowing for the ability for the vehicle to be returned to stock form if need be.

ICON products are all proudly made in the USA at our Southern California-based facility by a team of passionate off-road enthusiasts. With our reputation for quality, performance, and service, it’s clear that ICON Vehicle Dynamics is the top choice for performance suspension systems and shock absorbers for 2015 Ford F-150 4WD pickups.

unnamed 4

KEY FEATURES

  • 12.5 % increased wheel travel over stock with no change in towing capacity
  • Unique valving developed specifically for the lighter weight of the 2015 F-150
  • Vehicle-specific tuned front and rear shocks provide superior damping and ride control
  • Eibach coil springs guaranteed for life against sagging or breakage
  • FK Rod End bearings for extended longevity and minimal deflection
  • Height-adjustable coilovers offer up to 2.5″ of lift height *
  • Remote reservoir option with CDCV adjuster available
  • Uniball control arms provide added strength, durability, and improved alignment characteristics
  • 100% bolt-on system makes for a simplified and straightforward install
  • Made in the USA
(*Remote reservoir coilovers yield a MINIMUM lift height of 2″)
