buggy dash/gauges

[jeeperscreepers]

Hu guys, i fabricated a sort of pod for gauges in my buggy that surrounds the steering column but it really sucks so, since i don't have any room in my firewall for gauges (because my lack of skill/creativity) i'm wondering to toss it and put on a digital gauges panel like Lowrance , AEM or similar even if i'm not a big fan of 'em.
I don't want to spend a fortune so i'm thinking about a very basic panel with water temp, oil pressure, voltage, trans temp and possibly engine oil temp too, tach is not mandatory, Any suggestion? I remember a Kalif Redden buggy with JHF portals with red frame (maybe Jarrod's brazil's now) i don't know that was actually using an app on the smartphone as a digital dash panel , tried to do some search on the web with no luck.
Thank you for your time



[DirtSquirrel]

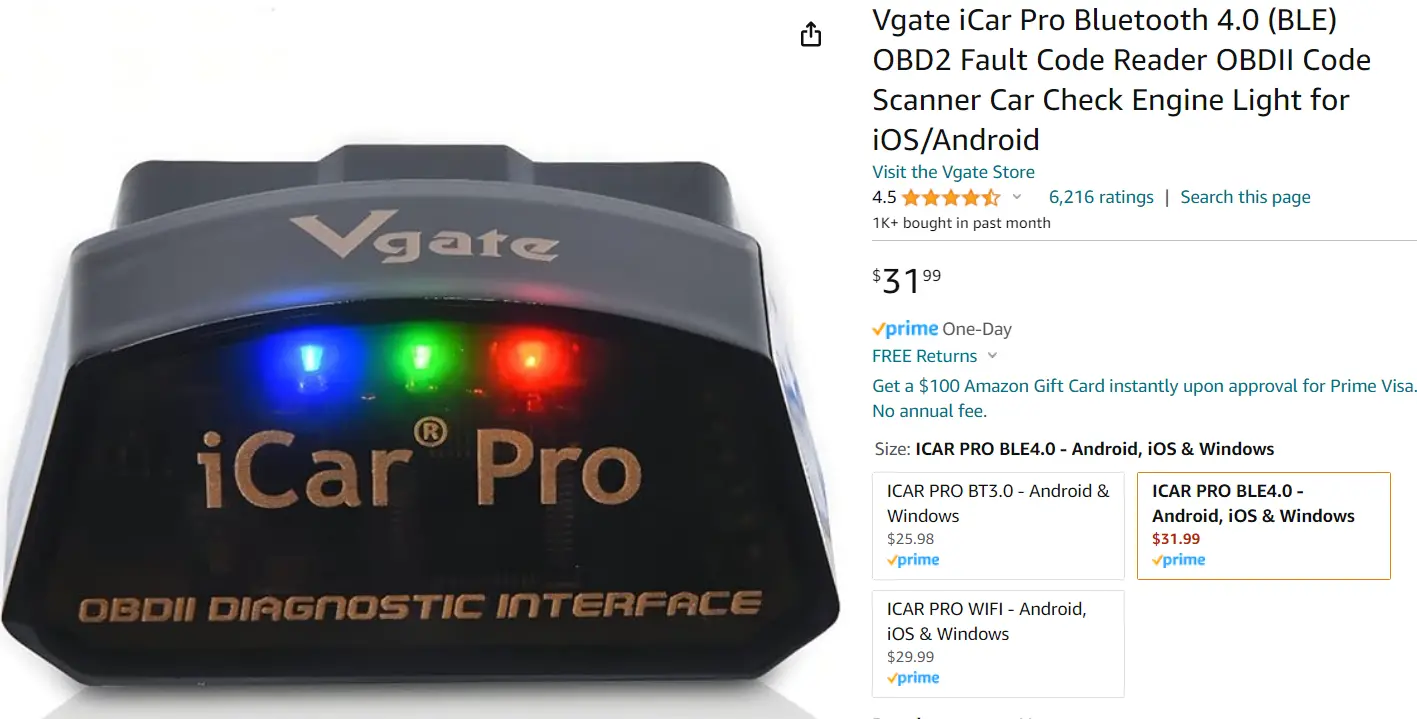

Mine is a simple panel with 3 gauges (water/trans temp and oil pressure). The plug on the bottom is a usb charging port that also shows the volts, so thats my volts gauge. I also can use an app on my phone that uses a OBD2 bluetooth dongle to an app called FourStroke. It lets me clear any codes that may pop up from my ecu. Only bad thing with most OBD2 readers is that they dont have a PiD for oil pressure so its not read through the app. My app requires a Bluetooth 4.0 reader so i bought this one on Amazon.



[woody]

Boring standalone round gauges for oil pressure, trans temp, water temp. Nothing else needed IMO. Voltage is visible via a USB plug/monitor.

Amazon.com: GlowShift Universal Black Triple Gauge Console Dashboard Pod - Fits Any Make/Model - ABS Plastic - Mounts (3) 2-1/16" (52mm) Gauges to Vehicle's Dash : Automotive

Buy GlowShift Universal Black Triple Gauge Console Dashboard Pod - Fits Any Make/Model - ABS Plastic - Mounts (3) 2-1/16" (52mm) Gauges to Vehicle's Dash: Housing Pods - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com



[jeeperscreepers]

Thanks guys, so thinking about it, i can strip down some gauges and use the very basic like you, i just need to change the layout and fabricate a new smaller pod. thanks again



[gadjet911]

Used that pod on mine. Oil pressure and water temp. I opened the center hole up for a mini tach. I also have a volt meter on the usb plug in the middle of the switches.

Boring standalone round gauges for oil pressure, trans temp, water temp. Nothing else needed IMO. Voltage is visible via a USB plug/monitor.

Amazon.com: GlowShift Universal Black Triple Gauge Console Dashboard Pod - Fits Any Make/Model - ABS Plastic - Mounts (3) 2-1/16" (52mm) Gauges to Vehicle's Dash : Automotive

Buy GlowShift Universal Black Triple Gauge Console Dashboard Pod - Fits Any Make/Model - ABS Plastic - Mounts (3) 2-1/16" (52mm) Gauges to Vehicle's Dash: Housing Pods - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com



[jeeperscreepers]

Thank you guys, so i'm going to do some sort of pod like Gadjet's using the very basic gauges.



[JarrodBrazil]

Hu guys, i fabricated a sort of pod for gauges in my buggy that surrounds the steering column but it really sucks so, since i don't have any room in my firewall for gauges (because my lack of skill/creativity) i'm wondering to toss it and put on a digital gauges panel like Lowrance , AEM or similar even if i'm not a big fan of 'em.
I don't want to spend a fortune so i'm thinking about a very basic panel with water temp, oil pressure, voltage, trans temp and possibly engine oil temp too, tach is not mandatory, Any suggestion? I remember a Kalif Redden buggy with JHF portals with red frame (maybe Jarrod's brazil's now) i don't know that was actually using an app on the smartphone as a digital dash panel , tried to do some search on the web with no luck.
Thank you for your time

Hey. Yes. It was a Bluetooth box that plugged into OBD port then bluetooth to your phone. Reads codes. Makes gauges too!, I bought the car with that and came with an old android phone too.I got mad and ditched the engine and all that stuff too here is something similar on Amazon..



[woody]

Hey. Yes. It was a Bluetooth box that plugged into OBD port then bluetooth to your phone. Reads codes. Makes gauges too!, I bought the car with that and came with an old android phone too.I got mad and ditched the engine and all that stuff too here is something similar on Amazon..

OBD Bluetooth dongles are $10 or so on Amazon, I have one and tie it in with TorquePro.



[jeeperscreepers]

Hey. Yes. It was a Bluetooth box that plugged into OBD port then bluetooth to your phone. Reads codes. Makes gauges too!, I bought the car with that and came with an old android phone too.I got mad and ditched the engine and all that stuff too here is something similar on Amazon..

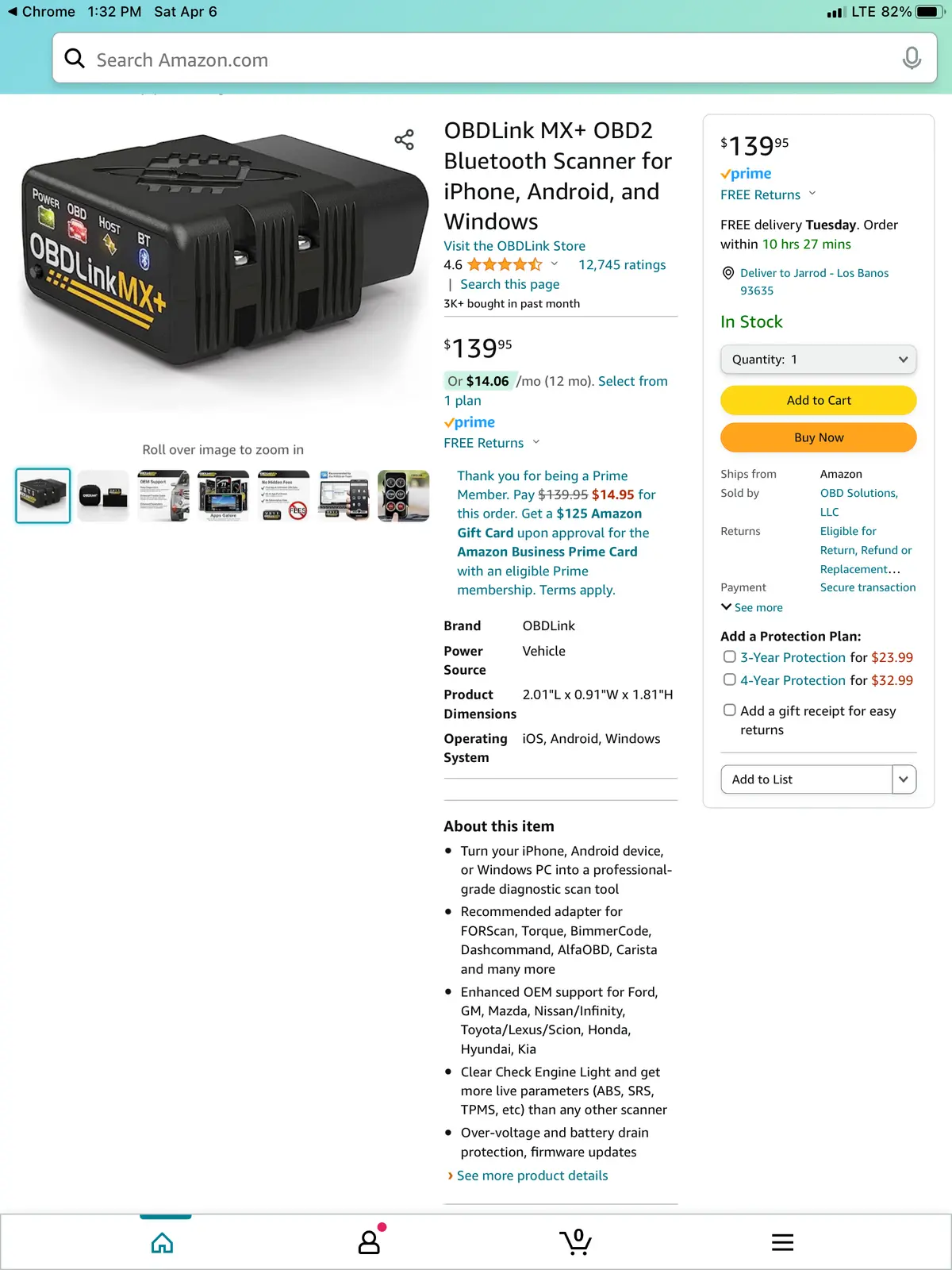

View attachment 17659

Thank, I've seen your buggy on a wrecked gear video on YouTube. What engine did you swap into?



[pennsylvaniaboy]

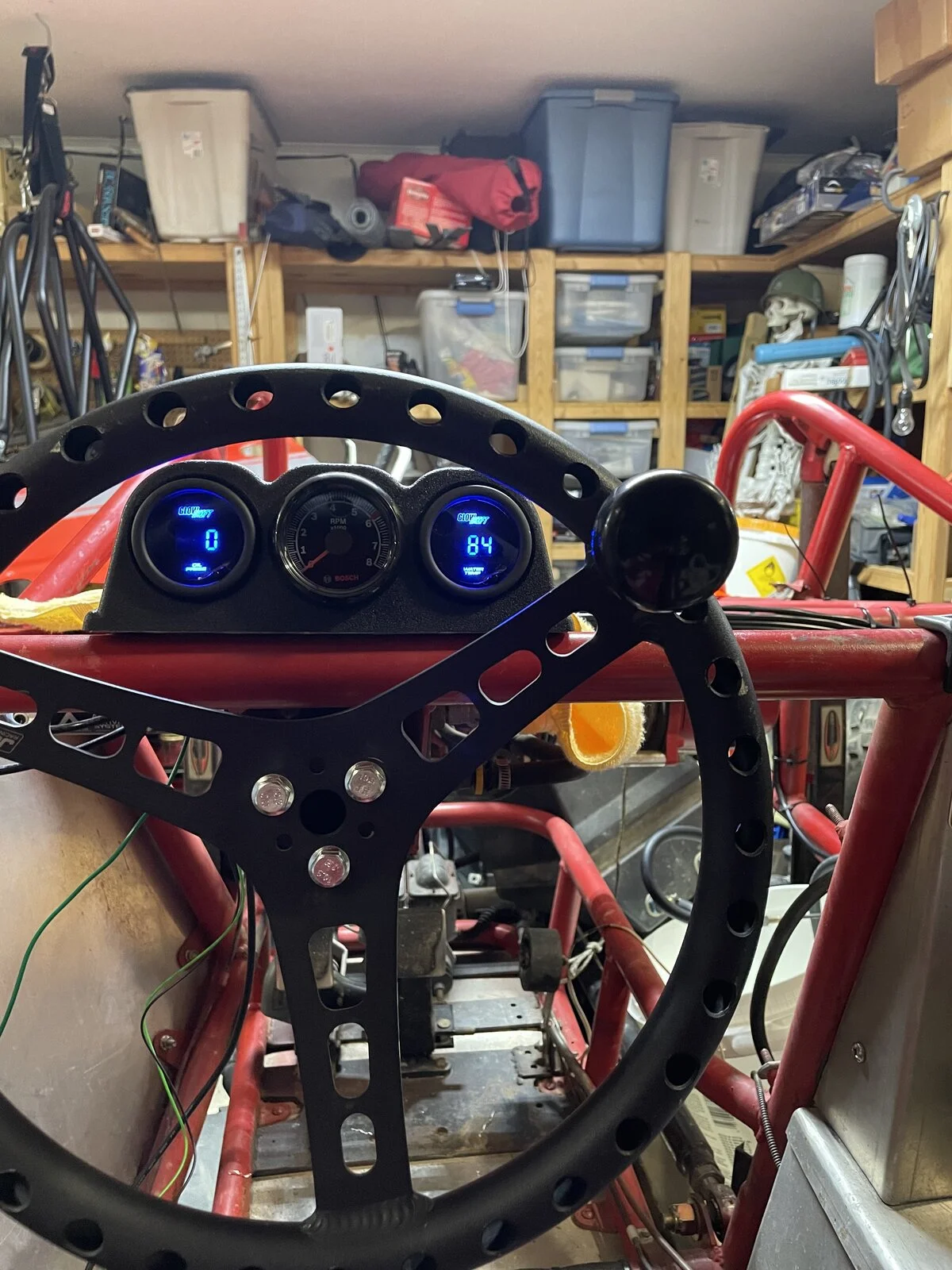

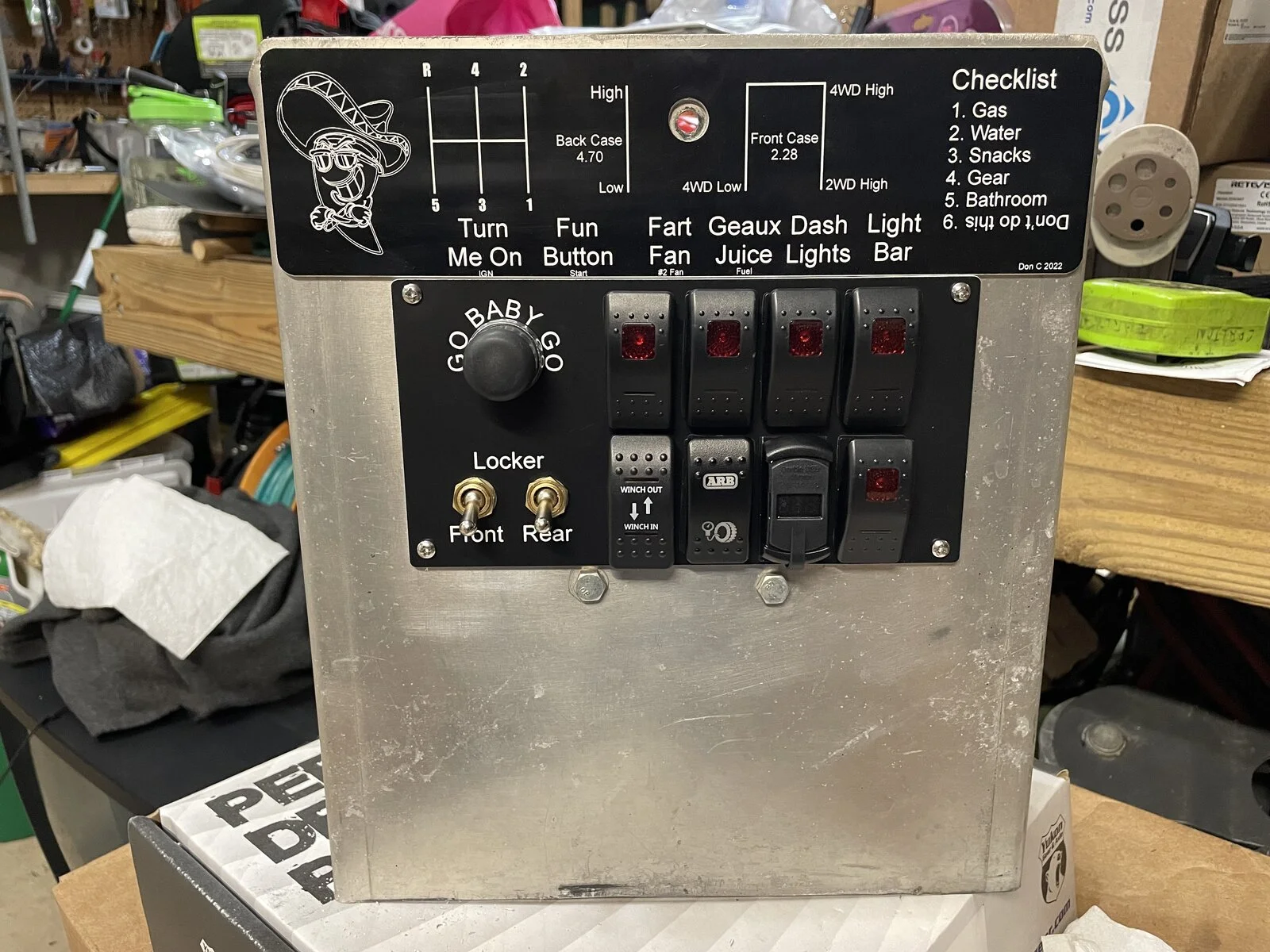

Used that pod on mine. Oil pressure and water temp. I opened the center hole up for a mini tach. I also have a volt meter on the usb plug in the middle of the switches.



View attachment 17648

View attachment 17649

What spinner knob did you use to bolt into the Joes wheel?



[gadjet911]

What spinner knob did you use to bolt into the Joes wheel?

I’ll try to get a picture of it but the bolt coming out the back of the spinner knob goes through one of the holes in the wheel and a nut is threaded on and then welded up. It’s a little sloppy but works ok. With the removable wheel I can place the knob in different positions.



[JarrodBrazil]

Thank, I've seen your buggy on a wrecked gear video on YouTube. What engine did you swap into?

I have a build thread on here. Now running a Buick 3.9l v-6. It has great torque. Way better than 1.6 ecotec. But it ain’t no LS2



[jeeperscreepers]

The V6 is probably the best compromise between power/ torque and weight.
