Eibach has captured countless victories in some of the greatest off-road races in the world. Take that same race-winning technology, combine it with Eibach’s legendary suspension tuning and enter: the ALL-TERRAIN-LIFT. Built to withstand anything you can throw at it, the ALL-TERRAIN-LIFT is the perfect balance of off-road performance with on-road stability and ride quality.

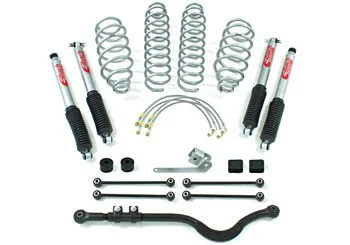

The Eibach ALL-TERRAIN-LIFT Kit comes complete with everything needed for installation, Including: Eibach ALL-TERRAIN-LIFT Springs, Shocks, Bumpstop Spacers, Adjustable Endlinks, Adjustable Front/Rear Track Bars, Location Brackets and Stainless-Steel Brake Lines—backed with Eibach’s Million-Mile Spring Warranty, Two-Year Shock Warranty and Made in the U.S.A.
TECHNICAL INFORMATION
FRONT:
Front Alignment:
REAR:
Rear Alignment:
Note: Ride height numbers depends on optional accessories and/or equipment. Measurements above are taken from the 4-Door Wrangler Rubicon. Kit includes new brake line brackets, end links, front adjustable track bar, rear track bar, relocation bracket, bump stop spacers and caster adjustment kit. The 2012+ JK requires exhaust modification due to the motor position being changed
The post EIBACH ALL-TERRAIN-LIFT JEEP WRANGLER JK appeared first on RockCrawler 4x4 and Offroad Magazine.
Related posts:
Continue reading...
The Eibach ALL-TERRAIN-LIFT Kit comes complete with everything needed for installation, Including: Eibach ALL-TERRAIN-LIFT Springs, Shocks, Bumpstop Spacers, Adjustable Endlinks, Adjustable Front/Rear Track Bars, Location Brackets and Stainless-Steel Brake Lines—backed with Eibach’s Million-Mile Spring Warranty, Two-Year Shock Warranty and Made in the U.S.A.
- Includes ALL-TERRAIN-LIFT Springs & Shocks
- Increased Ground Clearance
- More Fender Clearance for Larger Wheels and Tires
- Precision Lift Springs Engineered for Better Off-Road Capability
- Excellent On-Road Stability and Handling
- Million-Mile Warranty for Springs,Two-Year Warranty for Shocks
TECHNICAL INFORMATION
FRONT:
- OE rate: 21 N/mm (122 lbs/in)
- ALL-TERRAIN-LIFT rate: 21 N/mm (122 lbs/in)
- Bump-stop: OE w/ Bump-stop Spacer
- Damper: PRO-TRUCK Damper
- Track Bar: Adjustable Eibach Track Bar
- OE wheel center to fender: 537 mm (21 in)
- ALL-TERRAIN-LIFT wheel center to fender: 607 mm (24 in)
- OE Shock Travel: 184 mm (7 in)
- ALL-TERRAIN-LIFT Shock Travel: 244 mm (10 in)
Front Alignment:
- OE Camber = -0.3 deg (+/-0.4 deg)
- OE Caster = 4.2 deg (+/-0.5 deg)
- OE Toe = 0.2 deg (+/-0.1 deg)
- ALL-TERRAIN-LIFT Camber: -0.5 deg
- ALL-TERRAIN-LIFT Caster = 4.0 deg
- ALL-TERRAIN-LIFT Toe = 0.5 deg
- Approximate installation time: 3 hr
REAR:
- OE rate: 29 N/mm (166 lbs/in)
- ALL-TERRAIN-LIFT rate: 29 N/mm (166 lbs/in)
- Bump-stop: OE w/ Bump-stop Spacer
- OE wheel center to fender: 546 mm (21 in)
- ALL-TERRAIN-LIFT wheel center to fender: 604 mm (24 in)
- OE Shock Travel: 203 mm (8 in)
- ALL-TERRAIN-LIFT Shock Travel: 279 mm (11 in)
Rear Alignment:
- OE Camber = n/a
- OE Toe = n/a
- ALL-TERRAIN-LIFT Camber: -0.3 deg
- Damper: PRO-TRUCK Damper
- ALL-TERRAIN-LIFT Toe = 0.3 deg
- Approximate installation time: 3 hr
Note: Ride height numbers depends on optional accessories and/or equipment. Measurements above are taken from the 4-Door Wrangler Rubicon. Kit includes new brake line brackets, end links, front adjustable track bar, rear track bar, relocation bracket, bump stop spacers and caster adjustment kit. The 2012+ JK requires exhaust modification due to the motor position being changed
The post EIBACH ALL-TERRAIN-LIFT JEEP WRANGLER JK appeared first on RockCrawler 4x4 and Offroad Magazine.
