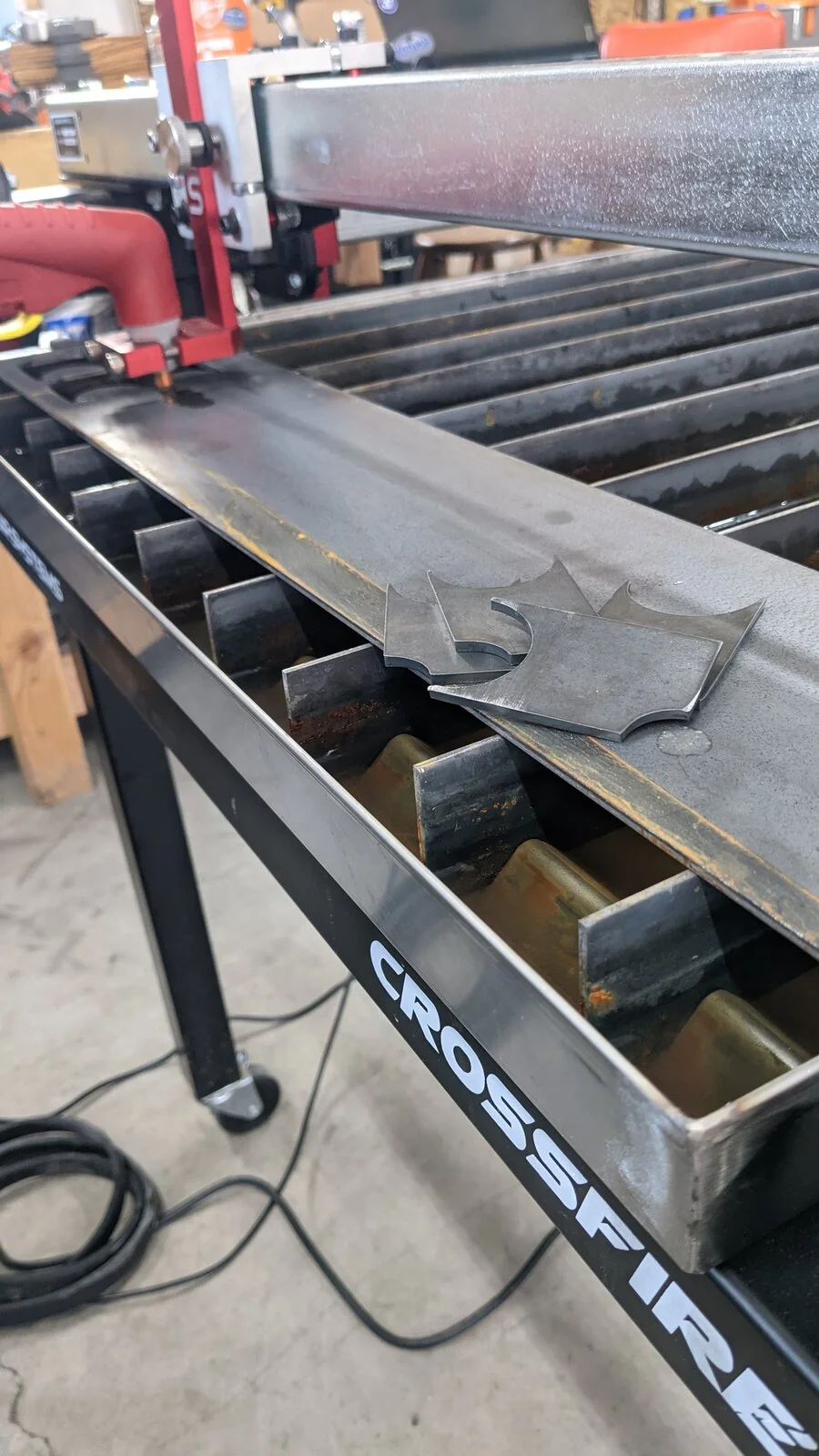

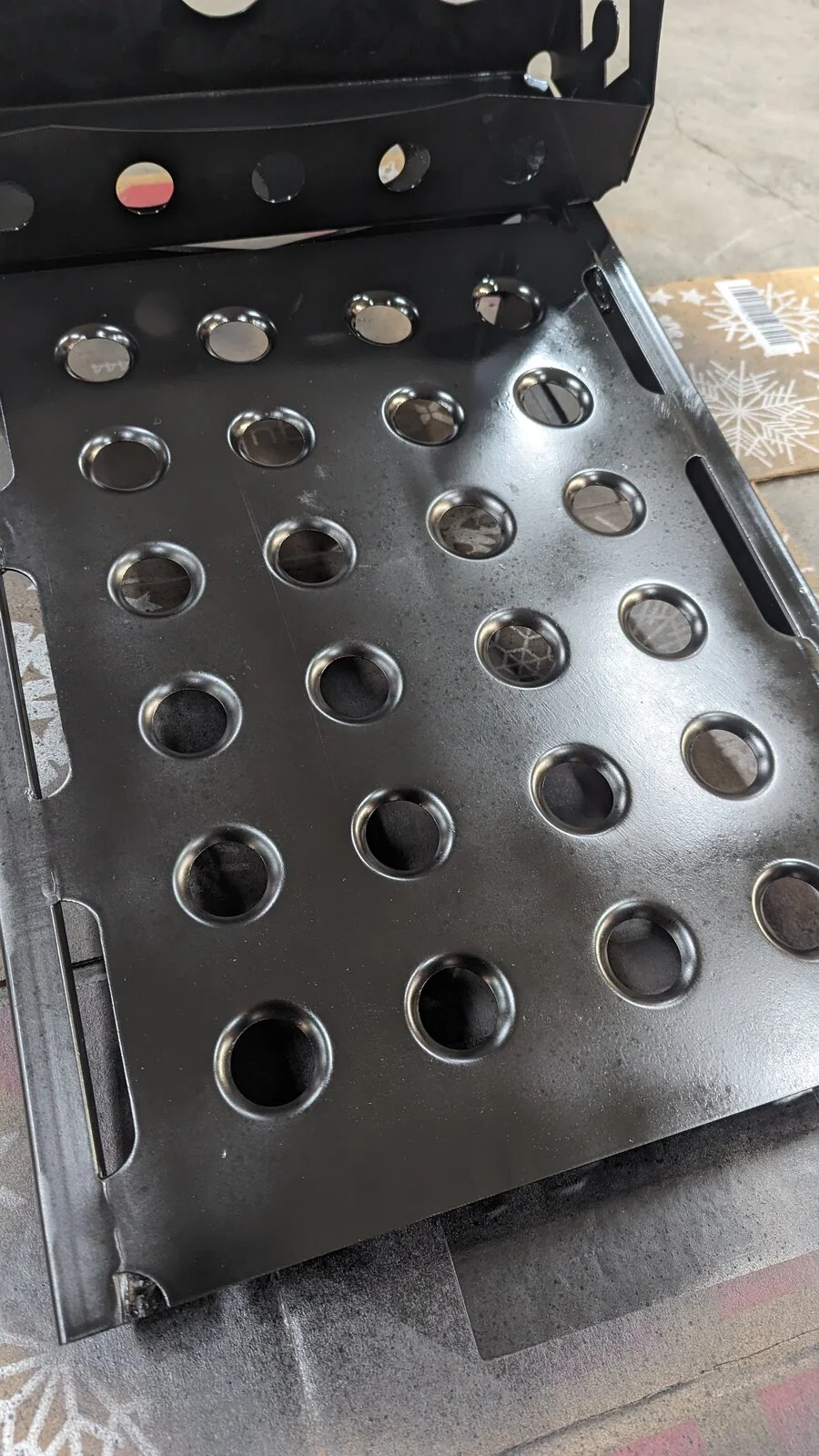

I've been wanting one of these forever... Crossfire 2x2, paired with a PrimeWeld Cut60. First cuts went perfectly, other than some operator learning.

DXF file uploads welcome, share your designs!

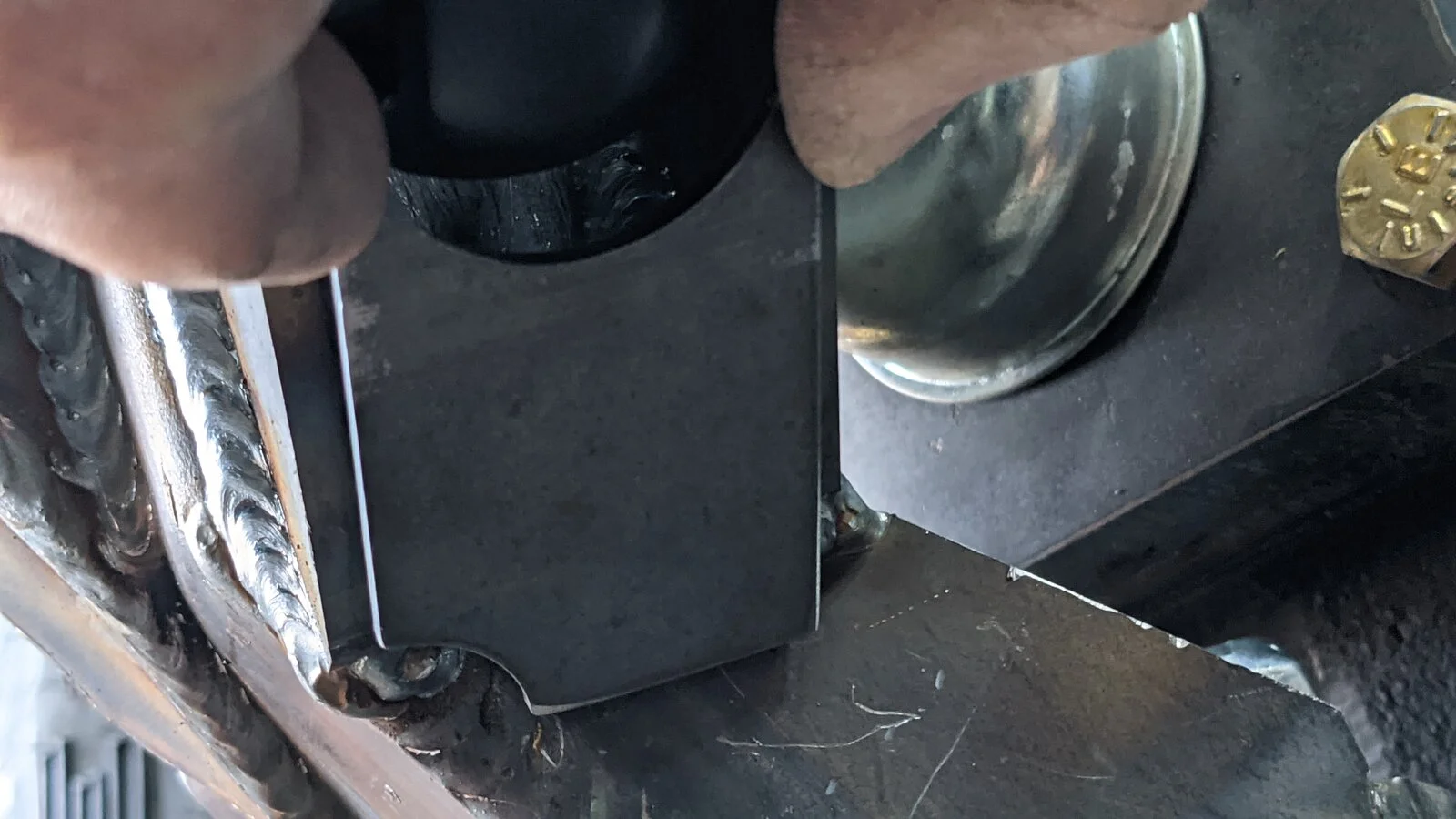

I made 4 of these for axle-side shock tabs supports. Corner hole for drainage, U top to clear the shock eye. 1/8 steel, 1.6" wide.




Attachments

Last edited:
Experimenting today with cutting holes on the plasma table....we will be using the table to cut round bolt holes in 3/16" AR450. So, time to learn before we waste the expensive stuff :)

The 3/4" diameter hole (top/right) was drawn at 0.780. Import into sheetcam, process as Inside Offset, set a perpendicular lead in of 0.390 (0.780/2), overcut at 0.20. Feed rate set at 50% of normal for 3/16" sheet. (can do this in sheetcam, or on your table program....FireControl in my case). Set the program Origin to the center point and you can effectively line up the plasma tip to dead center of your hole. With these settings, the 3/4 bolt dropped in cleanly.

I'll likely reduce speed to 25% for the AR plate.

Similar oversize amounts for the 1/2", 9/16" and 5/8" were used. Some tweaks were made so the 50% number didn't end up at .2125 or something.

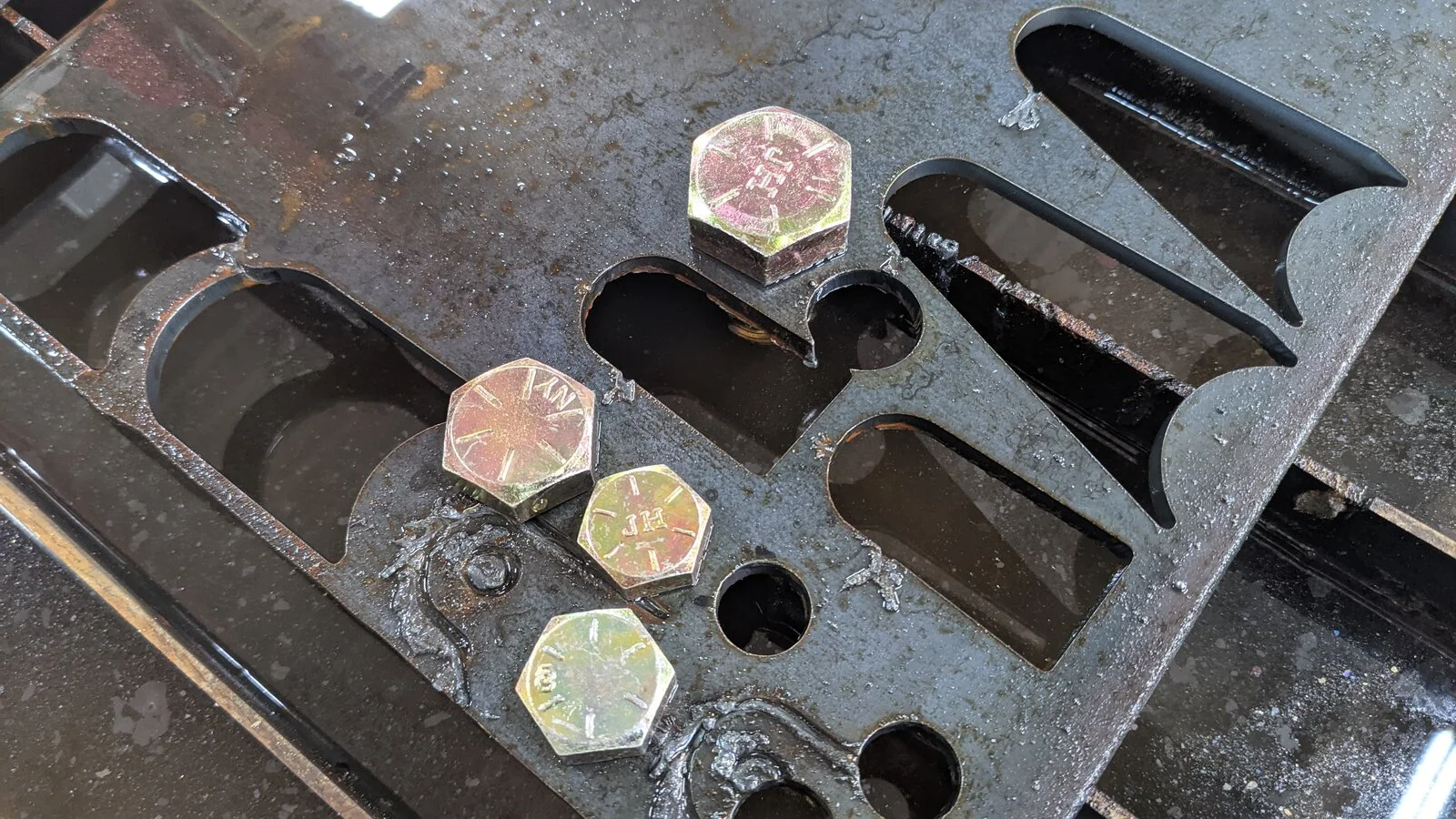

Note the failures where the bolt just didn't quite drop in ;)


Last edited:
I bought a Cut 60 last year with the idea it could be used on a table like the Crossfire. If I get into a larger garage one day I will definitely own one. Keep up informed on your long term use with it.

The hand torch is awesome....in your hand. PITA on the table, so a good machine torch will be ordered when they come into stock later this month. This one is VERY recommended....

www.ebay.com

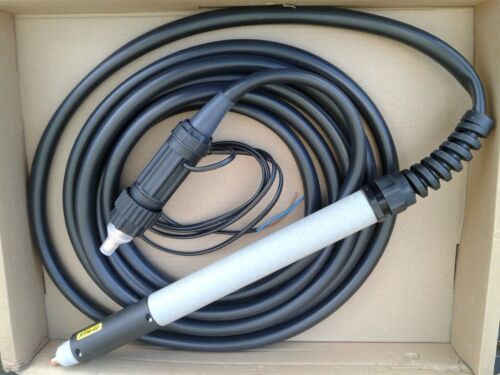

PTM 60 CNC PLASMA CUTTER TORCH 20' CABLE WITH EURO CONNECTOR MADE IN ITALY | eBay

Find many great new & used options and get the best deals for PTM 60 CNC PLASMA CUTTER TORCH 20' CABLE WITH EURO CONNECTOR MADE IN ITALY at the best online prices at eBay! Free shipping for many products!
www.ebay.com

The issue is "squaring" the torch any time it gets removed. PITA. So disconnecting/reconnecting to switch between hand and table keeps the table aligned properly.

woody said:
The hand torch is awesome....in your hand. PITA on the table, so a good machine torch will be ordered when they come into stock later this month. This one is VERY recommended....

www.ebay.com

PTM 60 CNC PLASMA CUTTER TORCH 20' CABLE WITH EURO CONNECTOR MADE IN ITALY | eBay

Find many great new & used options and get the best deals for PTM 60 CNC PLASMA CUTTER TORCH 20' CABLE WITH EURO CONNECTOR MADE IN ITALY at the best online prices at eBay! Free shipping for many products!
www.ebay.com

The issue is "squaring" the torch any time it gets removed. PITA. So disconnecting/reconnecting to switch between hand and table keeps the table aligned properly.
Click to expand...
Just a question but why not buy an extra lead? Seems more feasible than buying a whole unit.

ProFab said:
Just a question but why not buy an extra lead? Seems more feasible than buying a whole unit.
Click to expand...
That IS an extra lead. Machine torch head and lead cable...connects to the plasma cutter.

After nearly a year of use, would you be kind enough to give us a review of the Langmuir Crossfire 2x2. I am greatly interested in what you like and dislike about the table and the Cut 60. Many thanks in advance!

OldRocDoc said:
After nearly a year of use, would you be kind enough to give us a review of the Langmuir Crossfire 2x2. I am greatly interested in what you like and dislike about the table and the Cut 60. Many thanks in advance!
Click to expand...
Really, no complaints....I obviously used the table a ton initially, and it sits a fair amount now. That means some "relearning" of the software each time I use it, but I did a few items for a friends build a week or so back and it worked perfectly. Keeping consumables clean/ready is always a pain (plus remembering which tips are installed). Should be cutting some 3/16 AR with it in a few weeks, and don't expect any issues.

For my needs I'd buy it again. And I know quite a few people who are running PrimeWeld plasma and tig machines and loving them. I should be getting commissions just from local sales...lol
