The Suzuki Jimny is known for its off-road performance, but the stock front axle swivel seal is prone to early failure. The OEM rubber seal quickly fails and lets damaging water and dirt in while allowing oil and grease to escape. Trail-Gear is proud to introduce the Trail-Safe™ Knuckle Ball Wiper Seal for the Suzuki Jimny. The Trail-Safe™ Knuckle Ball Wiper Seal is a dual-lipped wiper seal that keeps grease in and dirt out, all while eliminating the OEM swivel seal system. Since it is made from seal-grade polyurethane, not UHMW, the seal is pliable enough to stretch over the knuckle ball during installation. This eliminates the need to cut the seal for installation which creates a potential leak point. (more…)
Tag: Trail-Gear
-

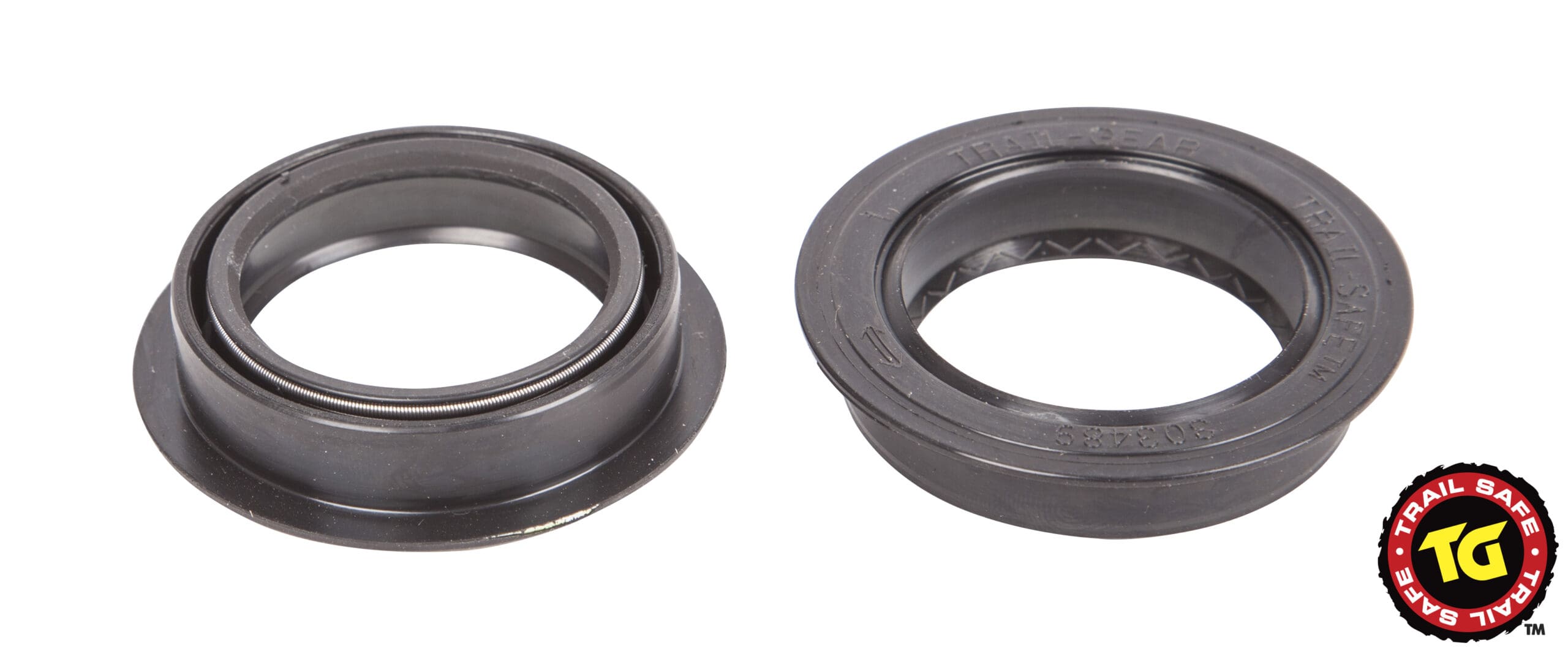

Trail-Safe FJ80 Inner Axle Seals
Tired of dealing with oil leaks from your front inner axle seal? Trail-Gear has remedied that issue by offering our new Trail-Safe™ FJ80 Inner Axle Seal. The Trail Safe™ inner seal lip is totally supported by a garter spring applying constant force over the full 360° circumference. This prevents any deflection gaps and stops oil from bypassing the seal lip. The outer seal lip acts as a secondary seal and keeps debris and other contaminants away from the inner seal lip. (more…)
-
Trail-Gear is now offering FJ80 Front and Rear Bumpers
HREW bumpers are strong, but Trail-Gear had to take things to the next level by making our bumpers out of 1020 DOM (1.75" X .120" wall) with a .25” CNC formed steel plate winch mount.
1020 DOM is more dent resistant than HREW tubing and it will not split down the seam as we have all seen the cheaper HREW tubing do. We can confidently say that our Rock Defense™ bumpers are one of the strongest on the market. (more…)
-
Trail-Gear is now offering 4.16 and 4.90 Jimny T-Case Gears
This is the first and only true international gear set that includes all four gears necessary for your low range gear installation.
Low range gears are critical for technical off-road driving. Our Jimny T-Case Gears is the highest quality gear set available. Low Range reduction is 4.16:1 (84% low range reduction & 12% high range reduction) or 4.90:1 (115% low range reduction and 16% high range reduction). No welded or second rate, gears here. These are strong, run quiet and take a huge amount of abuse. This complete kit includes four new precision cut gears, counter shaft, needle bearings, shims, o-ring, gaskets, and input/output seals. Heavy duty front output shaft recommended (see below).
Note: The recommended tire size for the 4.16 gears is 29”-30” and 30”-31” for the 4.90 gears.
Note: Will not fit in Jimny chain-drive transfer cases.
Application Data:
1990-1995 Suzuki Jimny JA11 4WD
1995-1998 Suzuki Jimny JA12 4WD
1986-1990 Suzuki Jimny JA71 4WD
Available Options:
4.16 Jimny T-Case Gears, 303924-3-KIT, $418.95
4.90 Jimny T-Case Gears, 303925-3-KIT, $523.95
-
Trail-Gear is now offering a Suzuki Samurai/Jimny Rear Wheel Bearing Seal
This kit is perfect for replacing your worn out bearing and seals in your Suzuki Samurai or Suzuki Jimny. This Rear Wheel Bearing kit includes high quality, genuine Koyo brand bearings with integral spacer, ground bearing retainer, and an OEM quality Rear Axle Wheel Seal. We have also went one step further and included a full set of instructions. (more…)
-

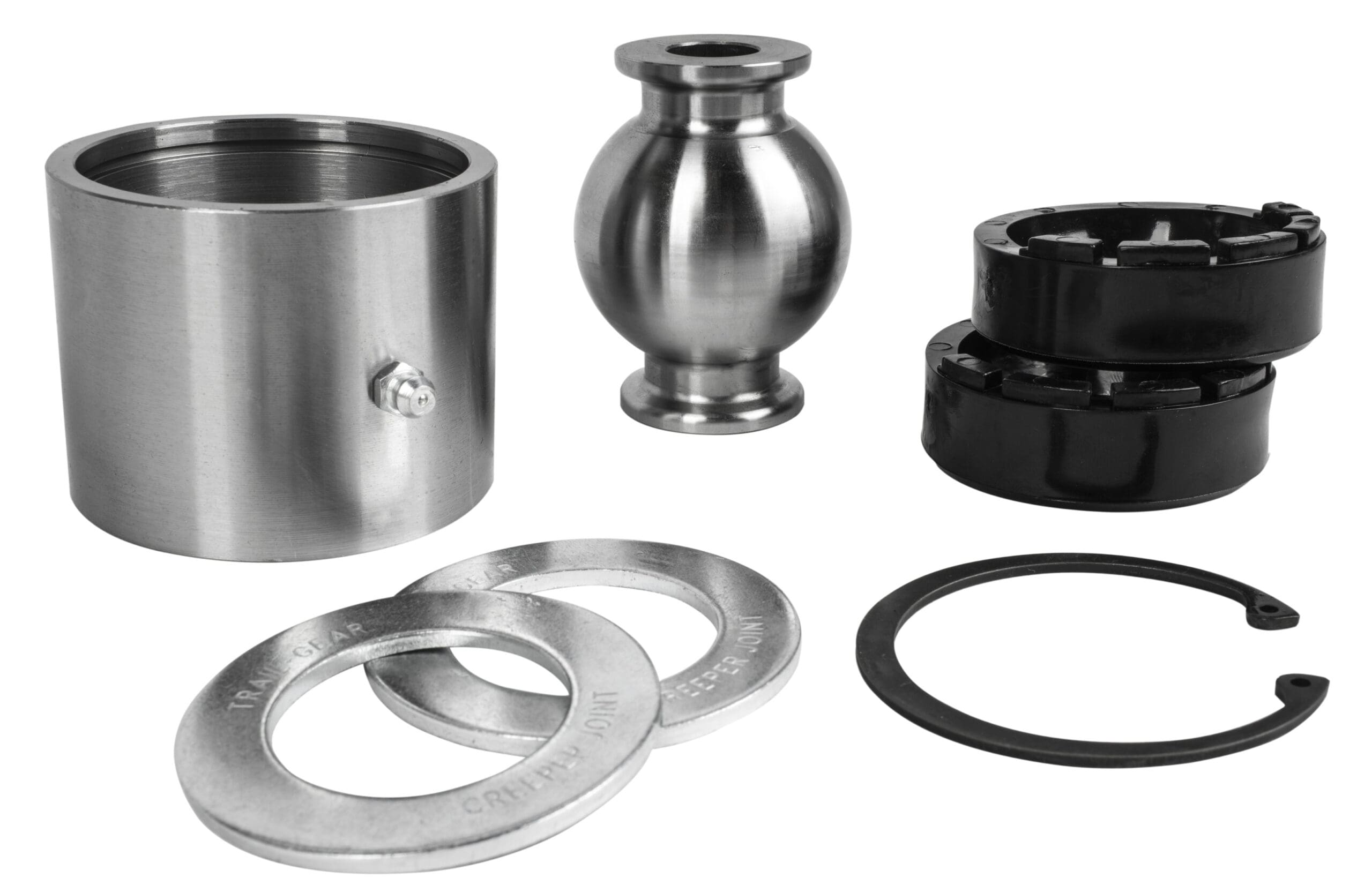

Trail-Gear is now offering a Weld-On Creeper Joint
These heavy duty Weld-On Creeper Joints are ideal for today’s flexible suspension systems. Super strong, Weld-On Creeper Joints will hold up to years of punishment. The inner flex ball is made from 8620 tool steel and rides on high quality polyurethane bushings. Heavy-duty, hardened steel washers hold the joint together. Creeper Joints are super flexible and allow for up to 40 degrees of movement when used with spacers. A threaded grease fitting is provided on the housing for lubrication. The flex ball is drilled for cross lubrication flow from the shell to the link mount bolt. These Weld-On Creeper Joint Kits are perfect for creating your own A-arms, suspension links, or other suspension components. Provided unassembled. Welding required for installation.
Comes in three different flex ball sizes: 9/16″, 5/8″ & 18mm, allowing you to choose the right size to match your application.
Available Options:
Weld-On Creeper Joint Kit, 18mm, 303892-KIT, $19.95
Weld-On Creeper Joint Kit, 9/16”, 303893-KIT, $19.95
Weld-On Creeper Joint Kit, 5/8”, 303894-KIT, $19.95
