Nissan Patrol Creeper Locks™ Beadlock Wheel

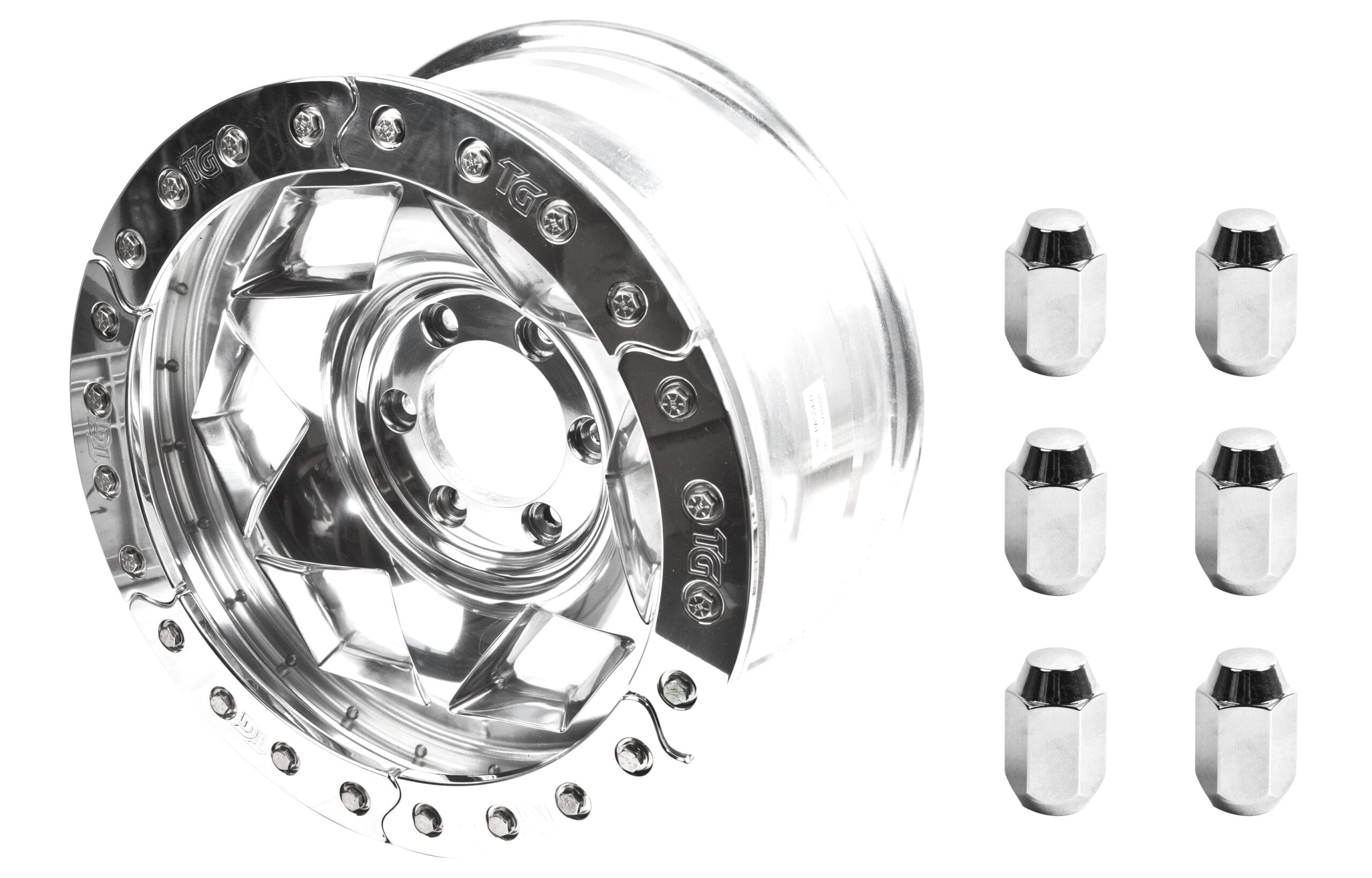

Nissan Patrol Creeper Locks™ Beadlock WheelLooking for a beadlock wheel for your Nissan Patrol? Well look no further. Trail-Gear is now offering our Creeper Locks™ Beadlock Wheels for the Nissan Patrol. What are Creeper Locks? Creeper Locks are TrailGear’s Trail-Gear price! Creeper Locks are 17″ X 9″ wheels with a backspacing of 3.75″ and are made from a solid piece of aluminum. This wheel has a 4.37″ (111mm) center bore. Each wheel weighs a whopping 45 lbs with locking ring and hardware. These are no ordinary aluminum wheels, Creeper Locks™ are super tough and built to last. Each wheel is cast with the inner beadlock as part of the wheel. All 24 of the bolt holes on the wheel have steel Time-Serts® installed to prevent the bolts from galling. Drop down inner lip centers tire on to wheel during mounting. Six M12-1.25 lug nuts are provided with each wheel.


  • Solid Heavy Duty Design
  • 17″ Rims, 9″ Wide
  • 3.75″ Back Spacing
  • 24, Grade 8 5/16″ bolts
  • Time-Sert® Inserts Installed
  • Wheel Rating, 2800 lbs Each
  • 6, M12-1.25 Acorn Lug Nuts Provided

Our Creeper Lock Wheels will now come with our new Creeper Locks Sectional Beadlock Rings. Our new Creeper Locks Sectional Beadlock rings offer a variety of advantages over a traditional single beadlock ring:

  • Interlocking design.
  • Aggressive knurling for a better bite into the rubber of the tire.
  • Increased material thickness.
  • Deeper recesses for the bolt head.
  • Single segments can be replaced if damaged.
  • Multiple color options.
  • Compatible with all existing TG 17” beadlock wheels.

Our Creeper Locks Sectional Beadlock Rings have been tested extensively at some of the world’s hardest courses, such as “The Hammers” in Johnson Valley, California and the Rubicon trail in Lake Tahoe, California as well as the Ultra4 racing circuit.

Available Options:

  • 17″ Nissan Patrol Creeper Locks™ Wheel, 6 Lug (6 on 5.5) w/Polished Sectional Beadlock Ring, 301021-KIT $355.95
  • 17″ Nissan Patrol Creeper Locks™ Wheel, 6 Lug (6 on 5.5) w/Orange Sectional Beadlock Ring, 301022-KIT $355.95
  • 17″ Nissan Patrol Creeper Locks™ Wheel, 6 Lug (6 on 5.5) w/Black Sectional Beadlock Ring, 301023-KIT $355.95
  • 17″ Nissan Patrol Creeper Locks™ Wheel, 6 Lug (6 on 5.5) w/Clear-Satin Sectional Beadlock Ring, 301024-KIT $355.95
