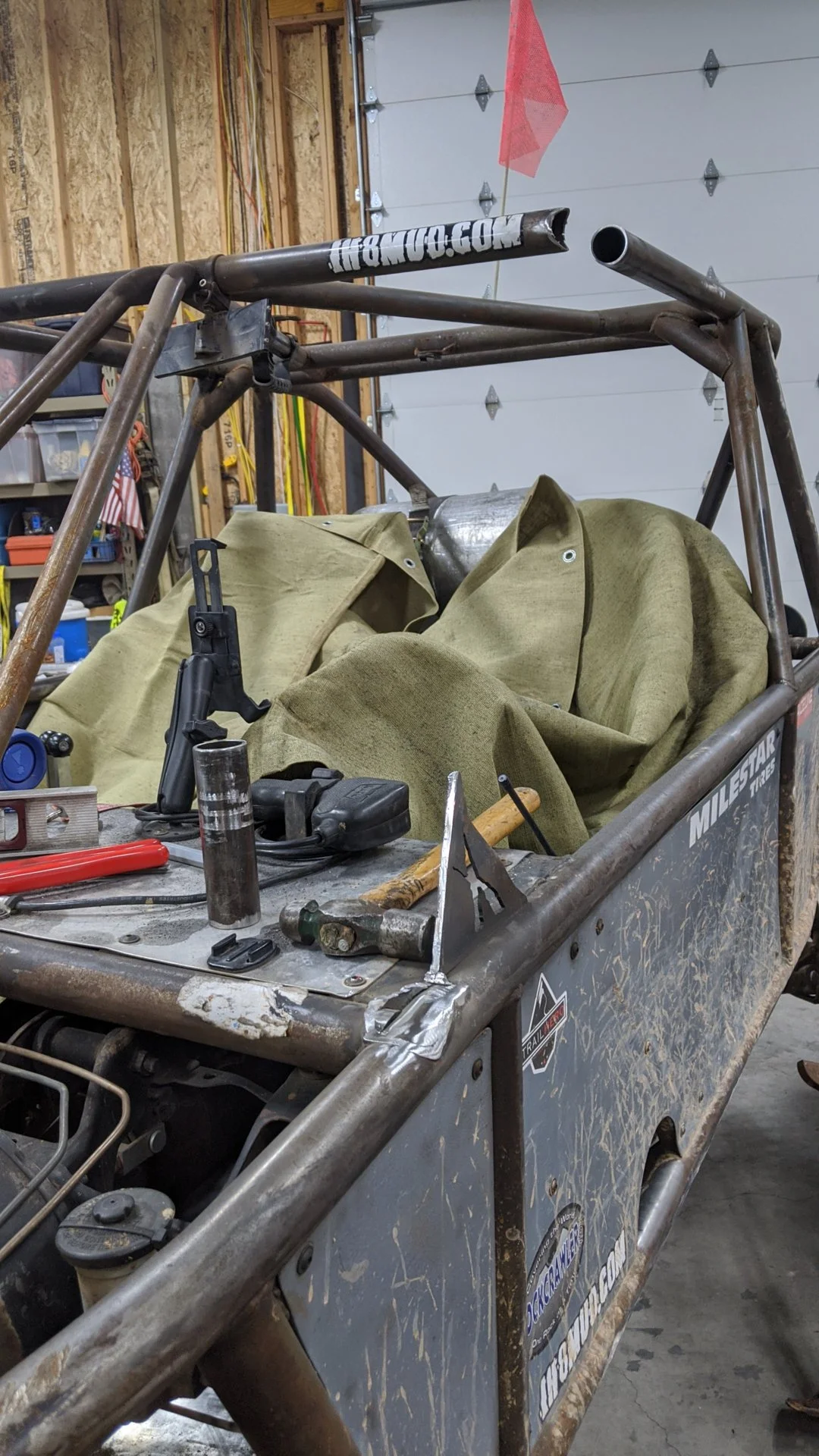

The drivers side A pillar on my FToy was tweaked when I bought it...and Saturdays flop was it's was straw.....so, out it came...



If this was a SEMA car, I could call it Bluetooth and make it work...lol


woody

eternal noobie
Staff member
Oct 12, 2010
1,013
52
Toquerville UT
Pics of the progress and fitment...

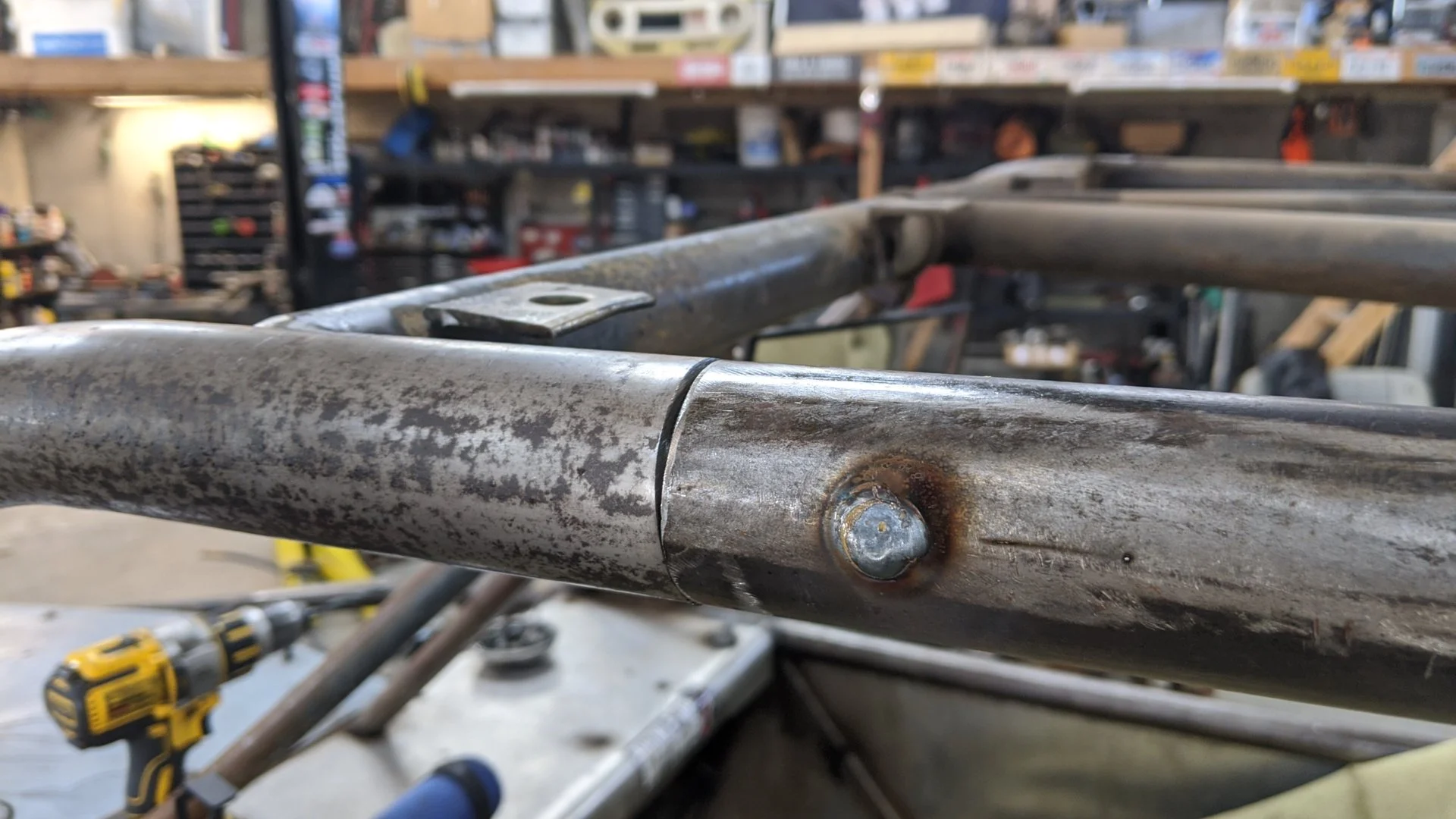

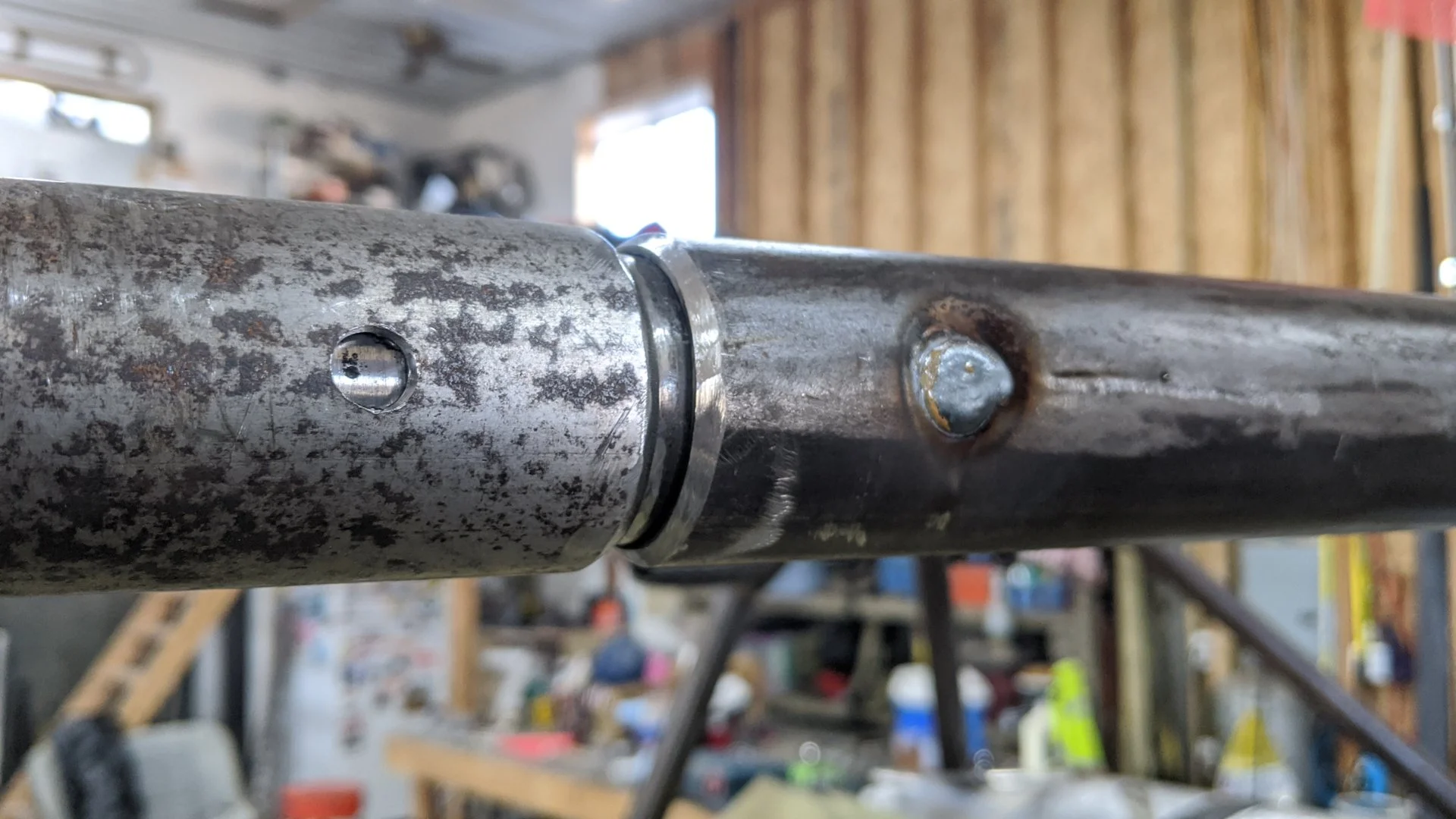

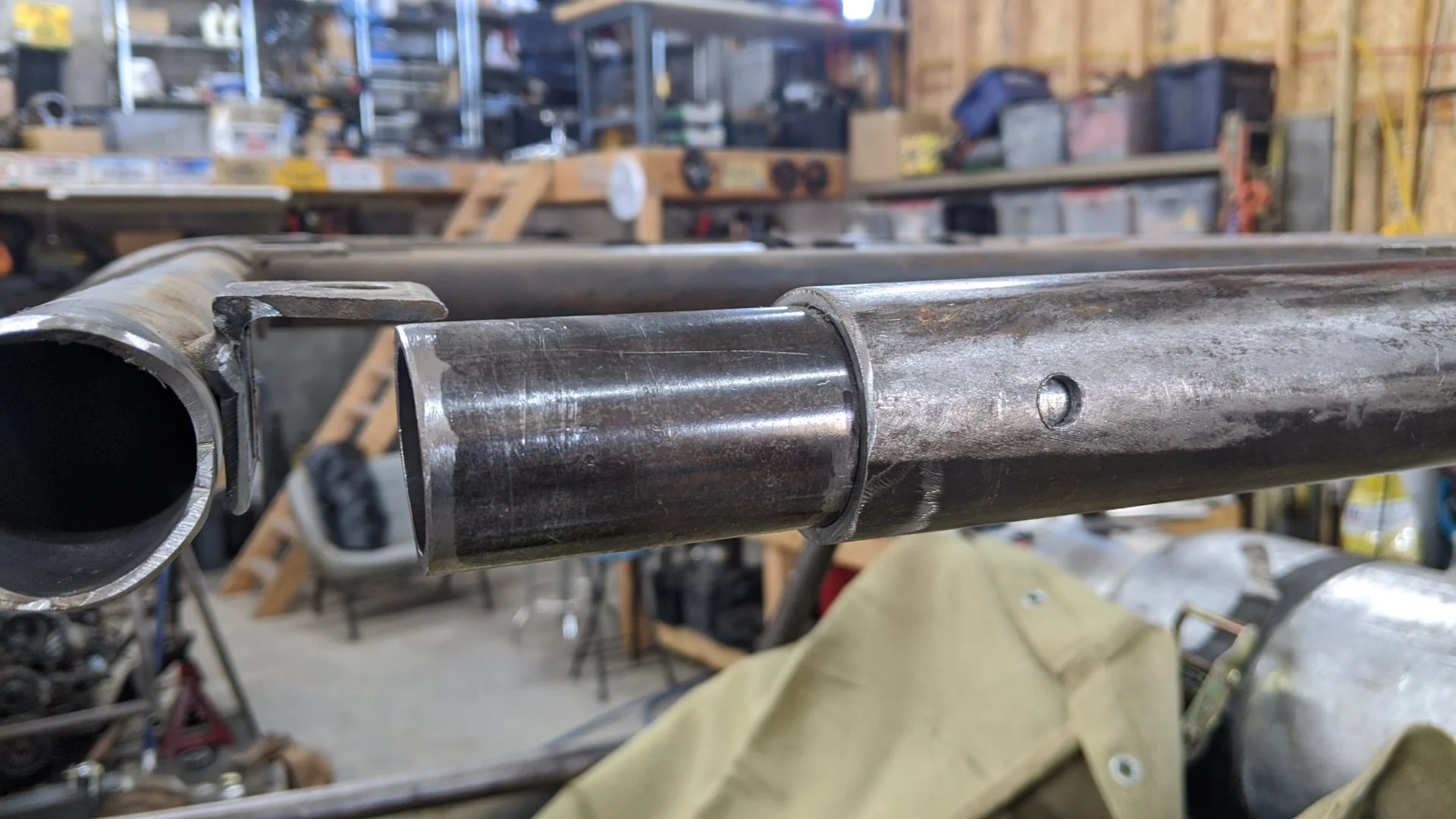

Sleeve is 5" long, plug welded so it doesn't shift

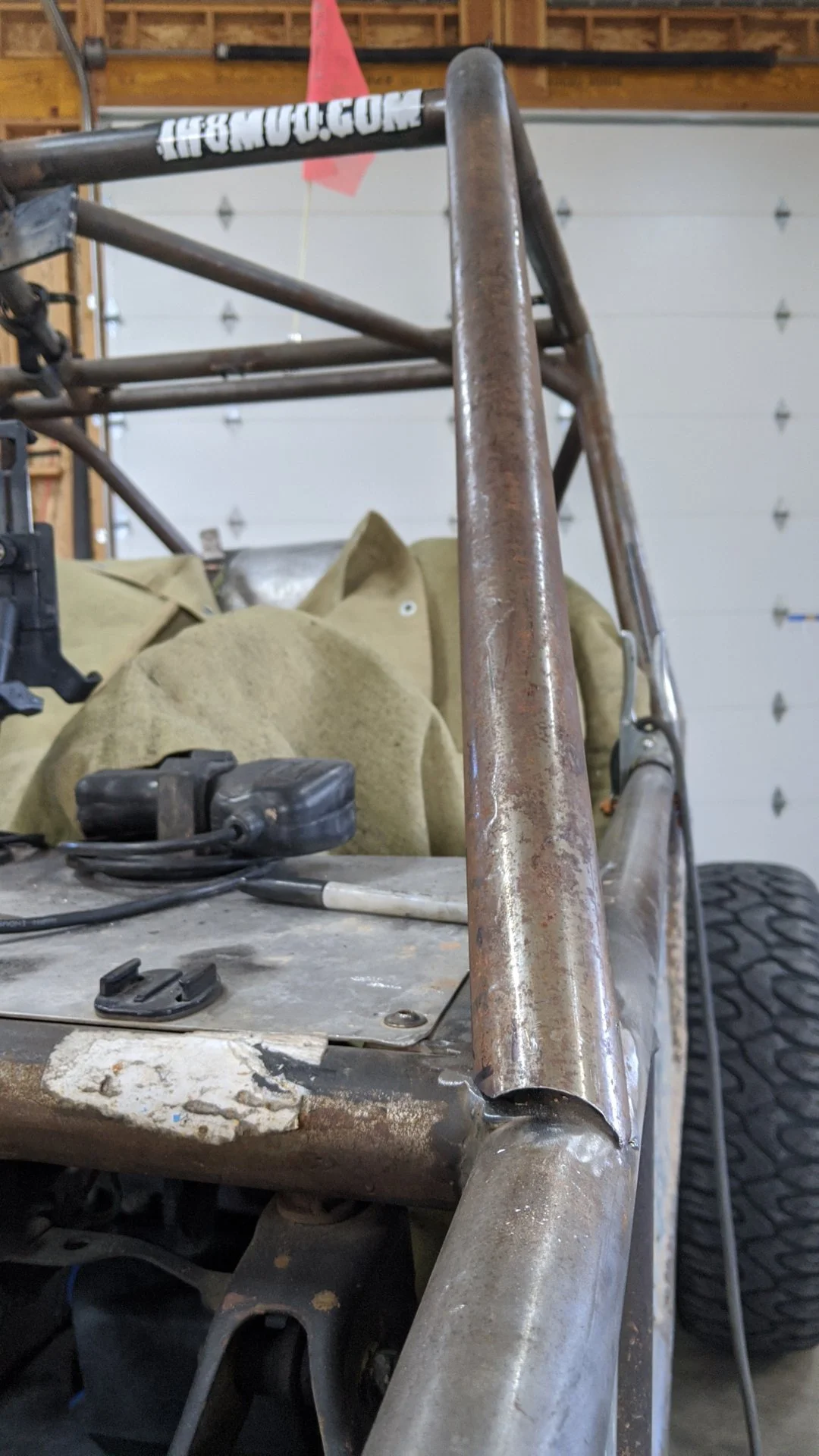

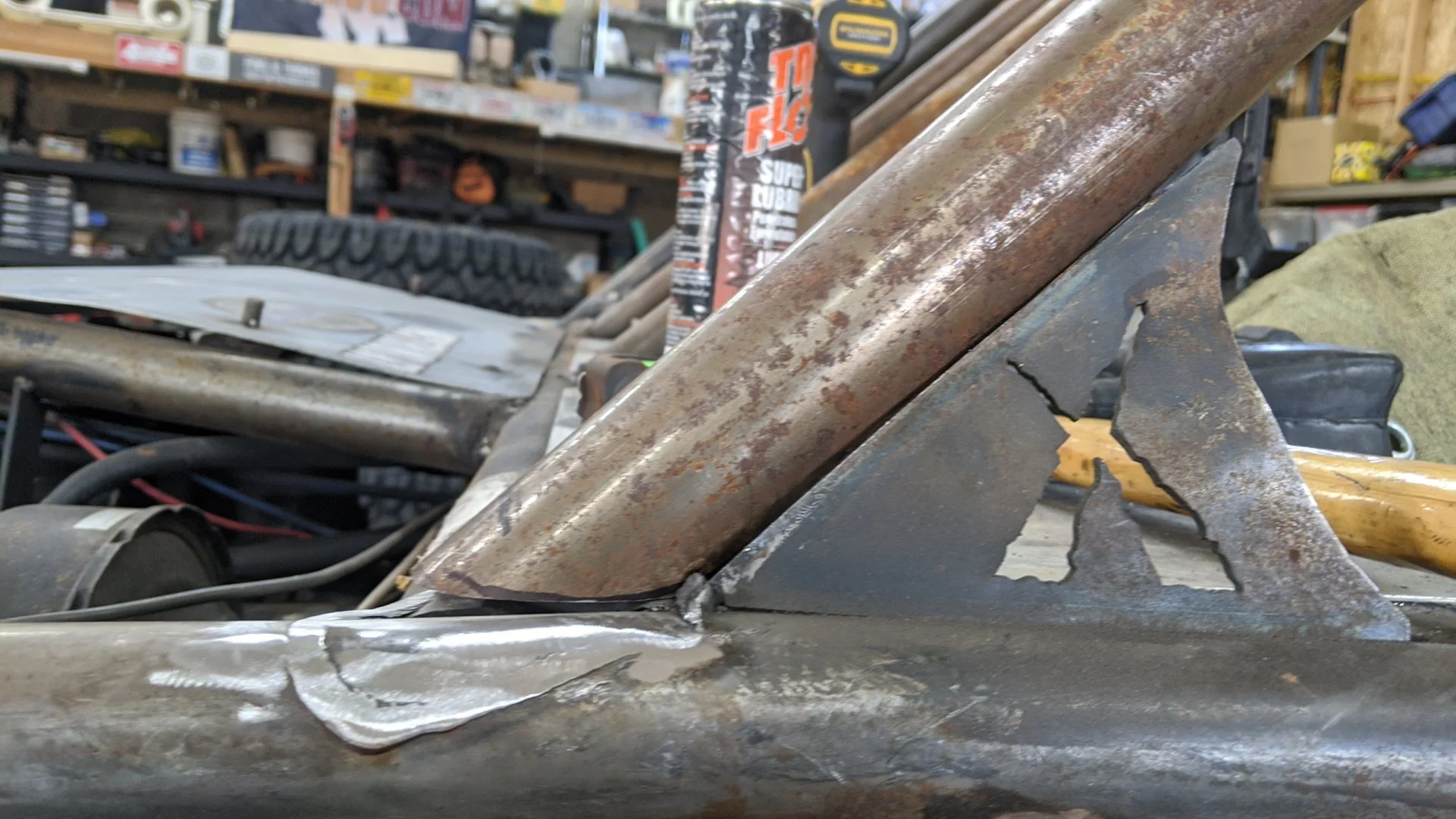

To be sure the crossbar notch was sufficiently ground, I used a short straight piece of tube to test...the sleeve got some TriFlow spray so taking in/off was easier

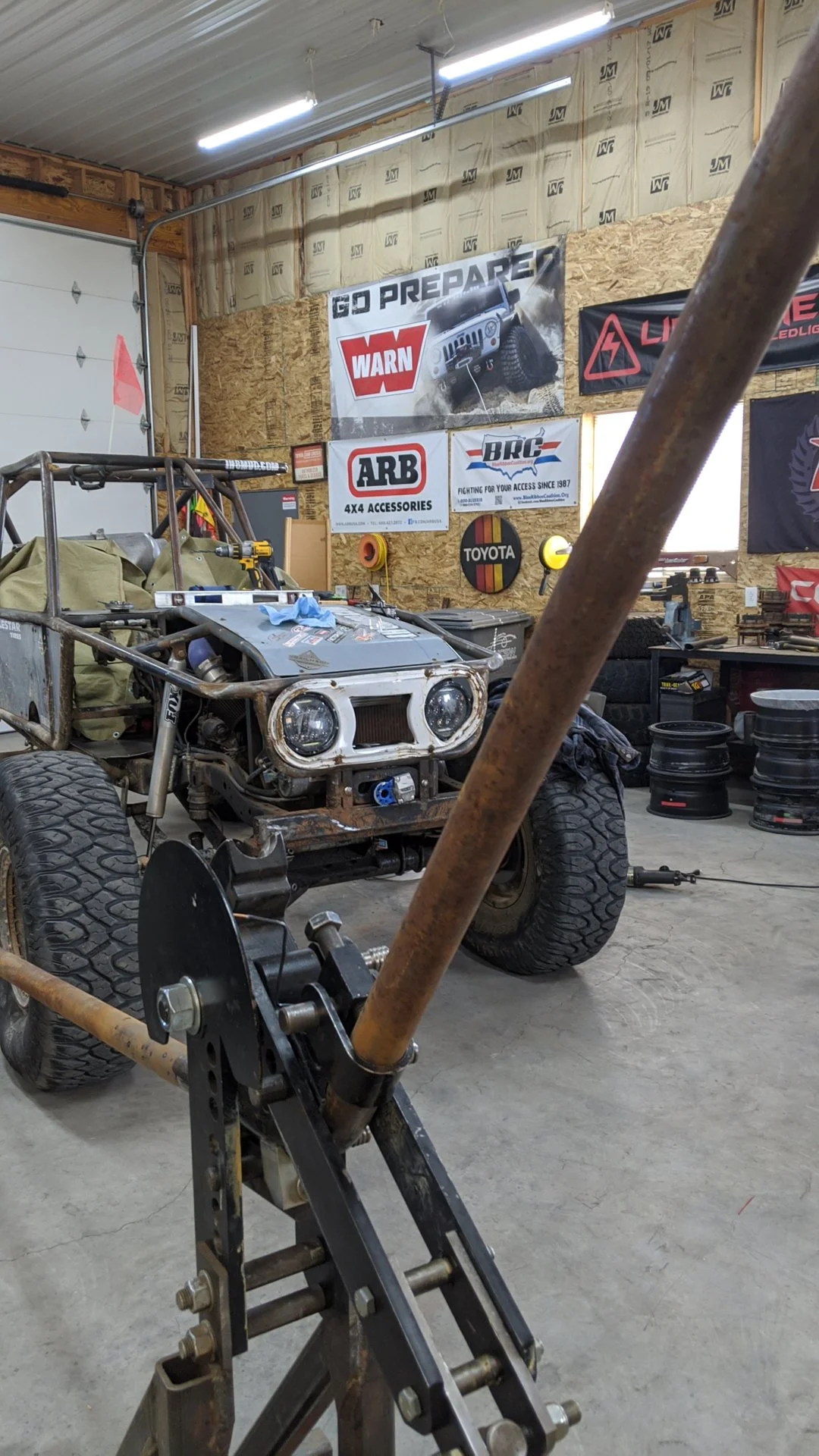

New 1-3/4" .120 DOM bent to 45 with an inch or so of spare length

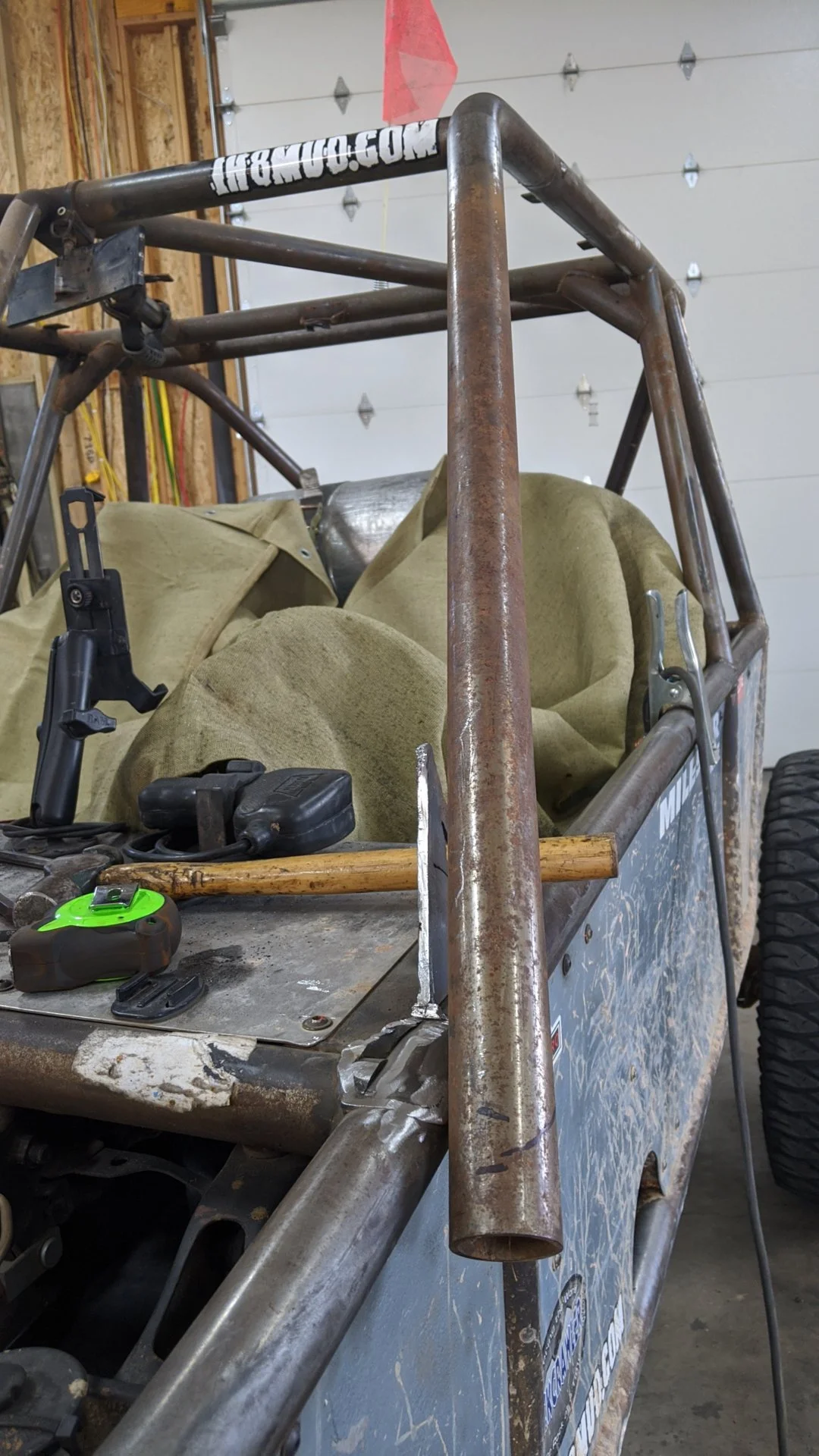

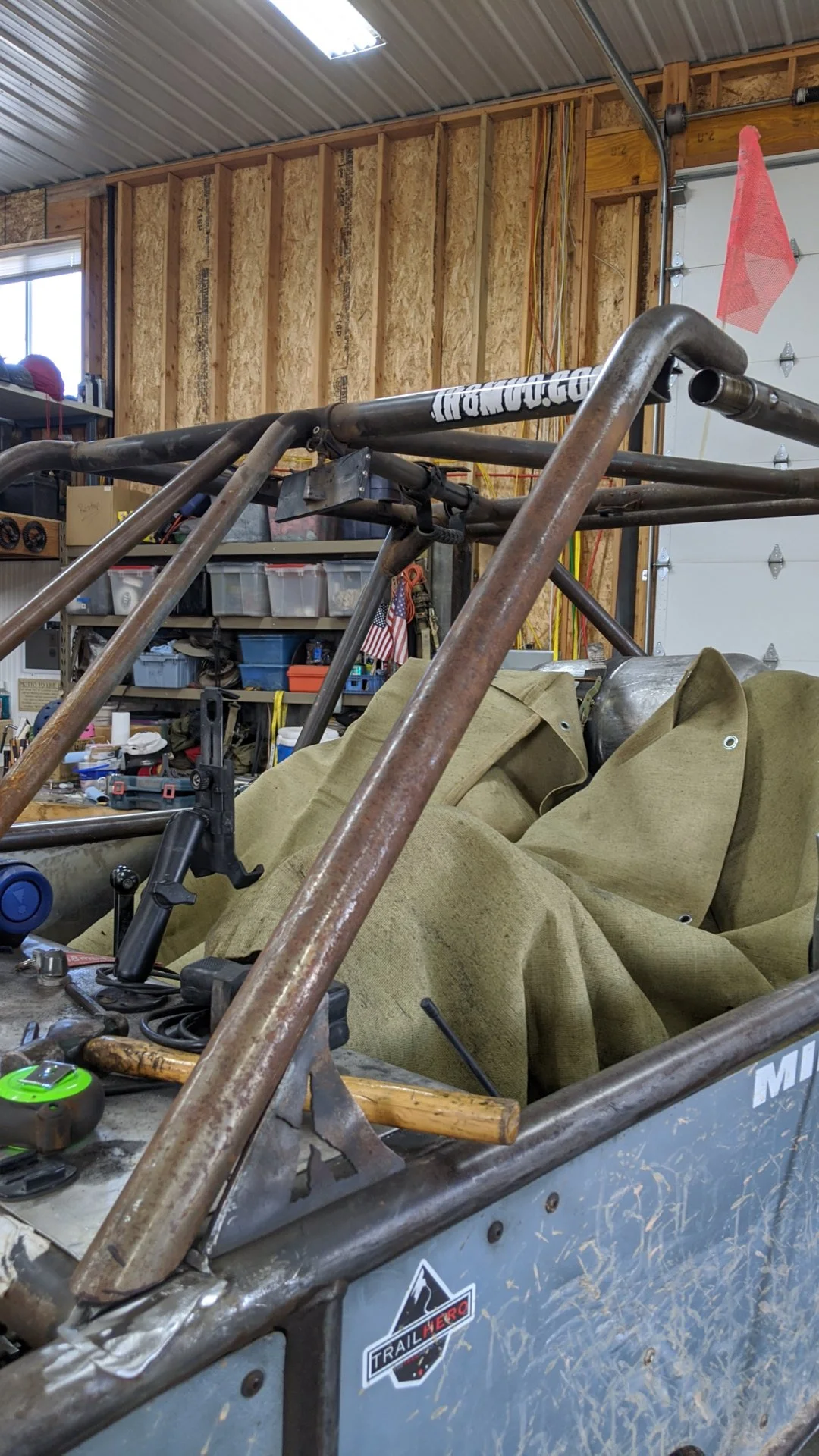

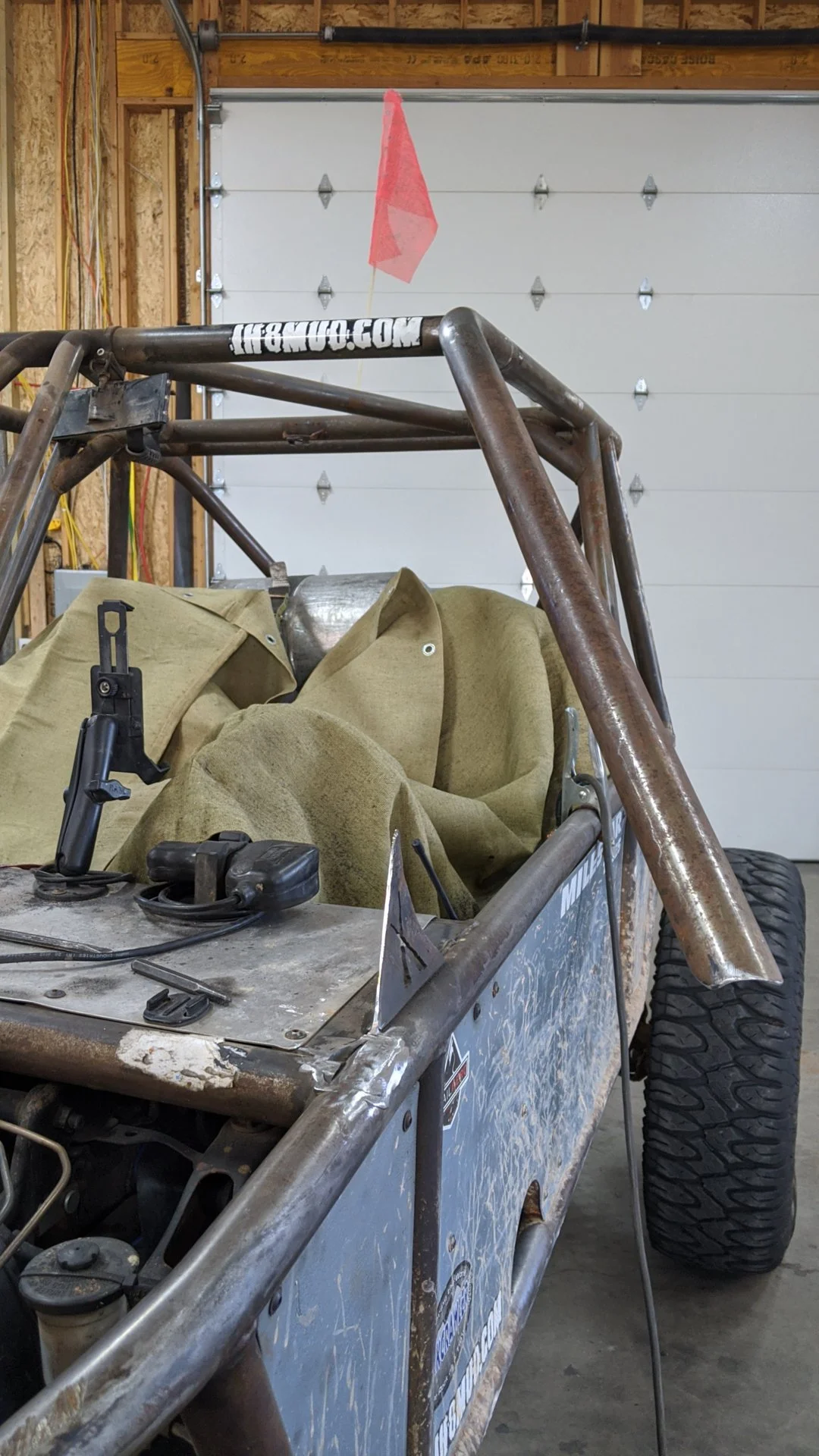

And test fitting for angle and length

Last edited:

woody

eternal noobie
Staff member
Oct 12, 2010
1,013
52
Toquerville UT

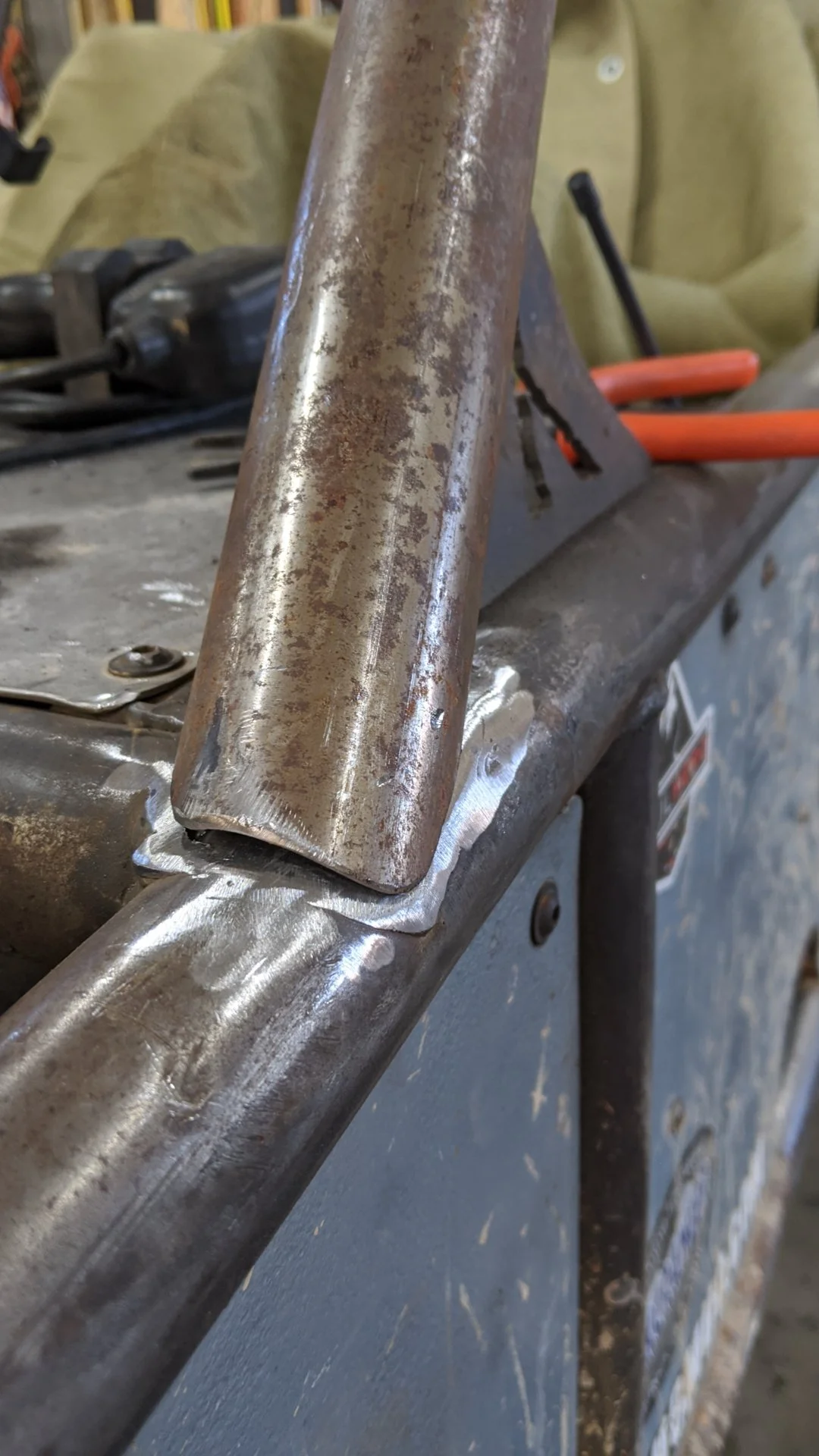

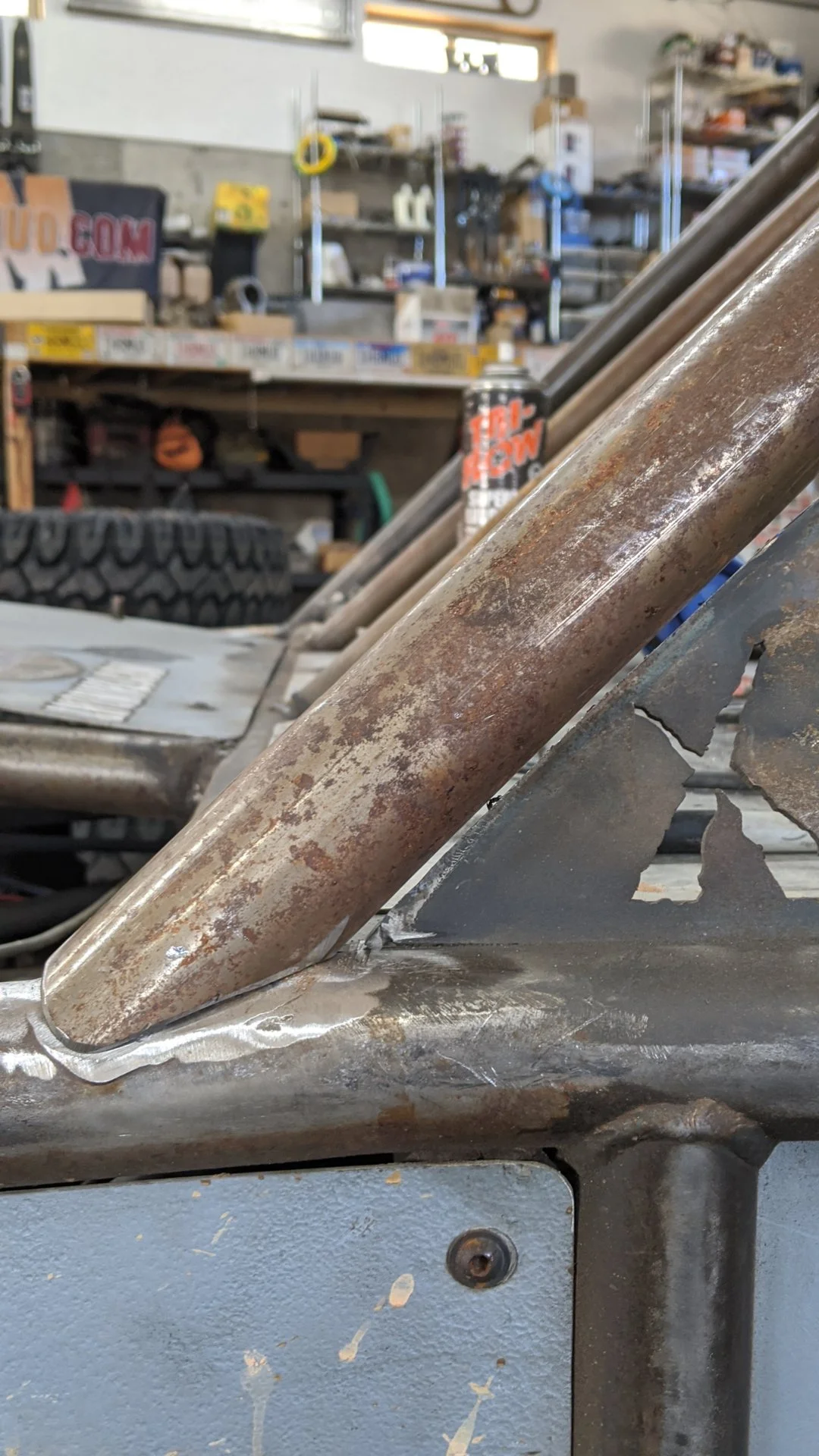

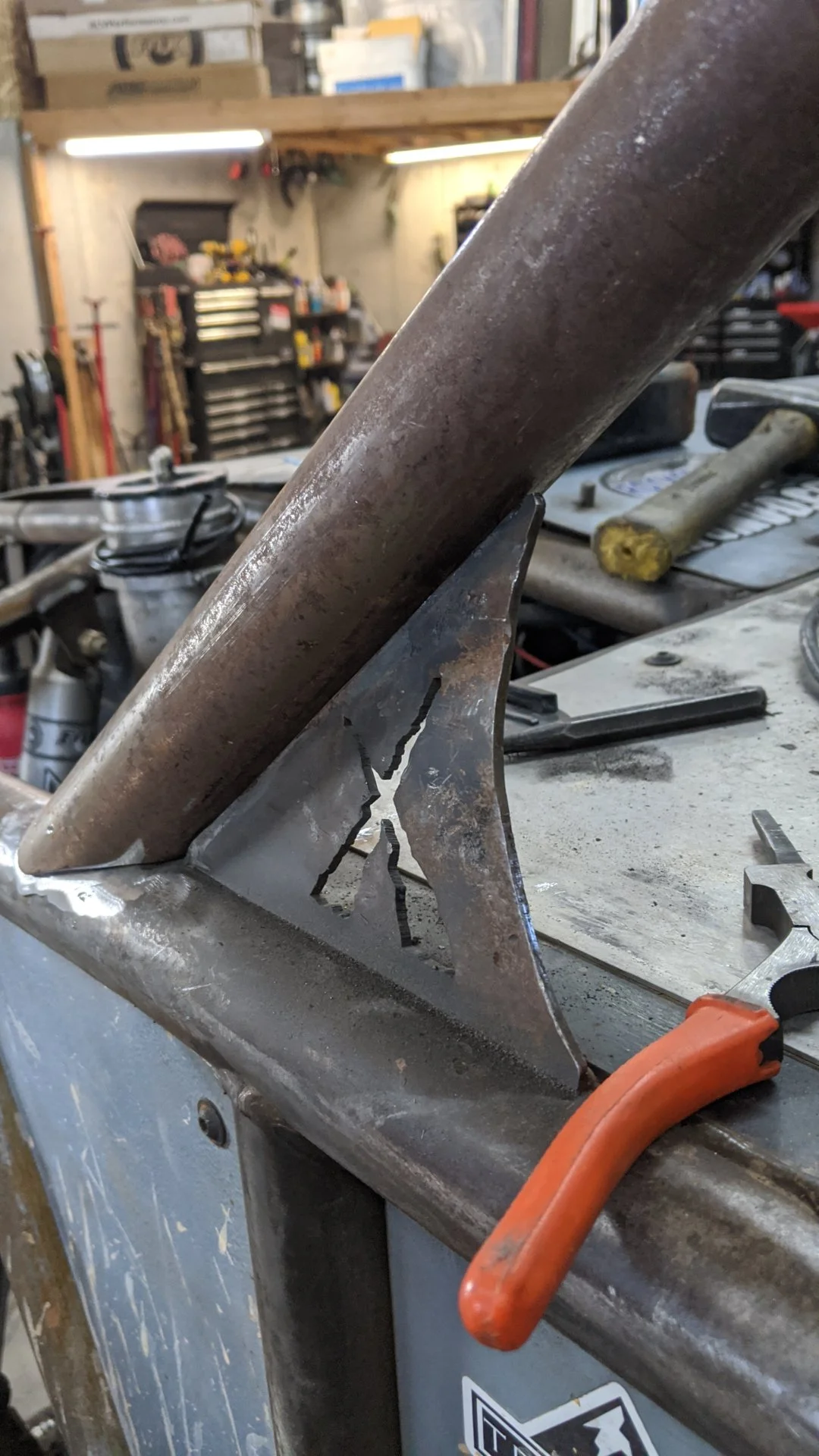

More adjustment....need to be SURE I don't botch the notch 😎




woody

eternal noobie
Staff member
Oct 12, 2010
1,013
52
Toquerville UT

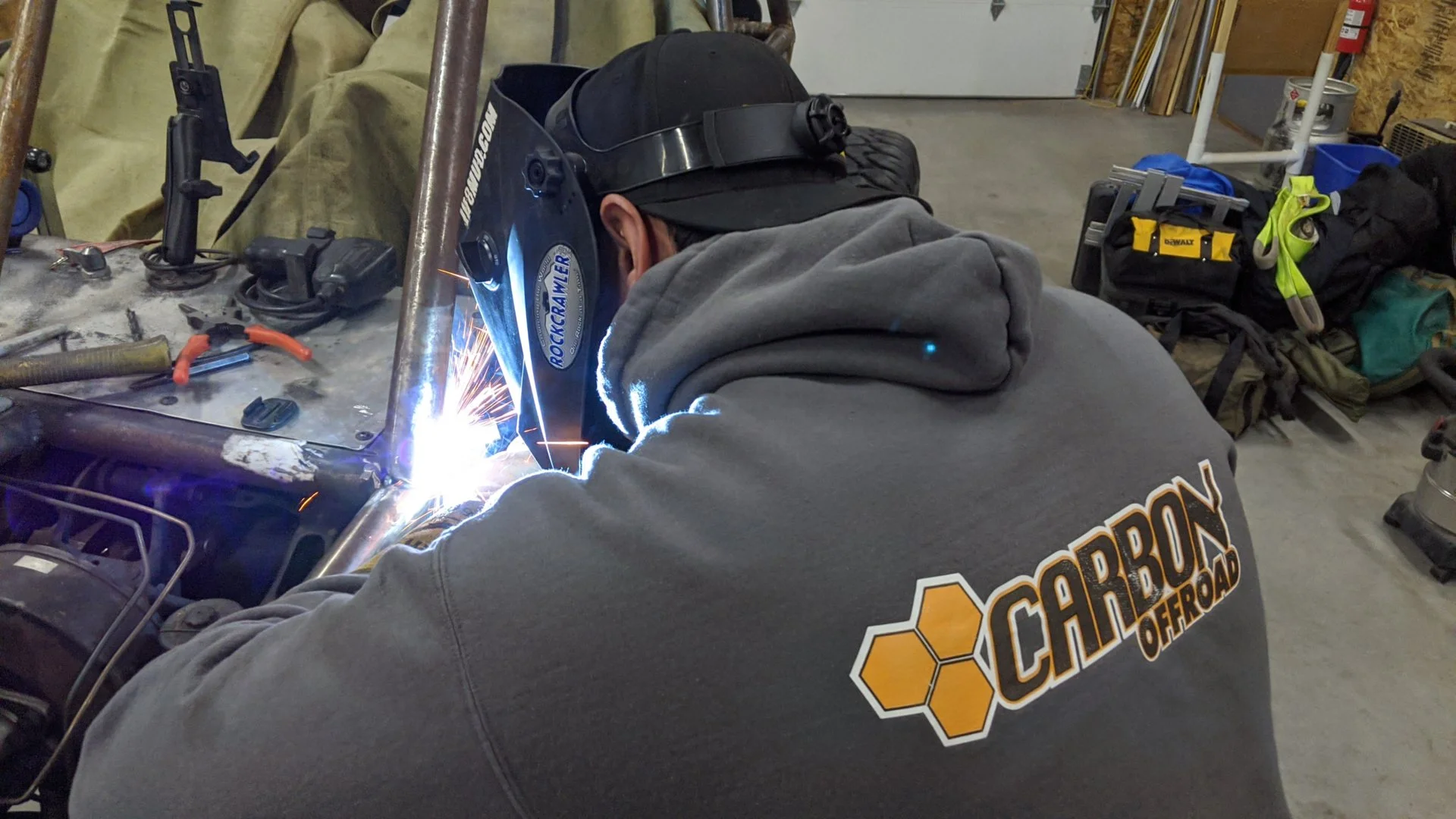

Right?!? Forgot to take that one....lol
