Diamond Housing finally arrived, time to mock it up....RUF 47" OME packs with an AllPro front hanger and shackles....should flex nicely
Build Formula Toy build
- Thread starter woody
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

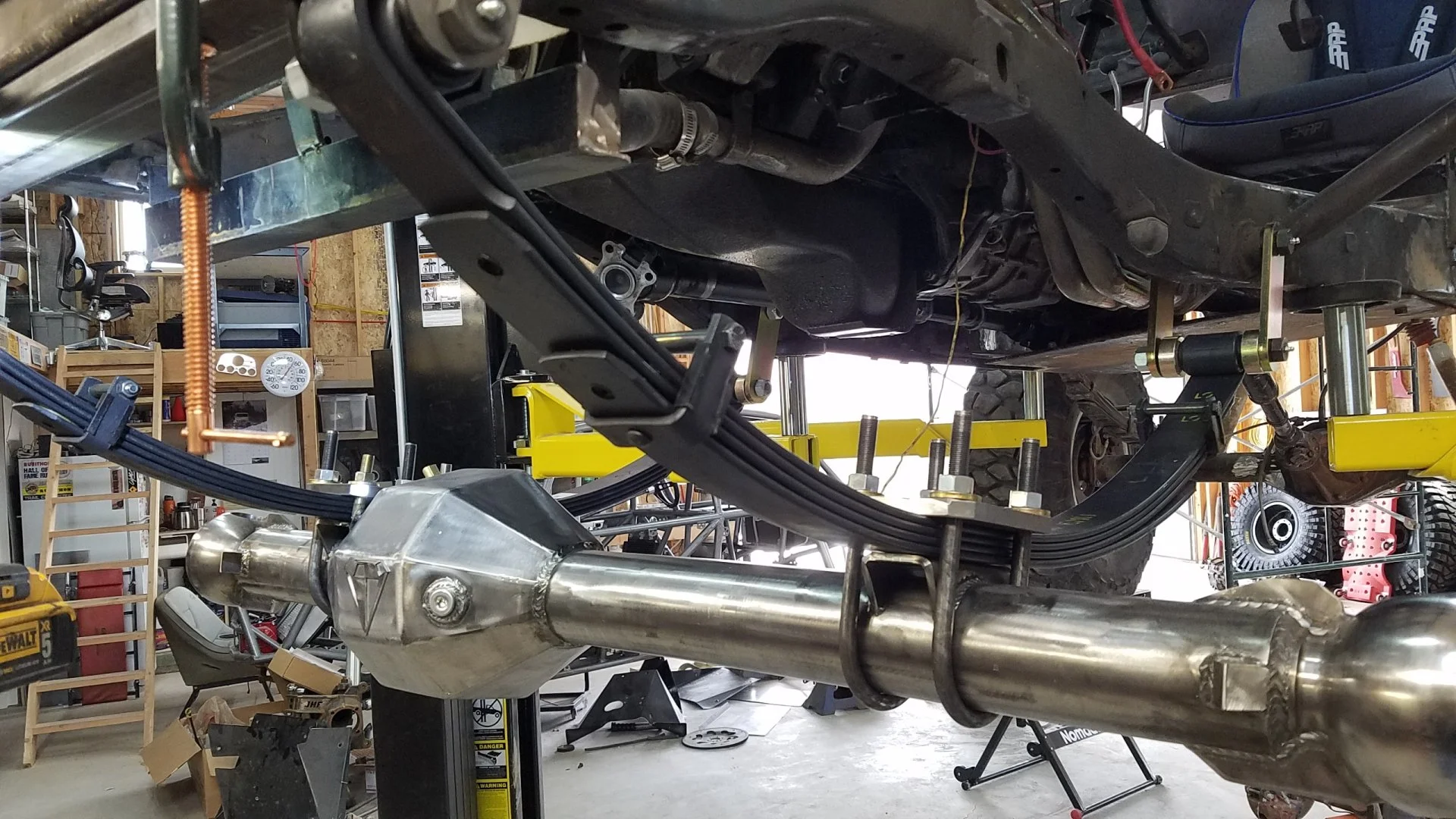

Diamond Housing finally arrived, time to mock it up....RUF 47" OME packs with an AllPro front hanger and shackles....should flex nicely
- Thread starter
- #62
Mockup, high tech...
- Thread starter
- #63

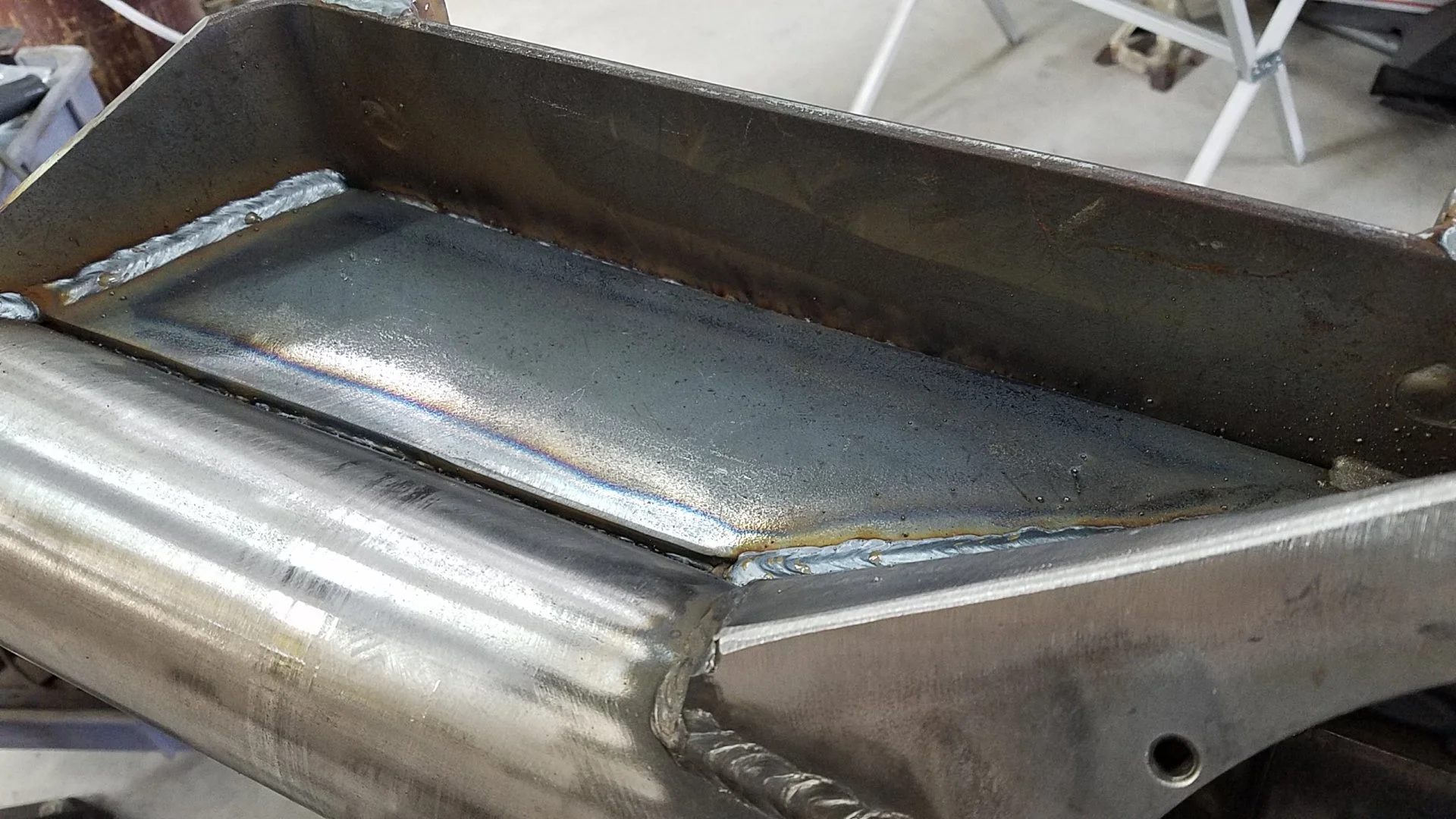

PSC full hydro mockup...still fitting the main plate, but overall please with it....gussets pending...

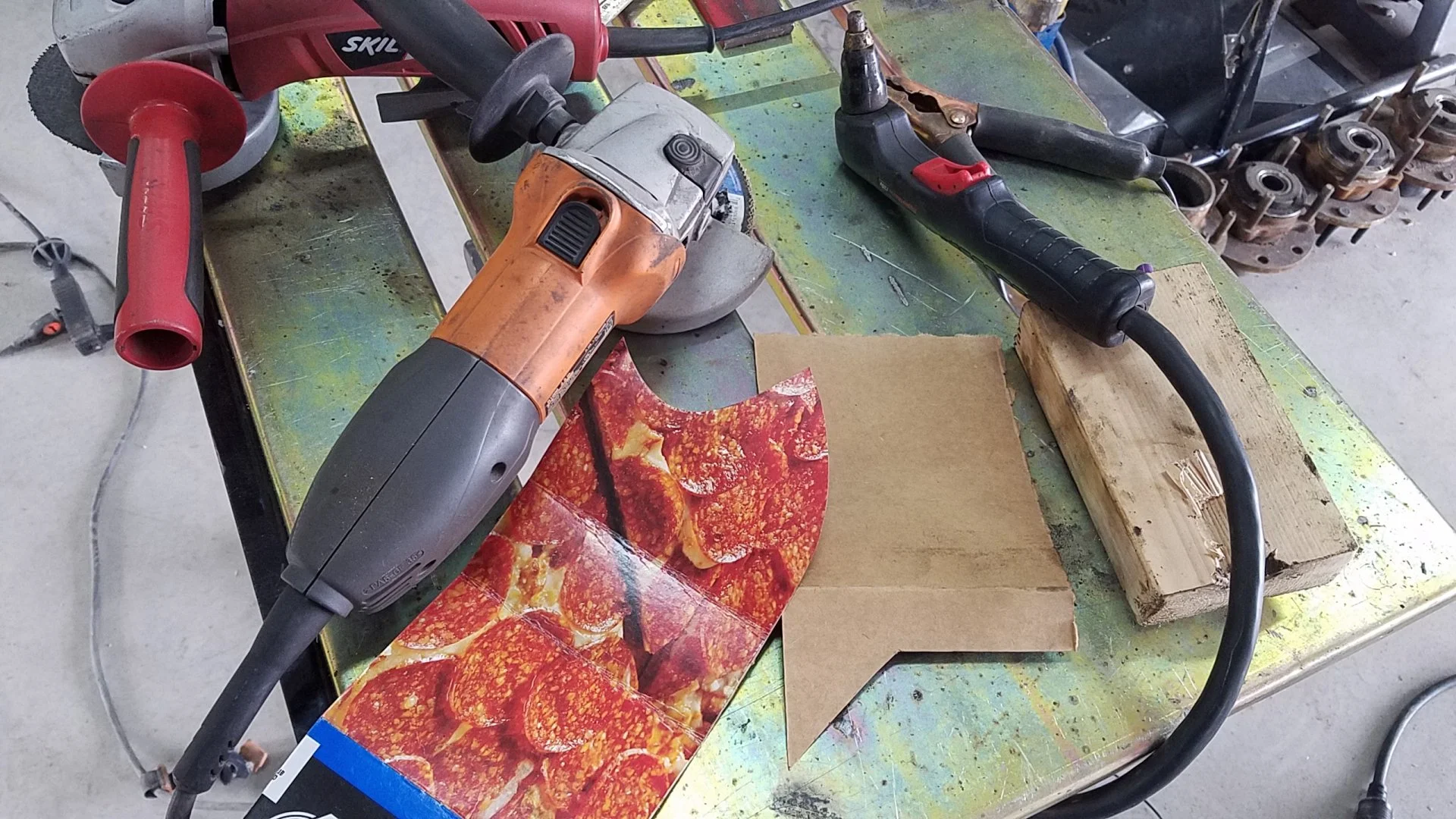

Yes, a pizza box was used for mockup
Yes, a pizza box was used for mockup
- Thread starter
- #64

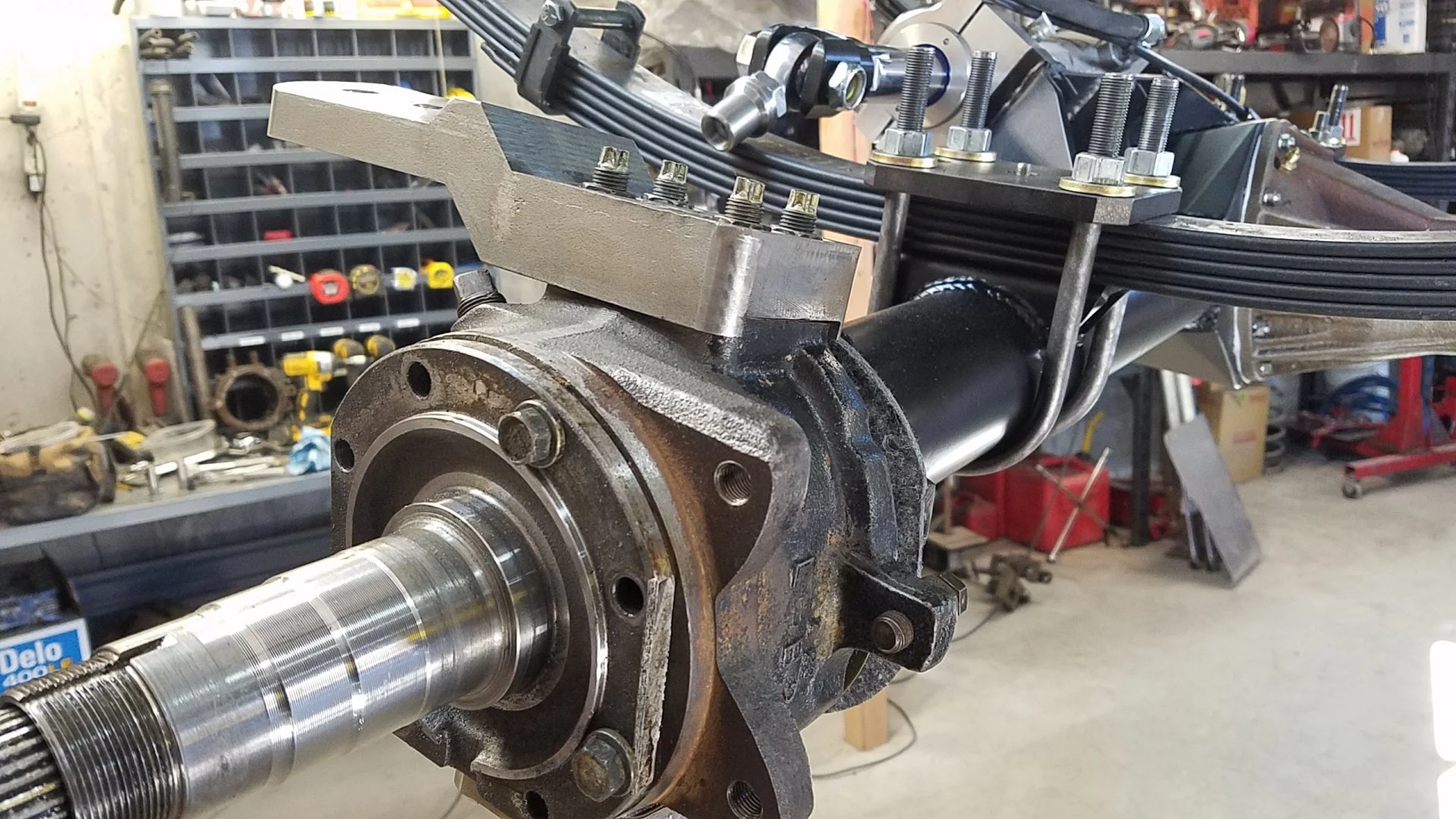

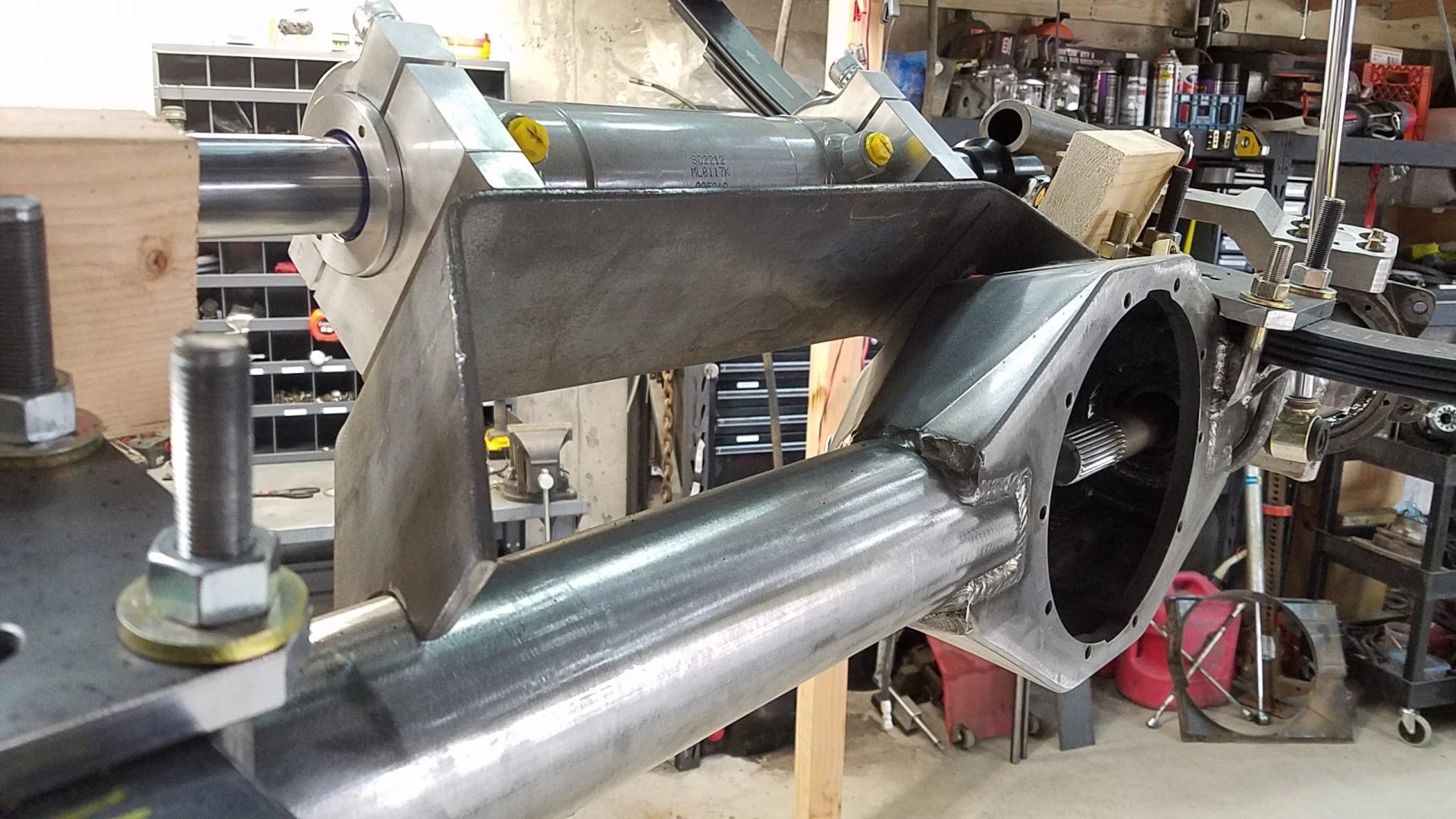

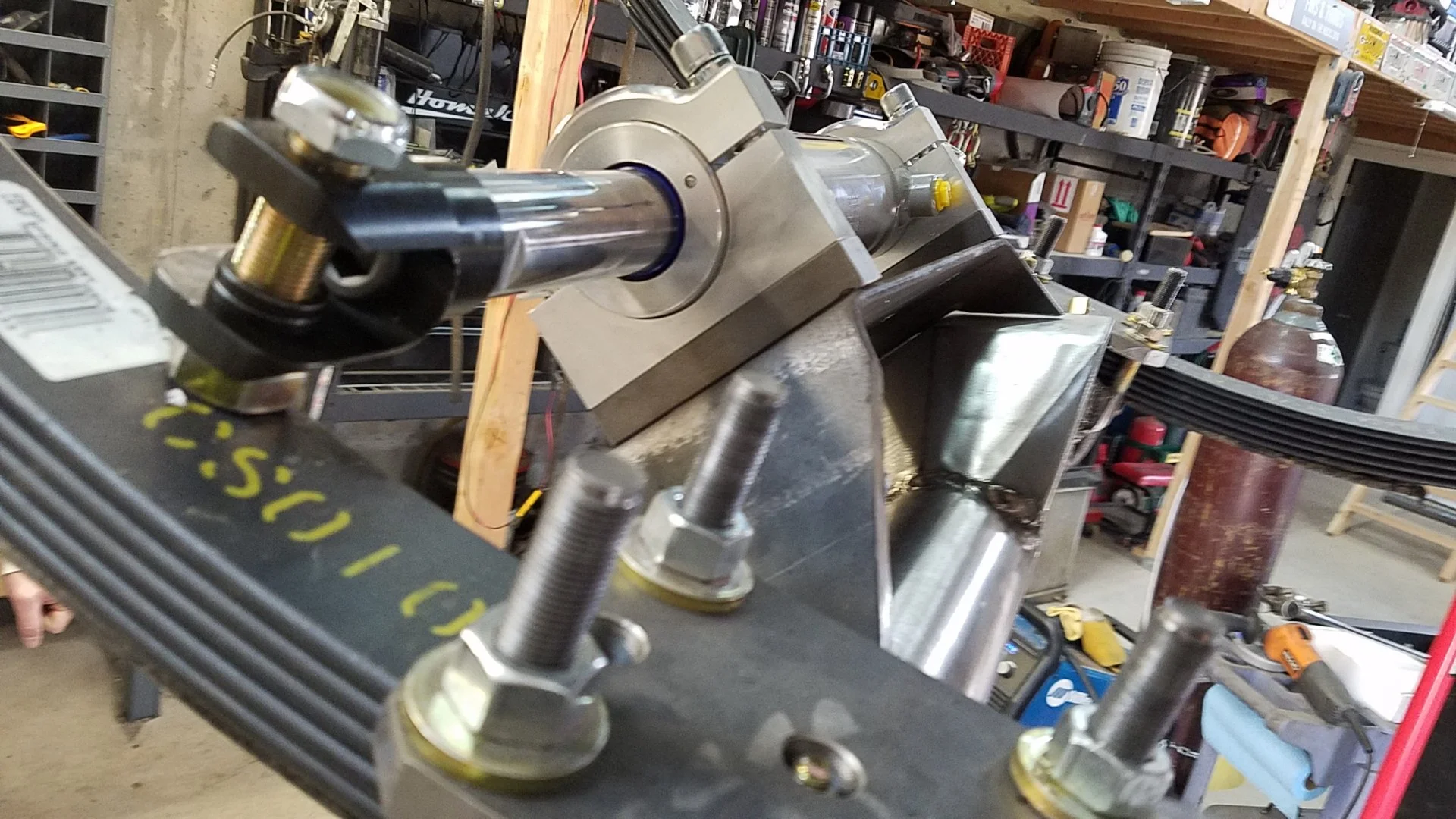

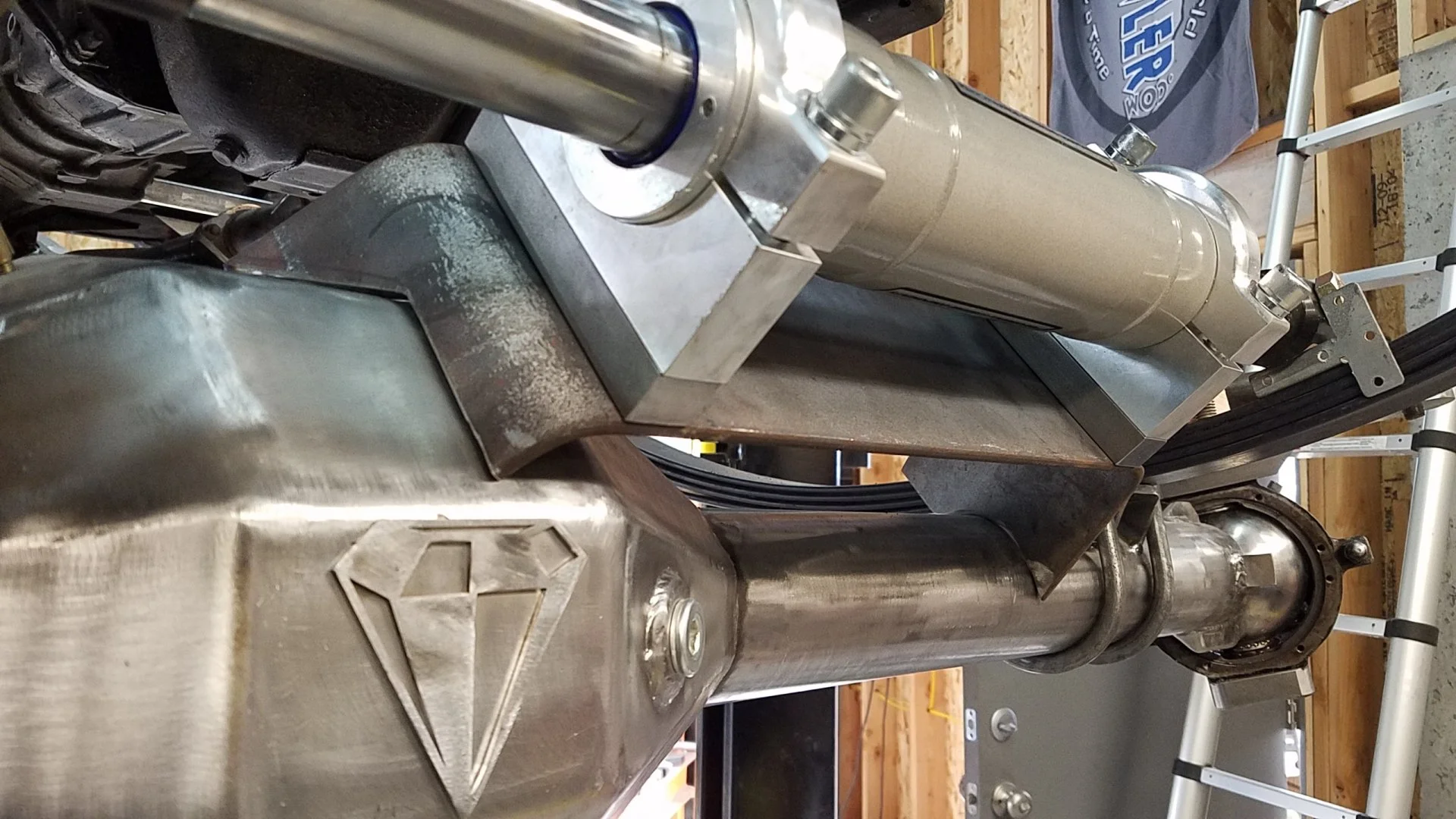

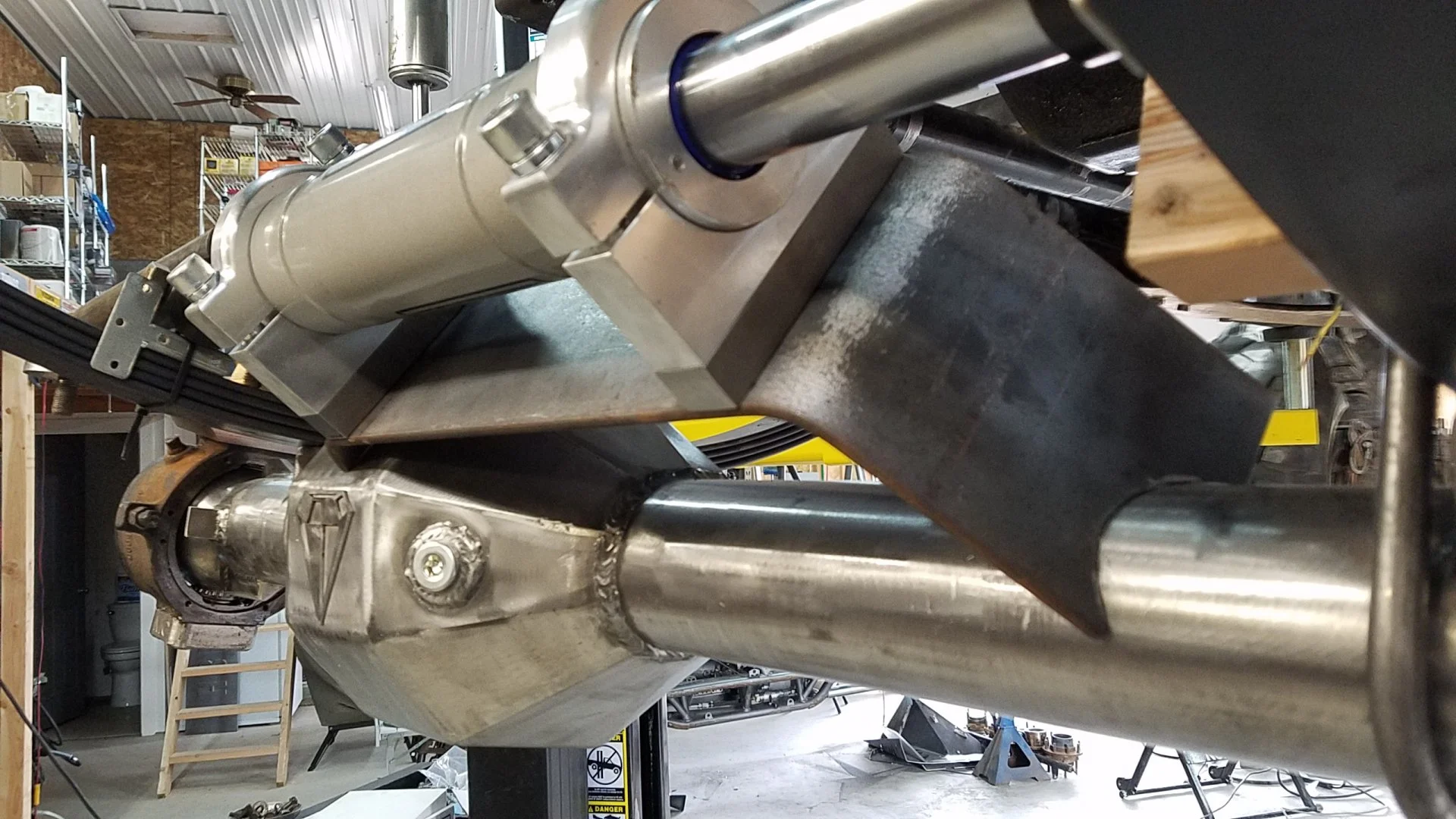

Diamond Axle, PSC double end ram....with leaf springs...this mount is solid
Oops...forgot to take finished pics....lol
Oops...forgot to take finished pics....lol
435JRW
Spotter Required
Looking good Woody, this will be one sweet F-Toy when you're done!
- Thread starter
- #66
Updates...

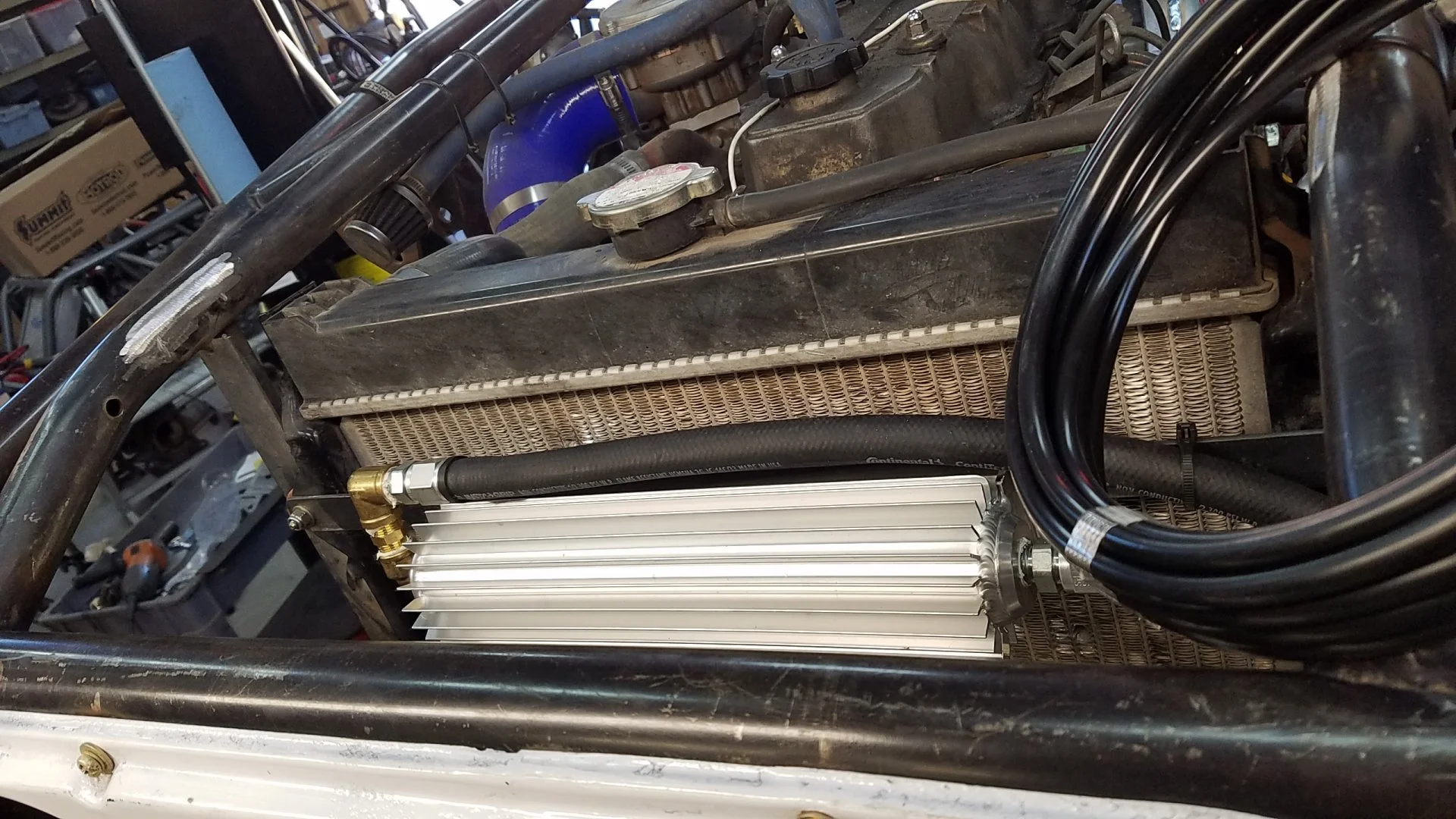

The PSC hydraulics are nearly complete, just need one hose for turning right...
Tested the ARBs, and they seem to still work...

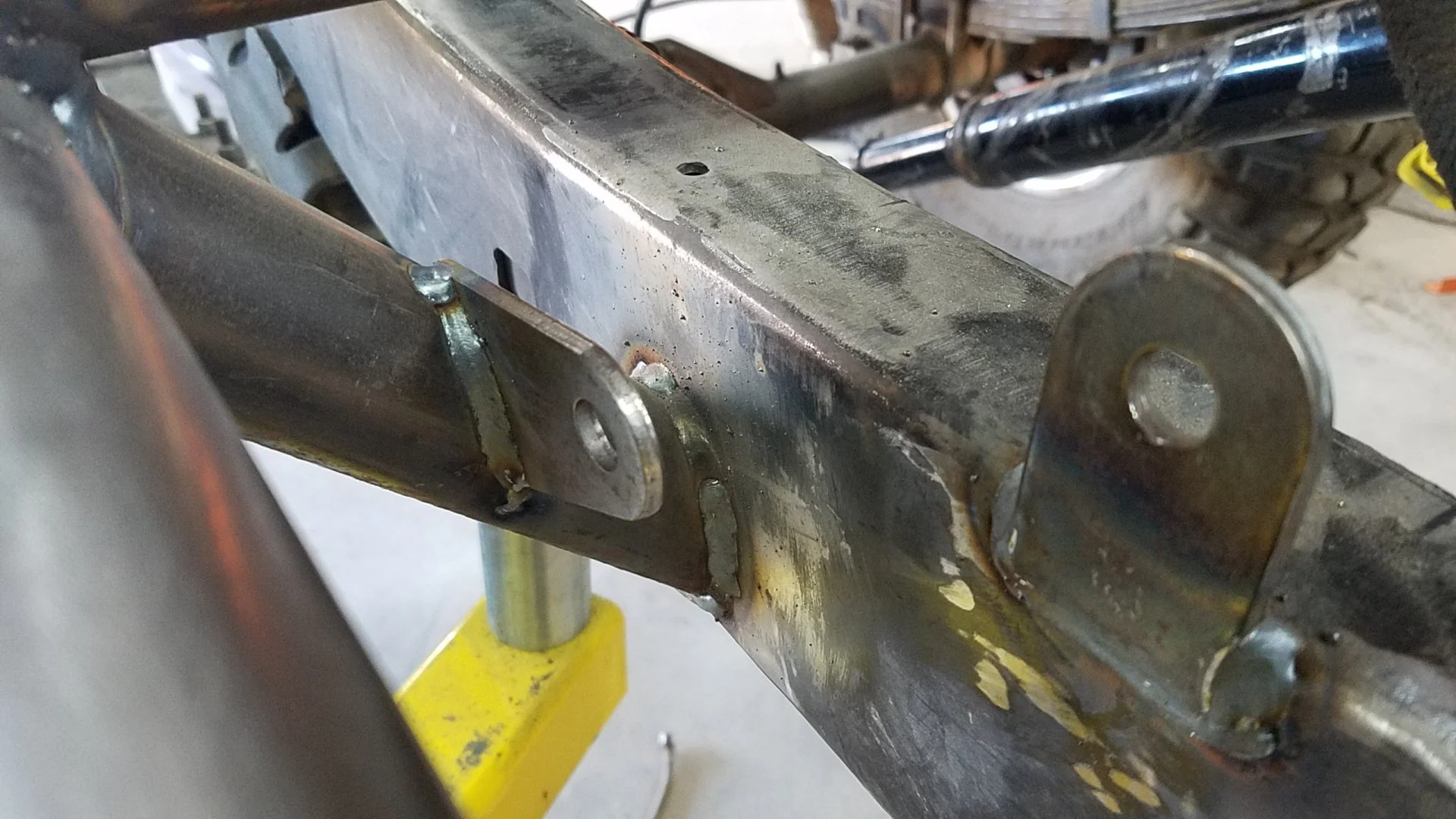

Seat belt tabs welded in....running "auto" style 2" PRP belts.
Propane installed and ready....
Tomorrow: assemble front axle and get wiring done
SO close!!
The PSC hydraulics are nearly complete, just need one hose for turning right...
Tested the ARBs, and they seem to still work...
Seat belt tabs welded in....running "auto" style 2" PRP belts.
Propane installed and ready....
Tomorrow: assemble front axle and get wiring done
SO close!!
SMTYBLT
Your Mom told me 2
Looking good bud
- Thread starter
- #69

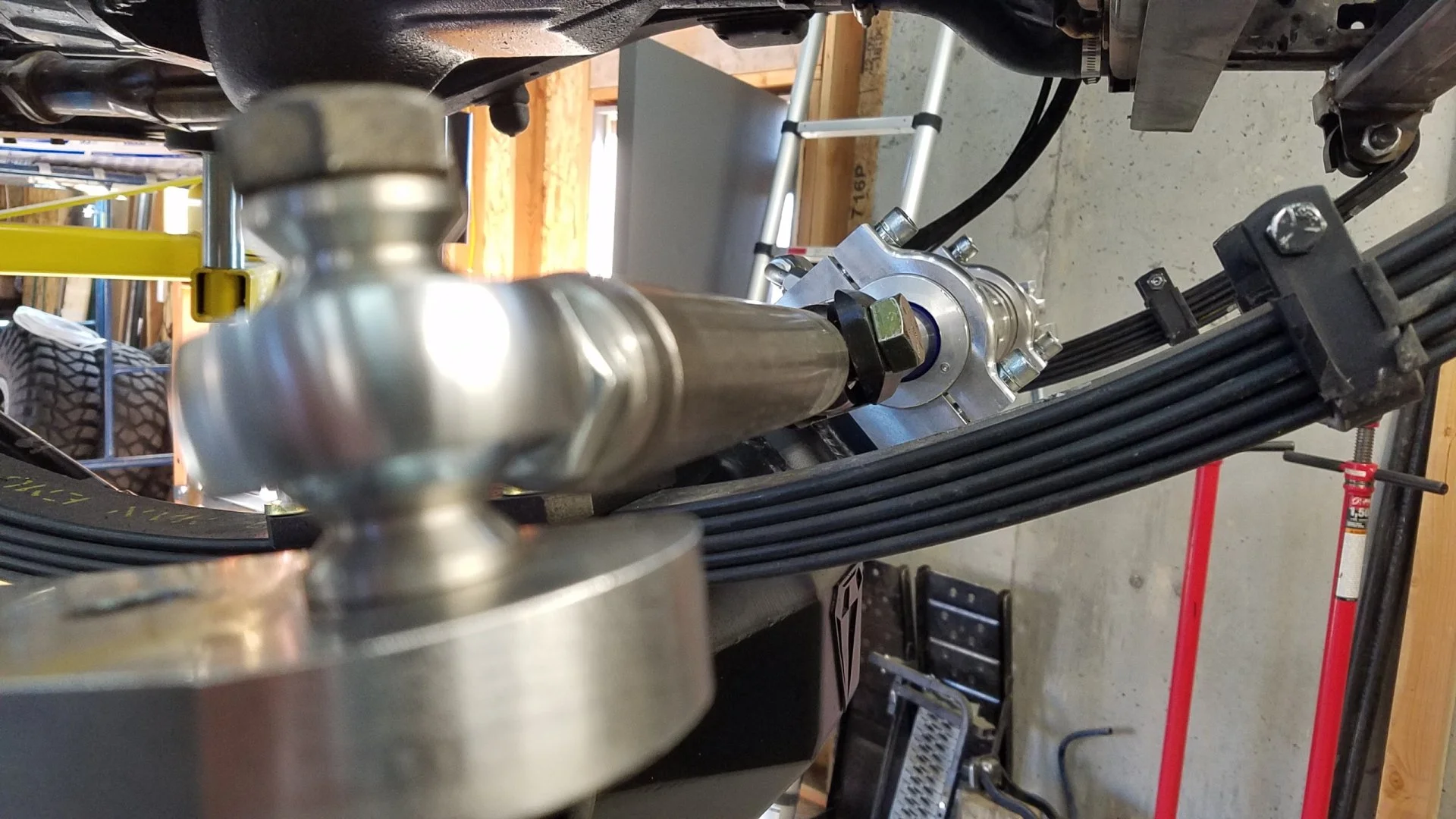

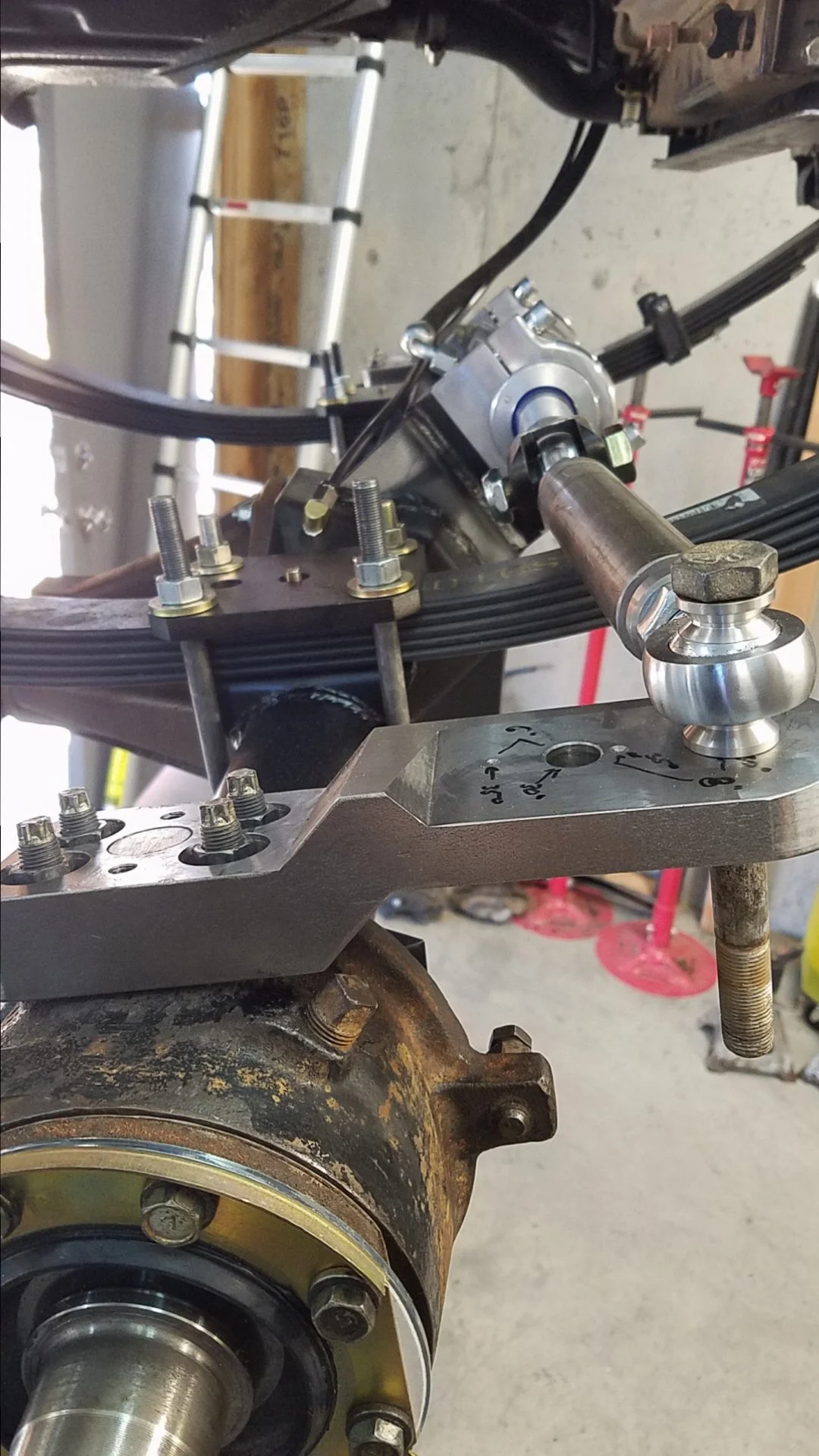

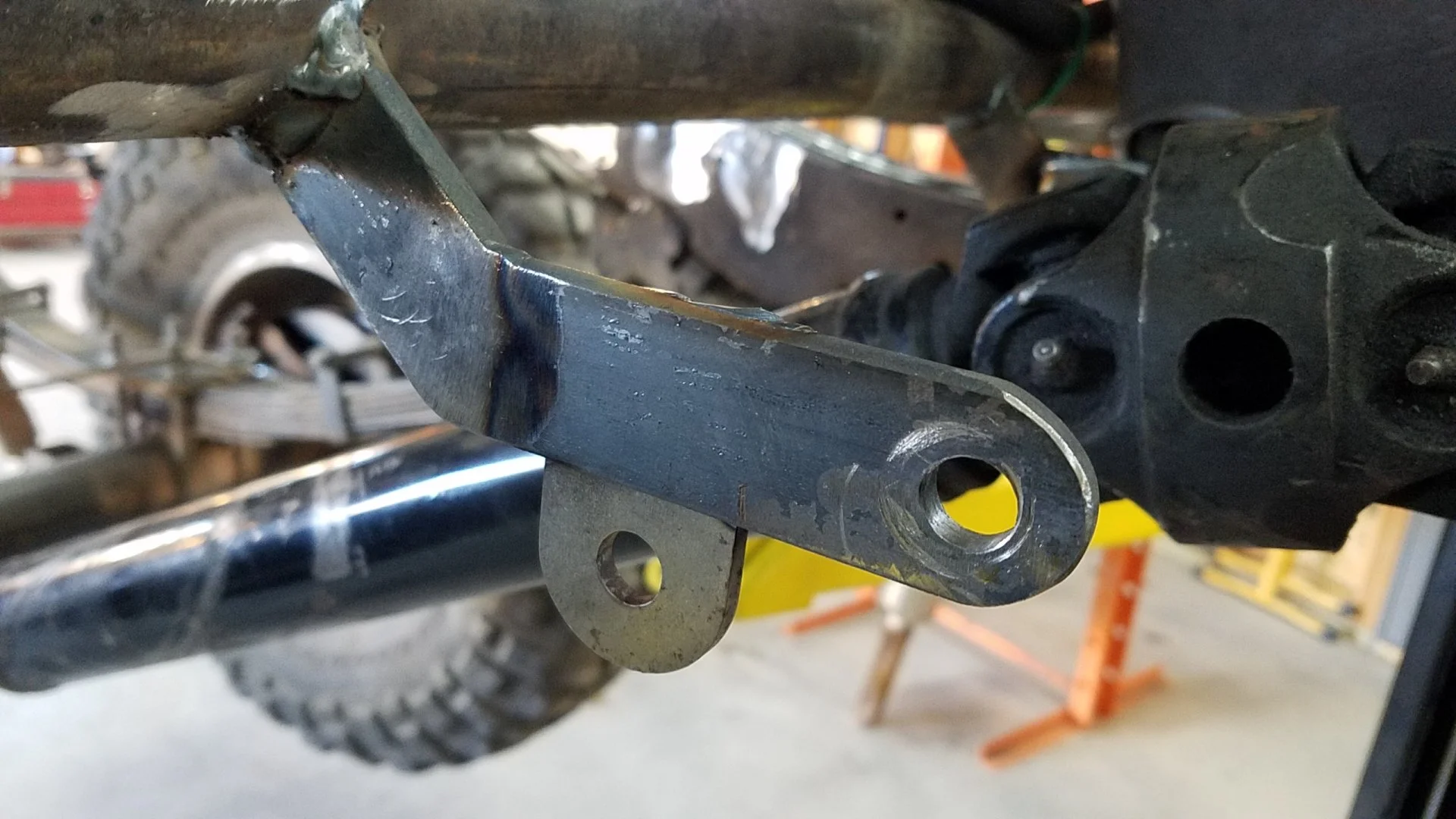

Mocked up the PSC ends on Thursday....haven't burned in yet, need to be SURE of length first
- Thread starter
- #70

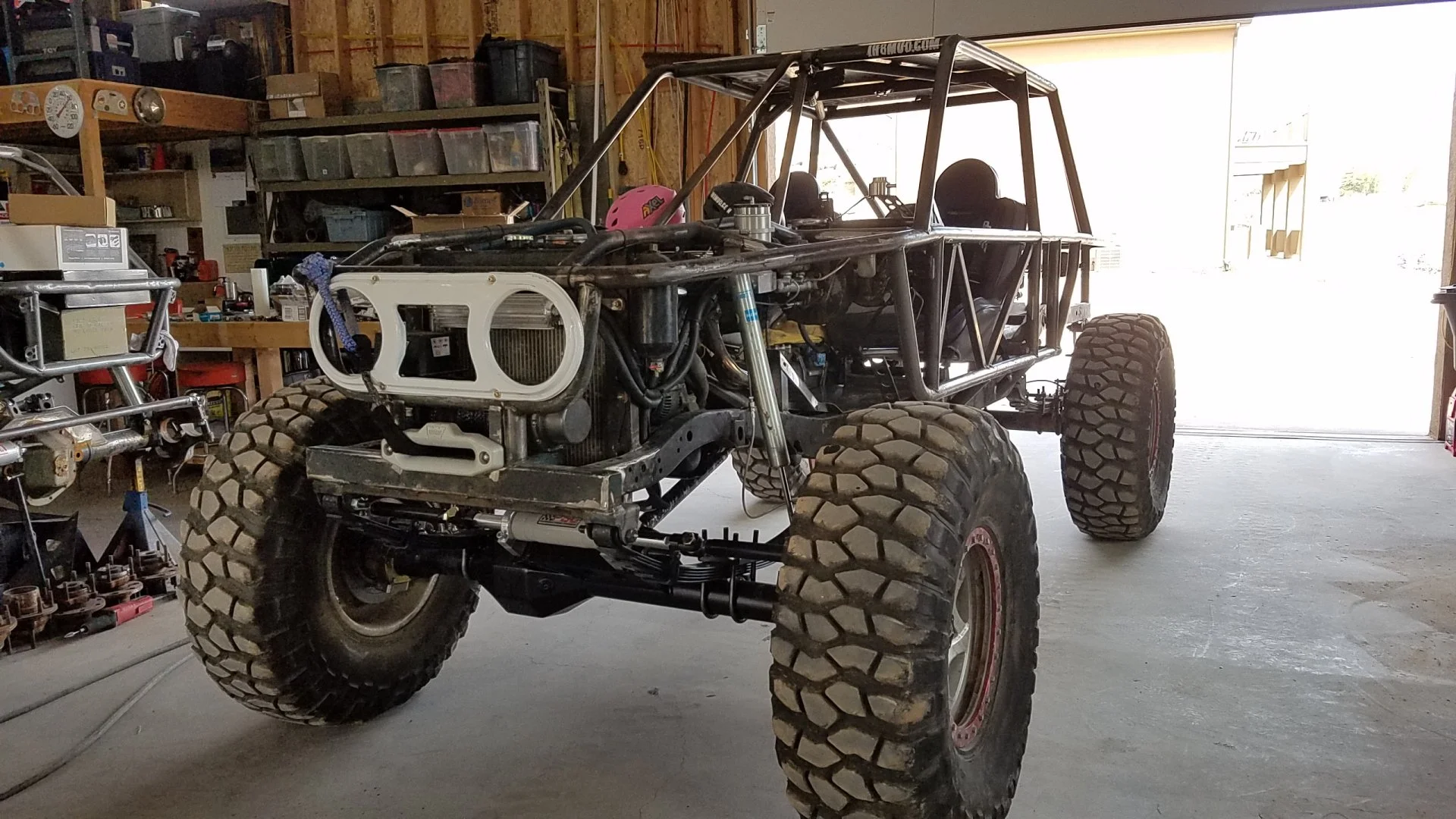

It runs

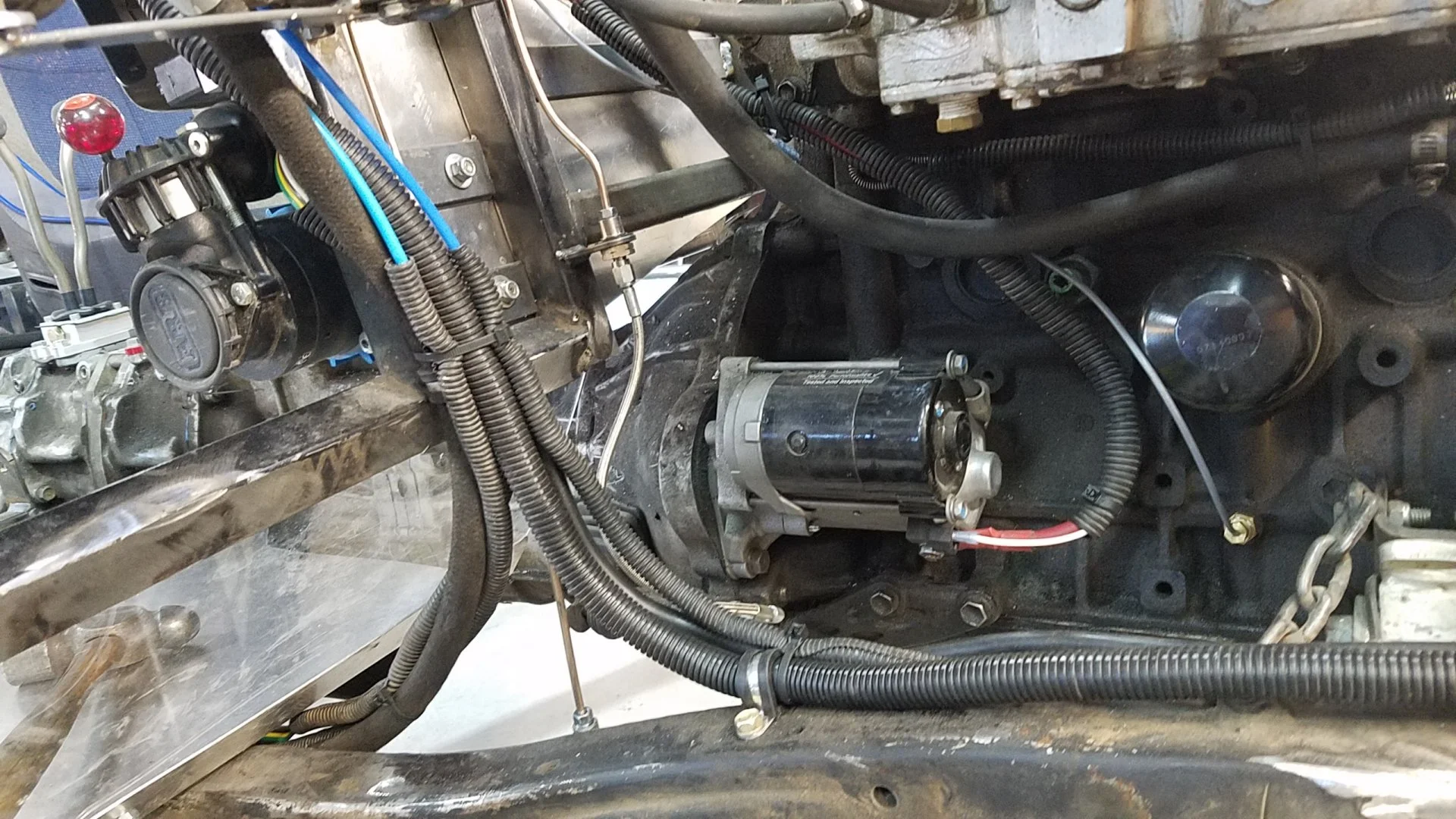

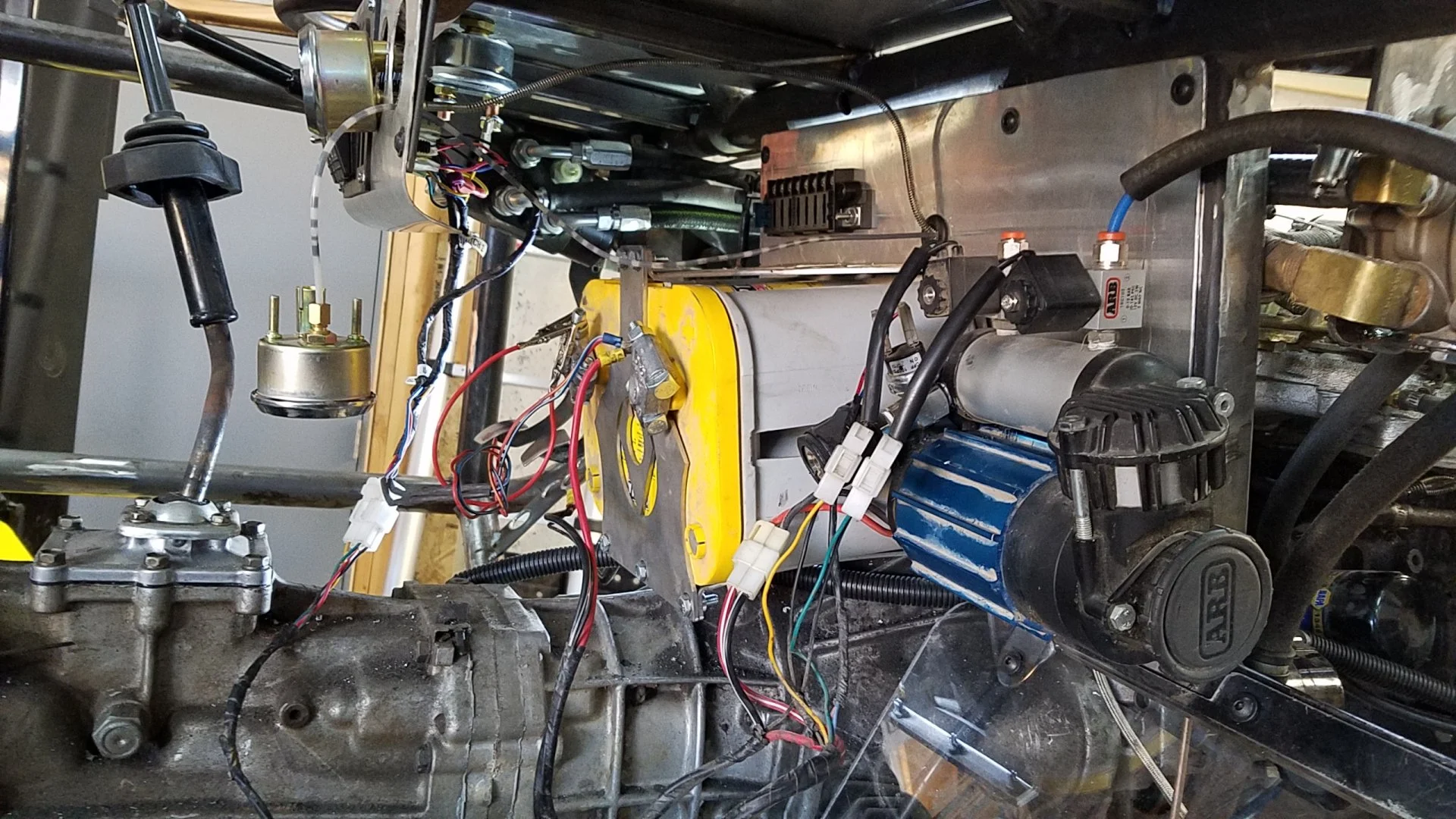

Wiring complete....i think....lol....even have brake lights now!

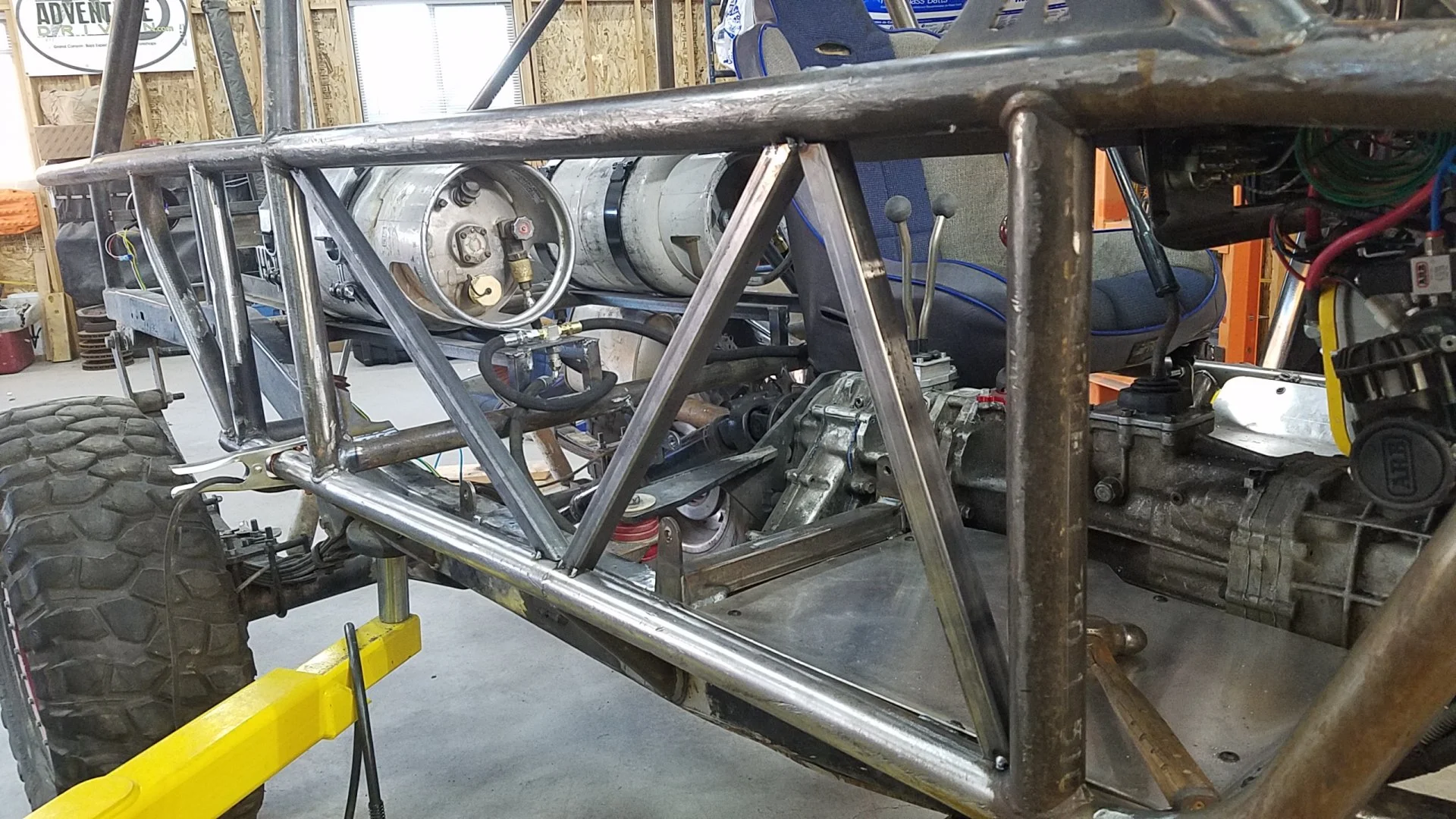

Door bars for the passenger welded in...1" square for mounting skins, recessed to the "inside" of the 1-3/4" tube. Drivers side tmrw.
Remaining:
Front brake lines
Weld ram ends
Fill front diff with 90wt
Mount seats and belts
Wiring complete....i think....lol....even have brake lights now!
Door bars for the passenger welded in...1" square for mounting skins, recessed to the "inside" of the 1-3/4" tube. Drivers side tmrw.
Remaining:
Front brake lines
Weld ram ends
Fill front diff with 90wt
Mount seats and belts
- Thread starter
- #71

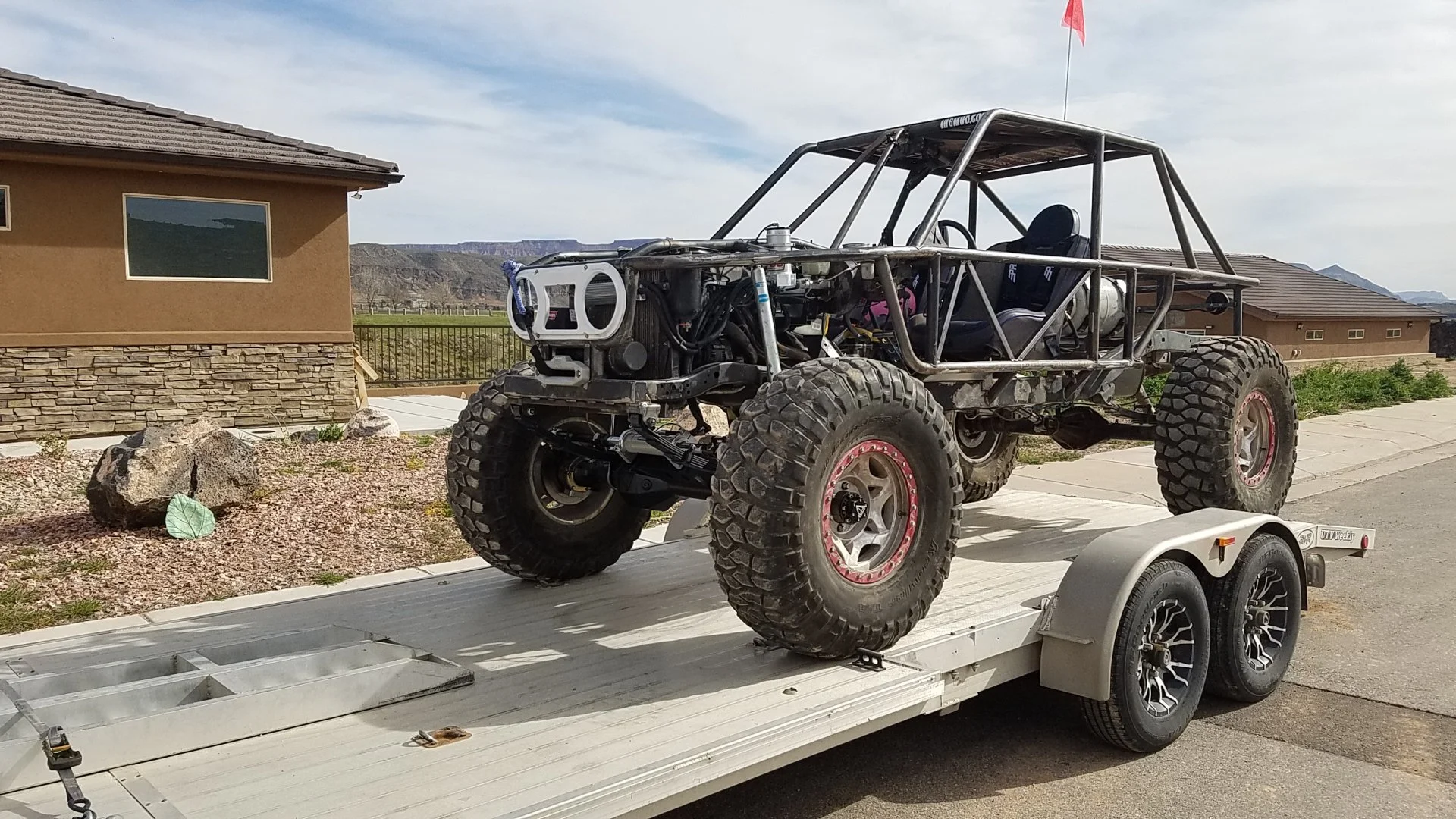

And, it runs and drives...and fits on the trailer too!
Did a quick test behind the shop...everything seemed to work fine. A couple minor fixes tho:
I had a small oil drip everytime I ran the motor while it was on the lift....couldn't figure out just where it was from...drips were in line with the tranny drain plug, but it was always dry. Finally realized that the oil gauge was in perfect line for a leaking line to drip between the transmission and the floor pan (1-1/2" gap)! Even better, I opted to just tighten the loose fitting, and restart the rig as I walked over for a shop towel to clean up the drops on the floor....turn back around and WOAH! BIG puddle...from a cut line! So much for a small drip....replace the ferrule and viola: no more leak.
Issue 2 was the propane system freezing up (@Mace tells me it's the evaporator...I'm still learning) - part of all this was replacing coolant lines and there was apparently air in that stretch...parked on the shop drive (steep) and let the cooling system burp...let 'er idle on the trailer for 20 minutes and no more freezing
I also took the torque wrench to the lugs....would be sad to get all this done and realize I'd only snugged the lug nuts!
Next stop: Mason TX at the K2 offroad park for the Lone Star Land Cruisers RoundUp event....because ALL rig testing should occur 1000 miles or more from home!
Did a quick test behind the shop...everything seemed to work fine. A couple minor fixes tho:
I had a small oil drip everytime I ran the motor while it was on the lift....couldn't figure out just where it was from...drips were in line with the tranny drain plug, but it was always dry. Finally realized that the oil gauge was in perfect line for a leaking line to drip between the transmission and the floor pan (1-1/2" gap)! Even better, I opted to just tighten the loose fitting, and restart the rig as I walked over for a shop towel to clean up the drops on the floor....turn back around and WOAH! BIG puddle...from a cut line! So much for a small drip....replace the ferrule and viola: no more leak.
Issue 2 was the propane system freezing up (@Mace tells me it's the evaporator...I'm still learning) - part of all this was replacing coolant lines and there was apparently air in that stretch...parked on the shop drive (steep) and let the cooling system burp...let 'er idle on the trailer for 20 minutes and no more freezing
I also took the torque wrench to the lugs....would be sad to get all this done and realize I'd only snugged the lug nuts!
Next stop: Mason TX at the K2 offroad park for the Lone Star Land Cruisers RoundUp event....because ALL rig testing should occur 1000 miles or more from home!
SteerAndStuff
Spotter Required
The great feeling of driving after a ton of work! When I first fired up mine originally I quickly realized I forgot to put a plug in the oil accumulator adapter when I decided to install the oil pressure warning light switch up on top instead of in that adapter. Caught it quick but still a mess.
Coco80
Spotter Required
Just went through the whole thread... All I can say is wow, there was some scary crap on that thing! I mean, my buggy isnt perfect, nor did I get it perfect from the many many PO's it had, builds, rolls, tear downs, etc. It's not square anymore, and as a result of that, some stuff simply couldnt be square for the rebuild, but that mess made me feel better about my fab skillz
congrats on a great looking rebuild! Pretty sure I have seen this F-Toy at some of the comps in the past if it is the same one, and it always looked great, but I never looked that close I guess!
Well done!
congrats on a great looking rebuild! Pretty sure I have seen this F-Toy at some of the comps in the past if it is the same one, and it always looked great, but I never looked that close I guess!Well done!
- Thread starter
- #75
Damage report....
So, I loaded 'er on the trailer Friday March 10th...figured there was no point in "testing" locally and finding bugs that would frustrate me, so I headed 1100 miles east to Texas and the K2 Katemcy Rocks park outside Mason TX for the LSLC RoundUp event.
3 days of wheeling some amazing rocks here at K2...PSC full hydro works perfectly...suspension is still a bit tall in front, but will settle...flex is very good, and the 64" front with the 60" rear was awesome.
The bad: the hydro ram mounting bolts, on full compression/flex on the drivers side, contact the hose connection where it clamps to the S pipe headed to the engine block. Result: slightly crushed metal pipe and a pinhole leak in the hose.
That was it.

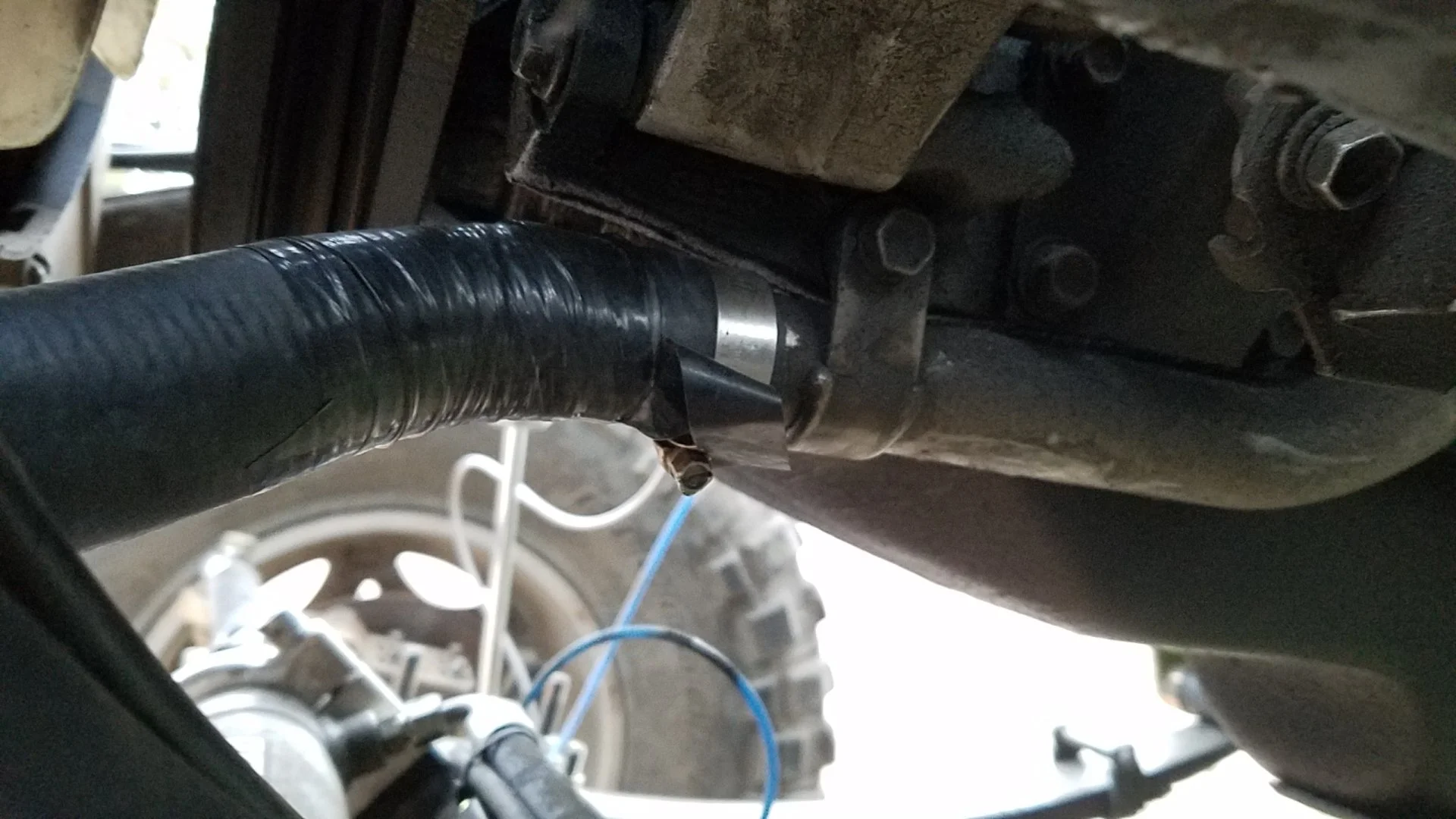

Fixed it by sliding the hose further up the pipe and wrapping the hose with electrical tape to stop the pinhole leak. Wheeled Saturday with zero issues.
So, I loaded 'er on the trailer Friday March 10th...figured there was no point in "testing" locally and finding bugs that would frustrate me, so I headed 1100 miles east to Texas and the K2 Katemcy Rocks park outside Mason TX for the LSLC RoundUp event.
3 days of wheeling some amazing rocks here at K2...PSC full hydro works perfectly...suspension is still a bit tall in front, but will settle...flex is very good, and the 64" front with the 60" rear was awesome.
The bad: the hydro ram mounting bolts, on full compression/flex on the drivers side, contact the hose connection where it clamps to the S pipe headed to the engine block. Result: slightly crushed metal pipe and a pinhole leak in the hose.
That was it.
Fixed it by sliding the hose further up the pipe and wrapping the hose with electrical tape to stop the pinhole leak. Wheeled Saturday with zero issues.
- Thread starter
- #77
bump stops should do it
This weeks list:
1> heavier Marlin spring for the low/hi shifter so it doesn't pop out (done)

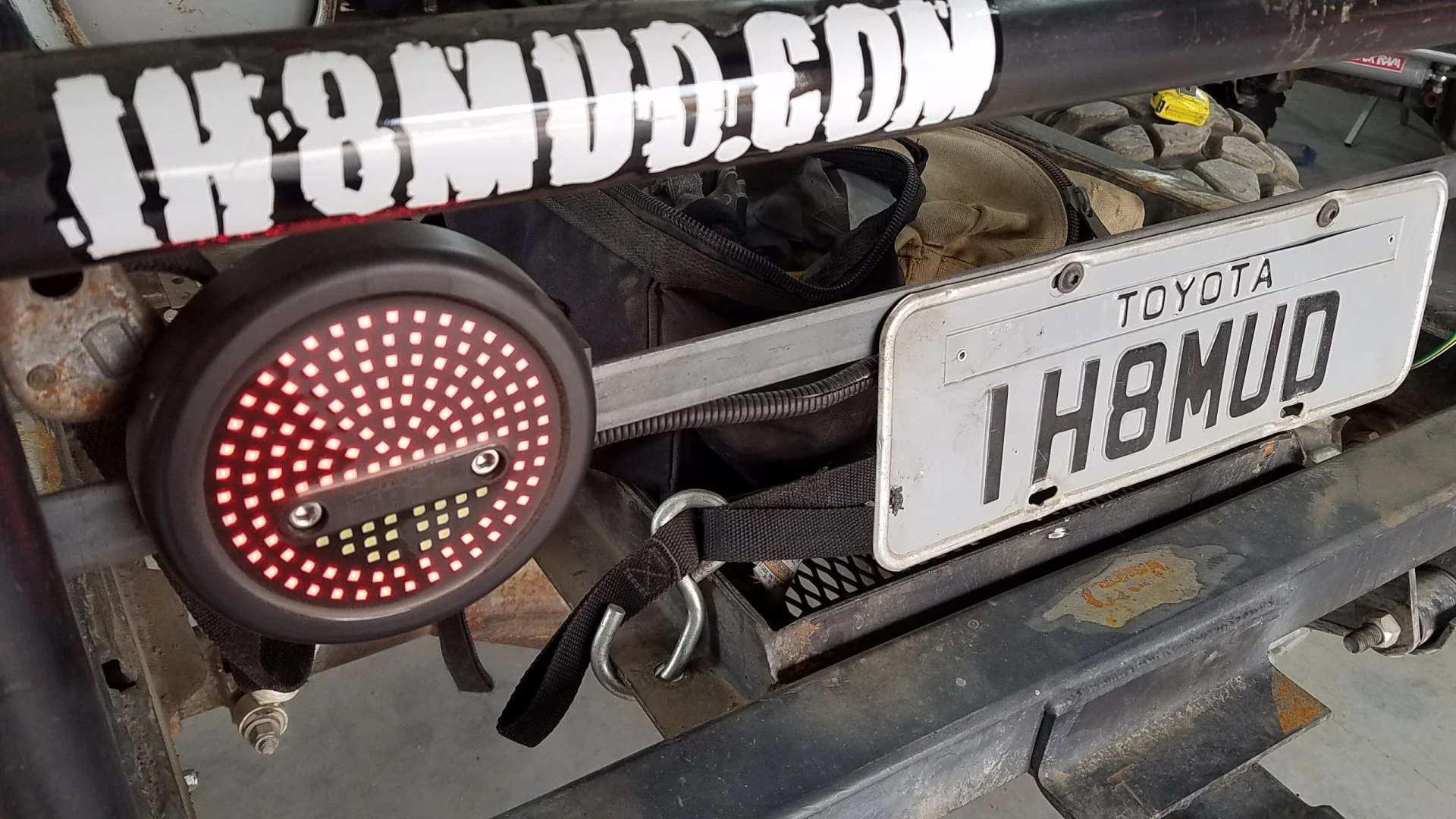

2> running lights (rears done, headlights started)
3> comms (radio mounted and done)
4> relocate axle-side shock mount
5> front bump stops (ordered)
6> lower radiator hose (until I redesign the layout)
7> clean seat fabric (passenger side done)
8> cut/paint/prep skins
9> pull floors/dash for LineX
10> crossbar on drivers seat/floor for PRP bag
11> winch control cable routed (done)
12> install Factor55 (done)
13> mock up placement of the Black Forest Gear fridge and toolbox
14> order front HP 5.29's and install kits (done, Nitro Gear)
15> set toe (done)
This weeks list:
1> heavier Marlin spring for the low/hi shifter so it doesn't pop out (done)
2> running lights (rears done, headlights started)
3> comms (radio mounted and done)
4> relocate axle-side shock mount
5> front bump stops (ordered)
6> lower radiator hose (until I redesign the layout)
7> clean seat fabric (passenger side done)
8> cut/paint/prep skins
9> pull floors/dash for LineX
10> crossbar on drivers seat/floor for PRP bag
11> winch control cable routed (done)

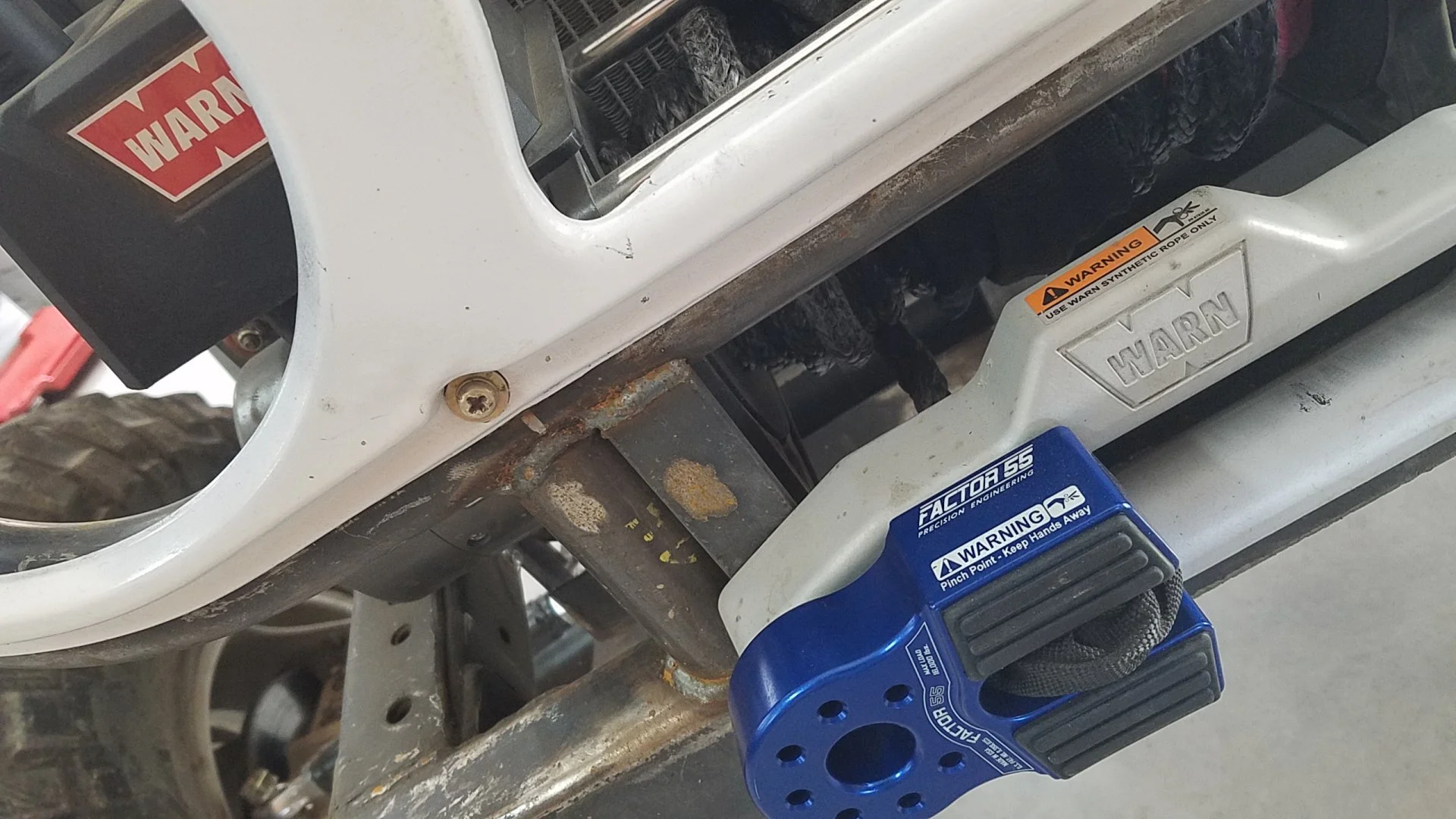

12> install Factor55 (done)
13> mock up placement of the Black Forest Gear fridge and toolbox
14> order front HP 5.29's and install kits (done, Nitro Gear)
15> set toe (done)
- Thread starter
- #79
Todays progress pics...
- Thread starter
- #81

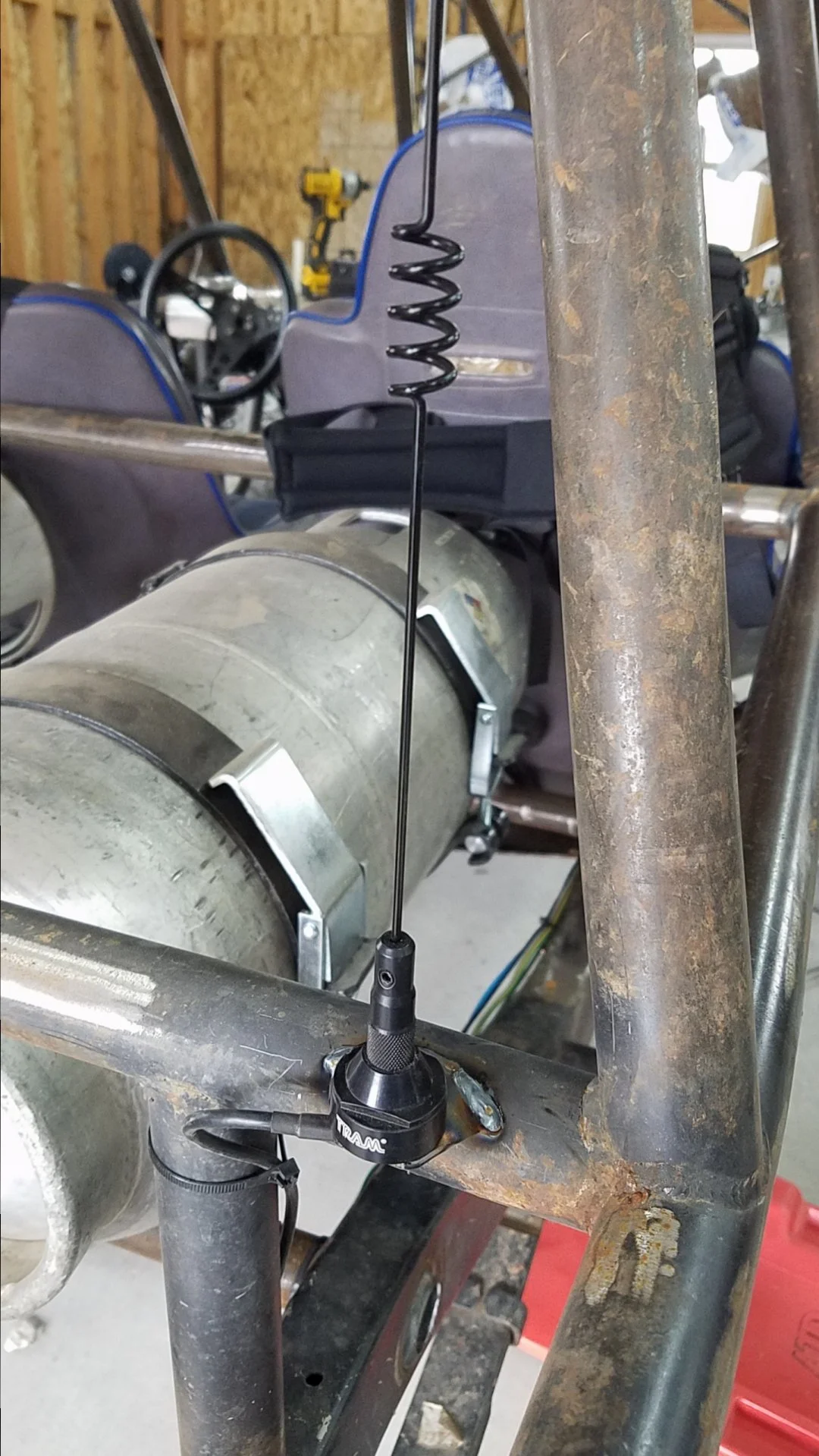

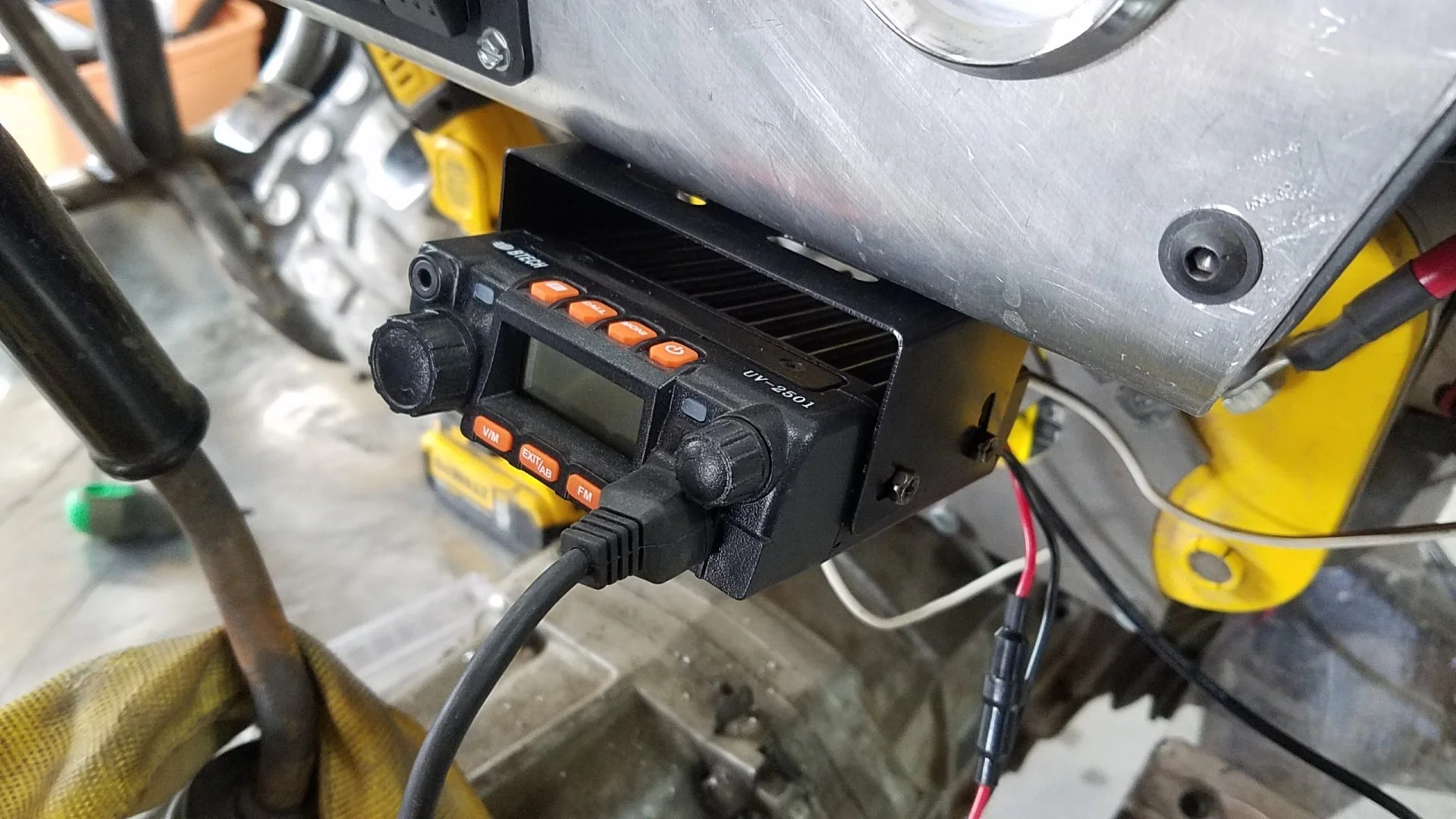

Shop trials with the radio, no complaints....need to program and get out on the trails
435JRW
Spotter Required
Looks good Woody! Can't wait to see it on the trail!
- Thread starter
- #83
Two videos from Chain Reaction at Sand Hollow from earlier this week....
- Thread starter
- #84

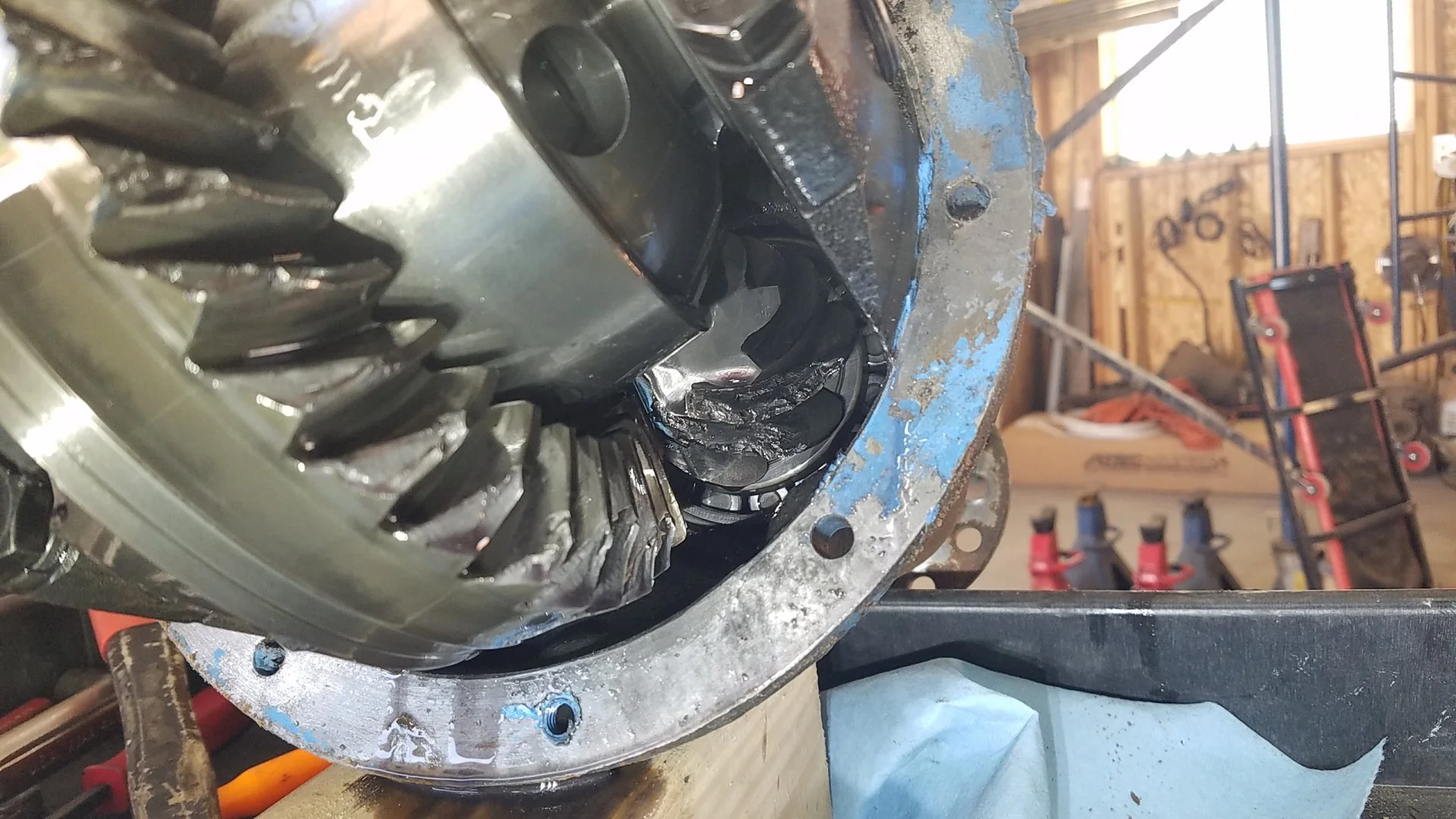

And this was todays project...
Time to order up new 5.29s from Nitro...i wondered why the rear diff made noise after waterfall bouncing on Chutes and Ladders...lol
(These are NOT Nitros....more previous owner stuff)
Time to order up new 5.29s from Nitro...i wondered why the rear diff made noise after waterfall bouncing on Chutes and Ladders...lol
(These are NOT Nitros....more previous owner stuff)
Coco80
Spotter Required
Looks like it is working really well! Hope mine functions half as good as it used too, and I didnt just ruin it haha
maveric
Loves Light Bars
- Dec 23, 2016
- 12
What rear diff truss did you use for the link mounts on this?
- Thread starter
- #87
RuffStuff truss, all the links/tabs/heims from Artec....Artec didn't have a "small" truss
- Thread starter
- #88

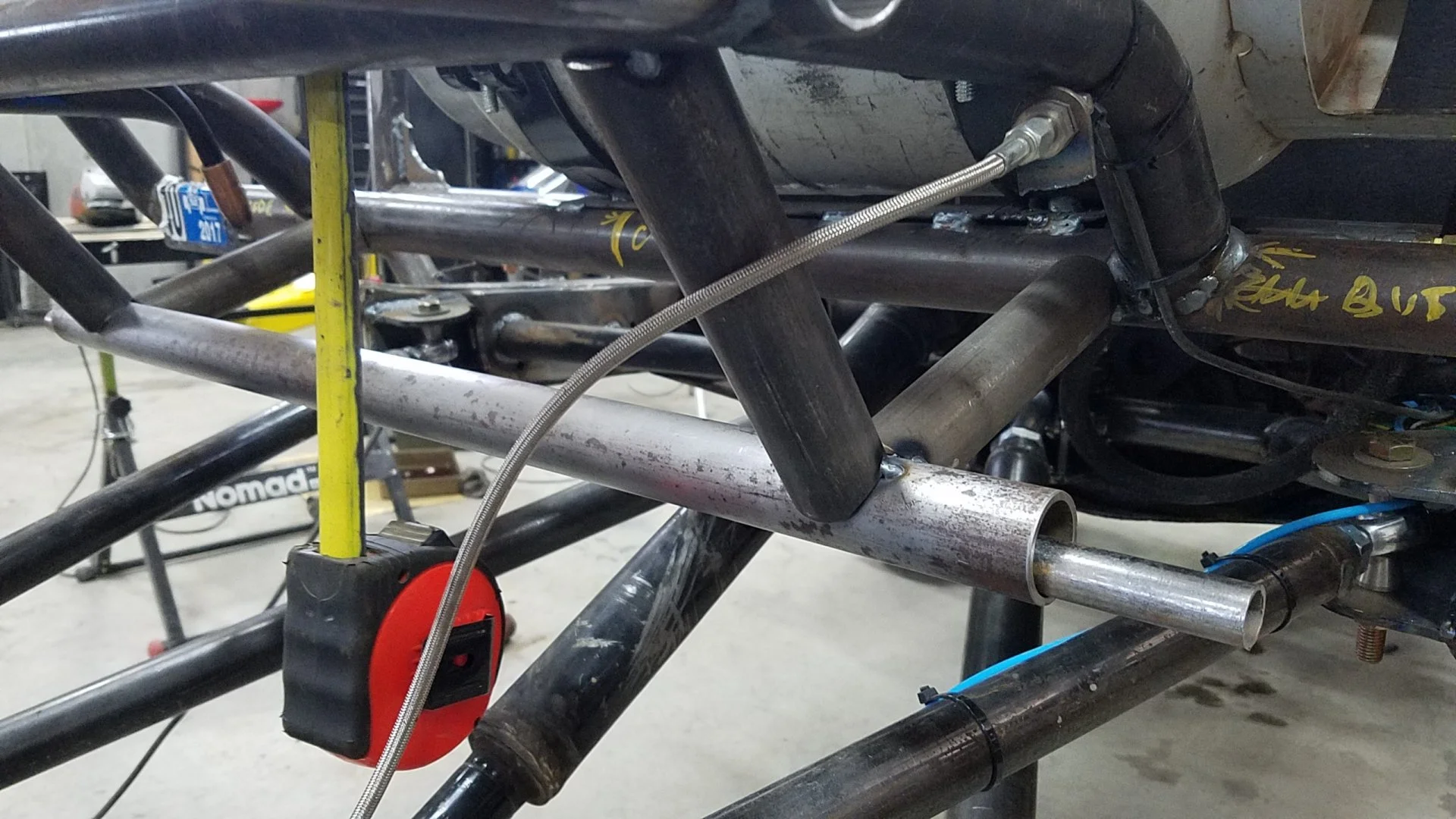

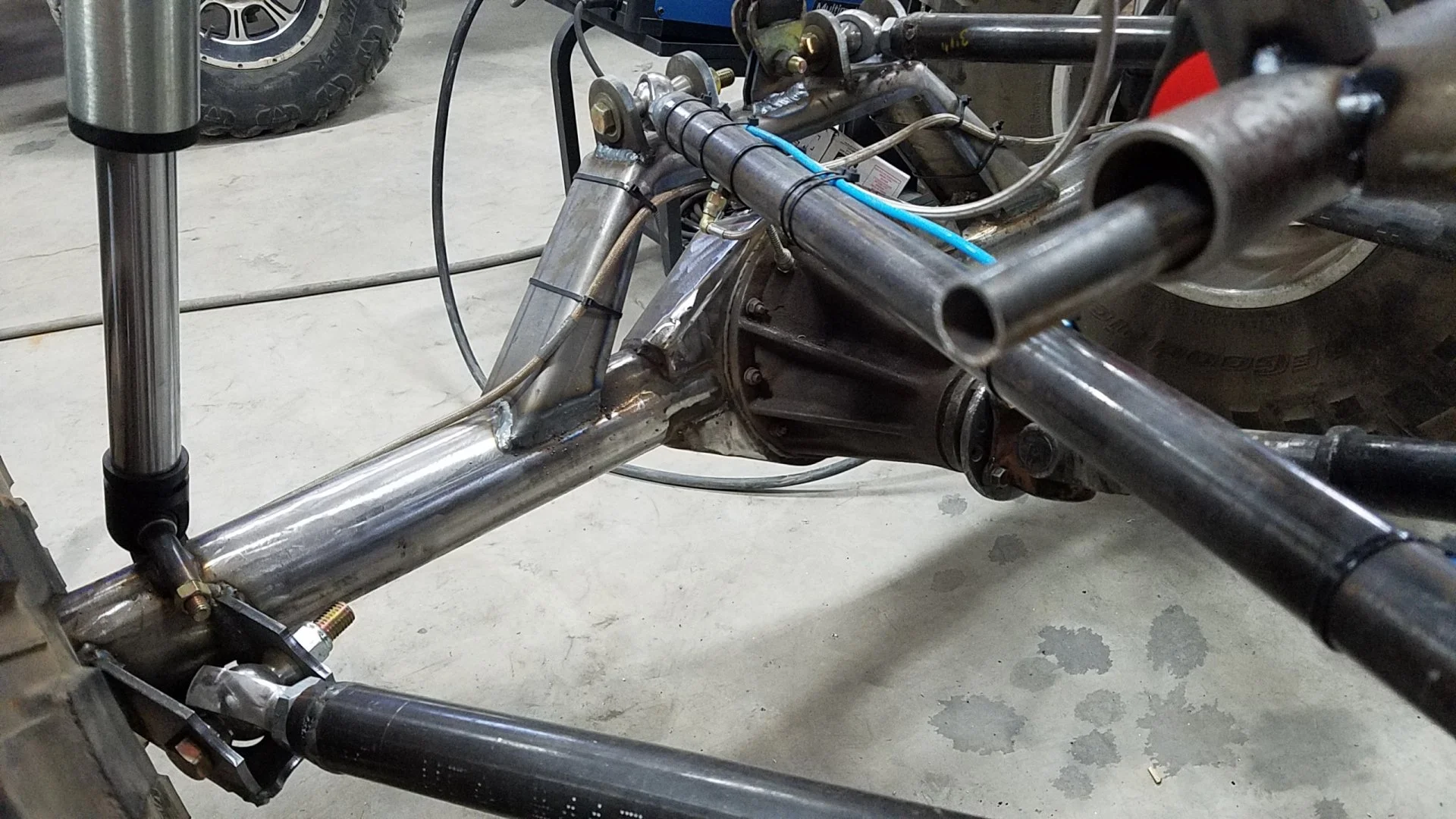

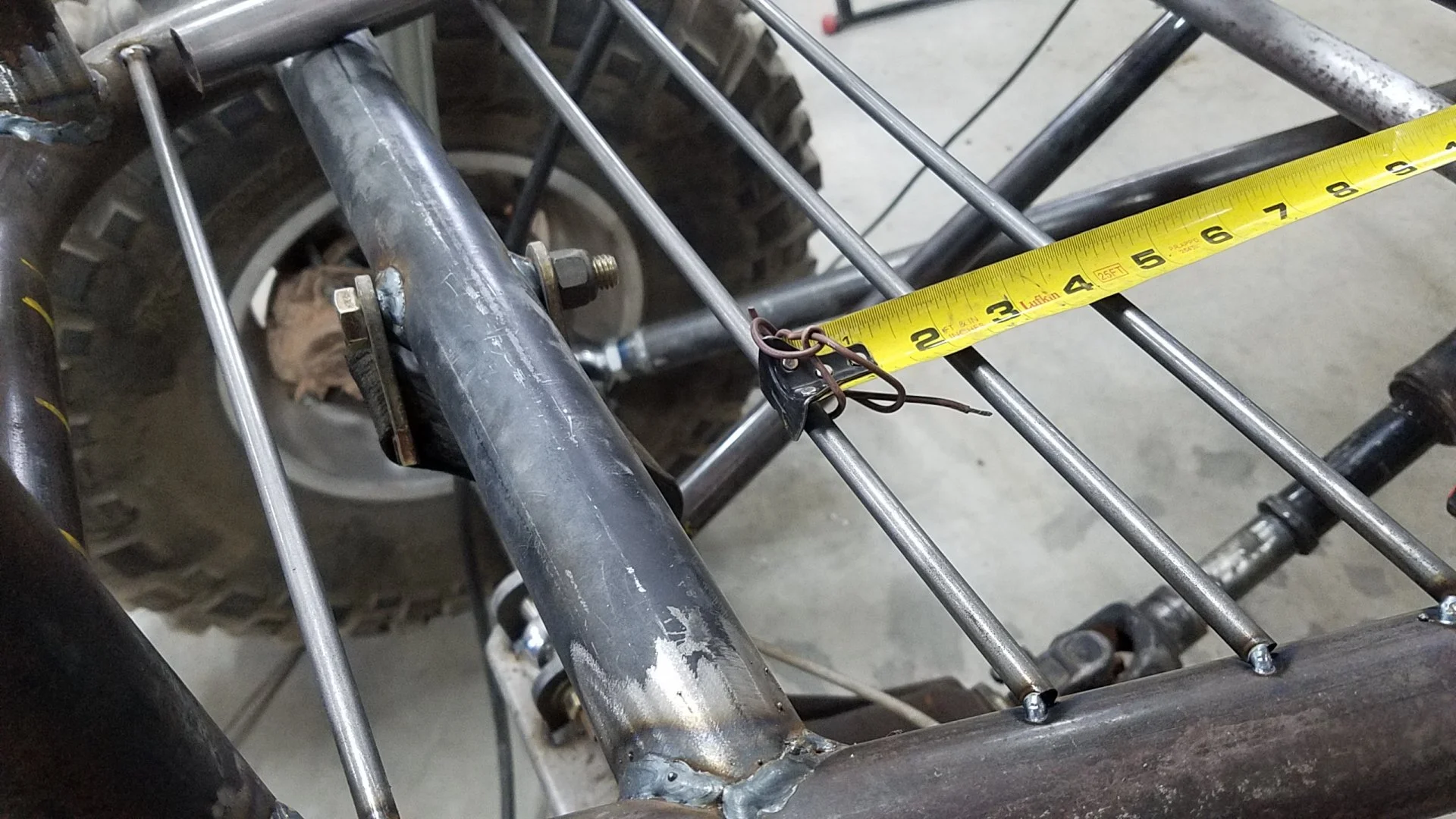

Update pics....4 link and Fox airs are in, just need some pressure adjustment....sway bar mount is mocked up, and the "floor" of the rear storage area is in process
matzell
Loves Light Bars
- Jan 31, 2012
- 14
single shear shock mounts?
- Thread starter
- #90
double....there is a tab off the axle tube as well
