SOLD: FTOY

trevorchildress

New Member
May 24, 2019
2
Chattanooga, TN
Call Trevor 423.463.6389

ENGINE
-EFI SHORT BLOCK, Prepped inspected and printed machined/bored .080 over, LCE Oil Pan
-LCE Stage II head, LCE Adjustable Cam Sprocket, LCE Dual Row Chain Upgrade, LCE High volume oil pump
-LCE Forged pistons .080 10:1, LCE Valve Cover, LCE Bottom billet crank pulley, LCE Timing Indicator kit
-LCE water pump and all new gaskets, LCE head gasket for high compression, ARP studs all around
-GM 100A alternator, TG High Volume pump, LCE F-Toy Header with full 2.5” Flowmaster 40 series exhaust
-LCE distributor/Billet, LCE ignition
-Propane injection “GotPropane.com” Carbed intake bead blasted and prepped for sensors

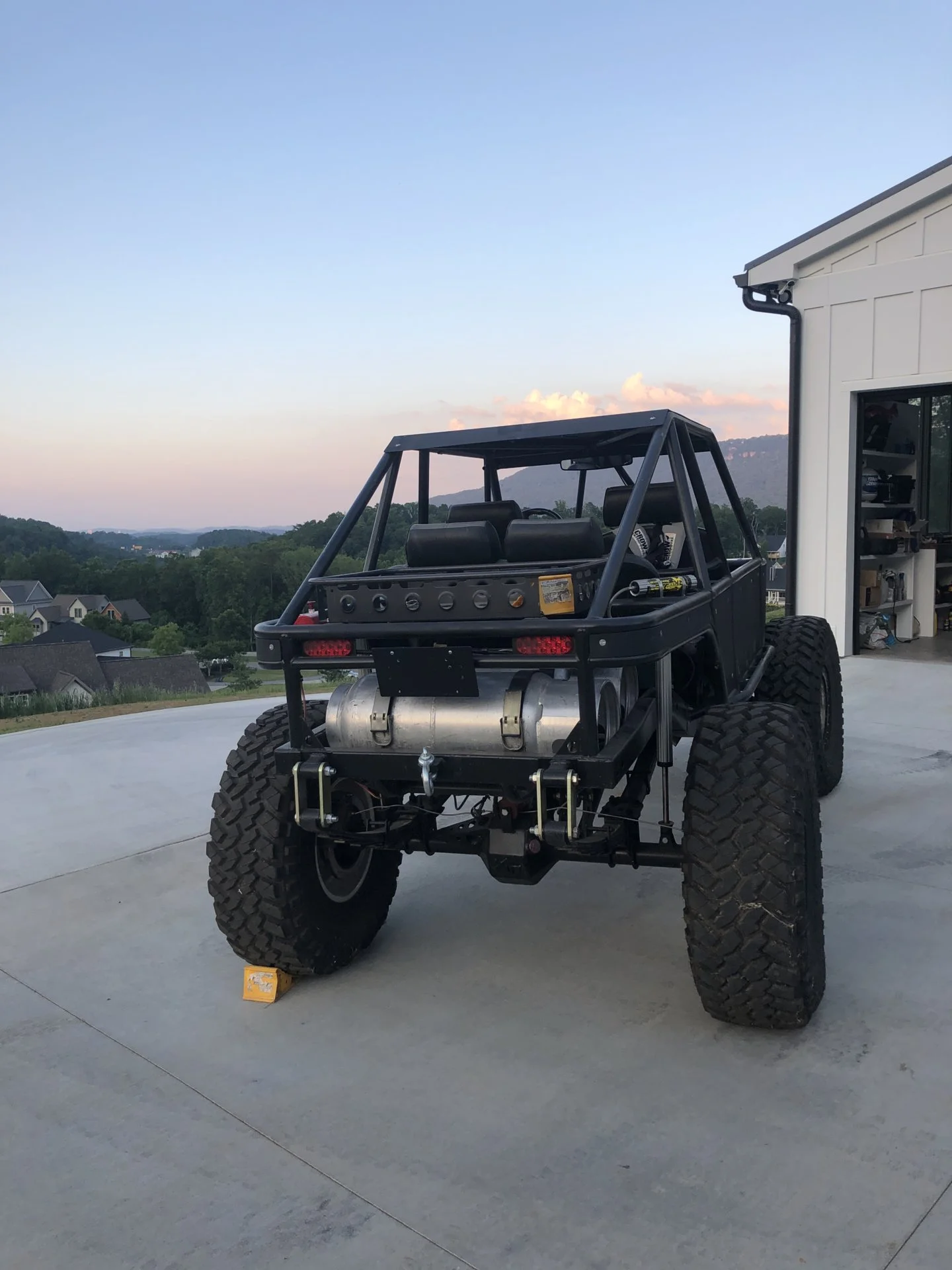

-Dual Aluminum Propane Tanks lowered for “CG”
-Remote Dual Oil filters, High pressure hoses
-Remote Oil cooler with sensor fan
-LCE brass Turbo radiator with PWR Steering lines cooled within
-4200CFM high volume fan, relay sensor
TRANSMISSION AND TRANSFER CASES
-New Marlin Crawler L52HD signature series
-New Marlin Crawler Dual cases with clocked adapter plate 10 degrees up
-Stock Ratio in first T-case and 4.7:1 in second, 23 spline upgrade
-Bobby Long main shaft upgraded at Marlin’s shop when built
-All Triple drilled flanges
-TG Twin sticks
-New Marlin Front T-case shifter and L52HD shifter
- HD Marlin Clutch Kit with new Flywheel, New Slave cylinder
-Tom Woods DOM High CV Toyota drive shafts with Long Splines, Front and Rear Drive shafts same length
-Full back up Driveshaft Spares
-Full 3/8” T-case mount plate with DOM cross member mid and rear trans assembly Poly Bushings

AXLES
-Hybrid DOM Toyota Housings by Crossed Up Off-road Front and Rear, High Clearance and trussed
-Frt. axle width is setup for FJ60 axle shaft lengths, Easy Availability
-Frt. FJ60 Longfield Axle shafts, NEW
-Frt. TG 6 Shooter and High Steer Arms with ARP Studs
-Frt. TG Lower King Pins, Longfield drive slugs
-Frt. end service all new Bearings/felt/seals
-Frt. Brakes, All New FJ60 Rotors, IFS calipers/Pads, Stainless lines
-1.5” .250 wall DOM Tie Rod and Drag link with ¾” Heims Alloy QA1 High misalignment washers
-TG Hydro assist 2” Ram with High volume pump
-New TG V6 Thirds Front and Rear complete with 5.29’s and ARB’s, triple drilled flanges
-Rear TG chromo axle shafts, New bearings and bearing cups
-Rear Disc setup with IFS Calipers NEW

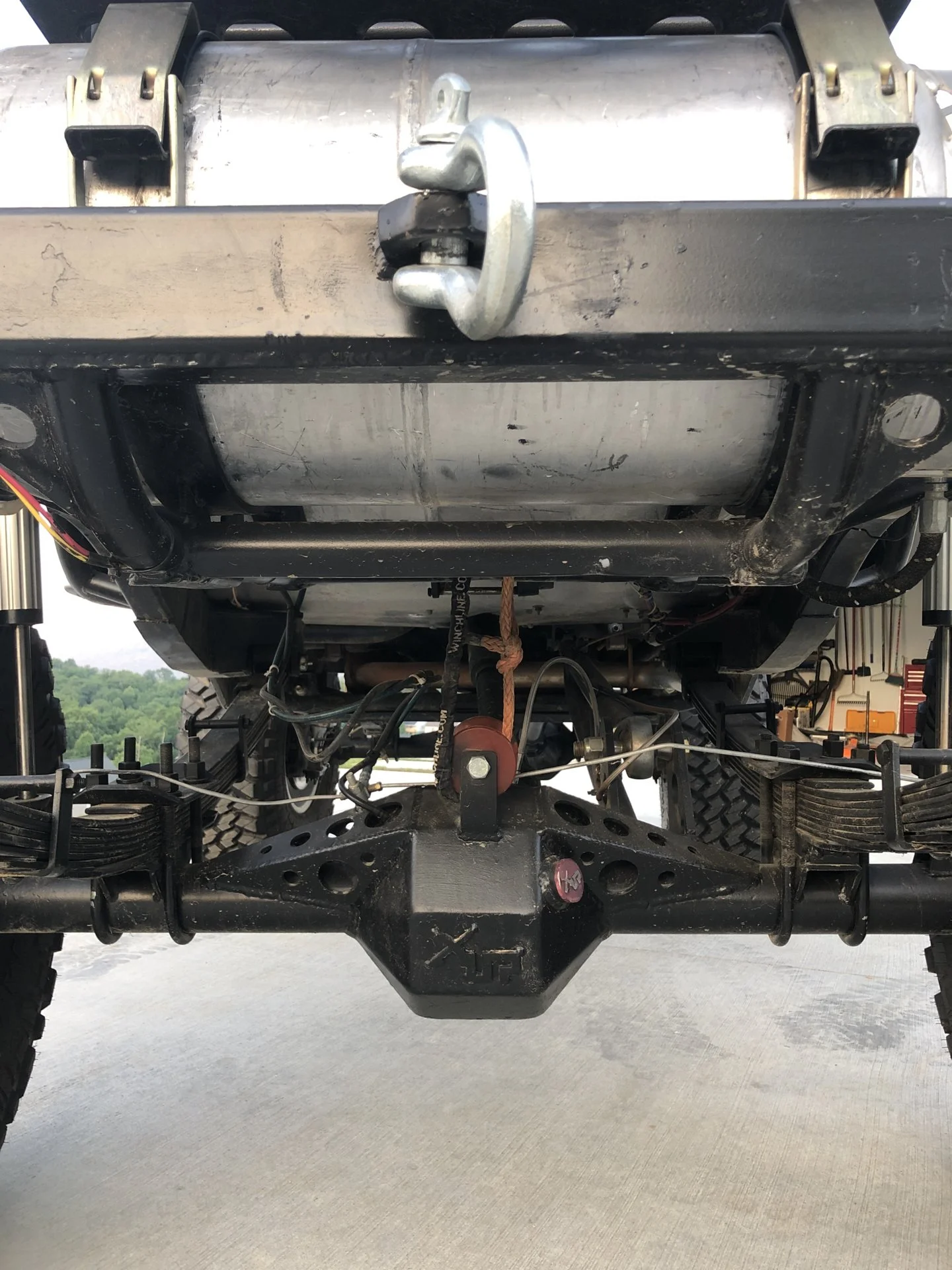

-Rear Traction bar with winch suck down

SUSPENSION
-TG 3” long Leafs, 29” width inboarded off of frame
-All Pro front springs
-High Clearance U-bolts, Poly Greaseable bushings and bolts
-Bilstein 5150 shocks all corners
- Front adjustable bump stops
-Rear 3.5k Suck down winch, remote dash button

-TG 17” Beadlocks (5) qty
-BFG Red Label Crawlers 39X12.50X17 (4) qty not even broken in yet
-All New Lug nuts and studs front and rear

CHASIS
-Hendrix DOM 2009 made
-83 short bed pick up frame, boxed in areas
-Hendrix Chassis to Frame mounts
Twisted Stitch seats front and rear
-Removable steering wheel
-Oil Temp/Pressure/H2O/Volts/Wide Band/Tach gauges
-ARB switches front and rear, suck down winch buttons, Kill switches and firewall connectors, relay box system
New super winch, rock crawler series with synthetic line
-ARB compressor
-5 Point harnesses, both seats
-Fire extinguishers
-Body Panels mounted all with D-zeuss fasteners, Aluminum with Aluminum access panel floors
-Wilwood Triple Master adjustable cylinders Clutch/Brakes 2 pedal, remote res
-Wilwood electric Line locks front and rear
-Wilwood adjustable lever rear proportional valve
HD lights and Rock lights

STEERING
-TG Hydro assist kit with high pressure hoses
-Rebuilt IFS steering box
-Trans cooler in Radiatator

4TOY COMP LEGAL
