Two seat rock crawler buggy chassis. For sale!

This is a new chassis design we just finished. The lower sub frame is 2” .188 wall along with 2”.120 wall for the front and back main lower bars. The remainder of the chassis is 1-3/4 .120. All DOM tube. The chassis was designed for an LS motor/auto trans and atlas, but can accommodate pretty much any drivetrain. We made provisions for a 27 gal fuel cell if desired. The radiator can either be mounted up front or in the rear. The chassis is set up for a112"- 114” wheel base. Endless possibilities make this a well round platform to start from. We can provide LS motor mounts installed, as well as fuel cell mount, radiator mount winch plate, belly pan, suspension brackets, body skins and roof skins all at an additional cost.

Bring us your drivetrain and we can setup a custom link suspension, Or set you up with a full rolling chassis!

The chassis is fully welded

Please let us know if you have any questions.
Price $ 4,000.00

Shipping is available at buyers cost. We can assemble the chassis and break it down and put it on a pallet and ship it to your door ready for you to assemble.

Our 4 seater chassis version design is done and ready to build

Check us out on facebook!

Regards
Anthony
DF Fabrication

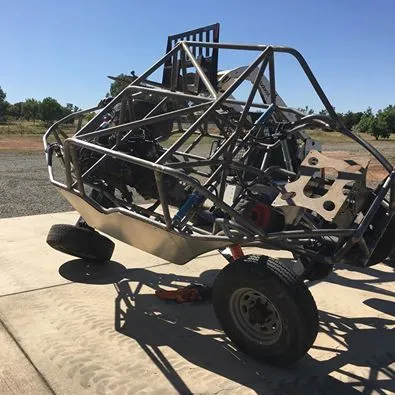

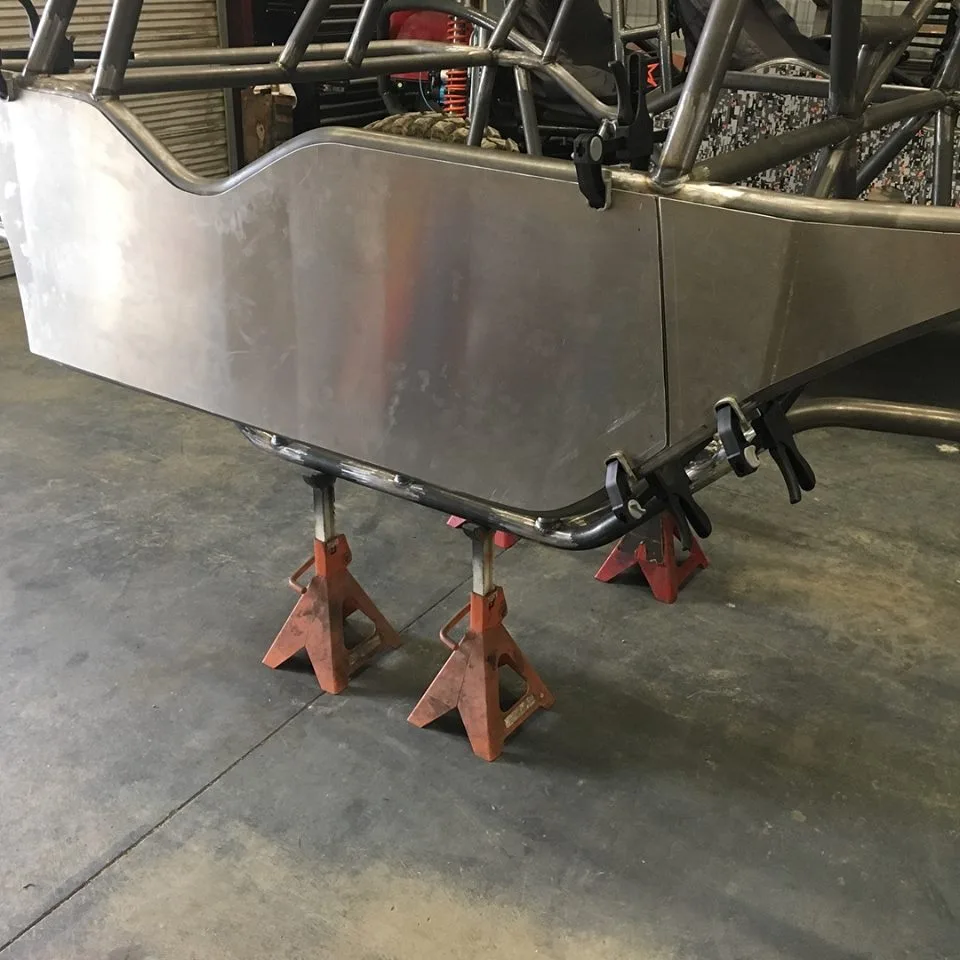

body skin.jpg

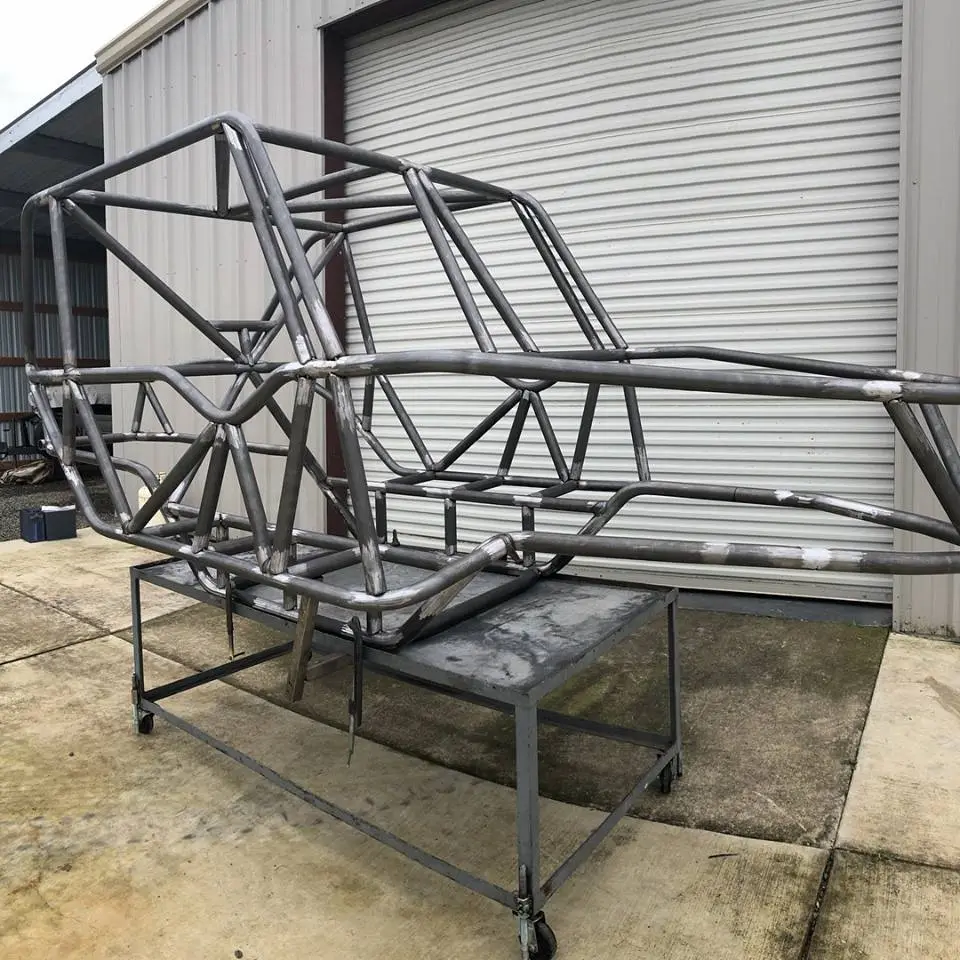

buggy chassis 2.jpg

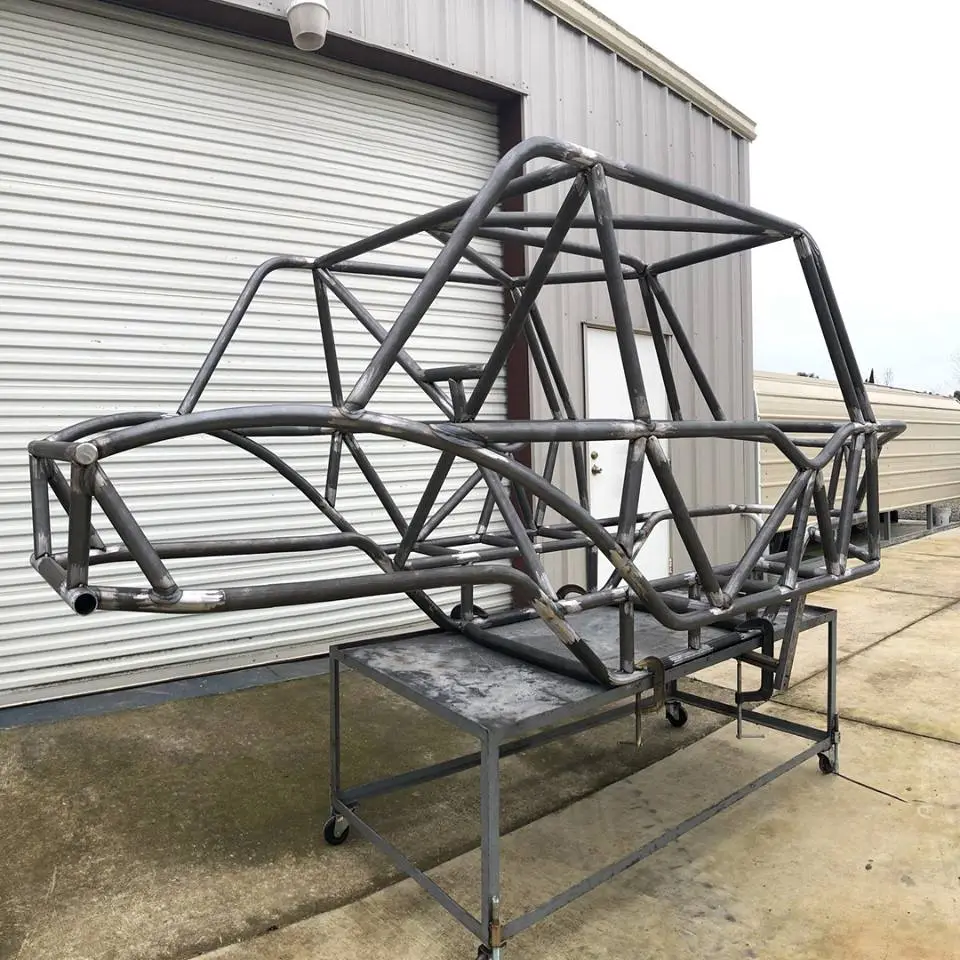

buggy chassis 3.jpg

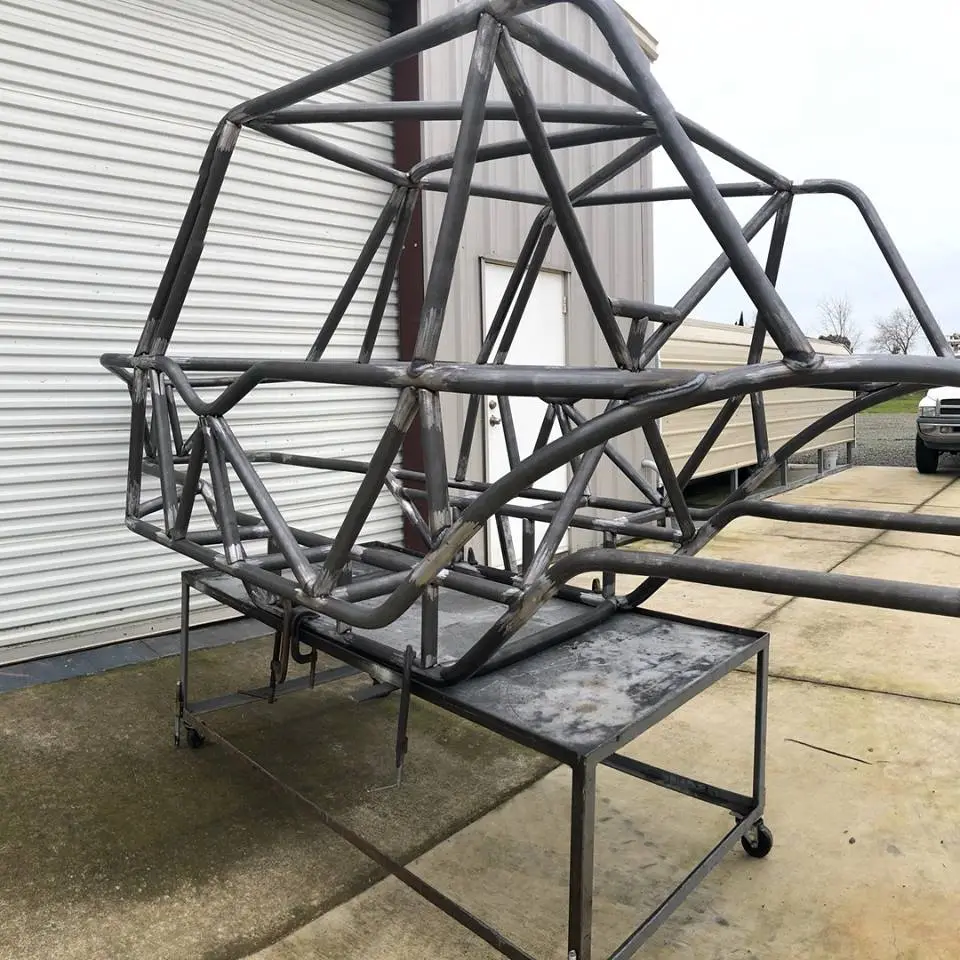

buggy chassis 4.jpg

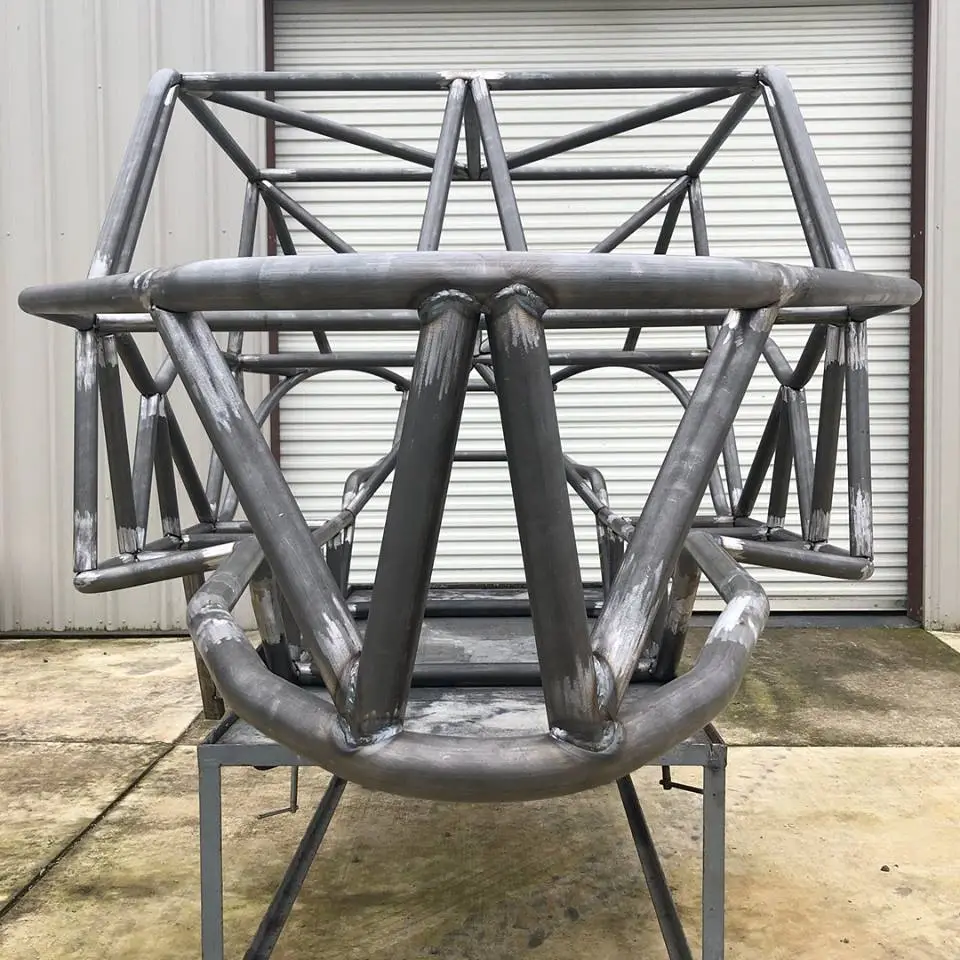

buggy chassis 7.jpg
