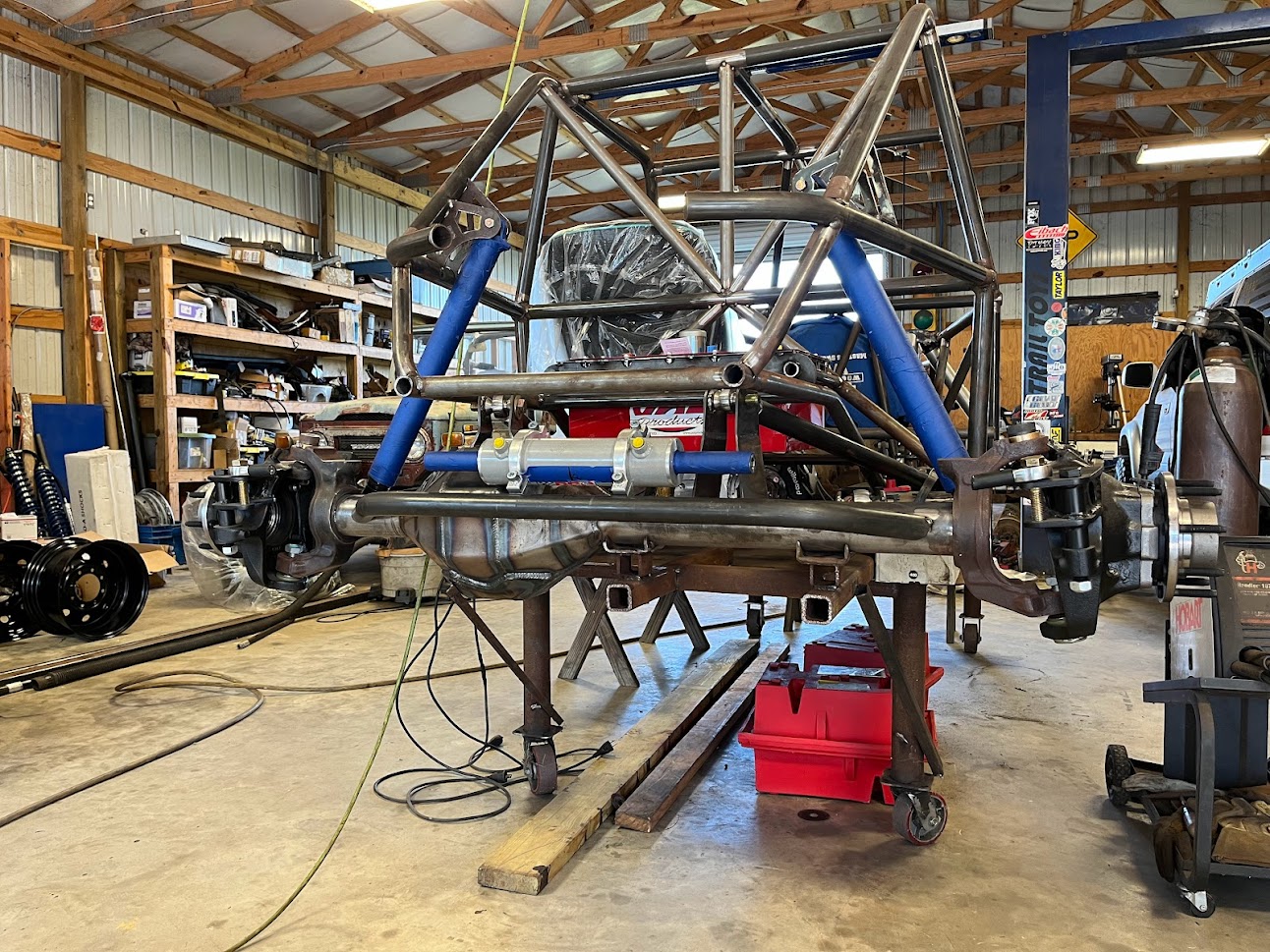

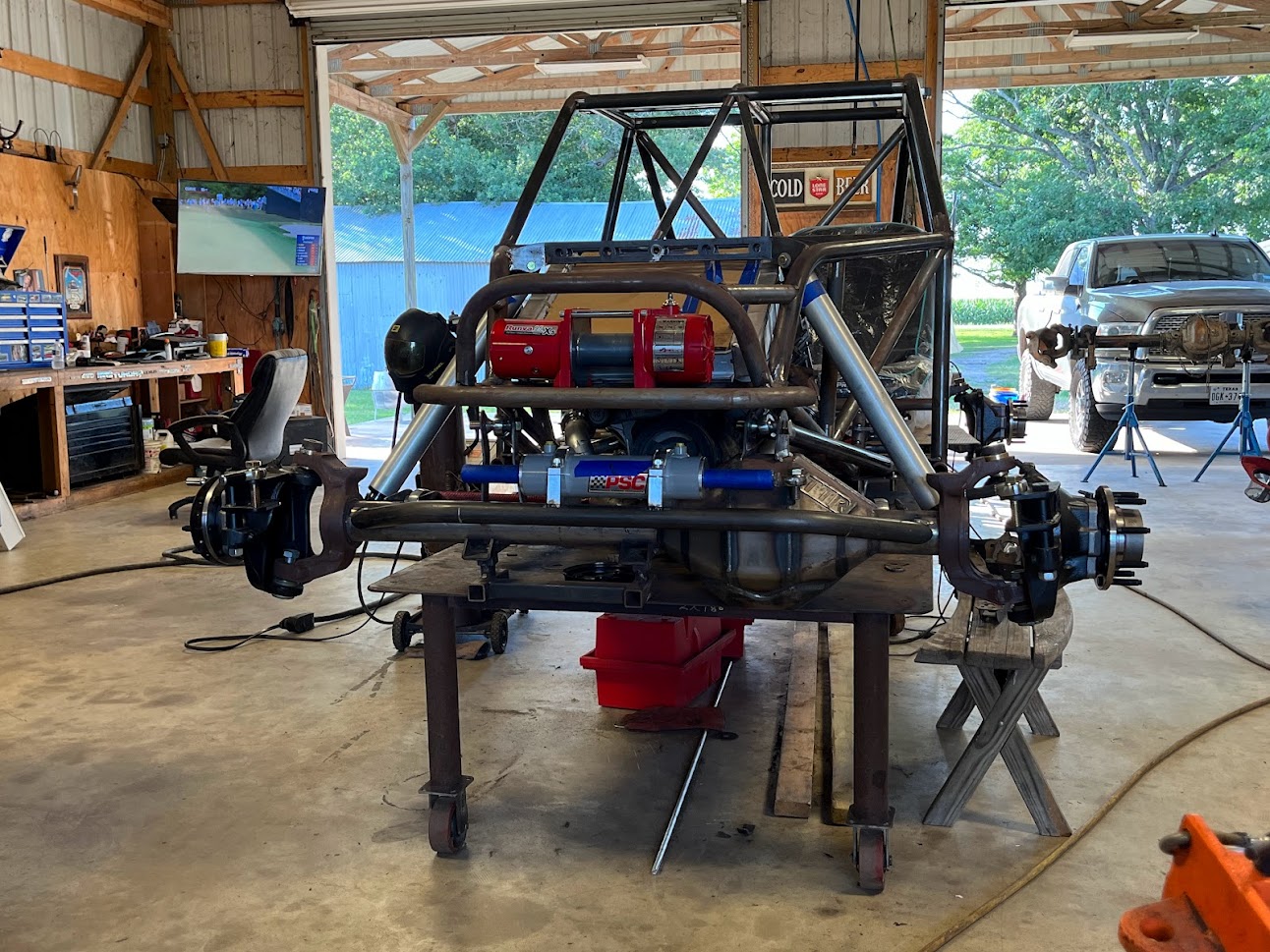

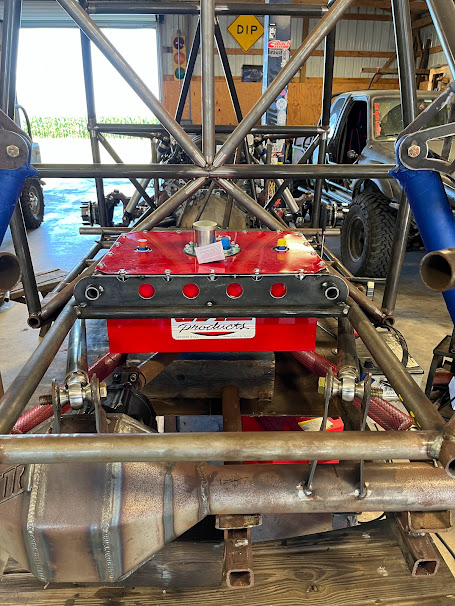

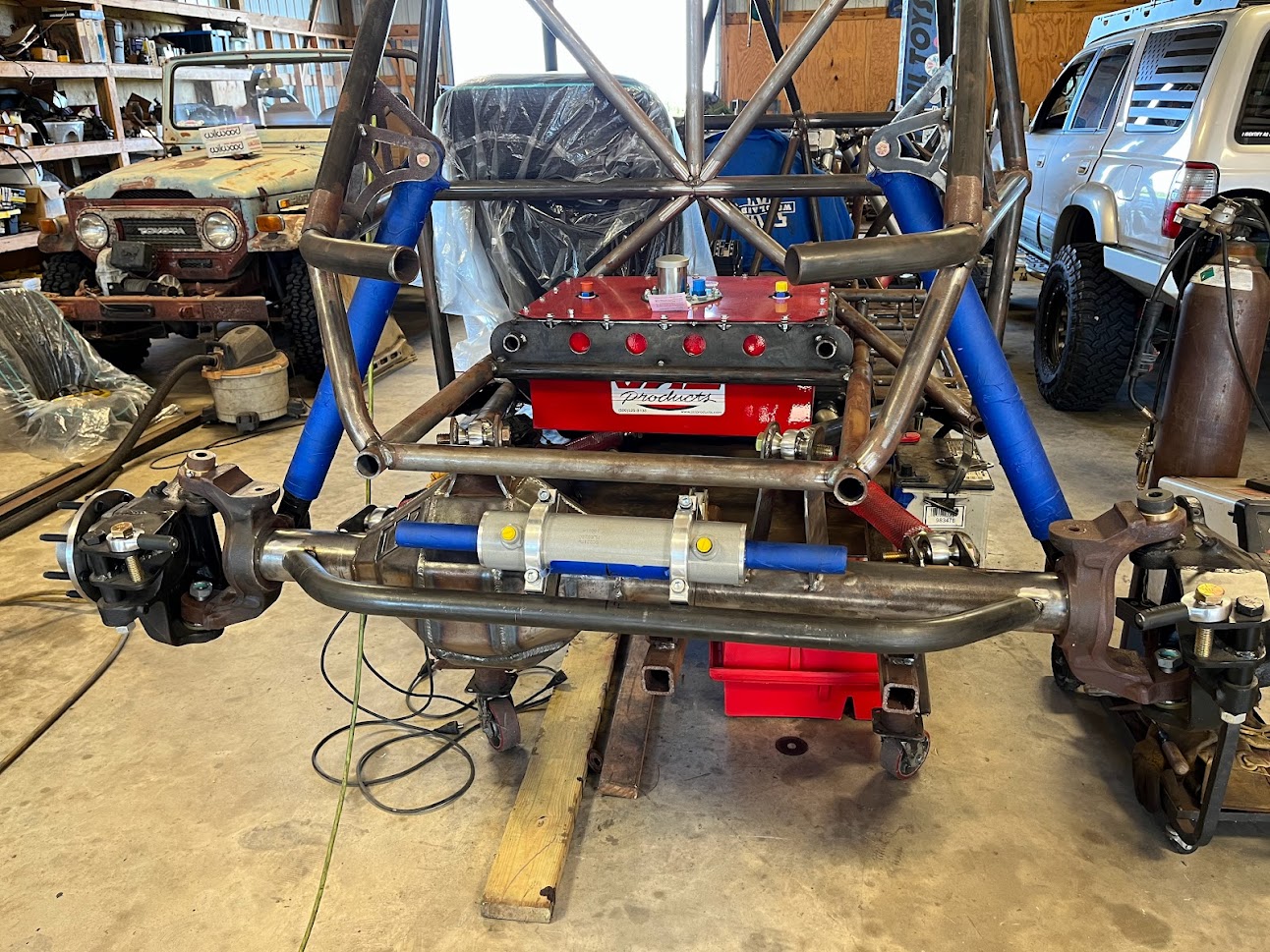

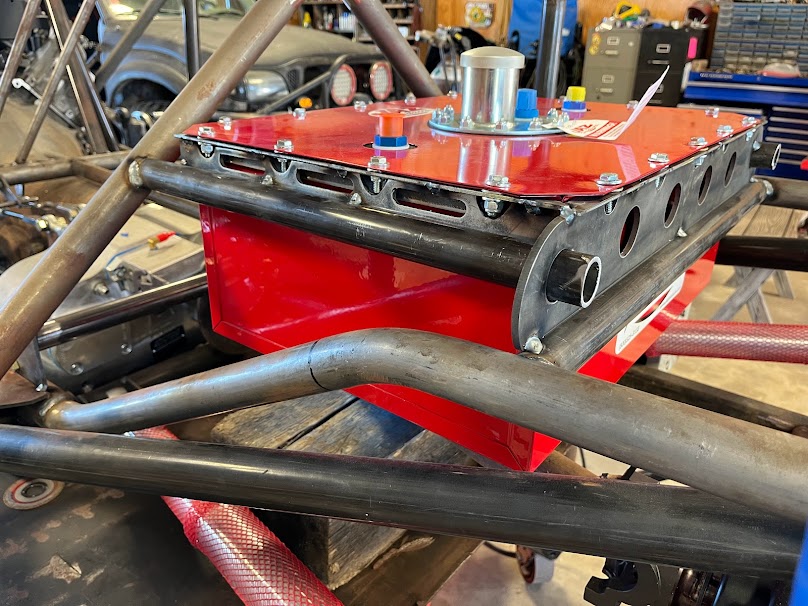

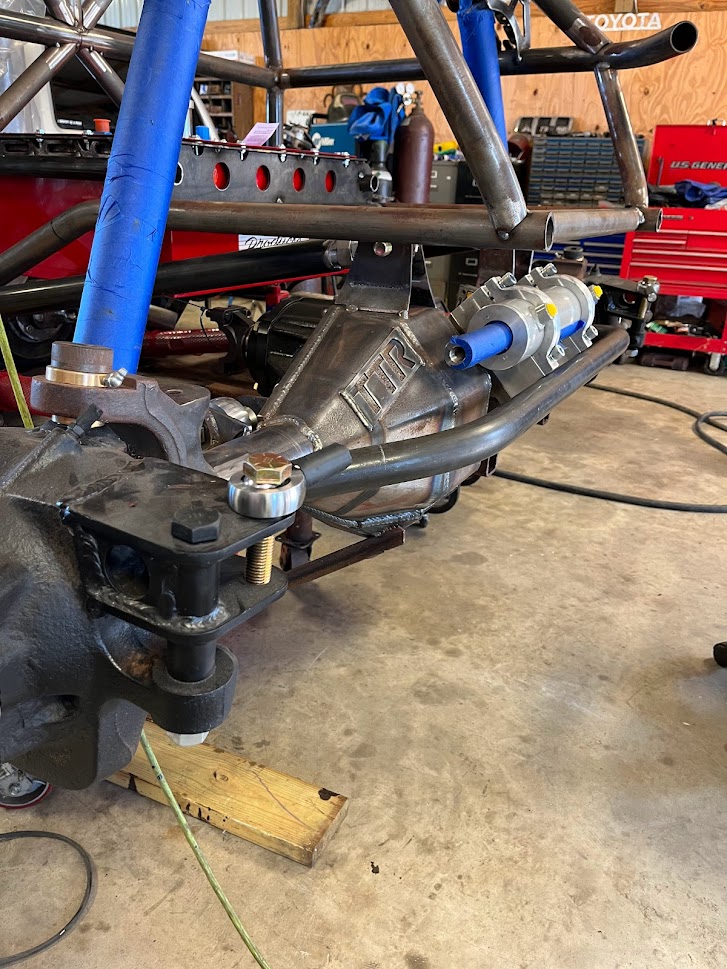

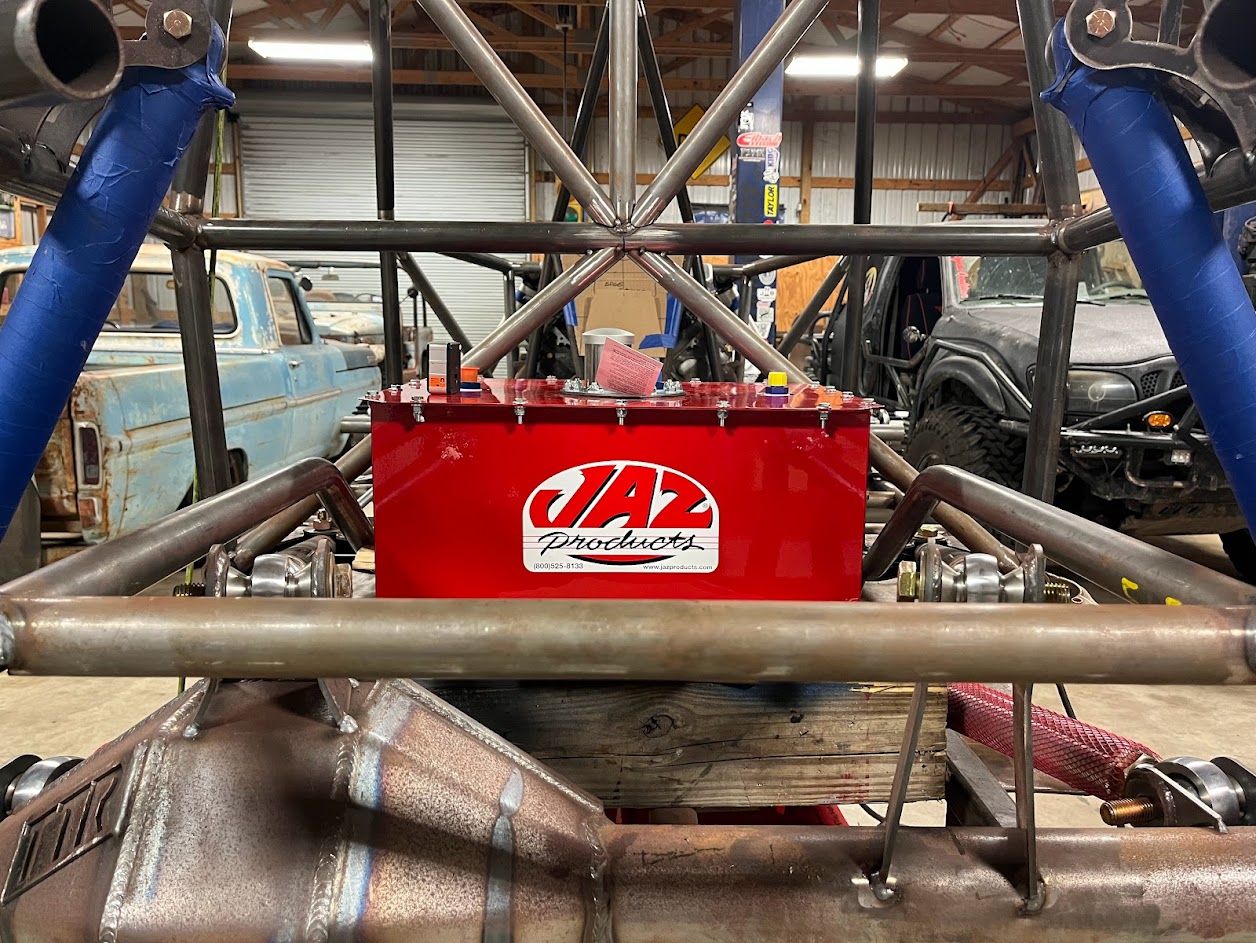

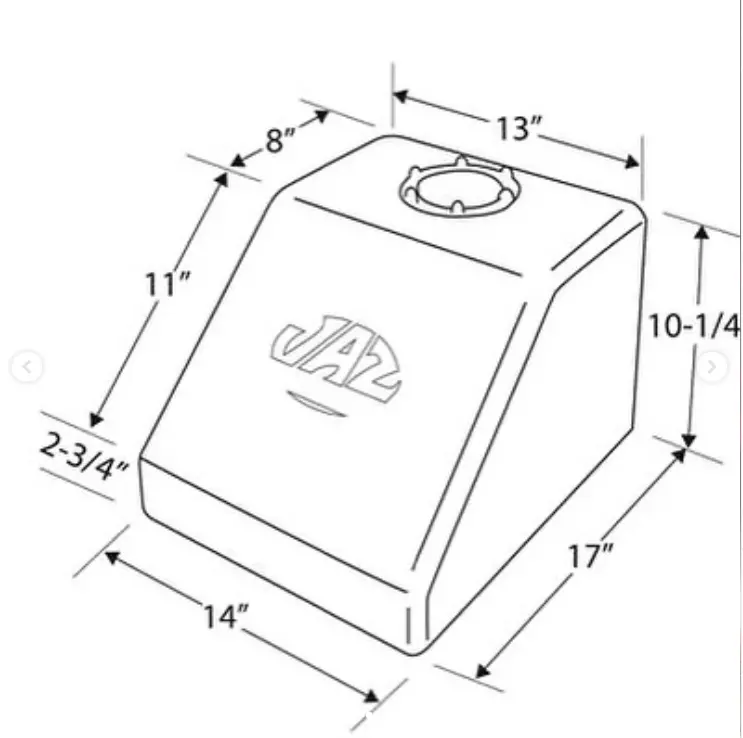

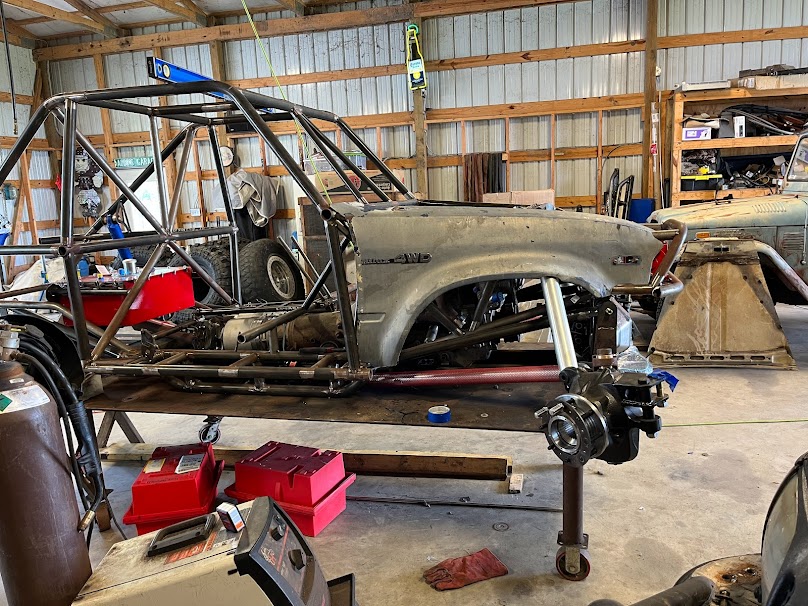

The 8-gal Jaz cell i bought to see if it works out. Based on the dimensions listed on Summit, it will fit between the rails. Its ~21" x 16" x 8.5"
![]()

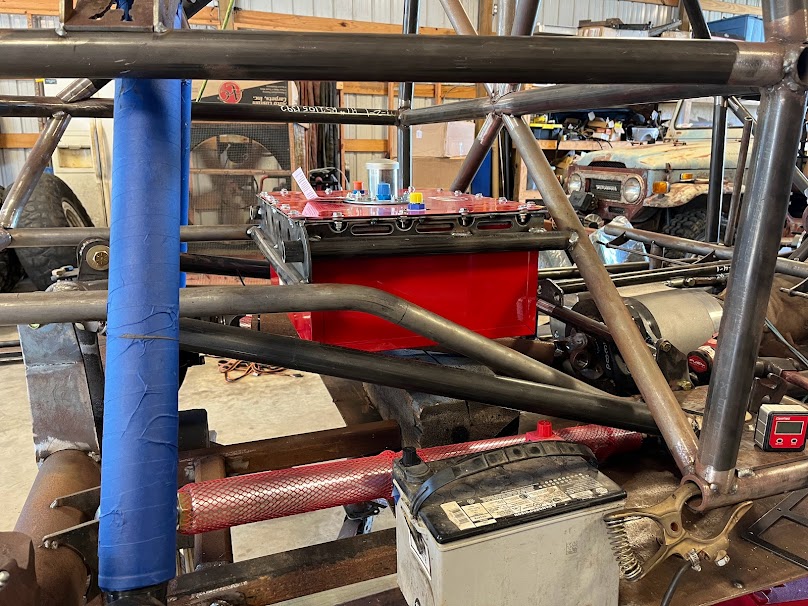

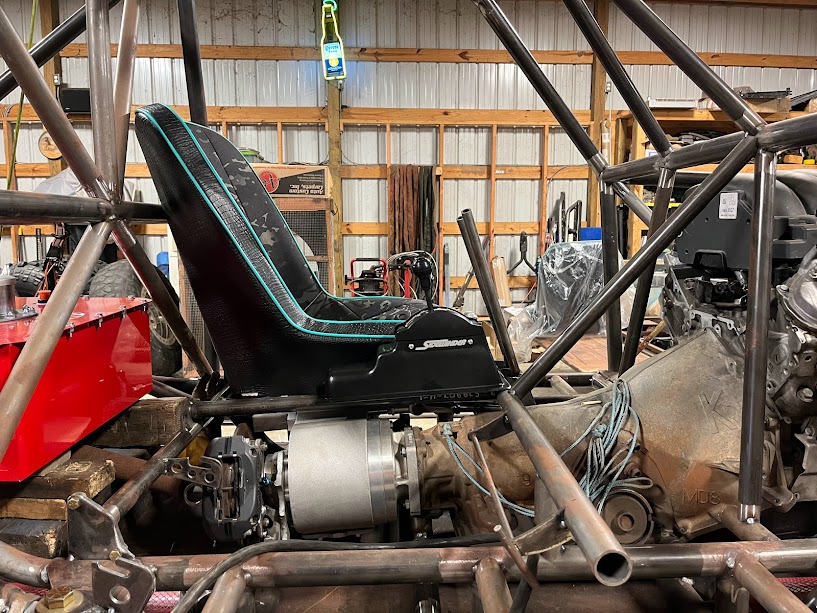

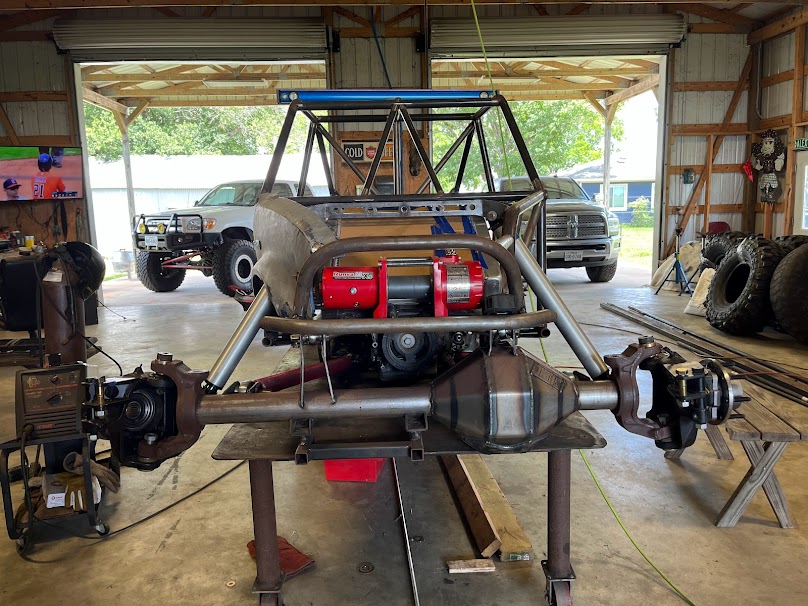

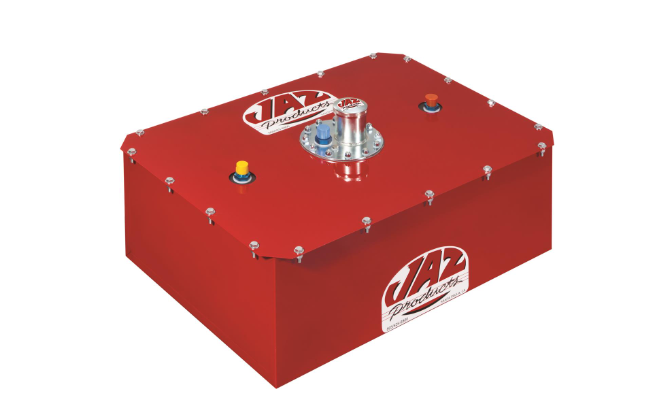

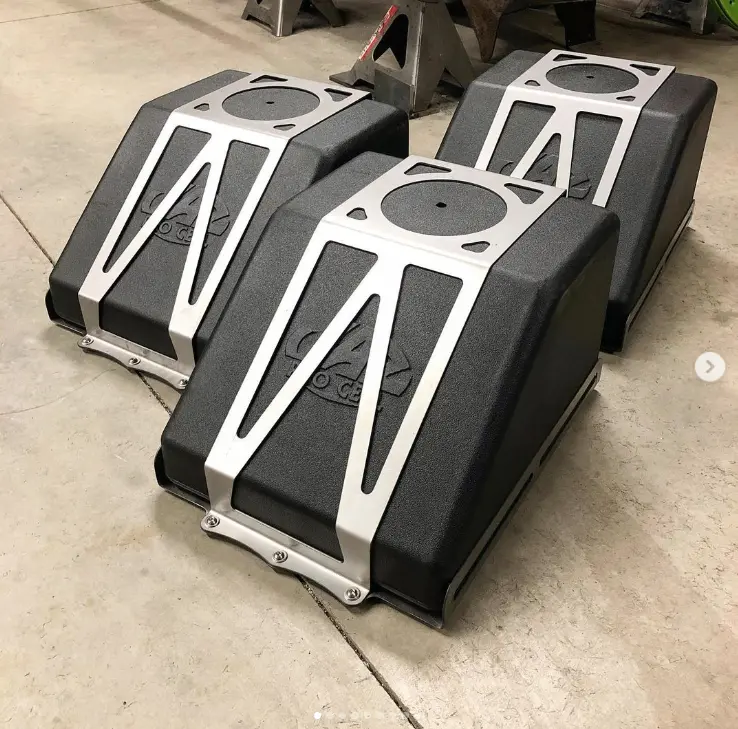

What about the little triangle 8 gal Jaz cell, you can stuff it behind your seat a bit more.
Follow along with the video below to see how to install our site as a web app on your home screen.
Note: This feature may not be available in some browsers.
This site earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

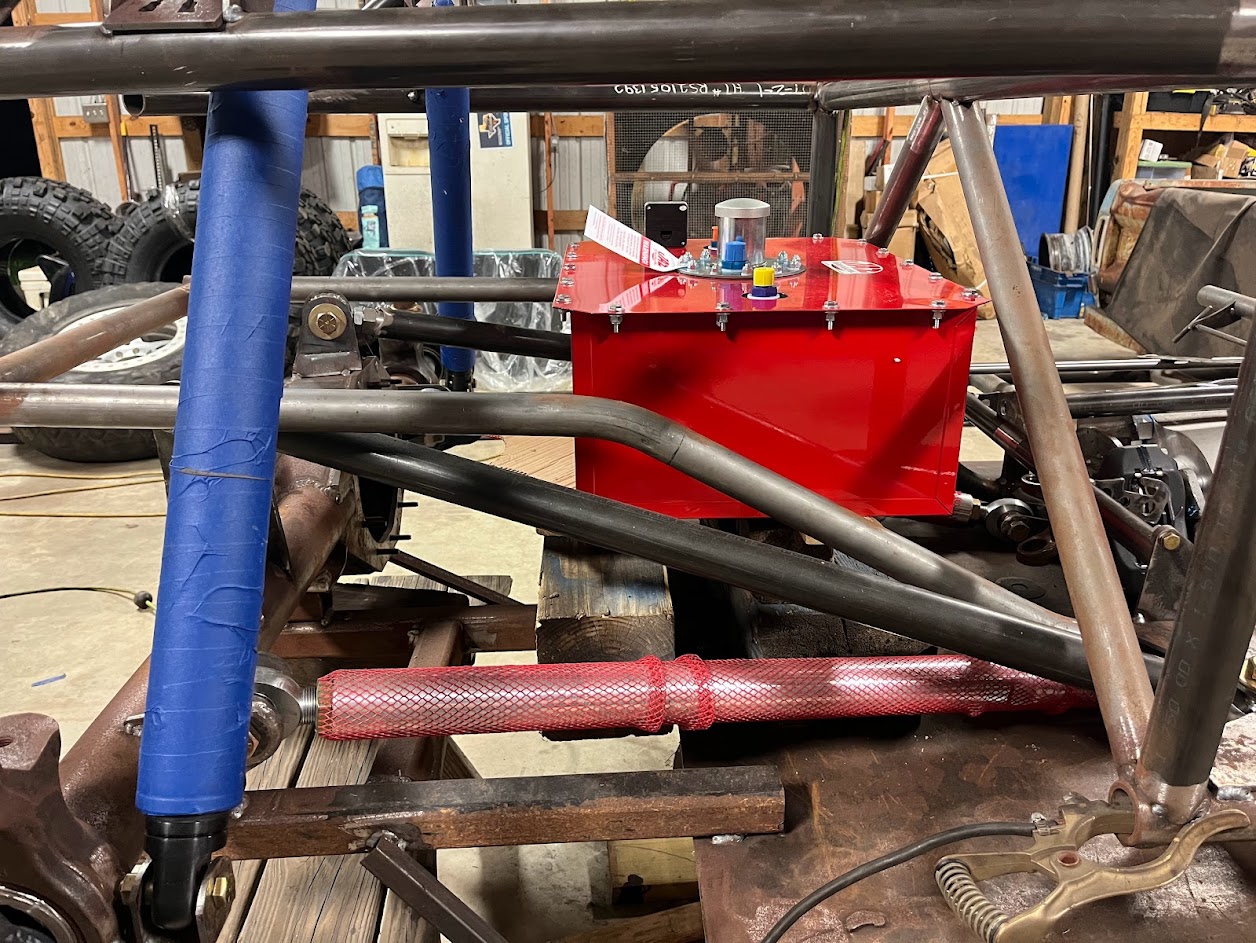

The 8-gal Jaz cell i bought to see if it works out. Based on the dimensions listed on Summit, it will fit between the rails. Its ~21" x 16" x 8.5"
![]()
What about the little triangle 8 gal Jaz cell, you can stuff it behind your seat a bit more.

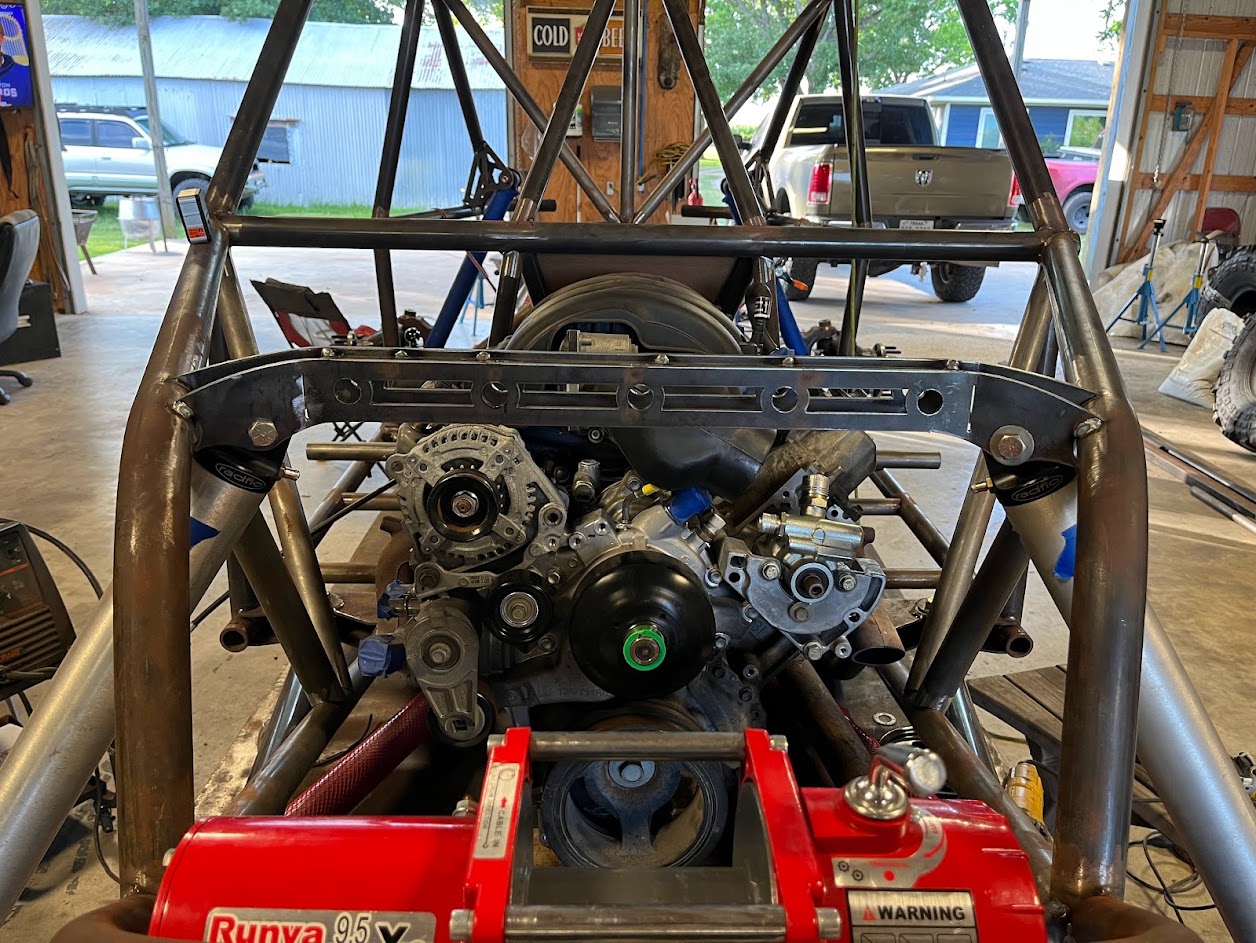

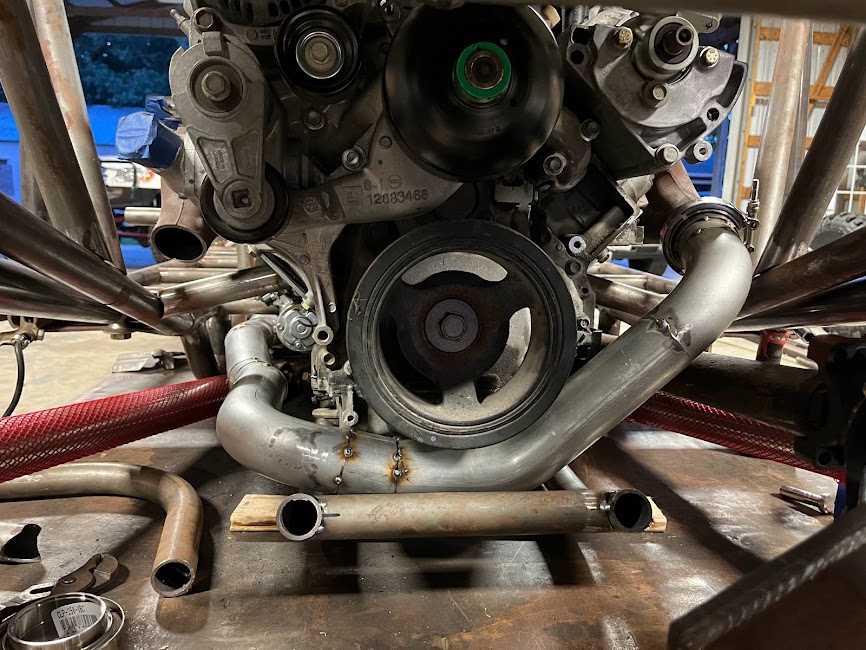

There is still room to come out the top.I assume the motor will be coming out the bottom now?
Love the fabricated mount![]()

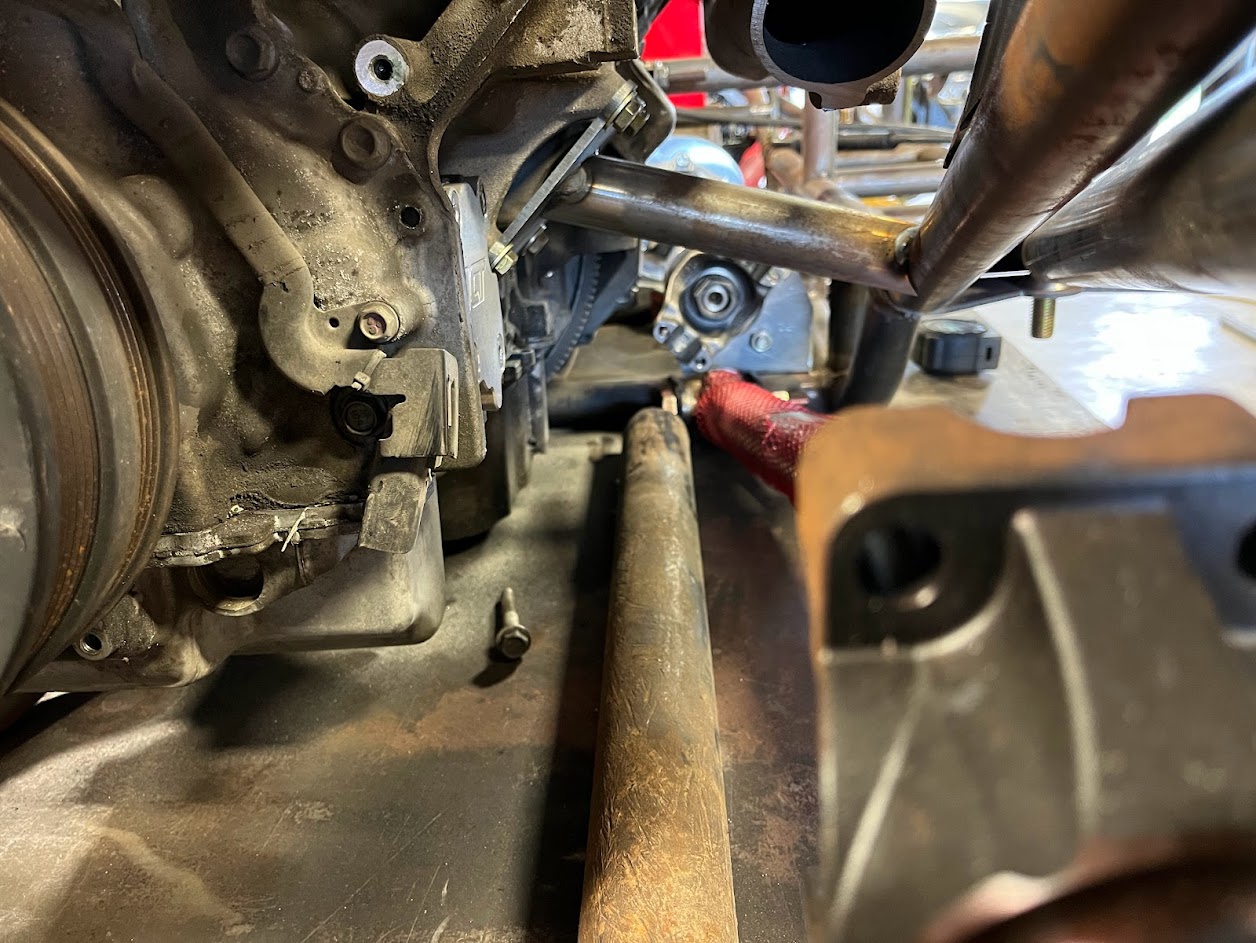

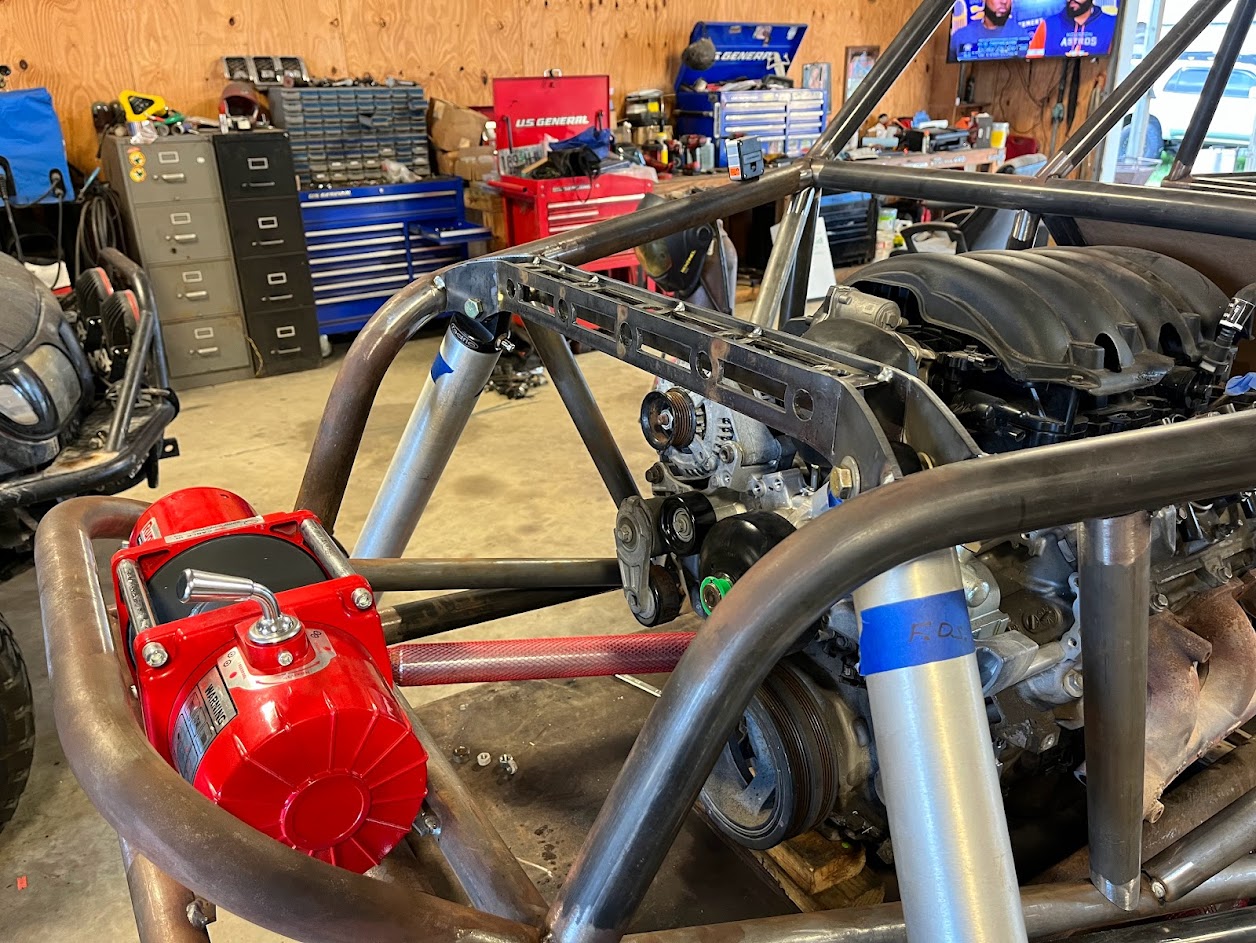

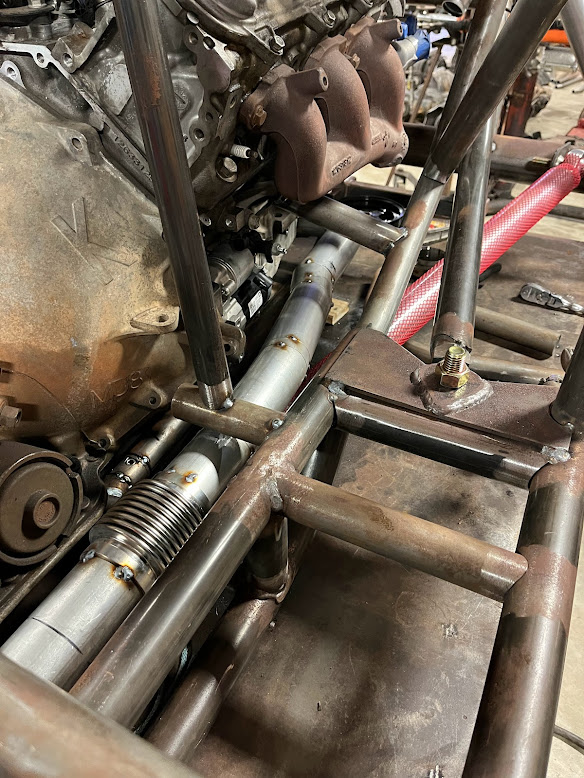

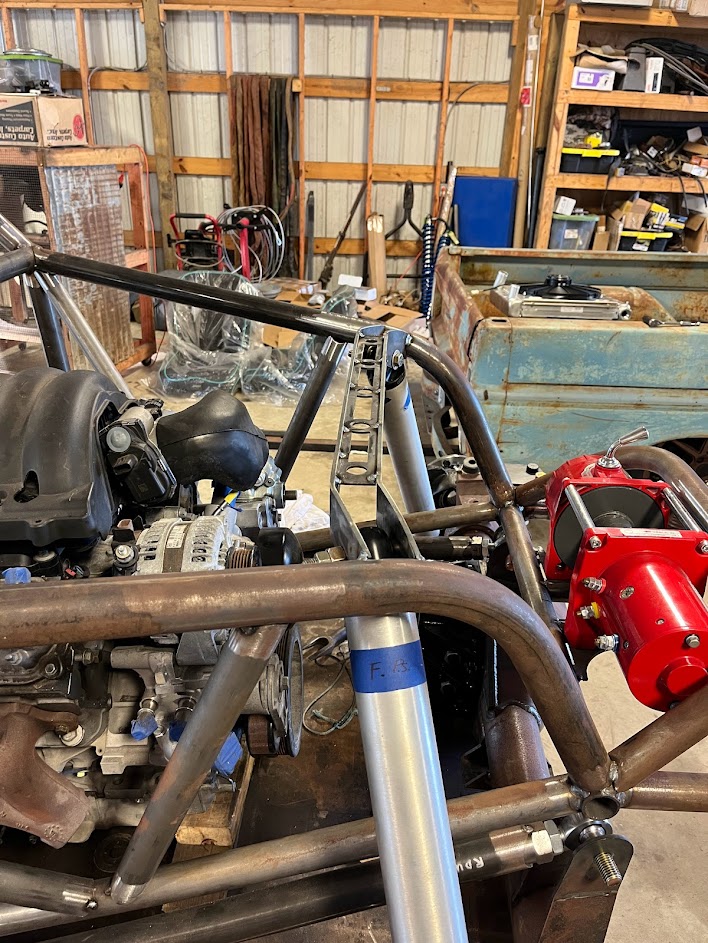

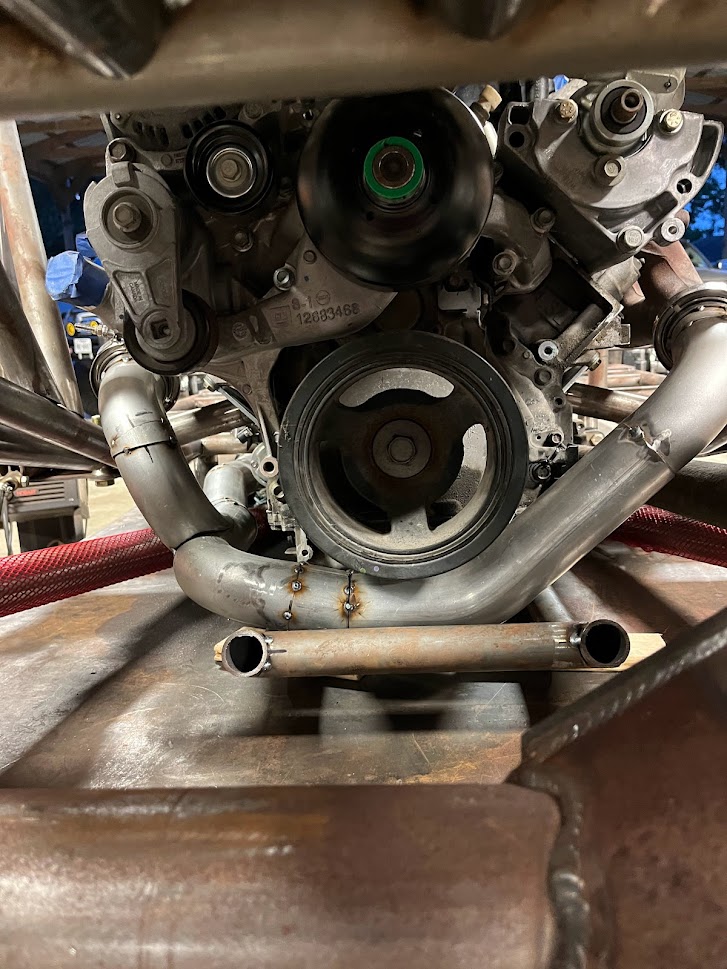

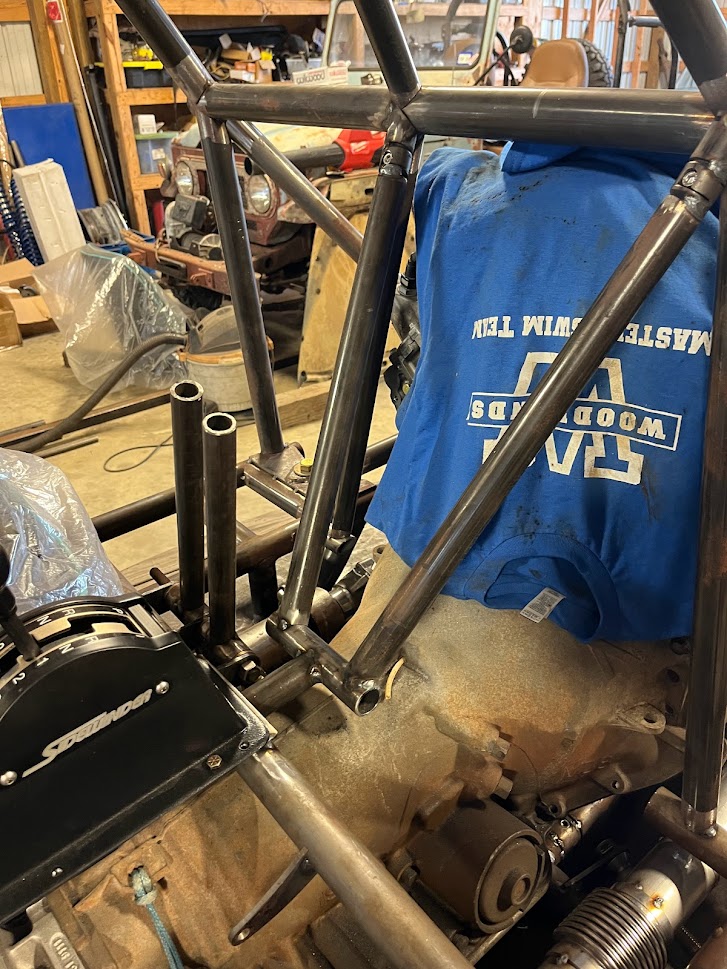

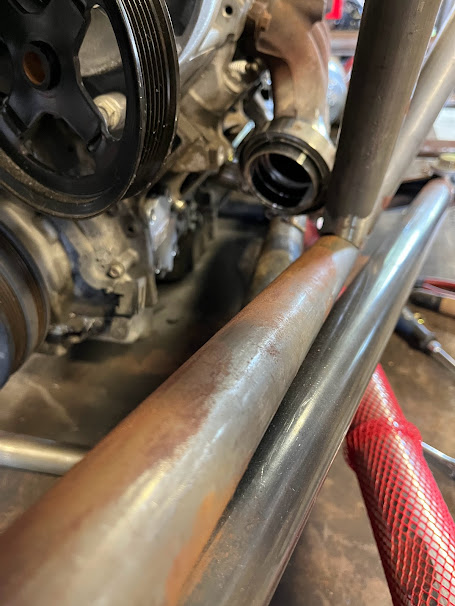

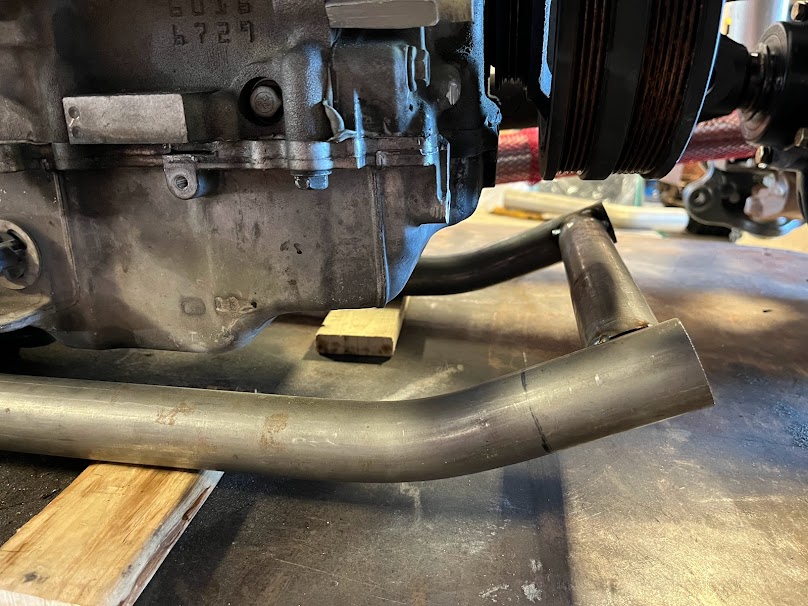

My engine skid will tie into the motor mount tubes as well. But youre right, there needs to be another tube to the chassis to triangulate it horizontally. I have some 1.25" tube to use for this.Be sure you triangulate those motor mounts to the chassis....I only did one tube/triangle and wish I had done both sides. Lots of leverage there when things go wrong![]()

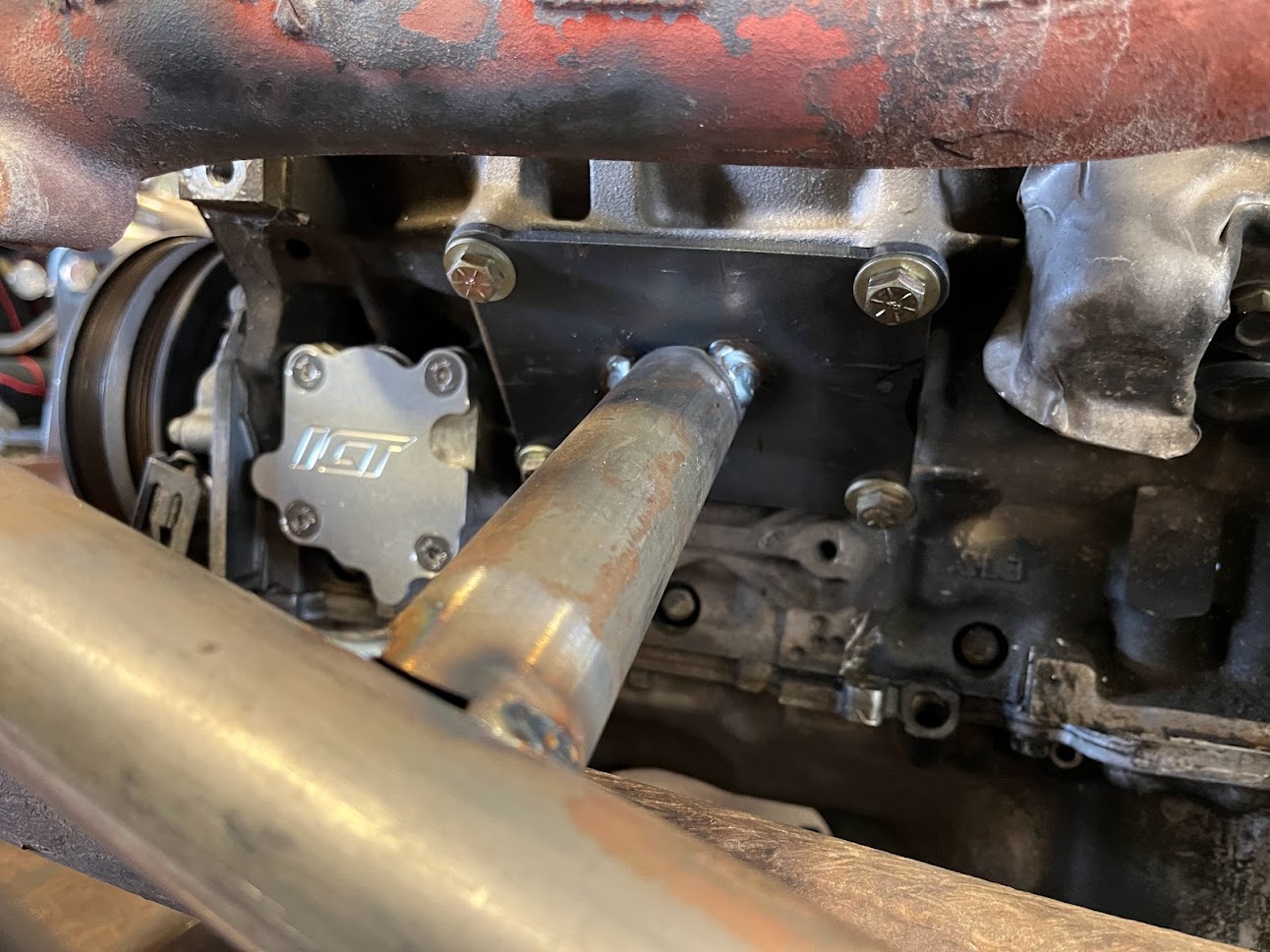

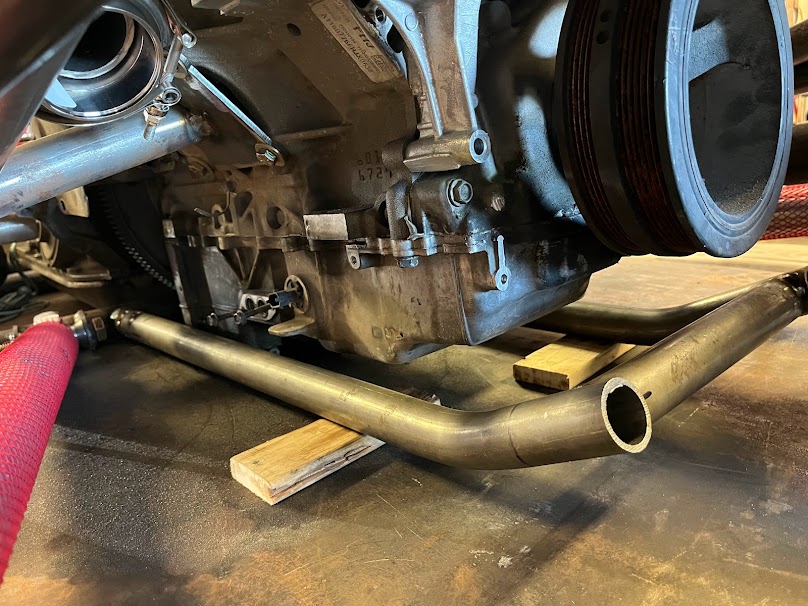

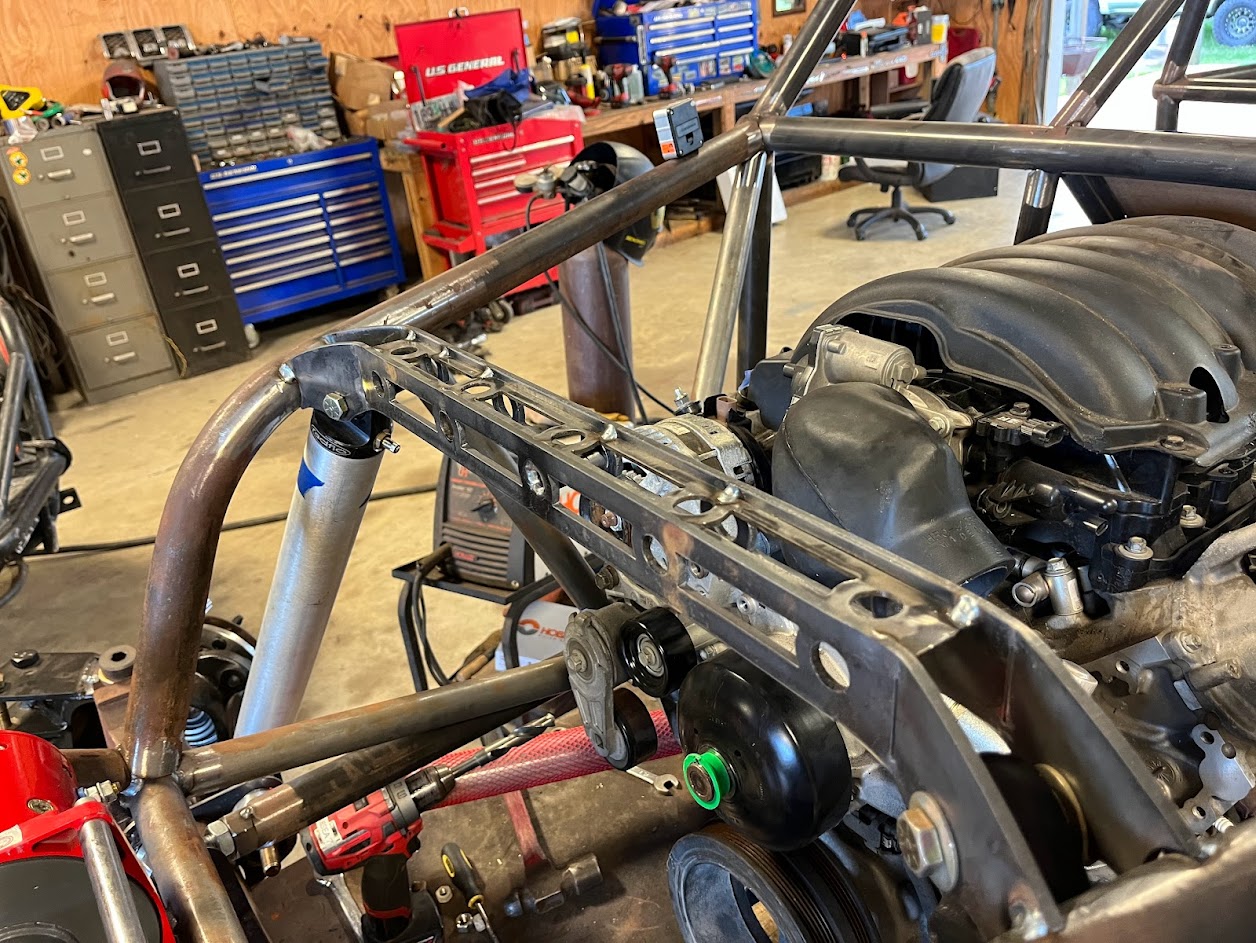

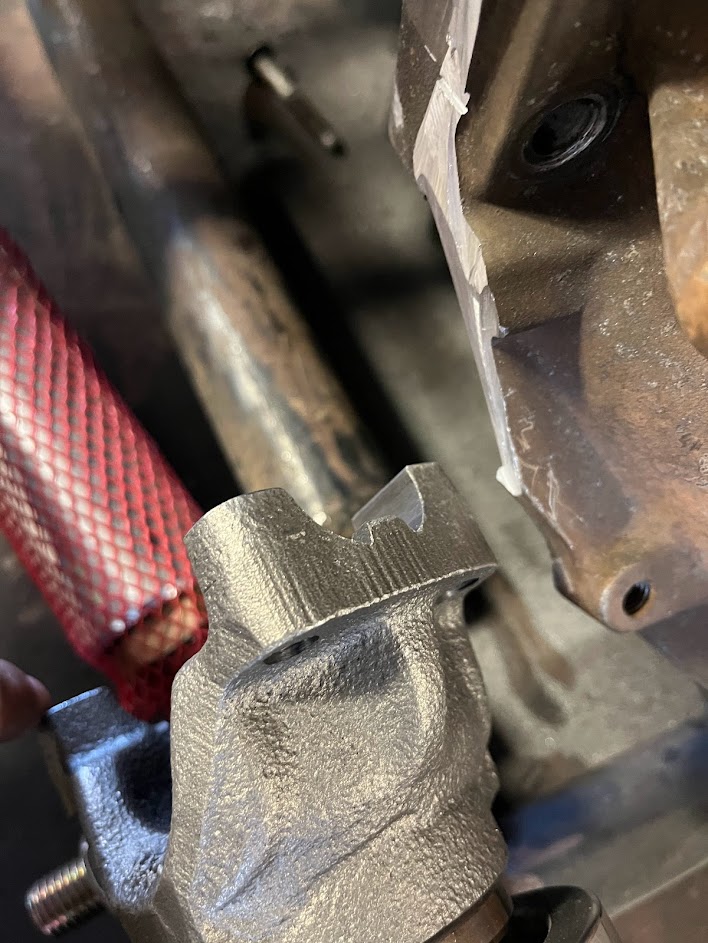

Im also thinking about adding additional engine mounts to the back of the heads . Maybe. probably not. but maybe.Be sure you triangulate those motor mounts to the chassis....I only did one tube/triangle and wish I had done both sides. Lots of leverage there when things go wrong![]()

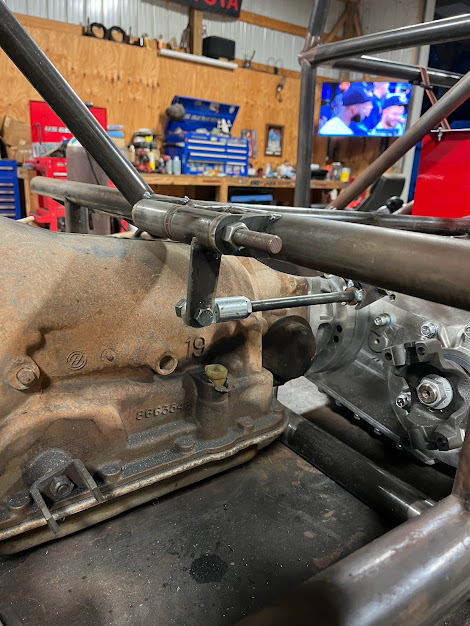

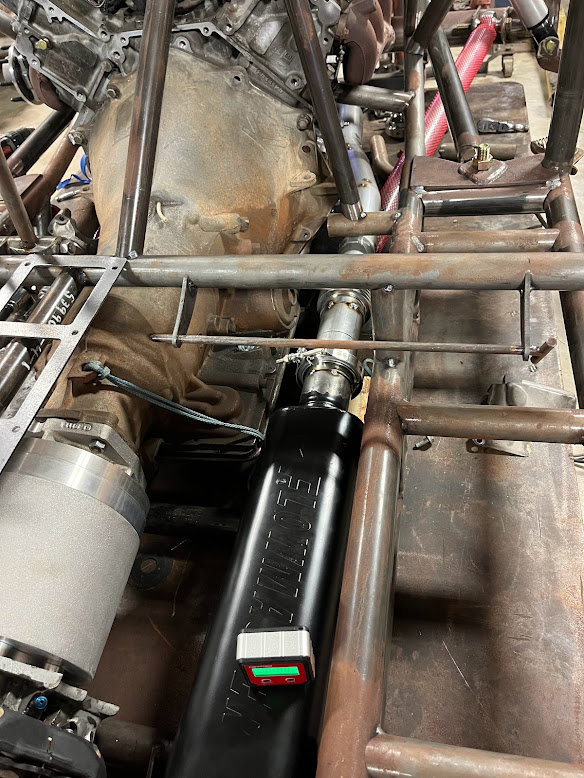

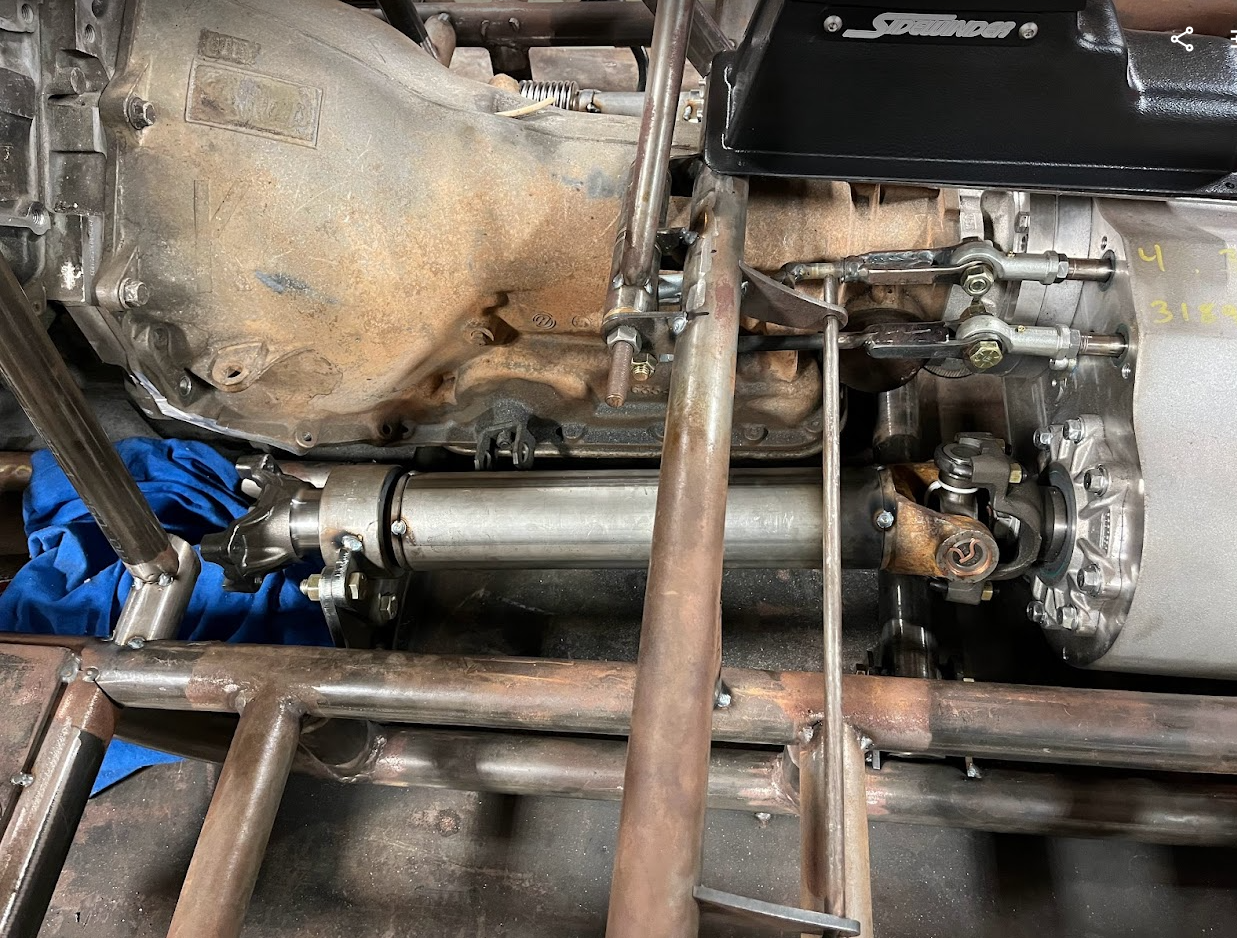

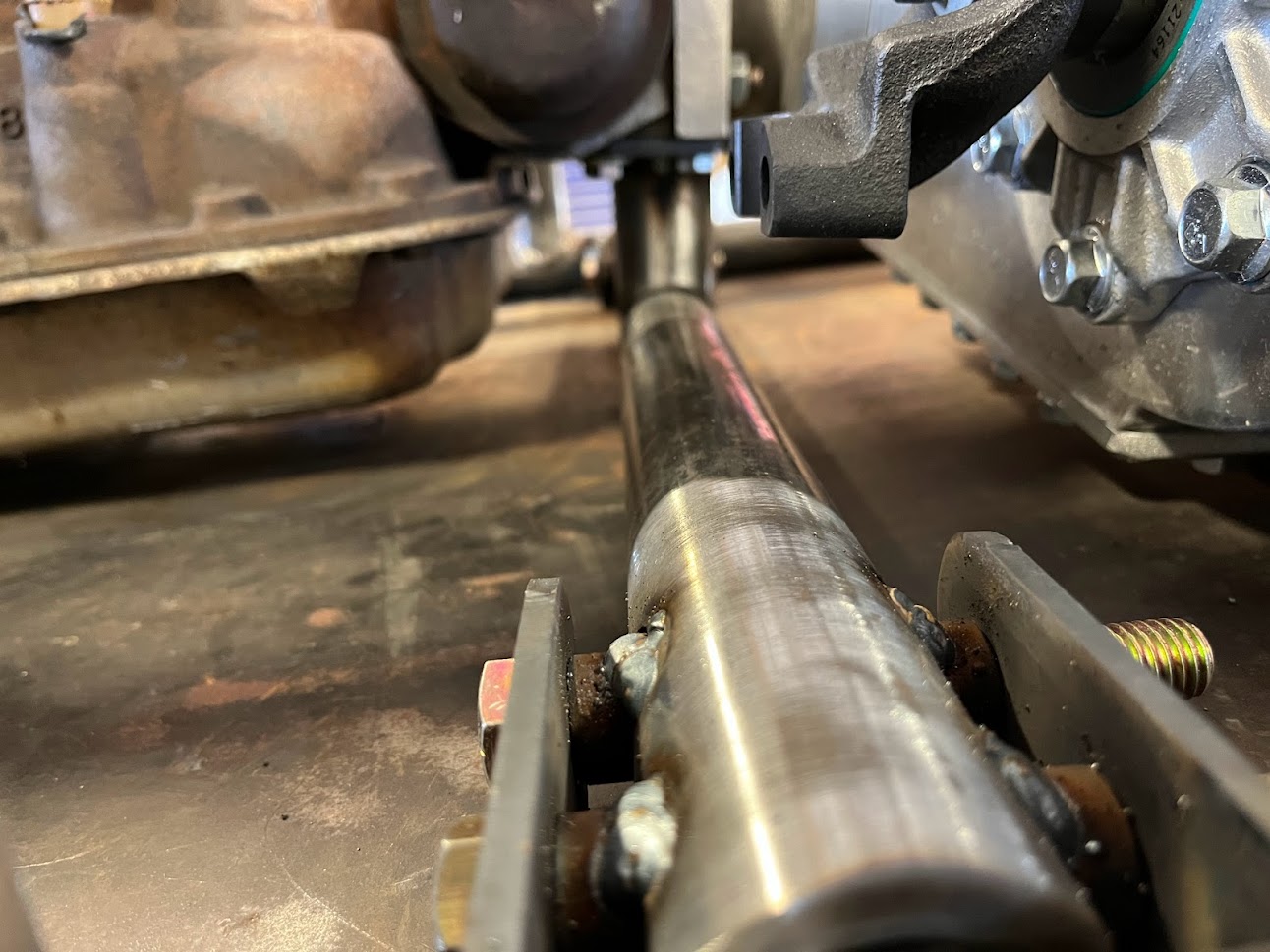

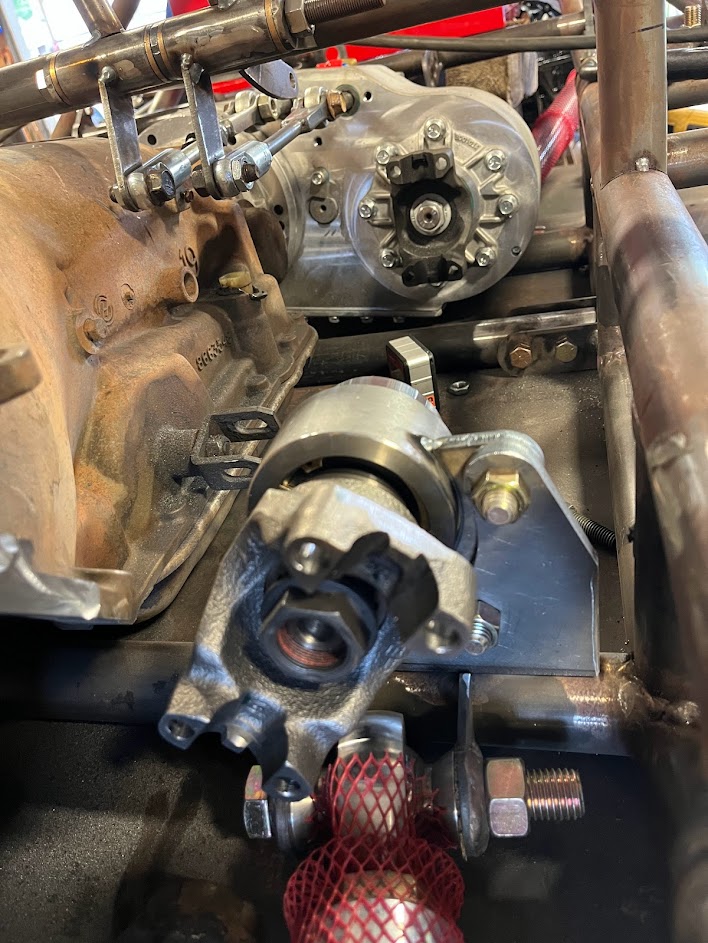

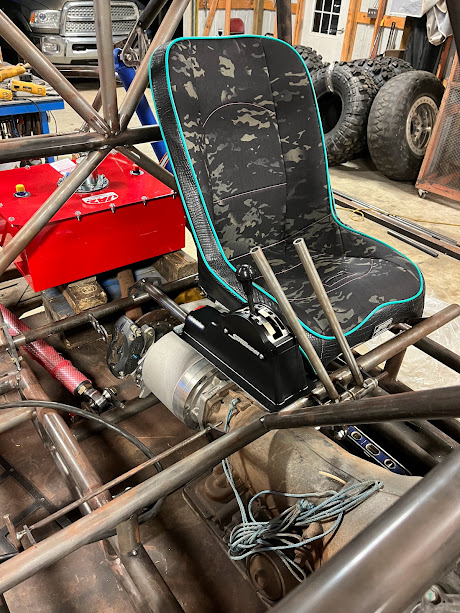

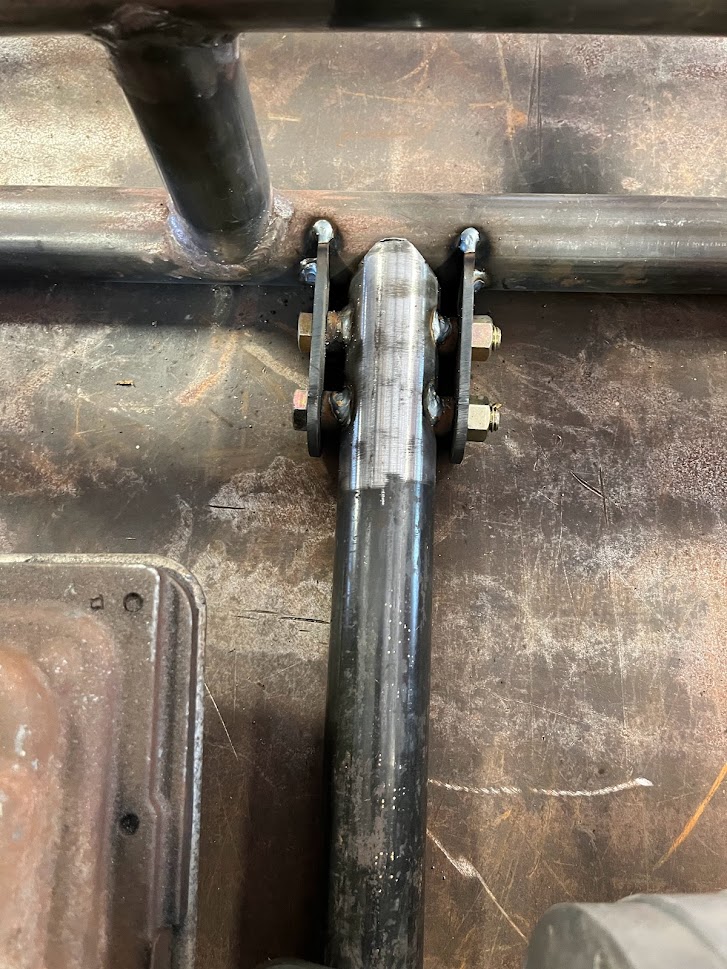

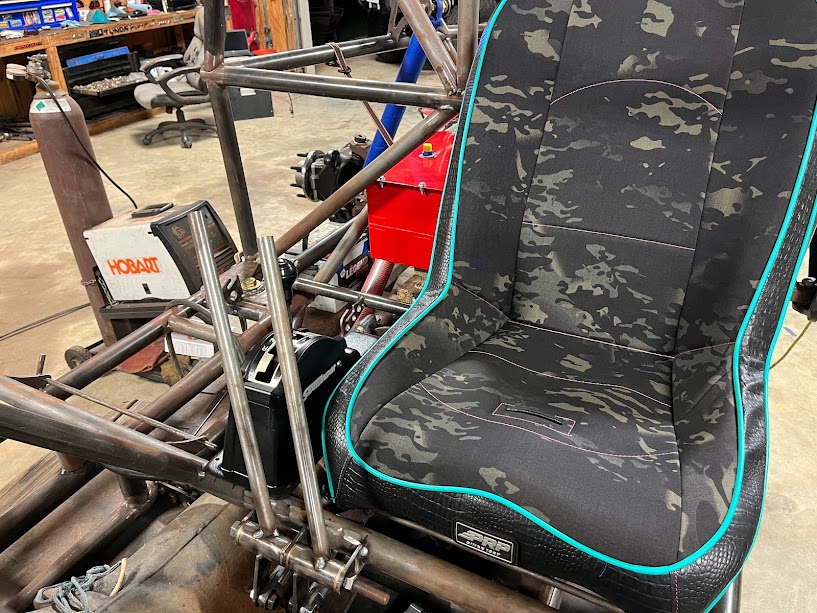

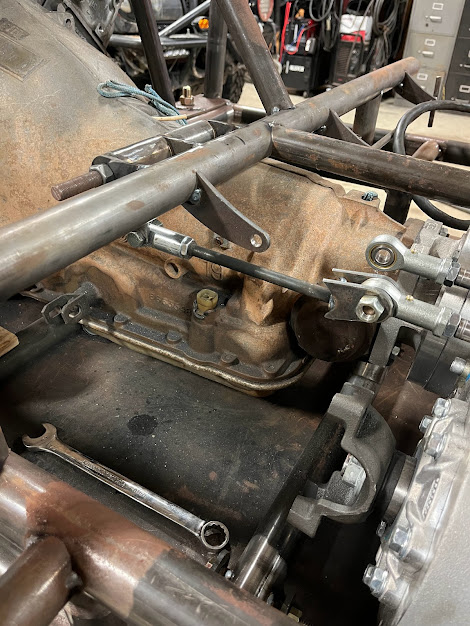

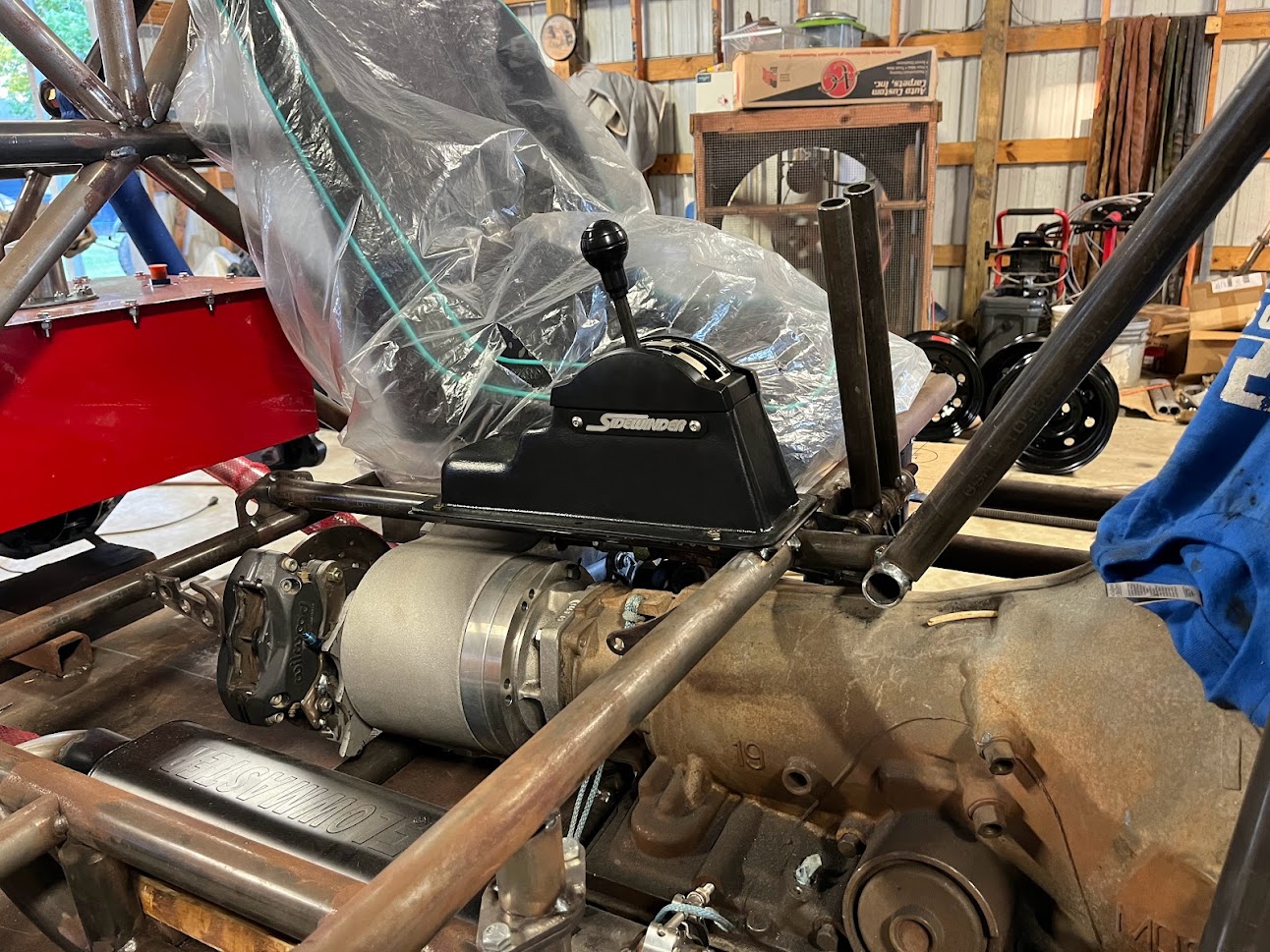

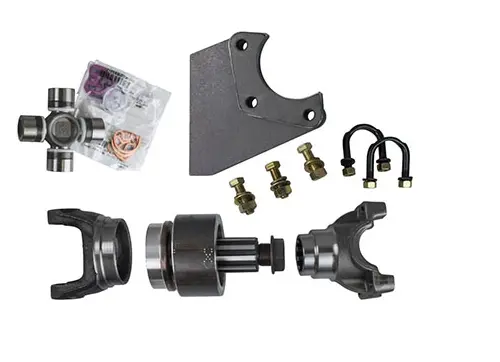

Thanks. I pieced it together to make it all work. The shift rails on the atlas are 1/2-20 thread. So i bought some heims on amazon and used some fine thread bolts for the linkages. I cut some tabs on the table and adjusted it to get the throw i wanted. It took a couple iterations to get the short throw i wanted and still be able to clear the transmission.The transfer case shifters came out sweet. Where did you source the hardware?

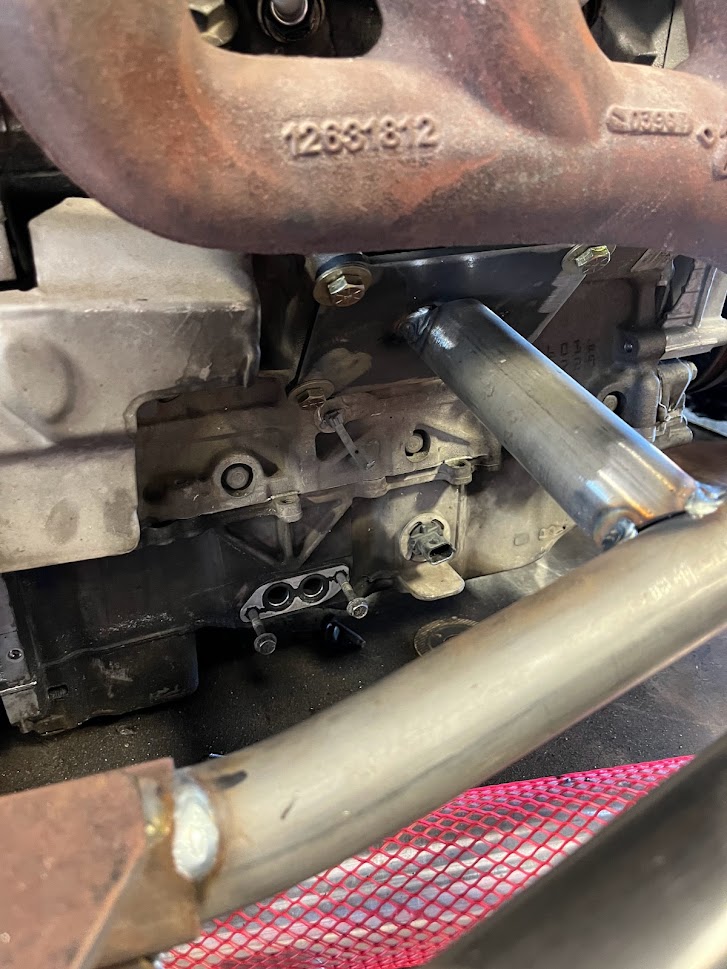

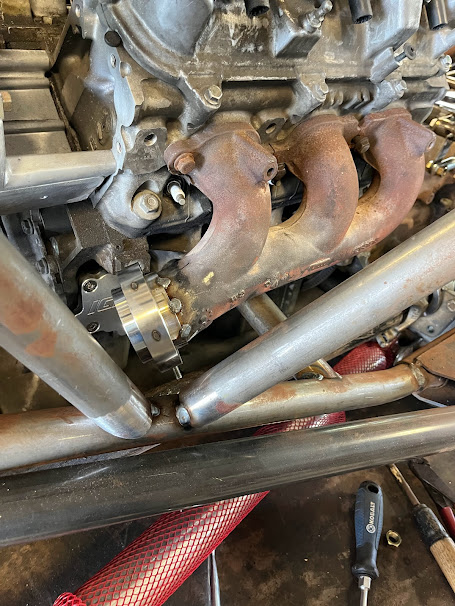

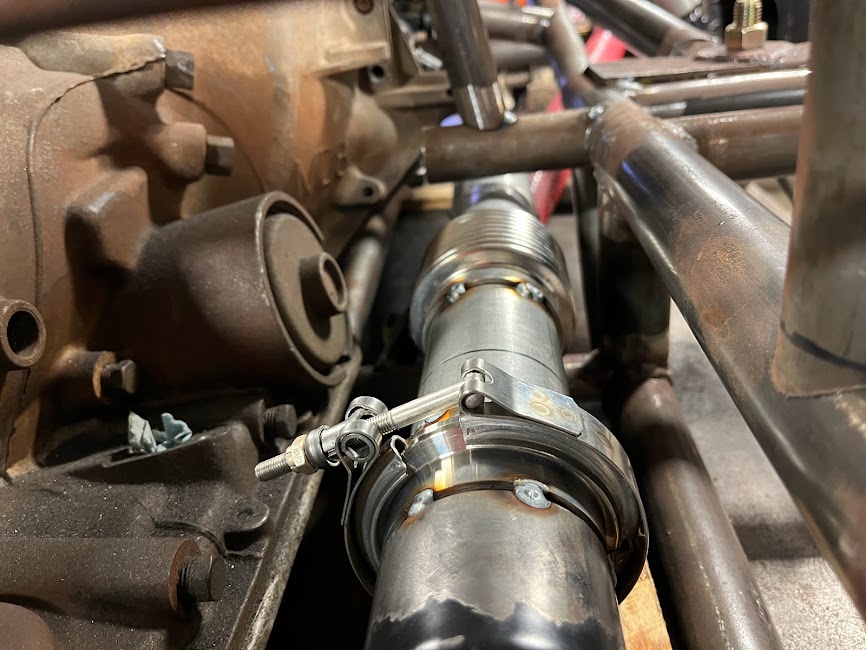

LOL. Yeah i saw that in your build thread. I plan on wiring it all up before i pull it all for final weld. Hopefully i wont forget it.I completely forgot the O2 bung until everything was installed and I was doing wiring...oops!
so, don't forget![]()
