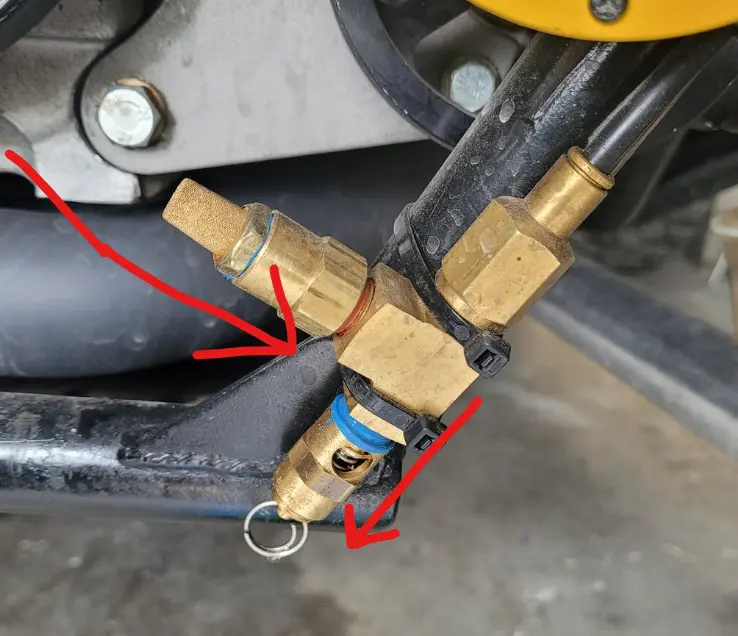

My setup was stuff I had laying around and ordered the relief from Amazon I think. I'm sure McMaster would have it all or maybe a cleaner way to assemble it.just an idea I had for tank pressure and vacuum relief.
Build JHF Trail Chassis
- Thread starter woody
- Start date
This site earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
chaplinfj60
Spotter Required
i love it
chaplinfj60
Spotter Required
is this basicly how the flow works
SteerAndStuff
Spotter Required
Yep, that's how it works. I bet there might be a cleaner way to contrapt it, just what I mostly had on hand to test the theory and seems to work. Steering is a touch whiney cold but after 10 minutes seems silent after it builds some heat/pressure l but still the safety of over pressure. Seems Radial Dynamic said in his testing started having pump seal problems at 20 psi precharge and 10 psi seemed to be the happy medium.
- Thread starter
- #455
Damage report:
WE Rock, Rangely CO, July 9-10
Saturday, A1 (3rd course of the day)
Gate4 was a solid boulder climb, no one made it. We were first up, stacked a few rocks, and did a full whiskey throttle to try and get my 112 wheelbase up and over....no dice. Slid to the driver's side around the boulder and took out the cone. Drivers front wedged into a crack tight enough that: 1> I could see the passenger front tire spin and the driver front remain wedged (spool front) and 2> the inner bead of that wedged drivers front tire as spitting water
I knew it twisted, but no breakage...took a reverse and reposition to climb the "normal" gate4 line.

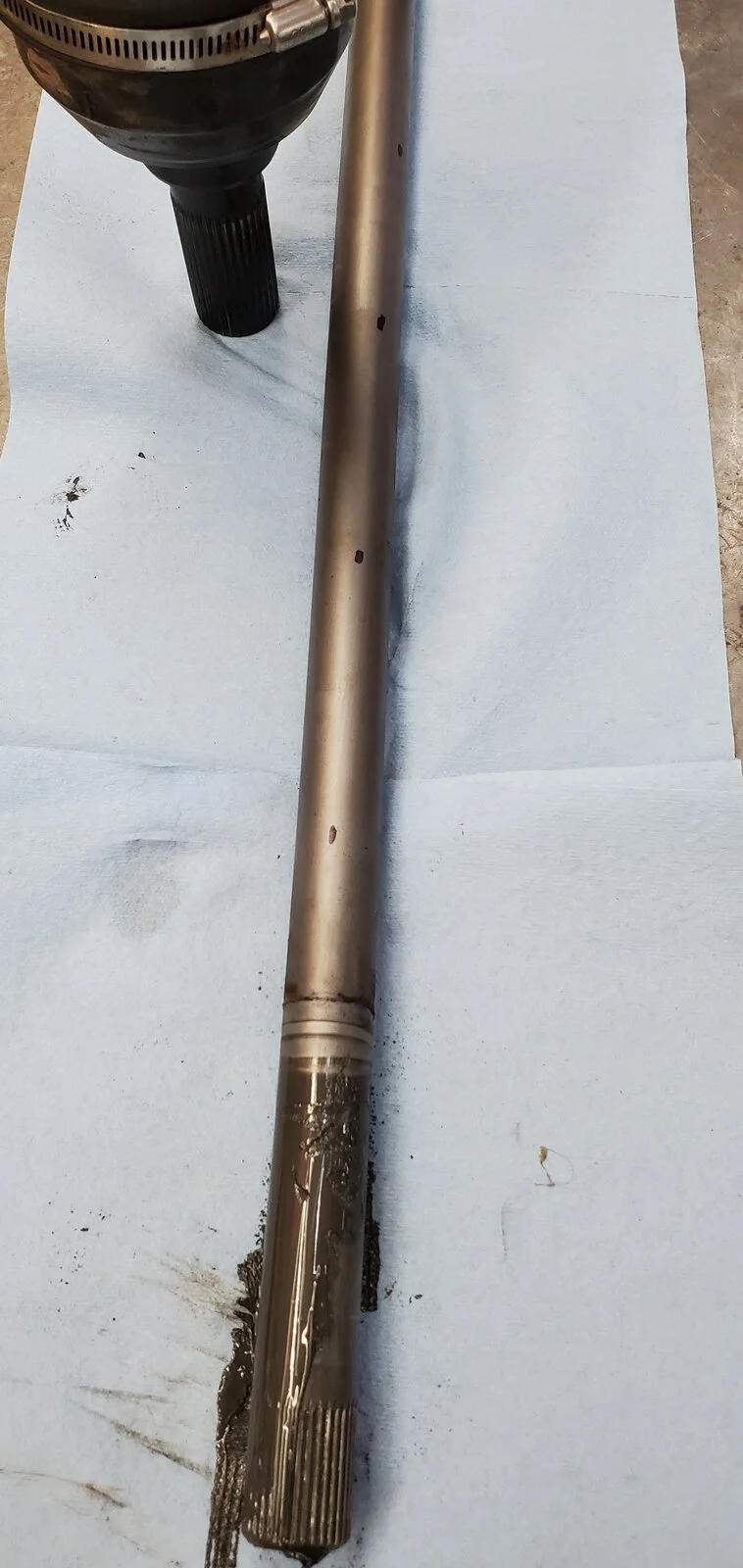

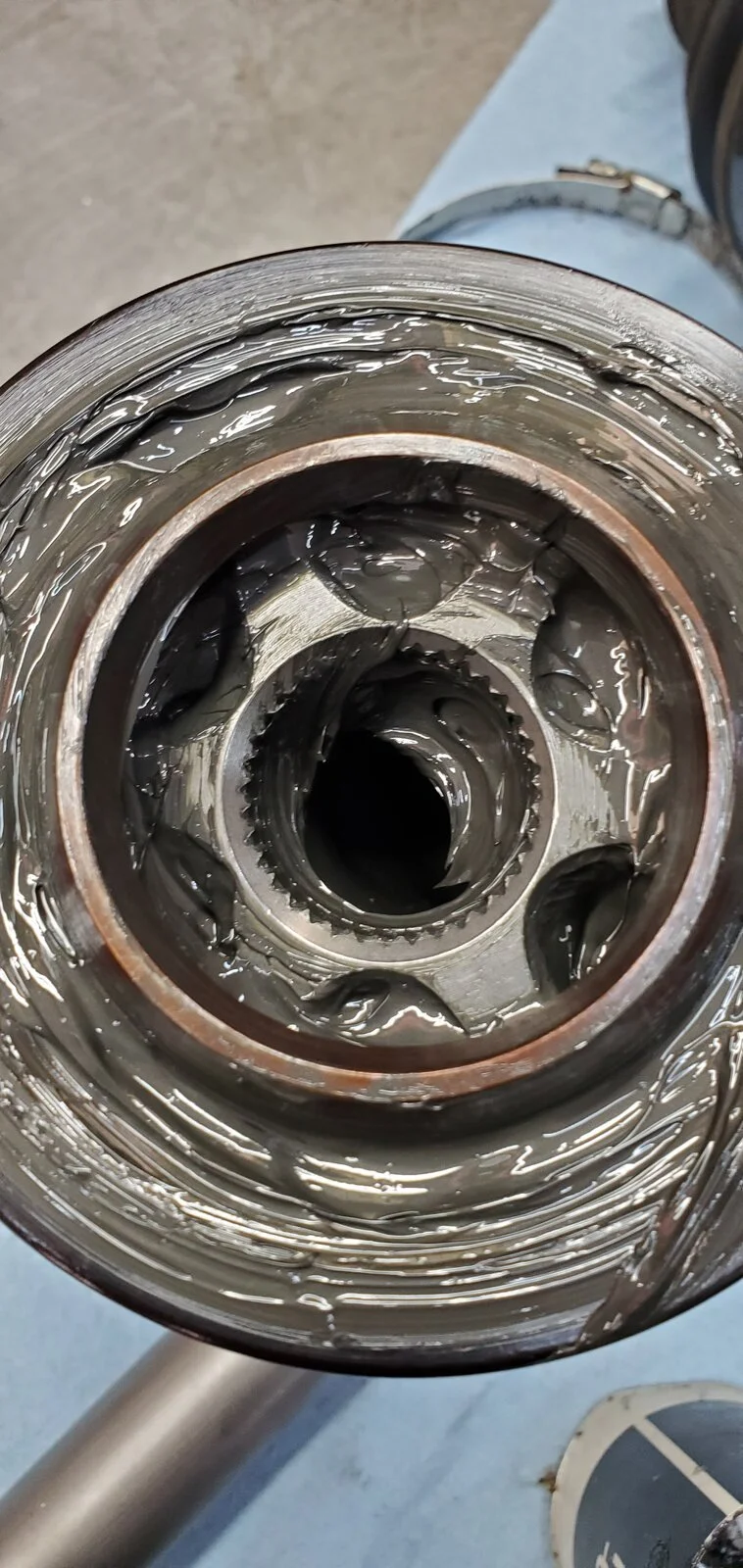

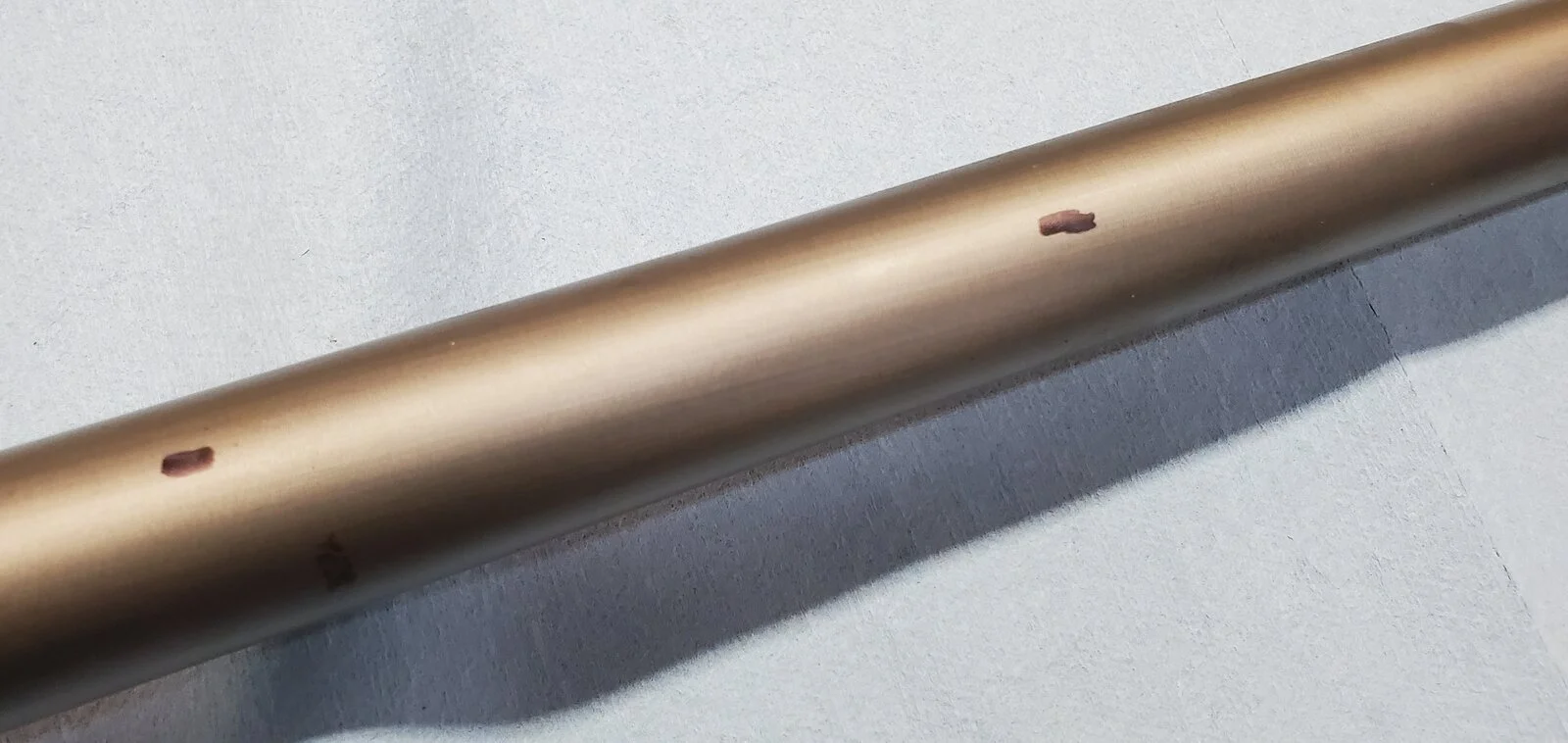

Pulled apart this morning....over 90 degrees of twist but no spline issues (inner pulled from the housing with minimal effort, inner separated from the RCV cleanly) Obviously striations on the shaft showed the amount of twist.
Spare inner going in today, and pulling the diff to fix a lube drool I'm tired of...
WE Rock, Rangely CO, July 9-10
Saturday, A1 (3rd course of the day)
Gate4 was a solid boulder climb, no one made it. We were first up, stacked a few rocks, and did a full whiskey throttle to try and get my 112 wheelbase up and over....no dice. Slid to the driver's side around the boulder and took out the cone. Drivers front wedged into a crack tight enough that: 1> I could see the passenger front tire spin and the driver front remain wedged (spool front) and 2> the inner bead of that wedged drivers front tire as spitting water
I knew it twisted, but no breakage...took a reverse and reposition to climb the "normal" gate4 line.
Pulled apart this morning....over 90 degrees of twist but no spline issues (inner pulled from the housing with minimal effort, inner separated from the RCV cleanly) Obviously striations on the shaft showed the amount of twist.
Spare inner going in today, and pulling the diff to fix a lube drool I'm tired of...
Woody What was the process on bleeding the brakes with the Mityvac and the hand brakes ? I'm struggling to bleed mine right now so ordered a mityvac it'll be here thursday
- Thread starter
- #457

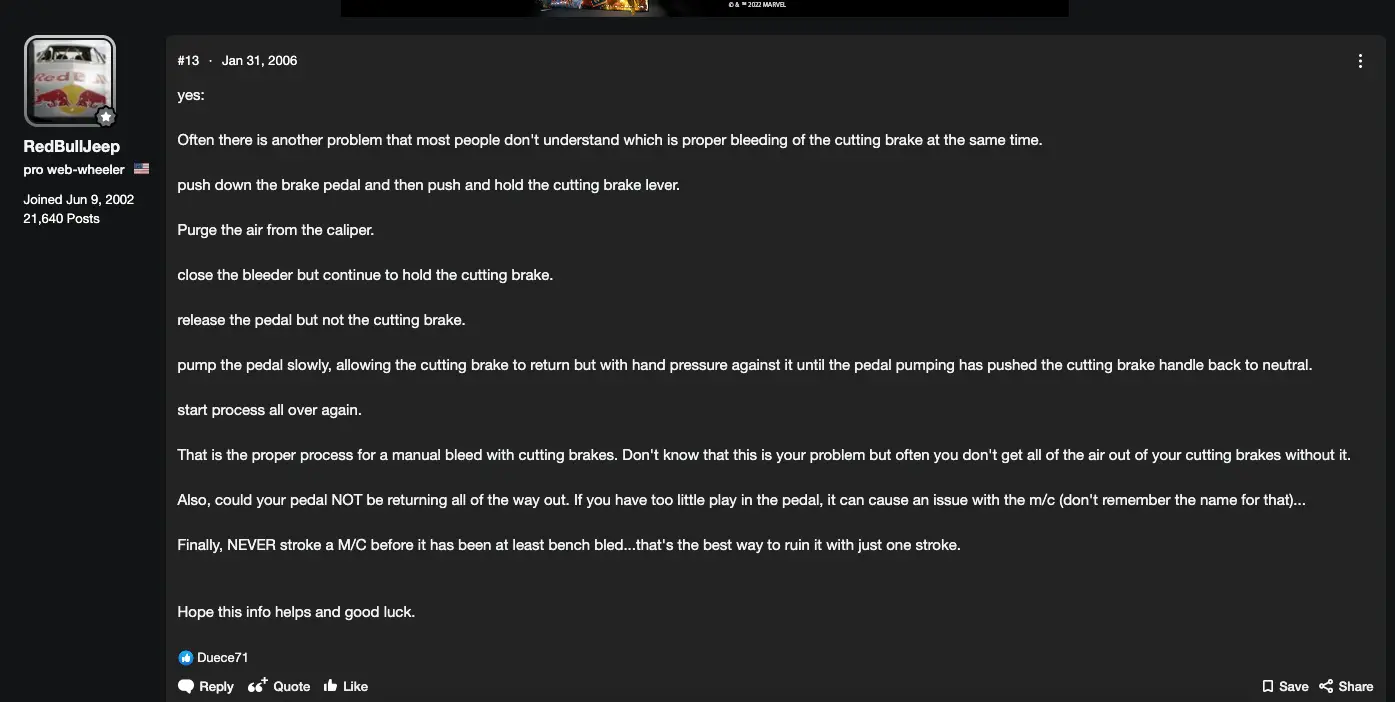

Search RedBullRocker's posts on pirate4x4....I'd have to dig it up, but that's what I followed.
- Thread starter
- #459
Found it!
Blitz
Spotter Required
I just reread this entire thread but couldn’t find what I was looking for. When you get a a chance. Can you measure from the B pilar to the A pilar? Curius how close that measurement is to my buggy.
- Thread starter
- #461
B to wing is 33", wing to A is 11". B to A is 45". (all at the door bar)
Blitz
Spotter Required
Thank you sir.
whiterhino
Wheel'in since 1976
While we are at it, what is the inside tube shoulder width?
- Thread starter
- #464
According to the first post in this thread, the outside is 52". So, math
whiterhino
Wheel'in since 1976
Who reads the first post? lolAccording to the first post in this thread, the outside is 52". So, math
Thanks for that.
- Thread starter
- #466
Ran most of The Wong Way on Sunday....stages 1 and 2 aren't bad at all, but stage 3 was a workout. My long/heavy/wide car did NOT like that first gate, but I did make it.
Video from Stage 1, Gate 3.
Video from Stage 1, Gate 3.
- Thread starter
- #467
Shock revalving...HUGE thanks to Jeff Clibon for his expertise today.

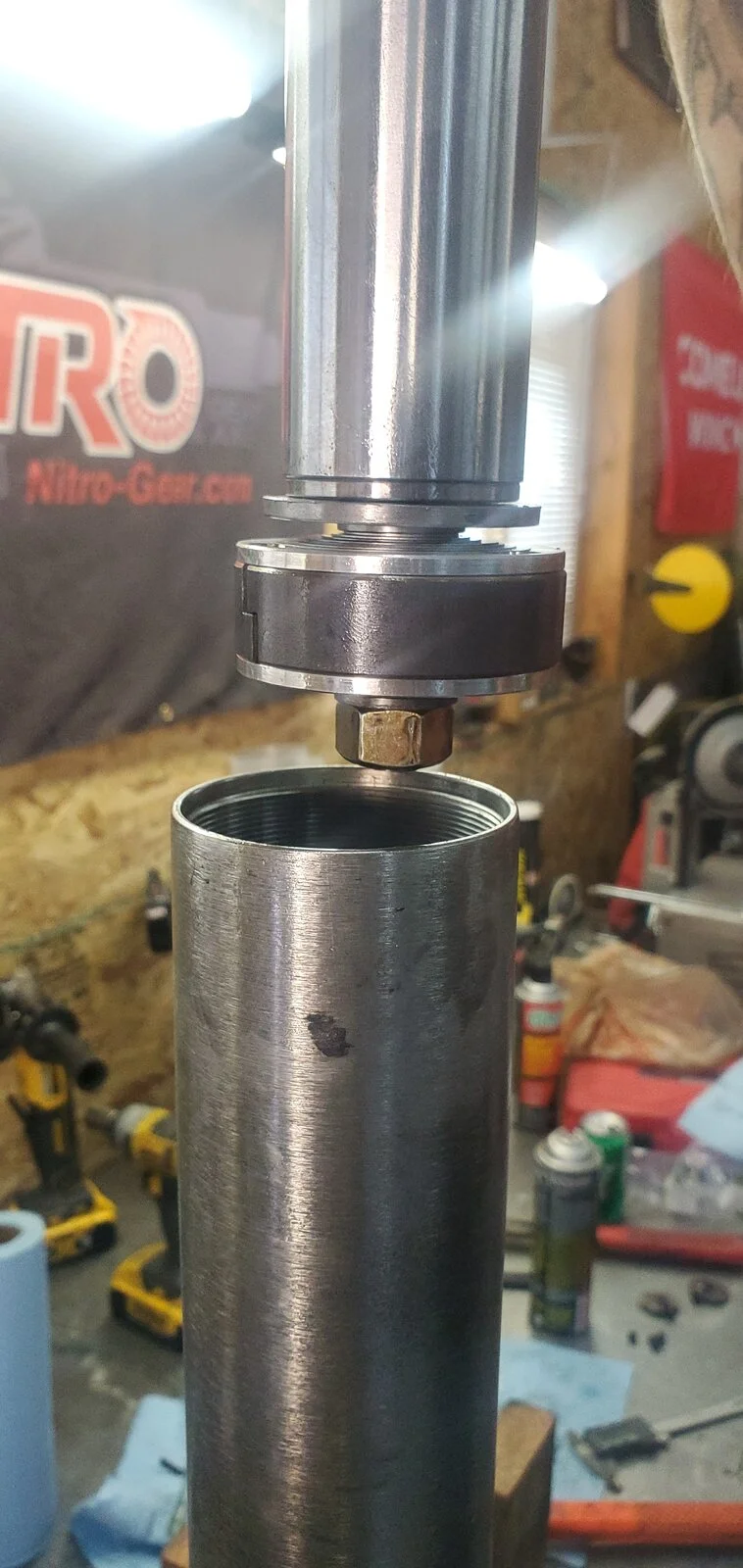

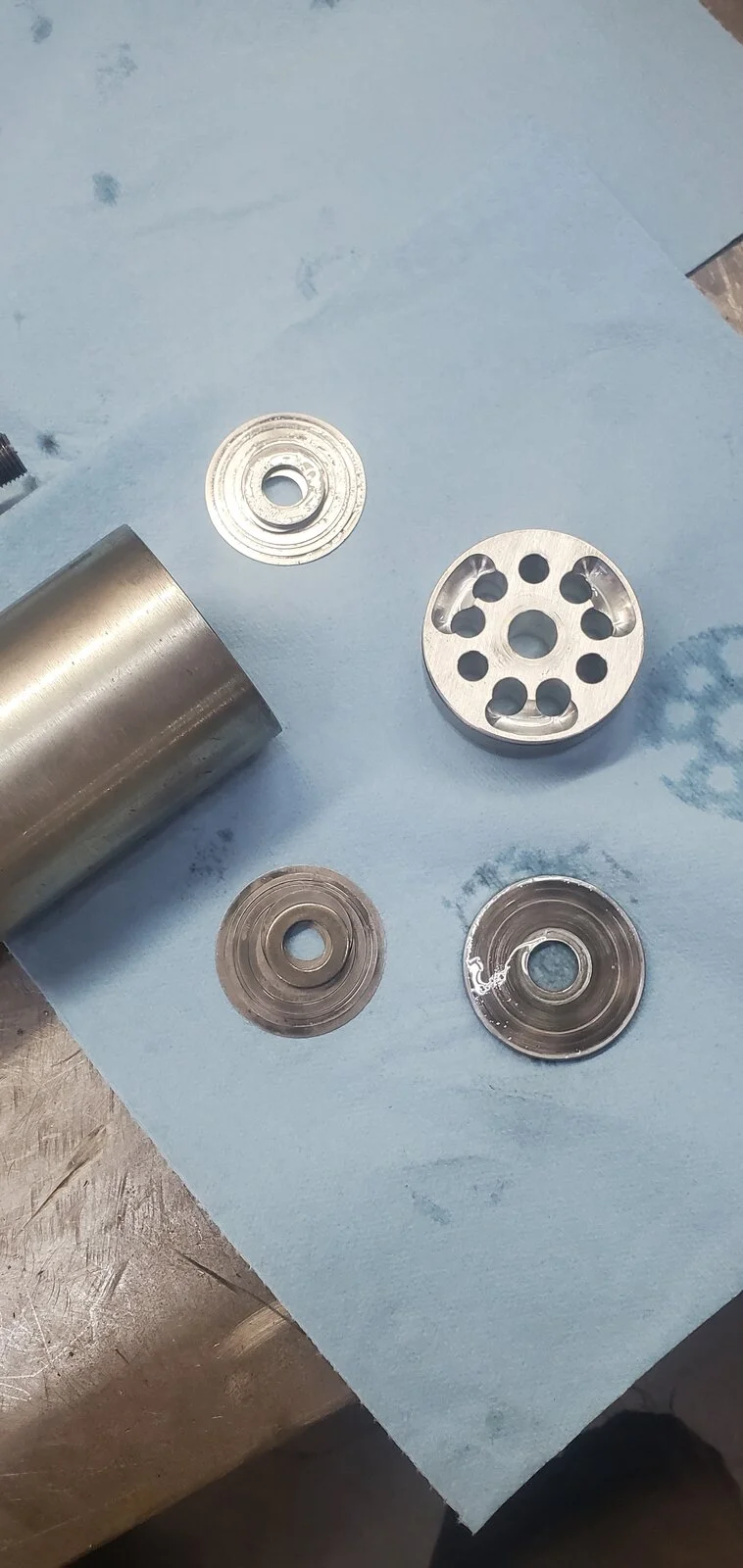

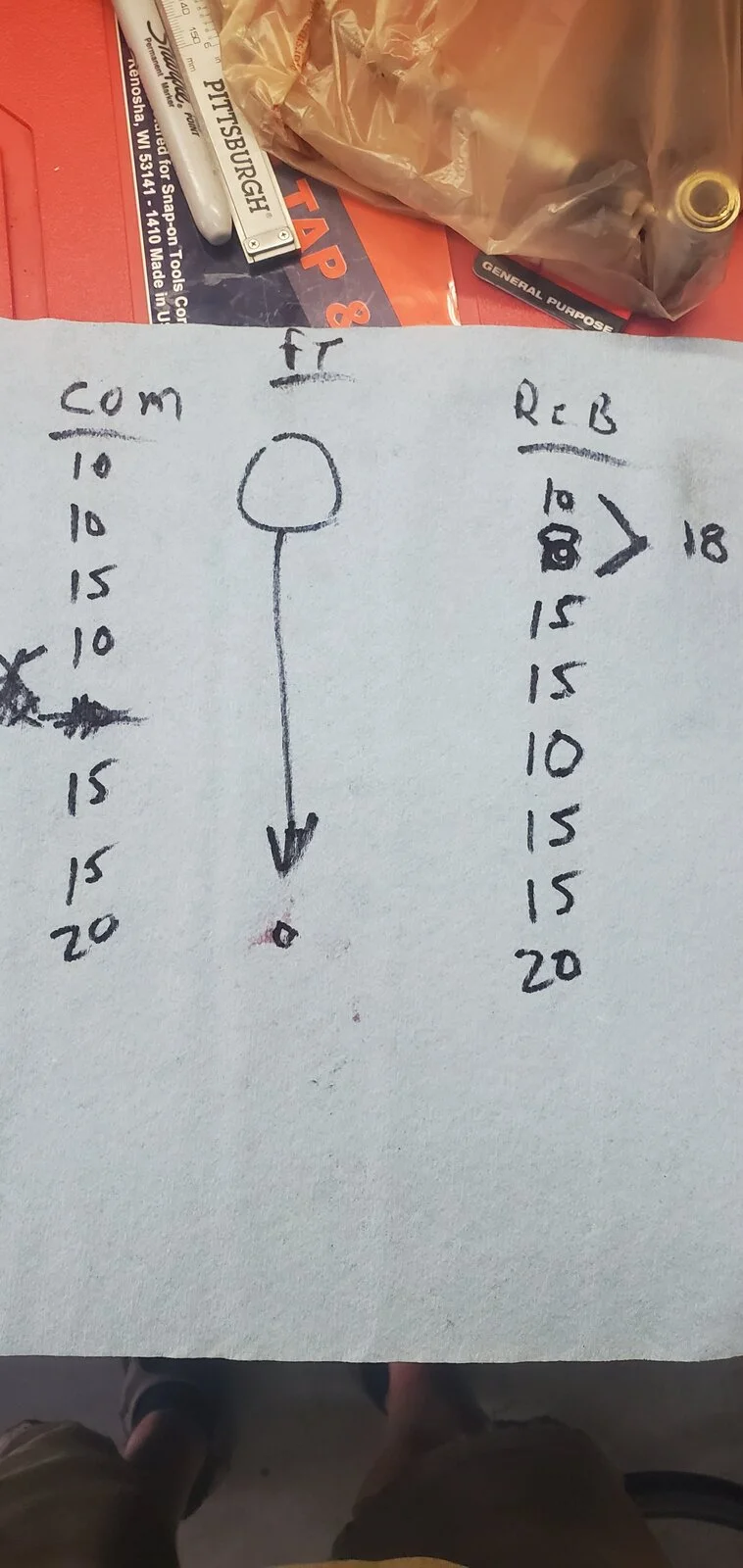

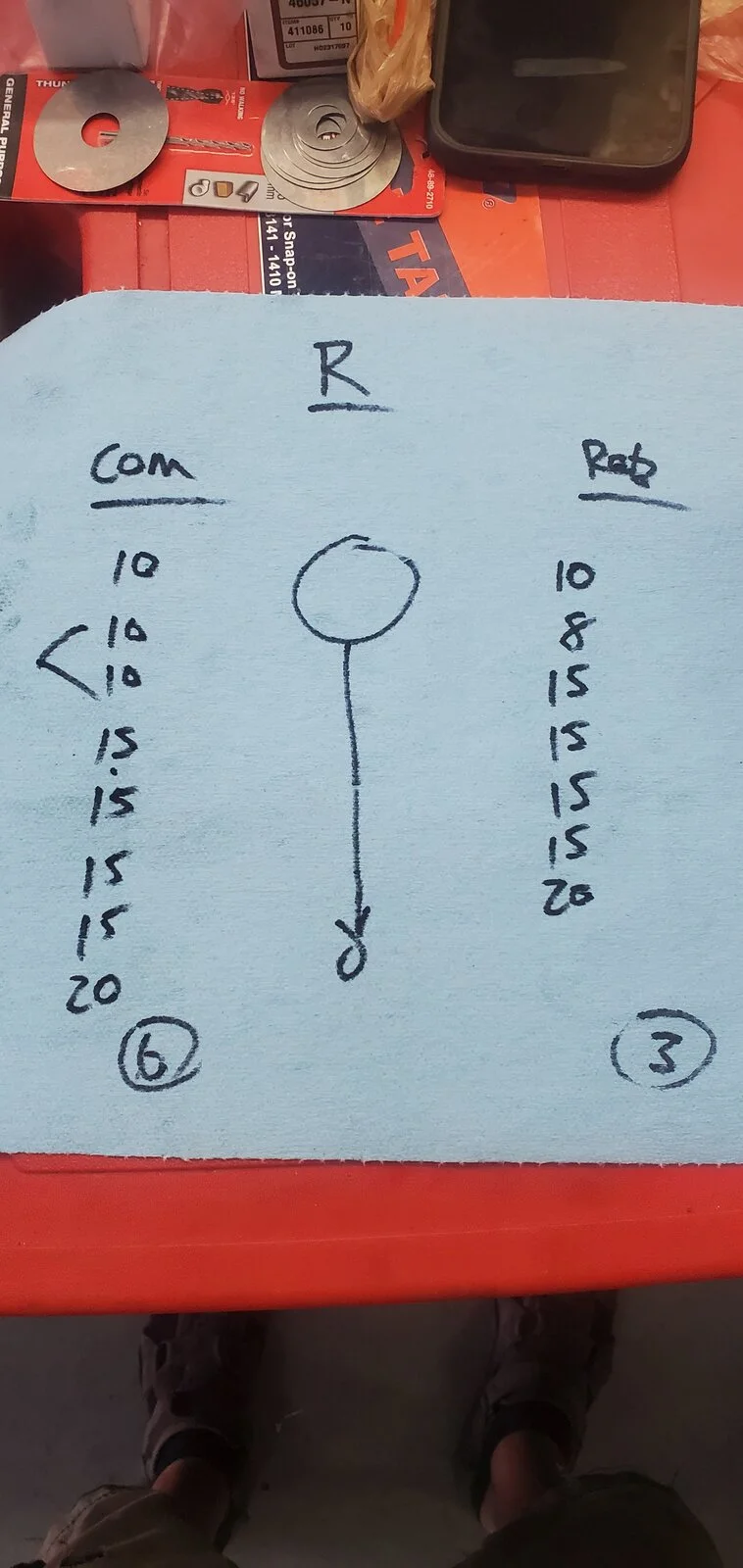

Revalve all 4 of my 16" 2.5 Radflo air shocks today....the goal was to smooth the ride and add better control. The puck has 3 holes for rebound and 6 for compressions...we plugged two of the compressions holes in the front to force more fluid thru the shim stack. Shim stacks all contained 7 or 8 shims (8 means two shims of the same size, doubling that rate....noted by the > on the towel notes) We mixed/matched between the exisiting shims and the ordered sets from Radflo.
The large washer (bottom right in the first pic) on all 4 shocks was coned from some HARD shock unloading...we pressed them flat, but will be ordering replacements for any future changes.
The whole process wasn't too hard....I was surprised. And learned a TON about shim stacks (and realized there is still a ridiculous amount I don't know)
Facts: The car weights about 3900#. 60% front bias. Front tires are 275# of water in each tire. Clearly, the same valving front/rear isn't adequate.
Revalve all 4 of my 16" 2.5 Radflo air shocks today....the goal was to smooth the ride and add better control. The puck has 3 holes for rebound and 6 for compressions...we plugged two of the compressions holes in the front to force more fluid thru the shim stack. Shim stacks all contained 7 or 8 shims (8 means two shims of the same size, doubling that rate....noted by the > on the towel notes) We mixed/matched between the exisiting shims and the ordered sets from Radflo.
The large washer (bottom right in the first pic) on all 4 shocks was coned from some HARD shock unloading...we pressed them flat, but will be ordering replacements for any future changes.
The whole process wasn't too hard....I was surprised. And learned a TON about shim stacks (and realized there is still a ridiculous amount I don't know)
Facts: The car weights about 3900#. 60% front bias. Front tires are 275# of water in each tire. Clearly, the same valving front/rear isn't adequate.
Last edited:
- Thread starter
- #468
And should anyone ever need it, this is the pdf of the Radflo 2.5 Air Shock Valve Stacks / Valving Chart...info you WON'T find online easily...
My 16" 2.5's came stock with the following valve stack: 40/85 1B
We had two shim sets ordered, but one was for 2" shocks not 2.5....once I know which stack we used, I'll post it. We mixed/matched existing with new to get the valving set.
My 16" 2.5's came stock with the following valve stack: 40/85 1B
We had two shim sets ordered, but one was for 2" shocks not 2.5....once I know which stack we used, I'll post it. We mixed/matched existing with new to get the valving set.
Last edited:
Blitz
Spotter Required
I just picked up a set of 16” 2.5 radflo’s. Gonna look into this. Thanks for the info.
whiterhino
Wheel'in since 1976
Good info.
Doing shock work is always a "clean" project, right?
Doing shock work is always a "clean" project, right?
- Thread starter
- #471
If you play hard enough, you'll eventually tear the driver front or passenger rear steering bracket...my tear was roughly 2" long.

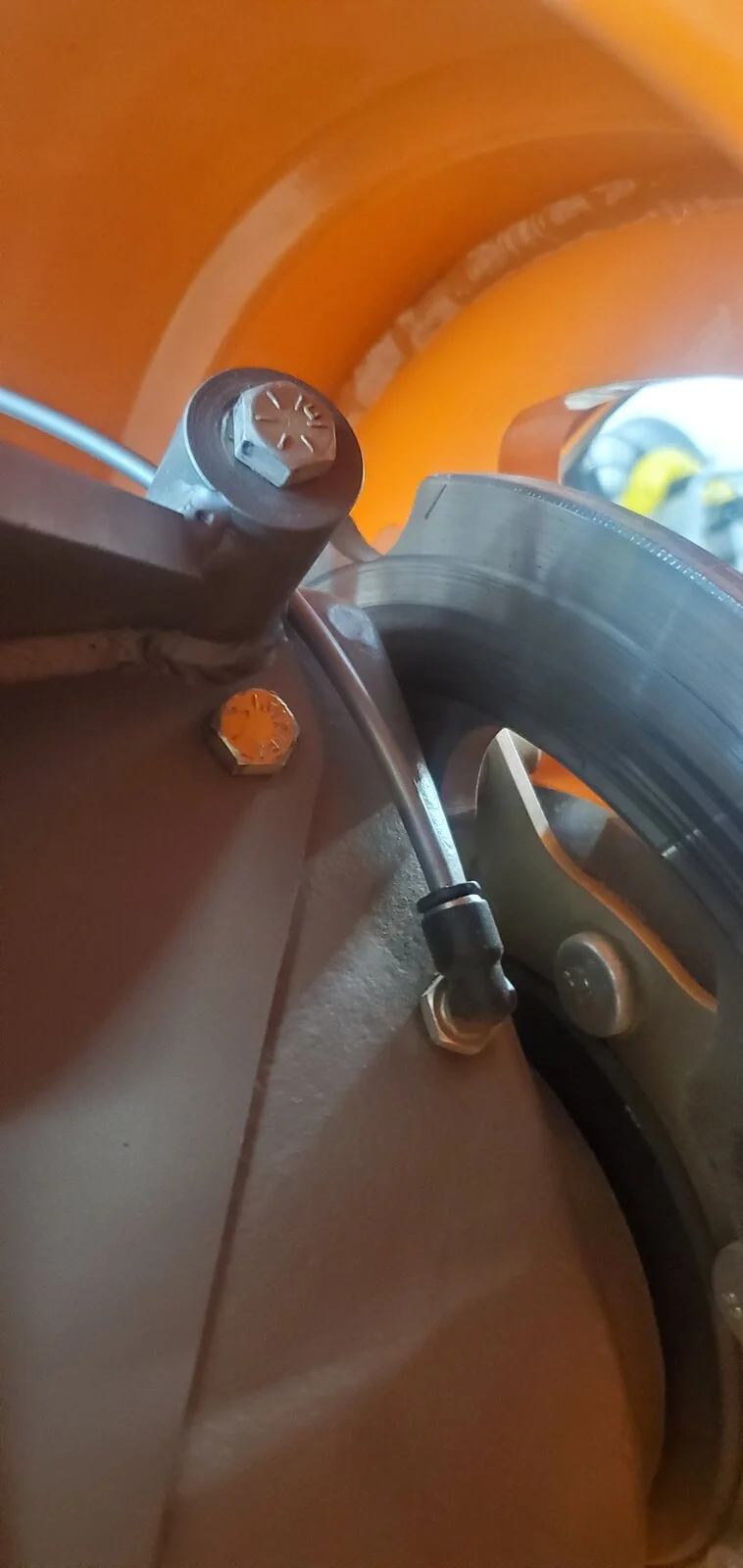

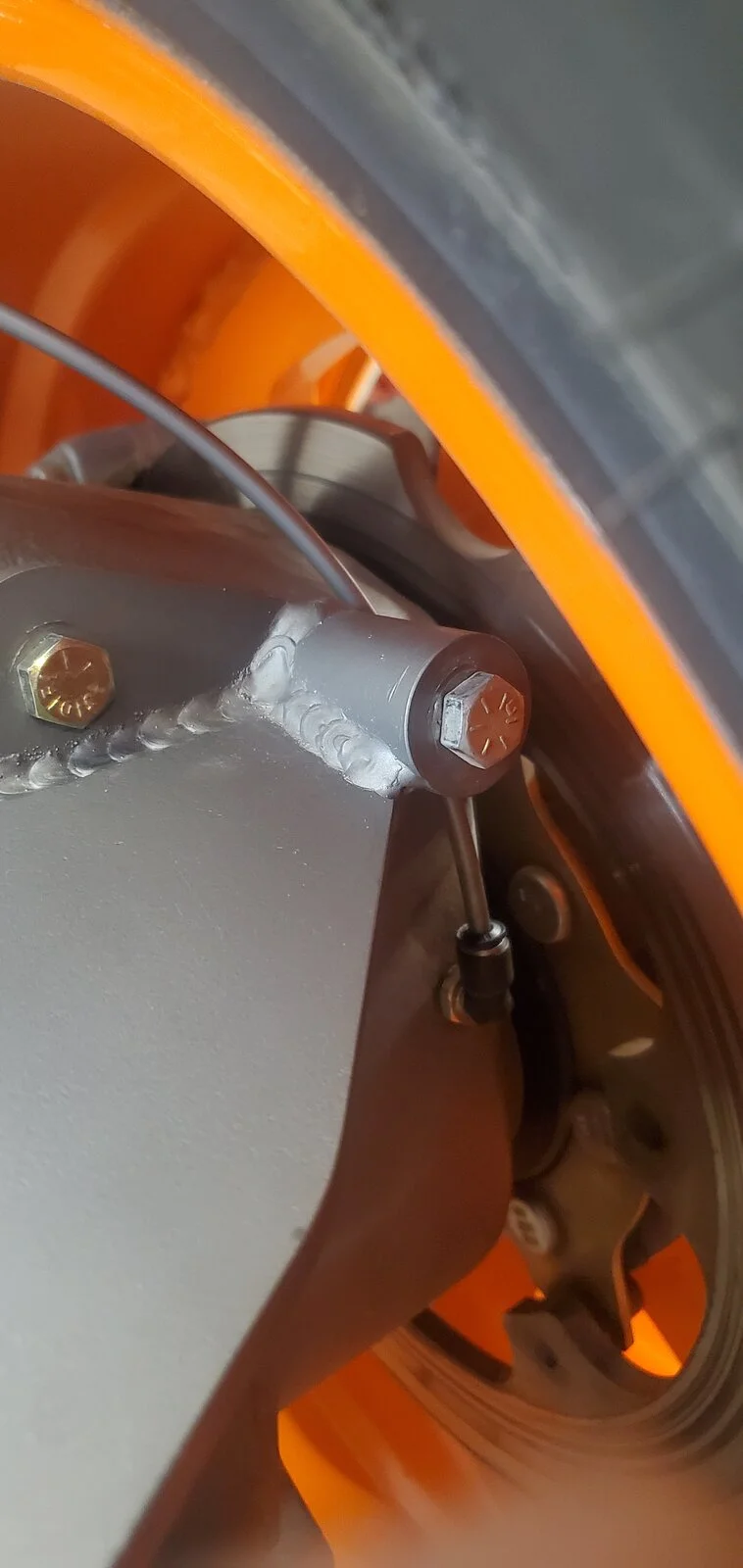

Jesse's fix is a piece of machined tube and a longer bolt. (Dave Wong's car)

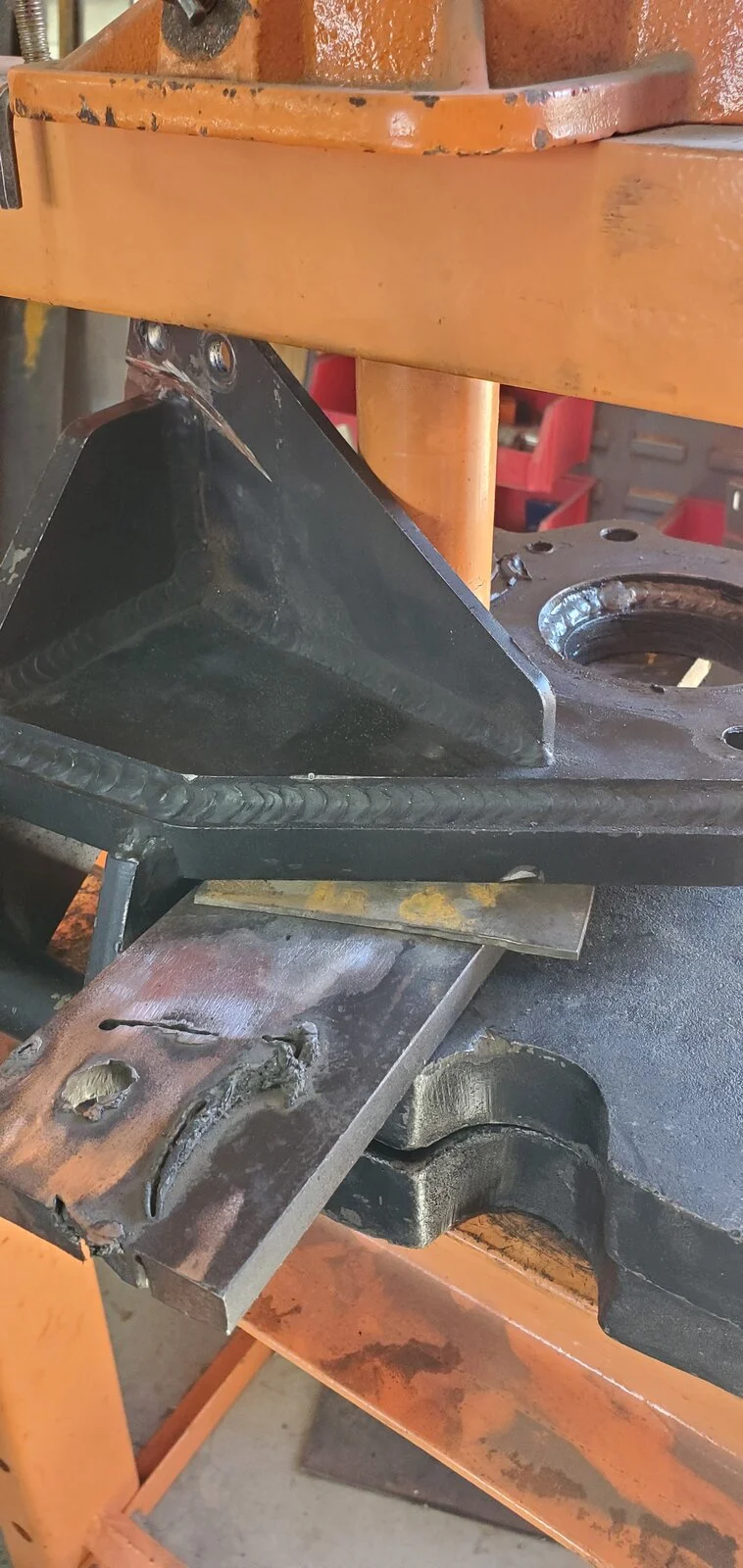

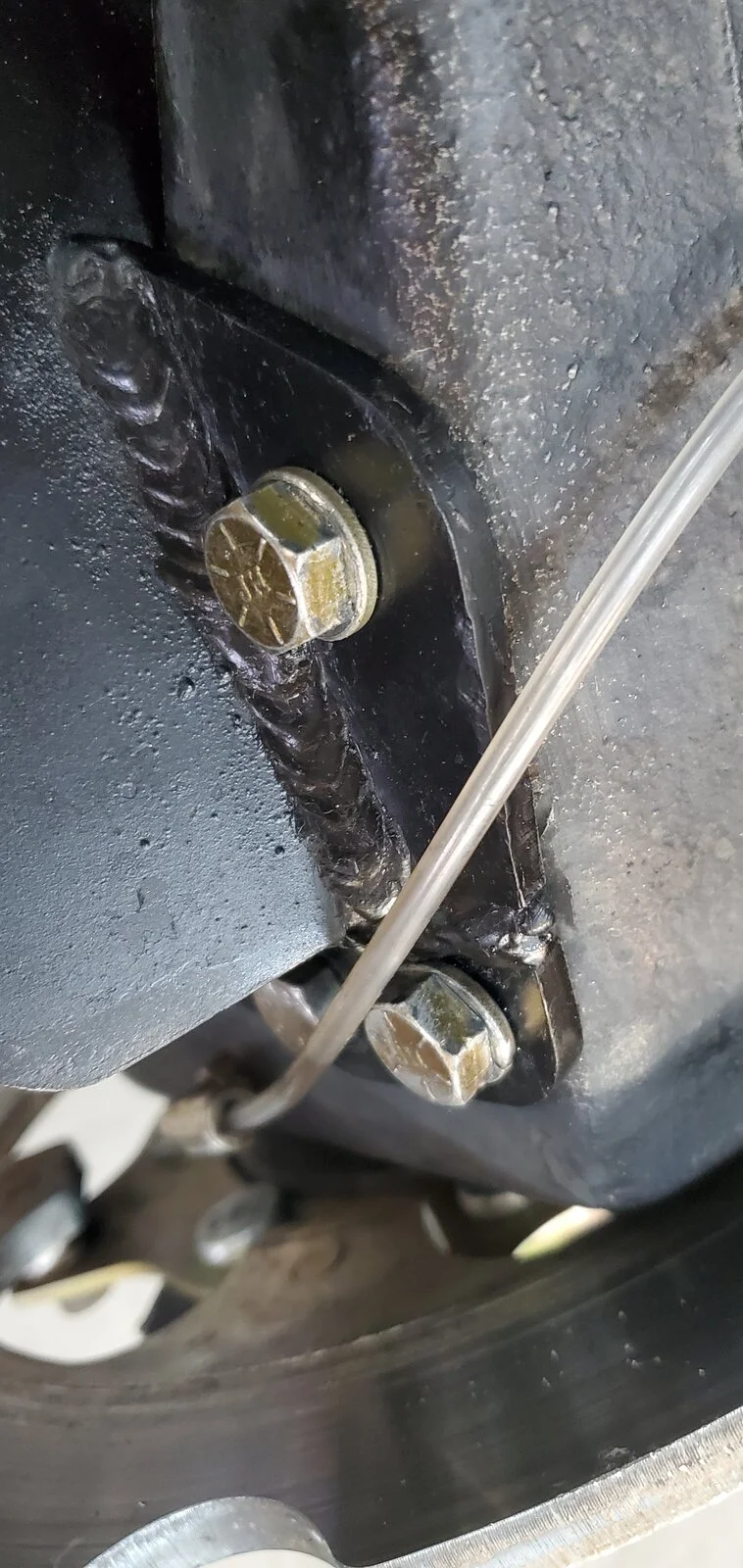

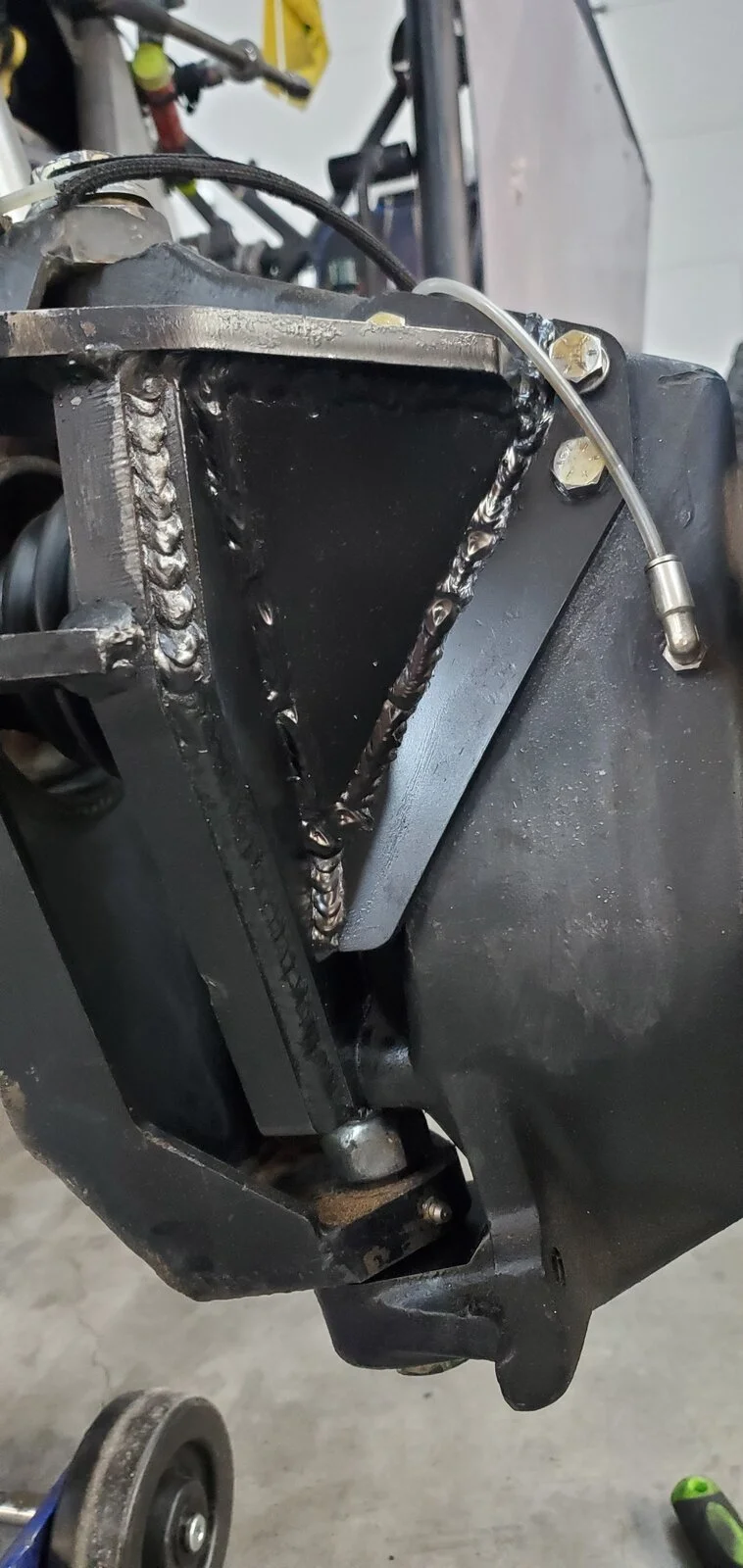

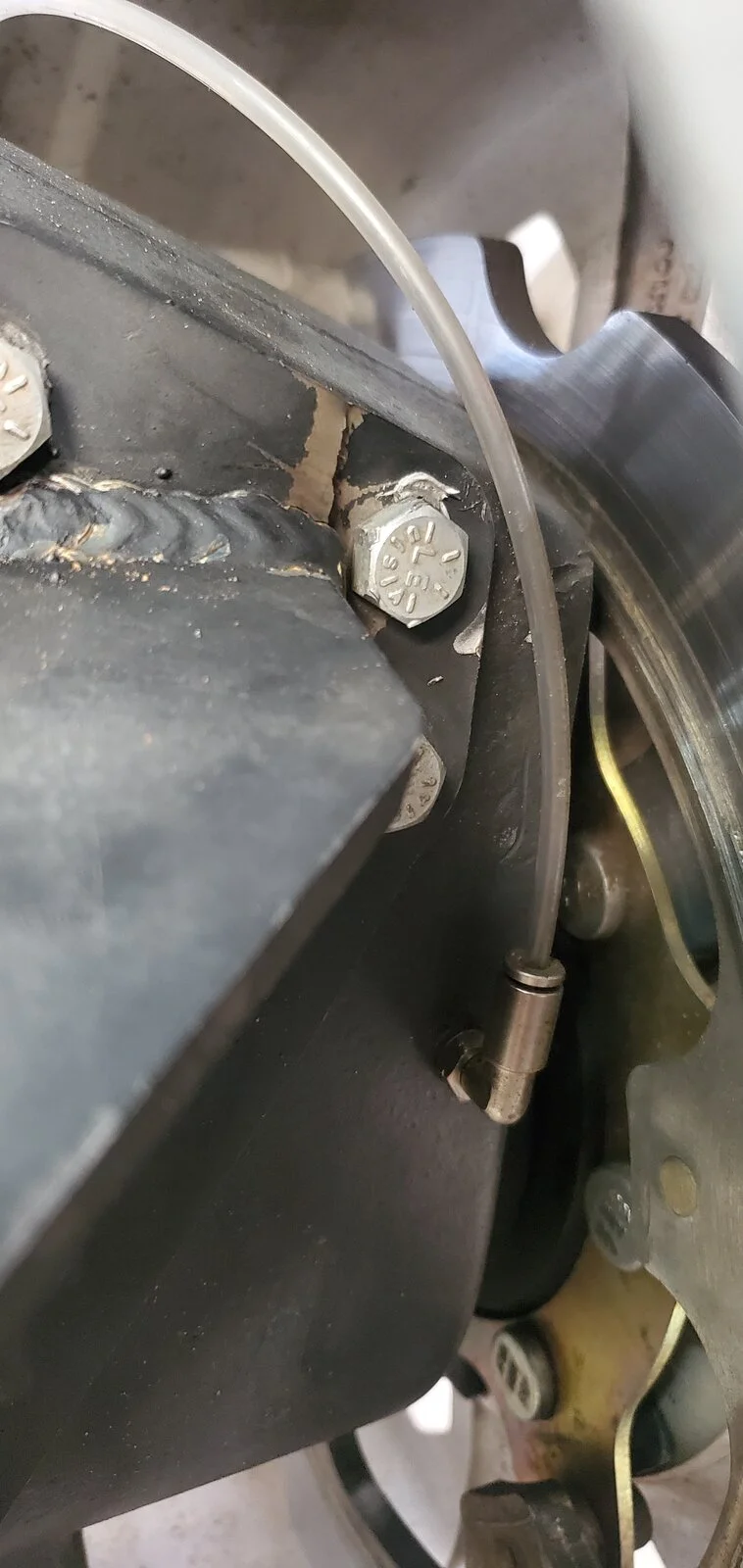

My fix was to plate the gap and spread the load (plus I didn't have the material or a lathe handy...) You do need to press the original plate as flat as you can first, then mock it up and weld while installed.

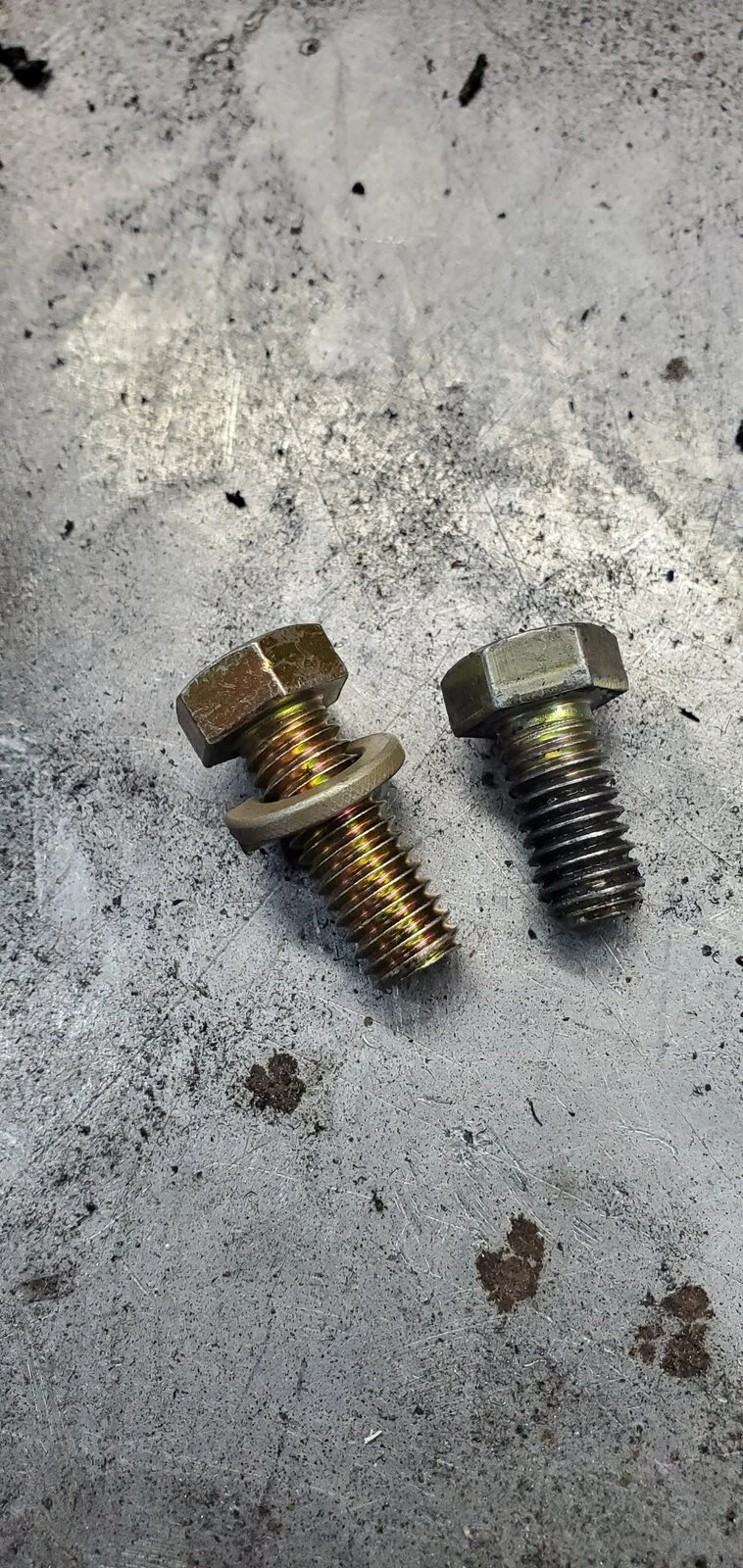

BTW, those top two bolts are blind holes, sono reason to not run longer bolts. 1" long plus a lock washer was perfect.
Jesse's fix is a piece of machined tube and a longer bolt. (Dave Wong's car)
My fix was to plate the gap and spread the load (plus I didn't have the material or a lathe handy...) You do need to press the original plate as flat as you can first, then mock it up and weld while installed.
BTW, those top two bolts are blind holes, sono reason to not run longer bolts. 1" long plus a lock washer was perfect.
Ghetto Fab
Spotter Required
Are you talking about plugging bleed holes? Or did you actually plug the compression ports in the piston? From that pic of the piston I don't see any bleed holes.
- Thread starter
- #473
There were no bleed holes to plug. There were 6 compression and 3 rebound. Now the front is 4/3 and the rear is 6/3. Yes, we plugged two compression holes in the front.
Broski
Spotter Required
I'm not the sharpest tool in the shed, but I can't see that plate helping much as the cracked plate and the two affected bolt holes are beyond the added plate. please explain
Jessy's fix literally ties the upper bolt hole to what looks to be 3/8" bracing.
No offense intended just trying to learn !!
- Thread starter
- #475
Can't bend the arm back if the plate supports it. Spreads the load wider.I'm not the sharpest tool in the shed, but I can't see that plate helping much as the cracked plate and the two affected bolt holes are beyond the added plate. please explain
Jessy's fix literally ties the upper bolt hole to what looks to be 3/8" bracing.
No offense intended just trying to learn !!
No different than a gusset.
Ghetto Fab
Spotter Required
So were you looking to decrease the compression flow through the piston? I've never seen anyone block off the valve ports in a piston. I know people have flipped the pistons to get more rebound and people block off and open bleed holes as needed for low speed stuff. Just seems like a stiffer compression stack would have achieved the same results. Dunno. Slow speed crawling stuff is.... different.
- Thread starter
- #477
Actually got it on the sand today....huge improvement in ride too. Still sucks on the really choppy spots, but the rebound increase helped a ton.
Pulled some solid lines today, super stable...need to run dumber lines
Ghetto Fab
Spotter Required
Thats where free bleed would help, in the choppy stuff, but I'm pretty sure that just leads to unloading with airshocks.Actually got it on the sand today....huge improvement in ride too. Still sucks on the really choppy spots, but the rebound increase helped a ton.
Pulled some solid lines today, super stable...need to run dumber lines
- Thread starter
- #479
The big issue with rock crawlers is getting weight bias correct....60/40 F/R split. That nearly always means water, shot or something in the front tires, even on a front engine car. Which DESTROYS any OEM rebound settings due to that added unsprung weight. I have 275 of water in each front tires, and that's only 2/3ish full (10:00 on the valve core). Bumping that to top of wheel (12:00) or fuller quickly bumps that weight into the 325-400 range.
Because the front rebound was stock, the top out washer was coned around the shim stack since the shock would regularly top out HARD. It's supposed to be flat. We pressed it back, but I have new ones ordered.
- Thread starter
- #480
Thanksgiving weekend fun....

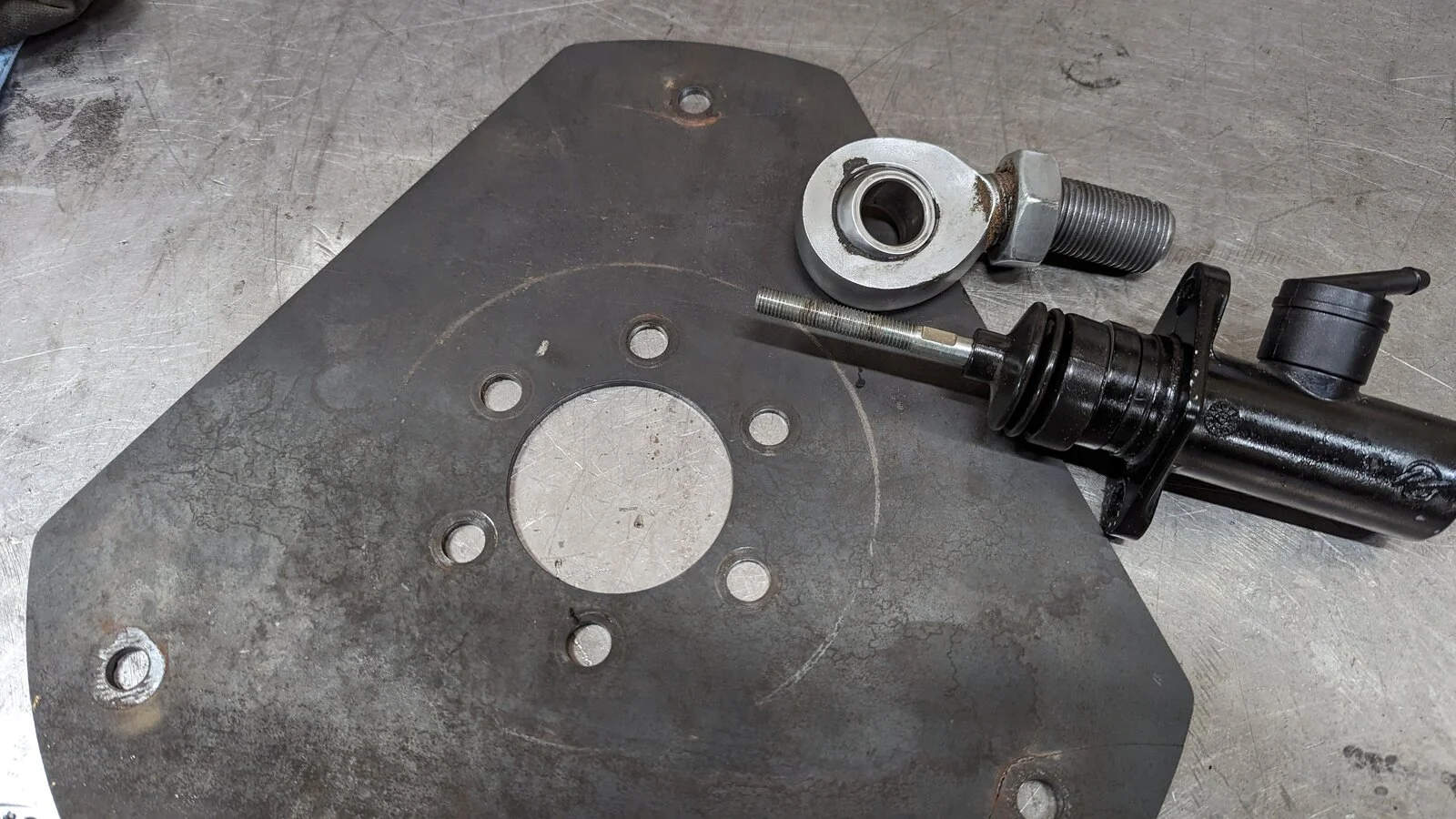

Have had an odd noise for a few trips...guessed it was the flexplate/adapter for the torque converter, but the first inspection didn't show a issue. Inspected again on Wednesday afternoon and found a crack. So that came out Wed evening, was reinstalled Thanksgiving morning, and buttoned up Friday morning....required pulling the trans/t-case back a few inches, but not actually removing. A pain, but could be worse. The replacement is now a full-circle design.
During the button-up process, I noticed a bent heim....drivers side lower at the chassis (below my feet). Clearly, my recent penchant for dropping off stupid ledges is paying off.... So following Friday's 30 minute banzai run up Broken Chain, I contacted my local buddy who owns HeimJoints.net to see what he had. Zipped by his place on Saturday morning and picked up 4 spare 7/8 thread-3/4 bore heims. Took about an hour to replace the bend one. No, these are not the expensive ones, 30k rated only.
Sunday wheeling, brake issues. Right cutter had ZERO pressure, so assumed it blew a cup seal. Pulled it that aft and disassembled...and found no visible issues. "guessing" the internals just jammed somehow, and ordered a rebuild kit just in case. While I was in there, I pulled the 1-1/8" master and replaced it with a 1". Reassembled and rebled everything and brakes are working great.
Supposed to be headed to JV this weekend for some tire testing, hopefully the issues only came in threes
Have had an odd noise for a few trips...guessed it was the flexplate/adapter for the torque converter, but the first inspection didn't show a issue. Inspected again on Wednesday afternoon and found a crack. So that came out Wed evening, was reinstalled Thanksgiving morning, and buttoned up Friday morning....required pulling the trans/t-case back a few inches, but not actually removing. A pain, but could be worse. The replacement is now a full-circle design.
During the button-up process, I noticed a bent heim....drivers side lower at the chassis (below my feet). Clearly, my recent penchant for dropping off stupid ledges is paying off.... So following Friday's 30 minute banzai run up Broken Chain, I contacted my local buddy who owns HeimJoints.net to see what he had. Zipped by his place on Saturday morning and picked up 4 spare 7/8 thread-3/4 bore heims. Took about an hour to replace the bend one. No, these are not the expensive ones, 30k rated only.
Sunday wheeling, brake issues. Right cutter had ZERO pressure, so assumed it blew a cup seal. Pulled it that aft and disassembled...and found no visible issues. "guessing" the internals just jammed somehow, and ordered a rebuild kit just in case. While I was in there, I pulled the 1-1/8" master and replaced it with a 1". Reassembled and rebled everything and brakes are working great.
Supposed to be headed to JV this weekend for some tire testing, hopefully the issues only came in threes
Last edited:
